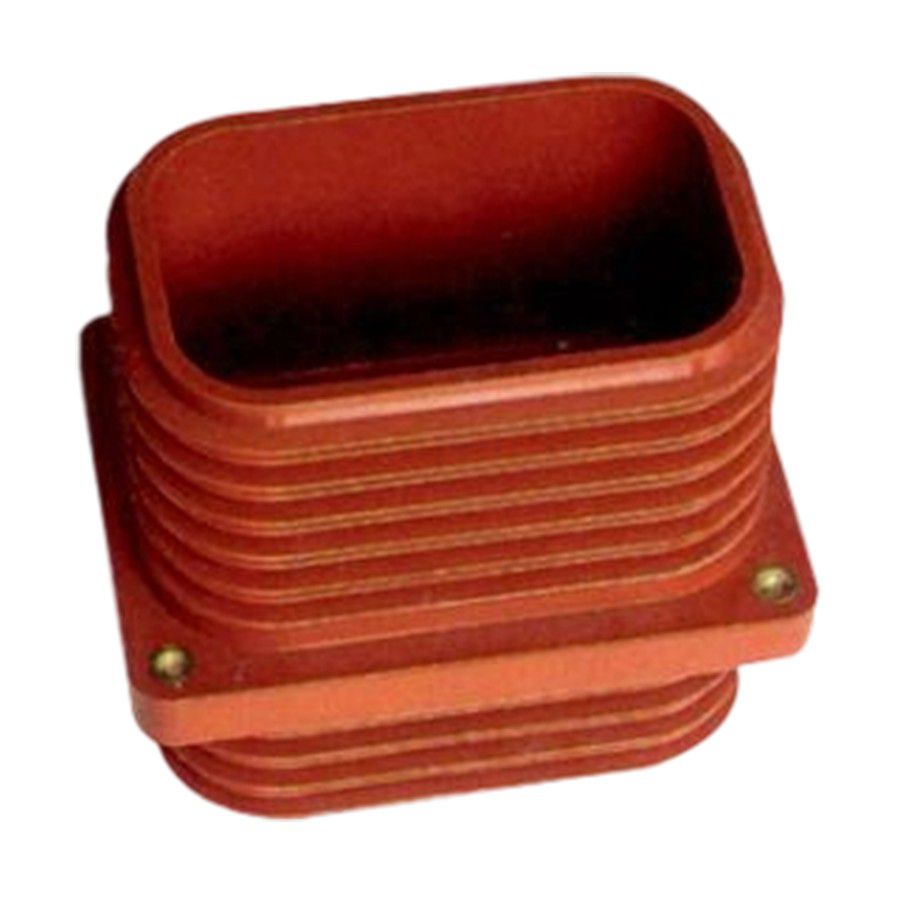

TG1-10Q-140×230
产品参数 Main technical parameter
|
Item 项目 |
Data 参数 |
|
Ordering code 产品编号 |
1551056 |
|
Power frequency withstand voltage 工频耐压 |
42KV/1min |
|
Lightning impulse voltage 雷电冲击电压 |
75KV |
|
Glass transaCTion temperature 玻璃化温度 |
≥105℃ |
|
Impulse Condensation 冲击凝露 |
75KV |
|
Power frequency Condensation 工频凝露 |
12KV/1min |

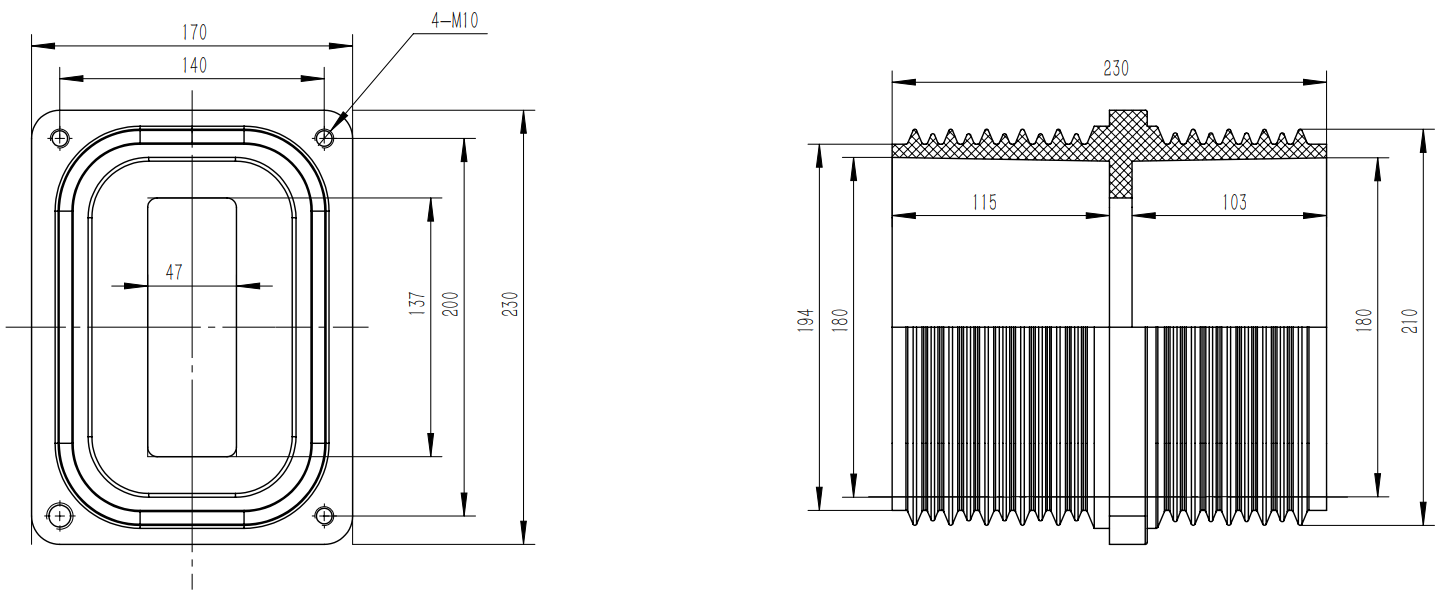

外形及安装尺寸 Overall and installation dimensions
