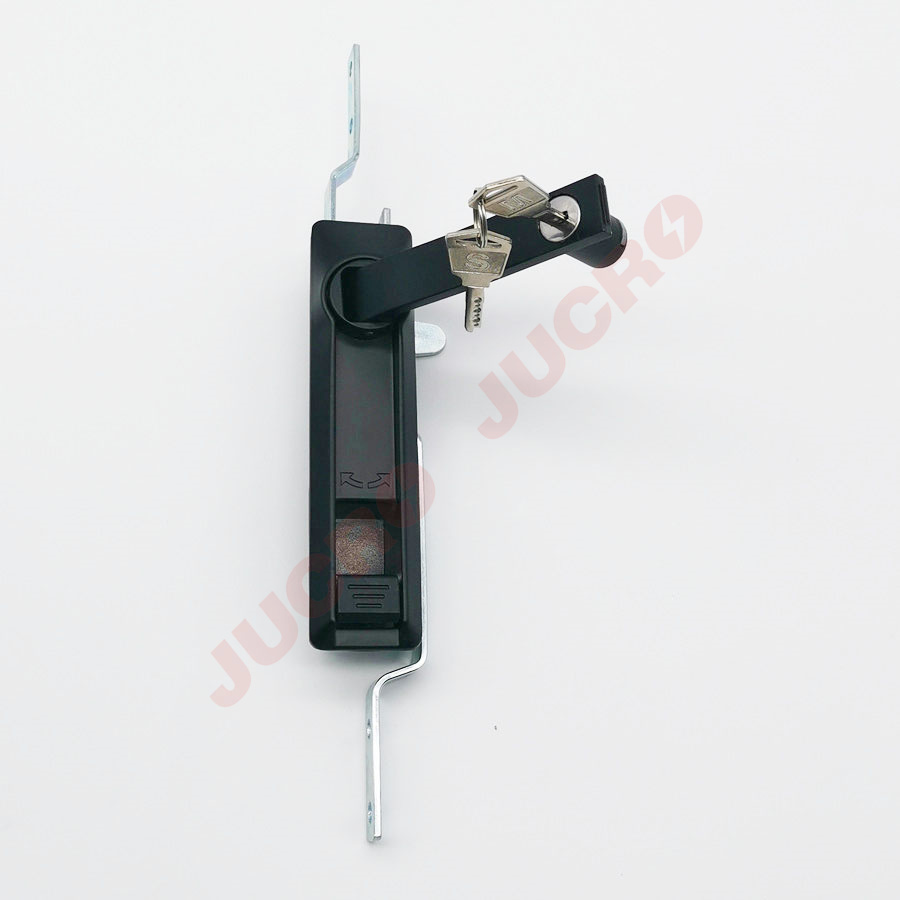

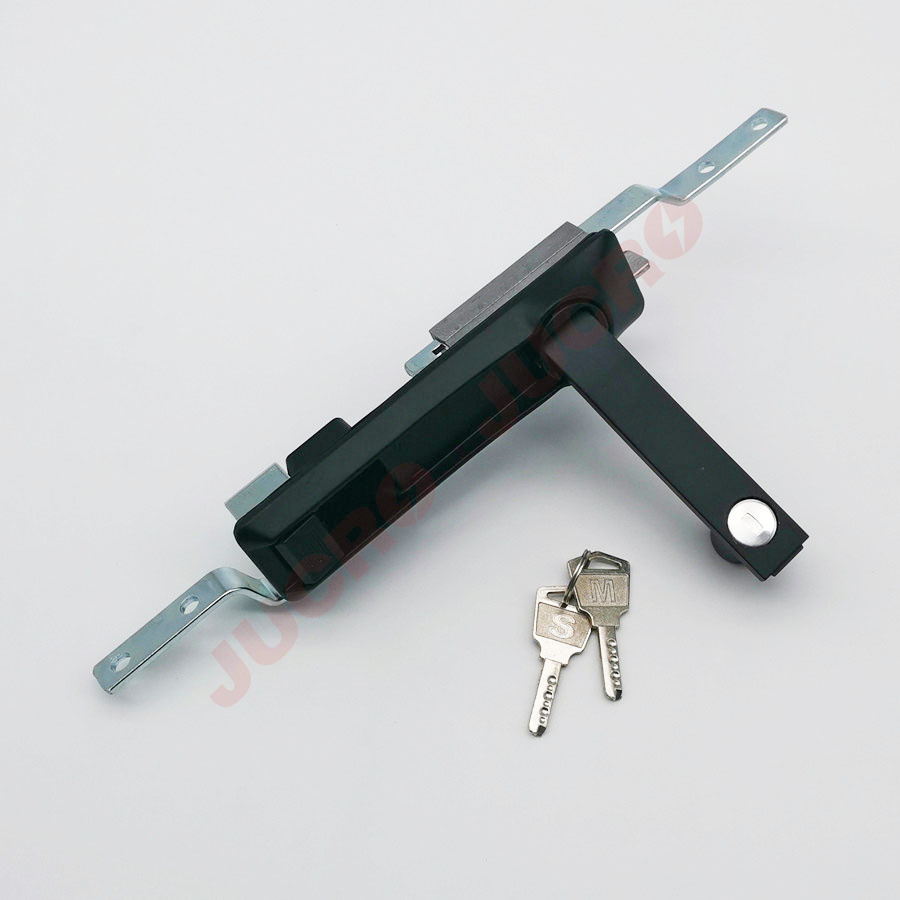

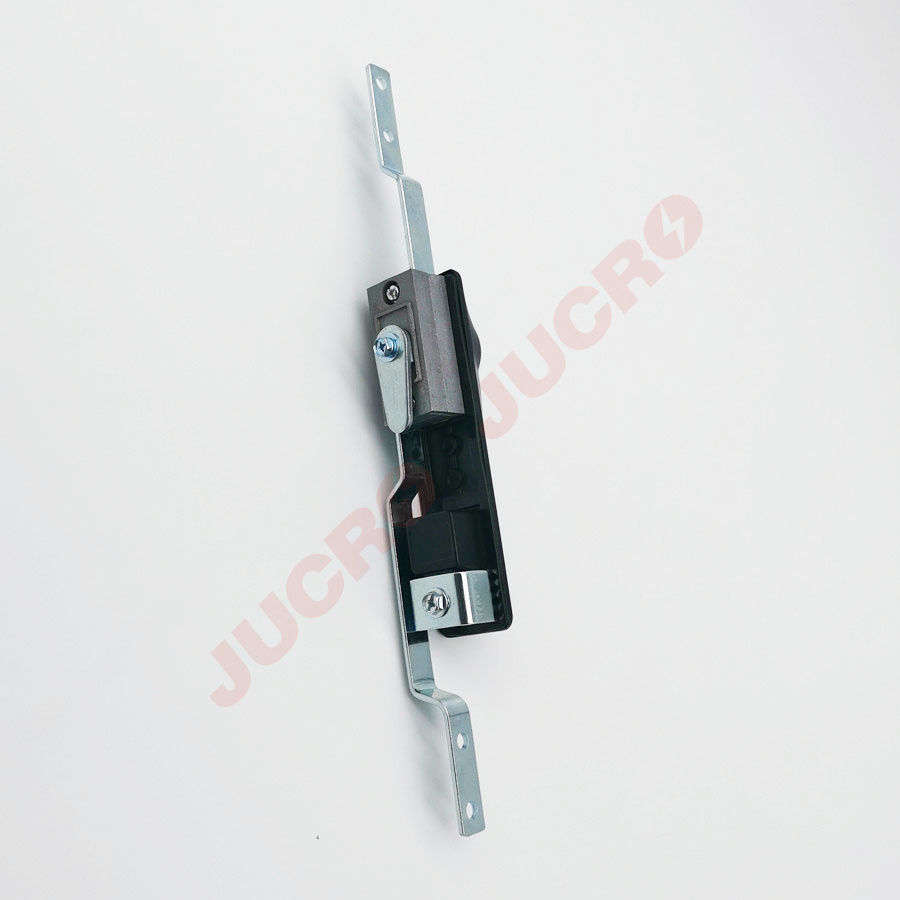

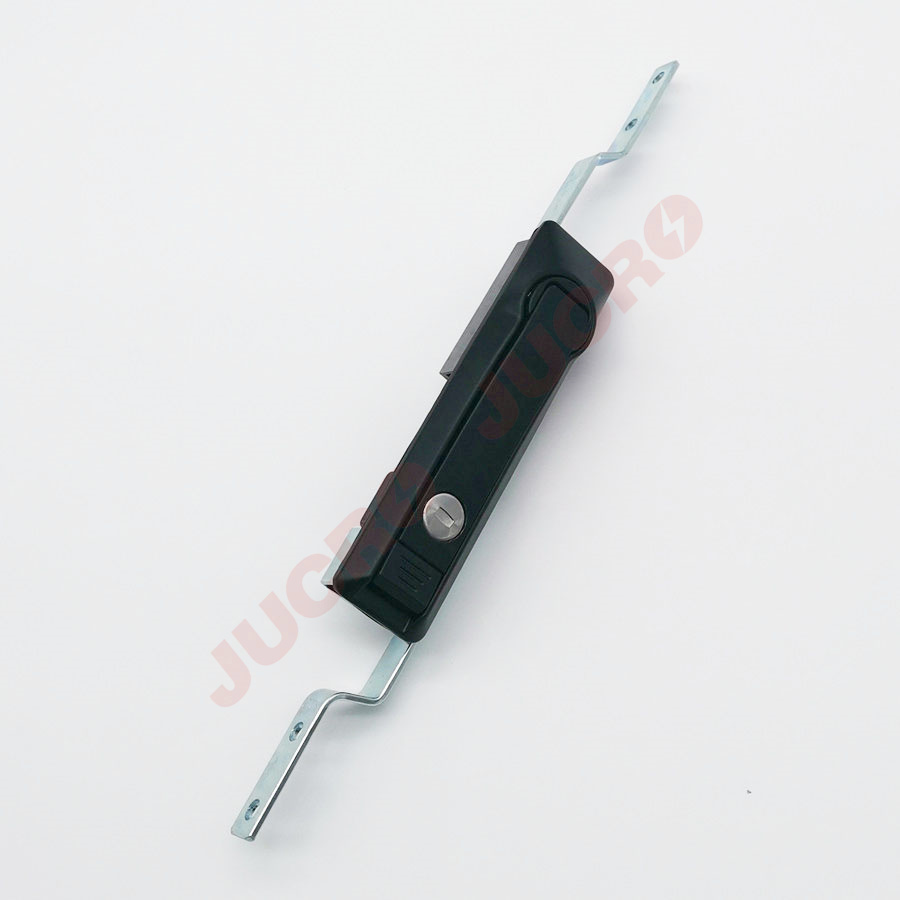

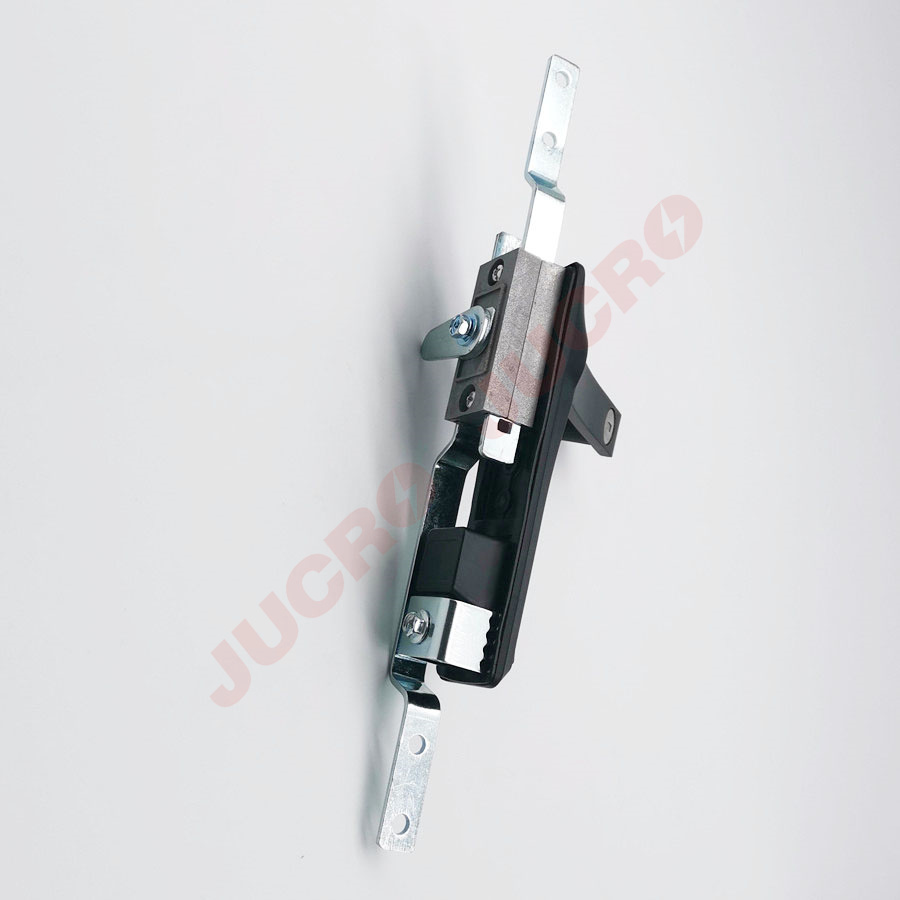

Rod control lock DL828
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、按钮、Q235压板，碳钢钢栓、传动条 Zinc alloy base，handle, button and plate; carbon steel bolt and rod |
表面处理 Surface treatment | 喷塑基座、手柄、按钮，镀白锌钢栓、传动壳组件 Black spray plastic for base, handle and button; white zinc plating for steel bolt and rod mechanism |
结构说明 Structure descriPTion | 锁芯180°旋转打开，按下按钮，手柄自动弹起，带动传动壳组件实现开启或锁闭 90 degree handle rotation combines with rod latch to open or close |
备 注 Remark | 默认K100钥匙 Default key K100 |
性能参数 PERFORMANCE PARAMETERS | |
手柄承载拉力值 Handle load tension capability | ≤340N |
手柄承载扭矩值 Handle load torque capability | ≤28N•m |

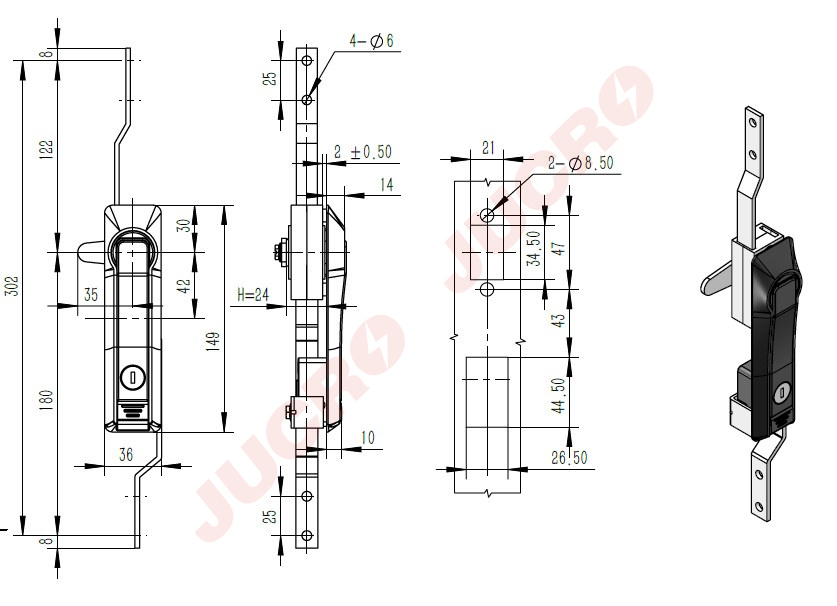

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
