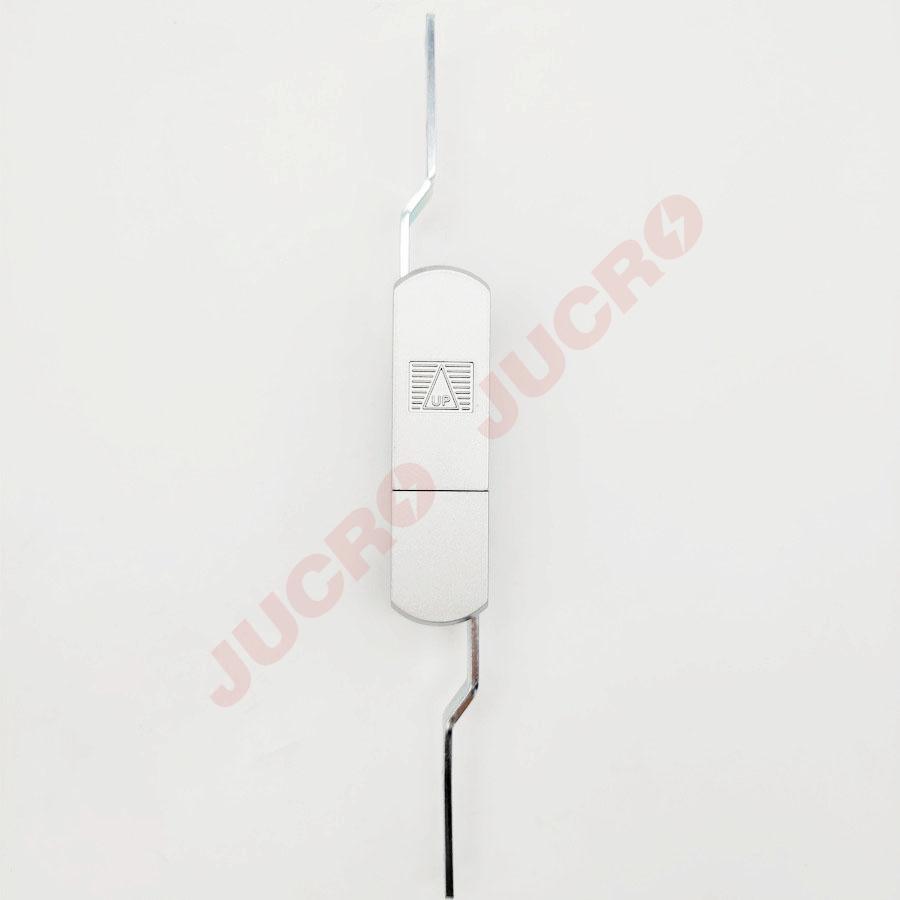

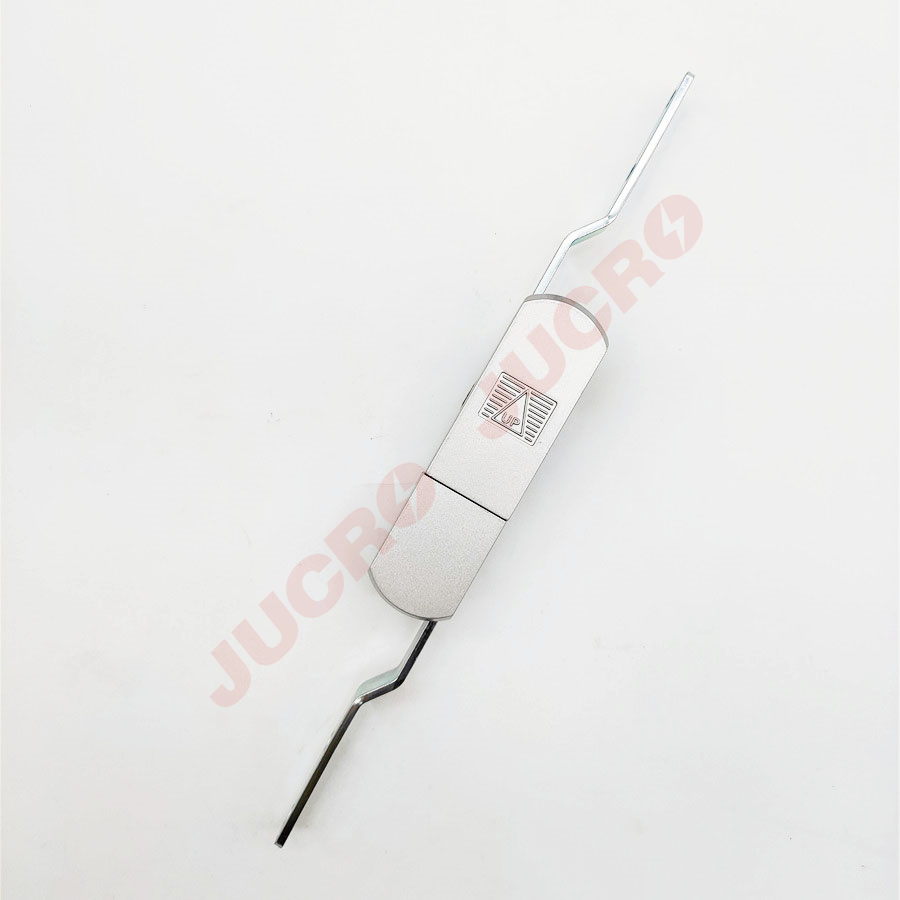

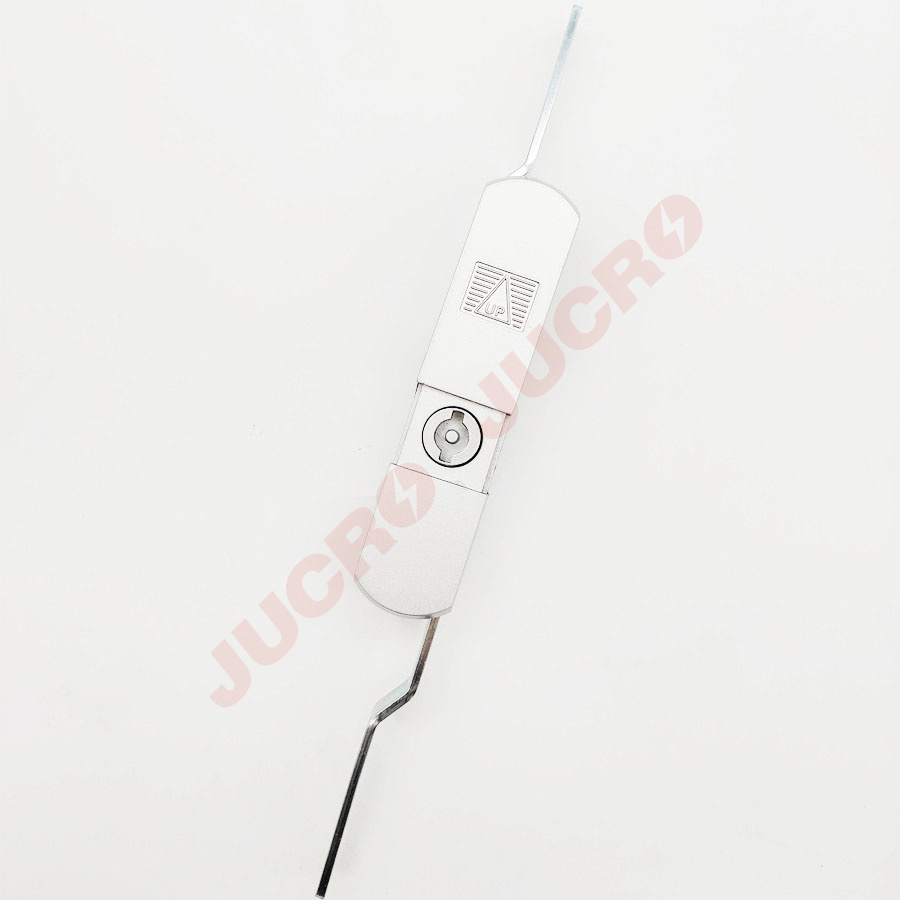

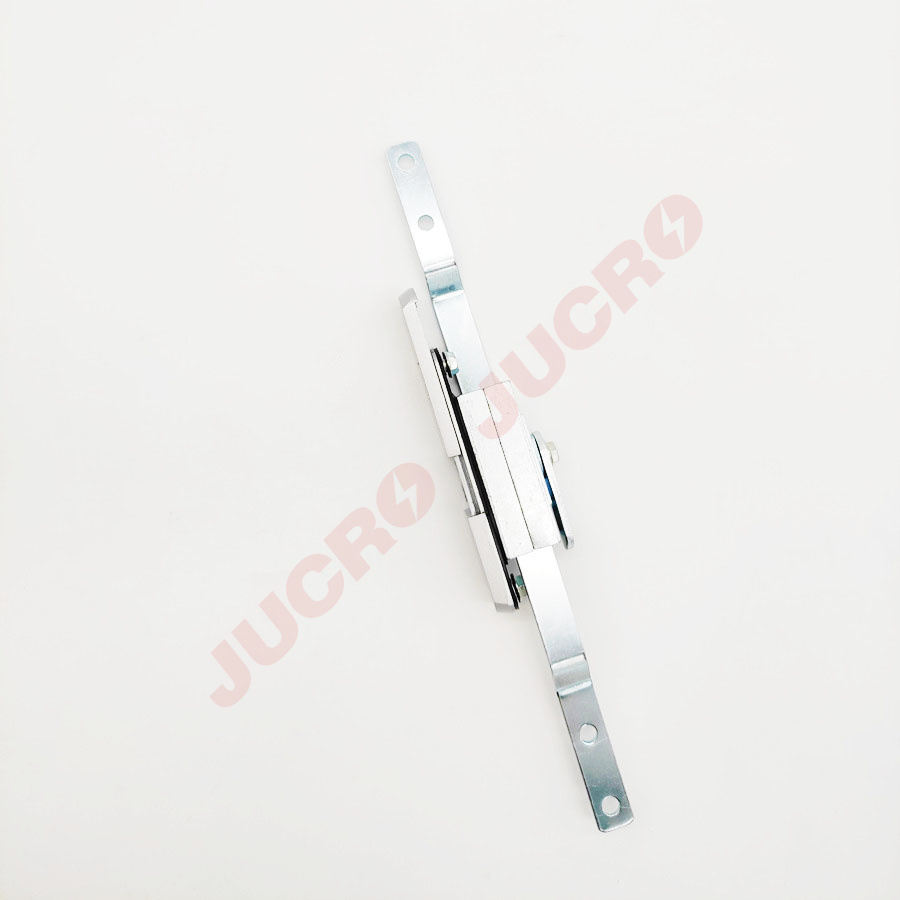

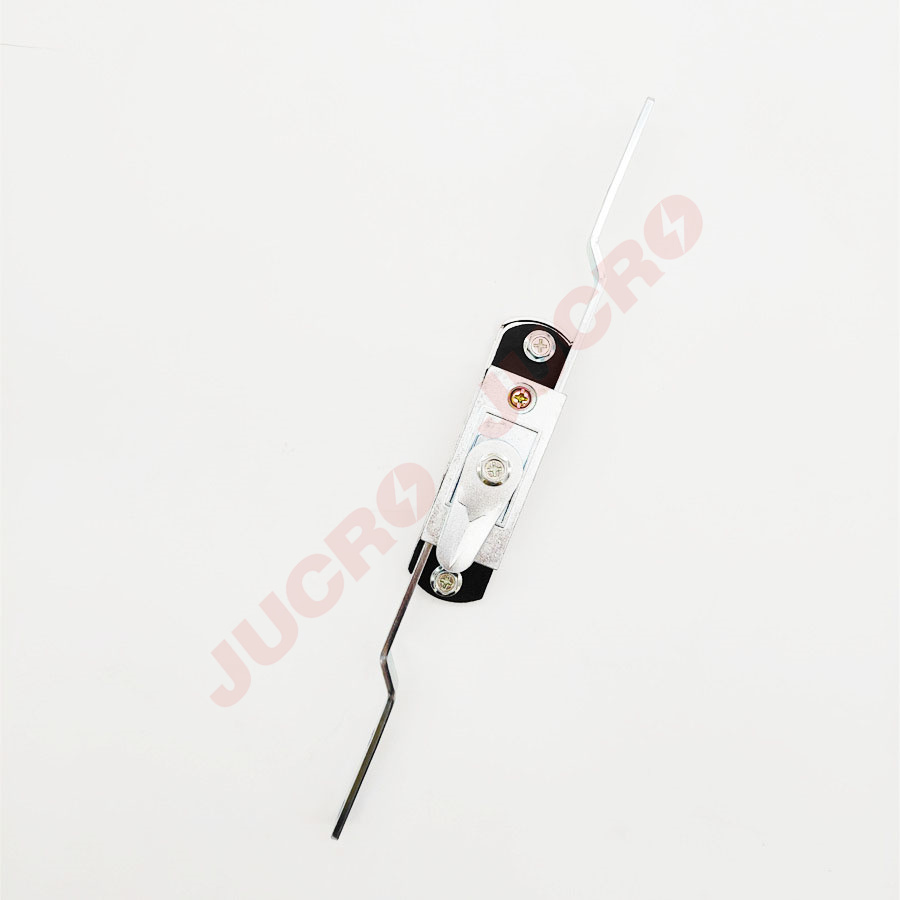

Rod control lock DL821
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金面板、防尘盖、锁芯，碳钢钢栓、传动条 Zinc alloy panel，dust-proof cap and Lock cylinder,carbon steel bolt and rod latch |
表面处理 Surface treatment | 纳米哑光面板、防尘盖、锁芯，镀白锌钢栓、传动壳组件 Nanotechnology Matt panel，dust-proof and cylinder，white zinc plating steel bolt and rod mechanism |
结构说明 Structure descriPTion | 旋转90°实现开启或锁闭 Quarter-turn lock/un-lock |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
输入扭矩值 Input torque | ≤9N.m |

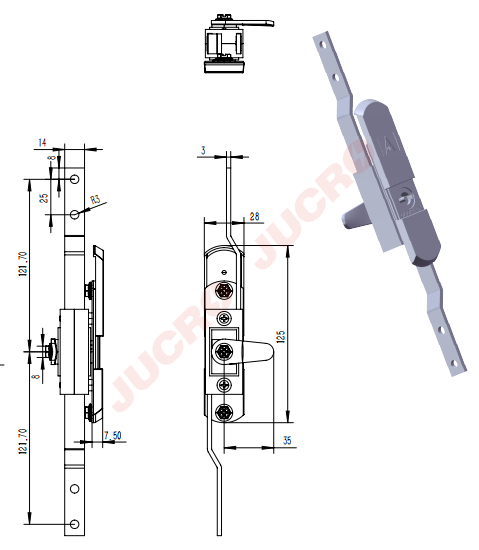

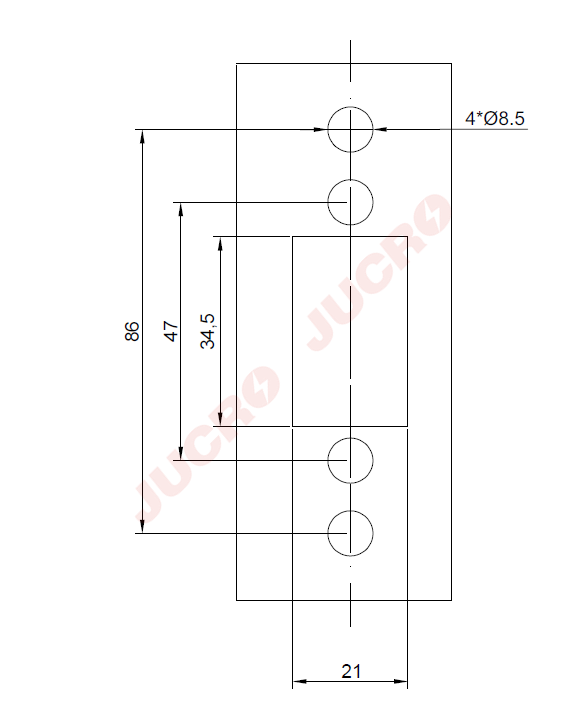

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
