特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金锁芯、传动壳,ABS面板,碳钢钢栓、传动条 Zinc alloy Lock cylinder and driven shell ,ABS panel,carbon steel bolt and rod latch |
表面处理 Surface treatment | 镀亮铬锁芯,镀白锌钢栓、传动壳组件 Bright chrome plated cylinder,white zinc plating steel bolt and rod mechanism |
结构说明 Structure descriPTion | 手柄90°旋转带动传动壳组件实现开启或锁闭 Insert quarter-turn rotation combines with rod mechanism to open or close |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
输入扭矩值 Input torque | ≤3N.m |

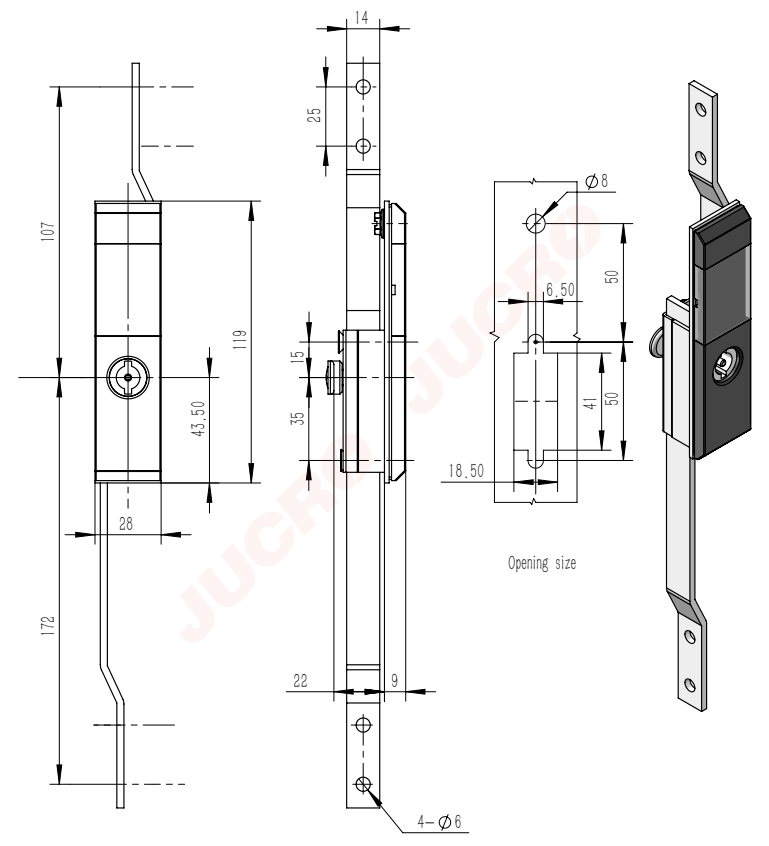

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
