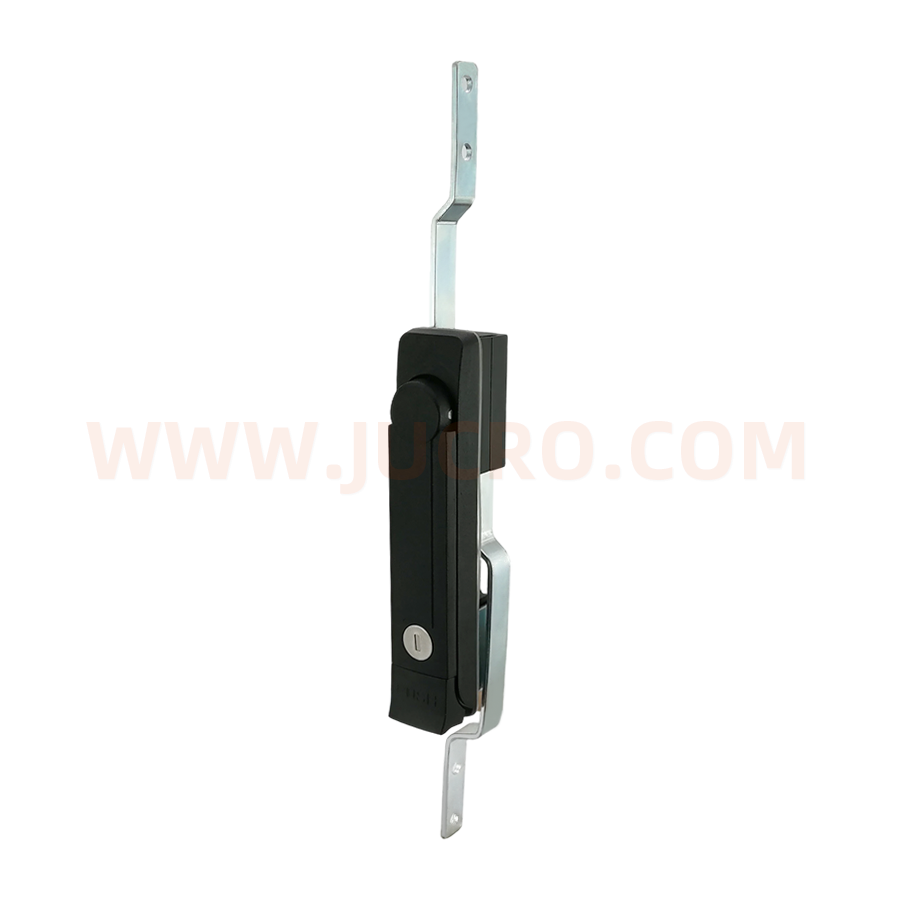

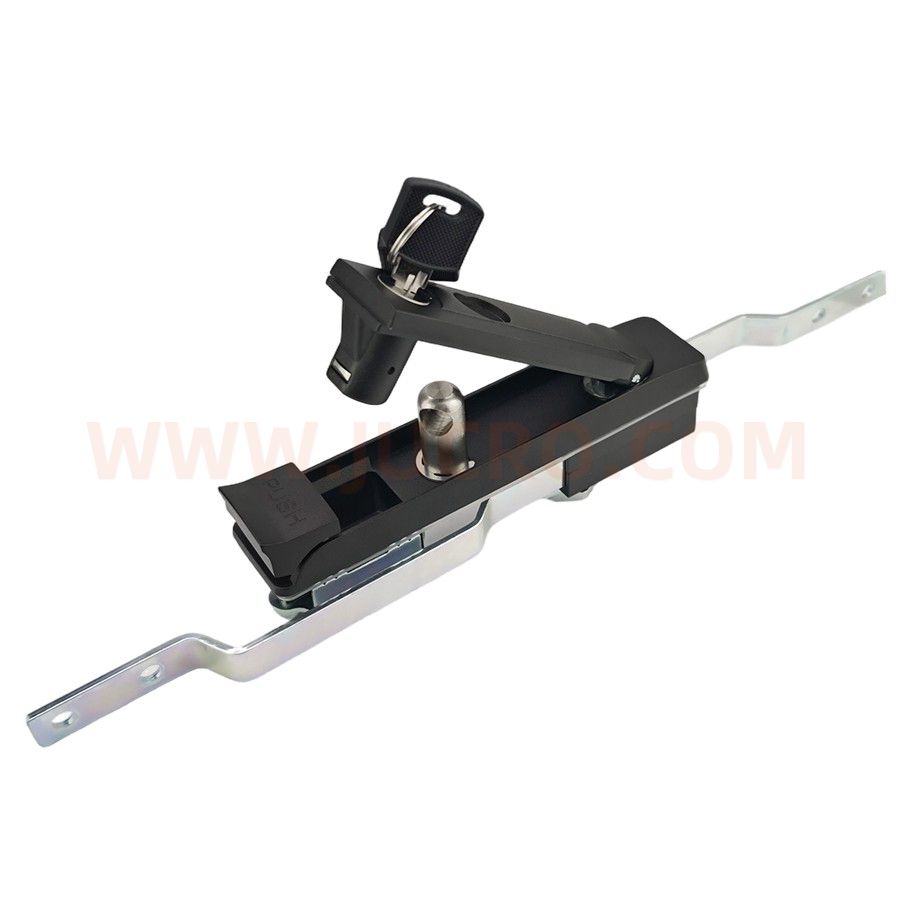

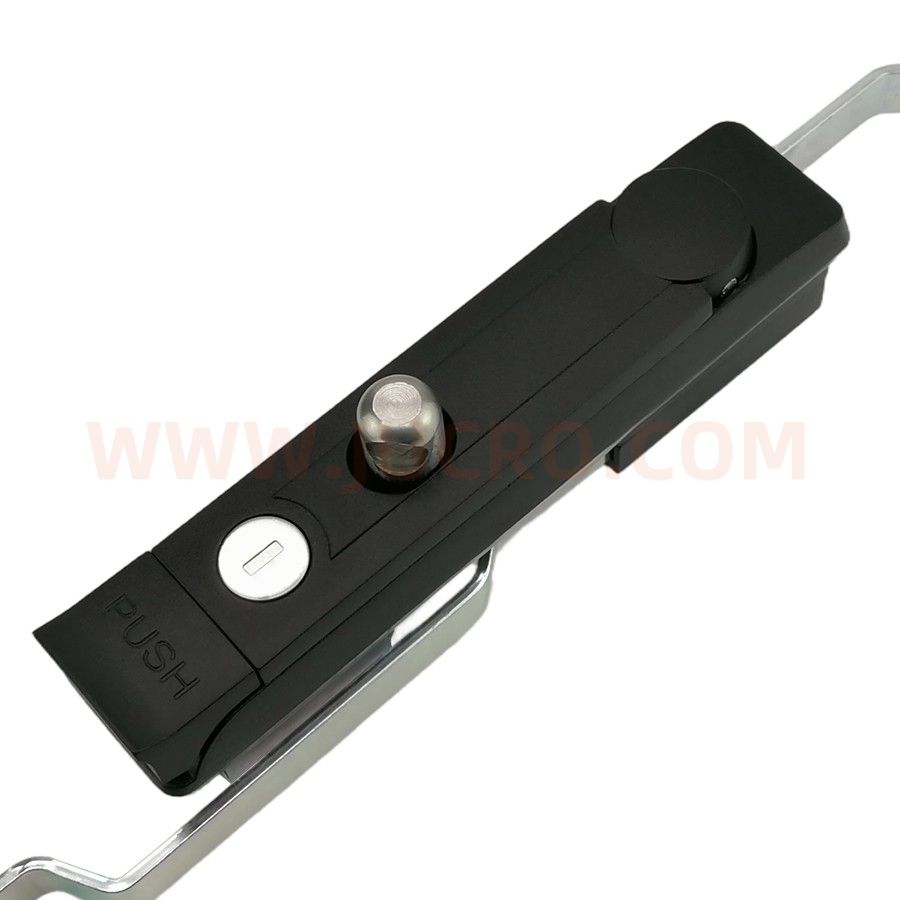

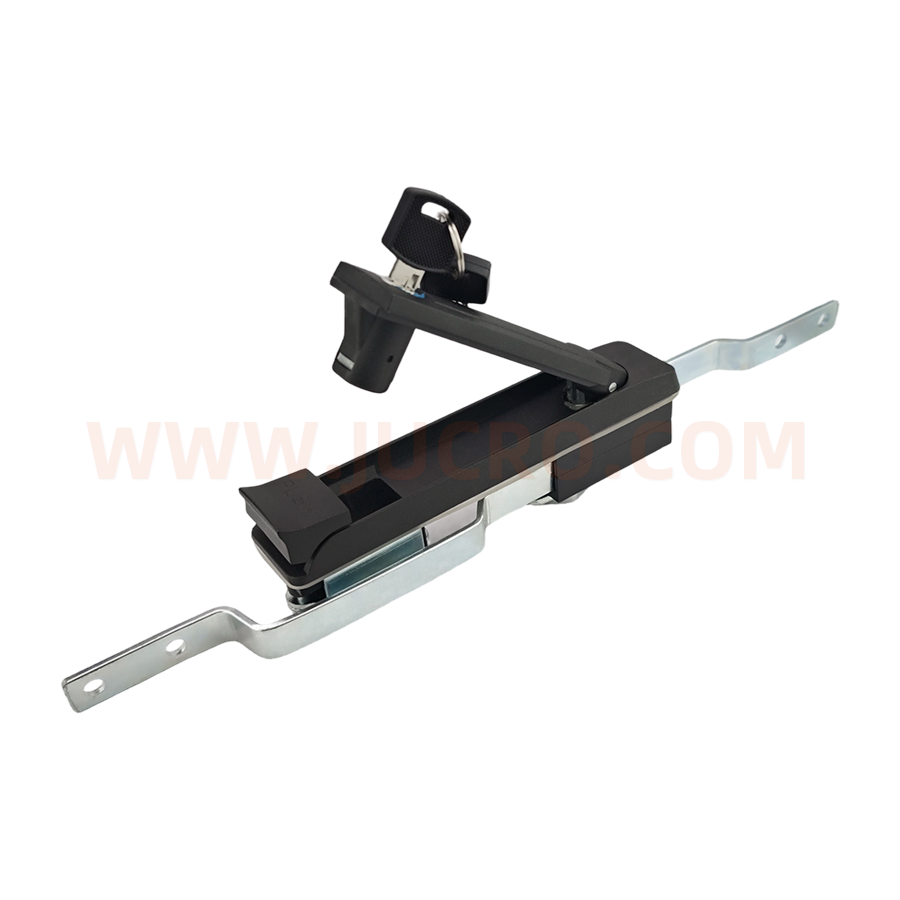

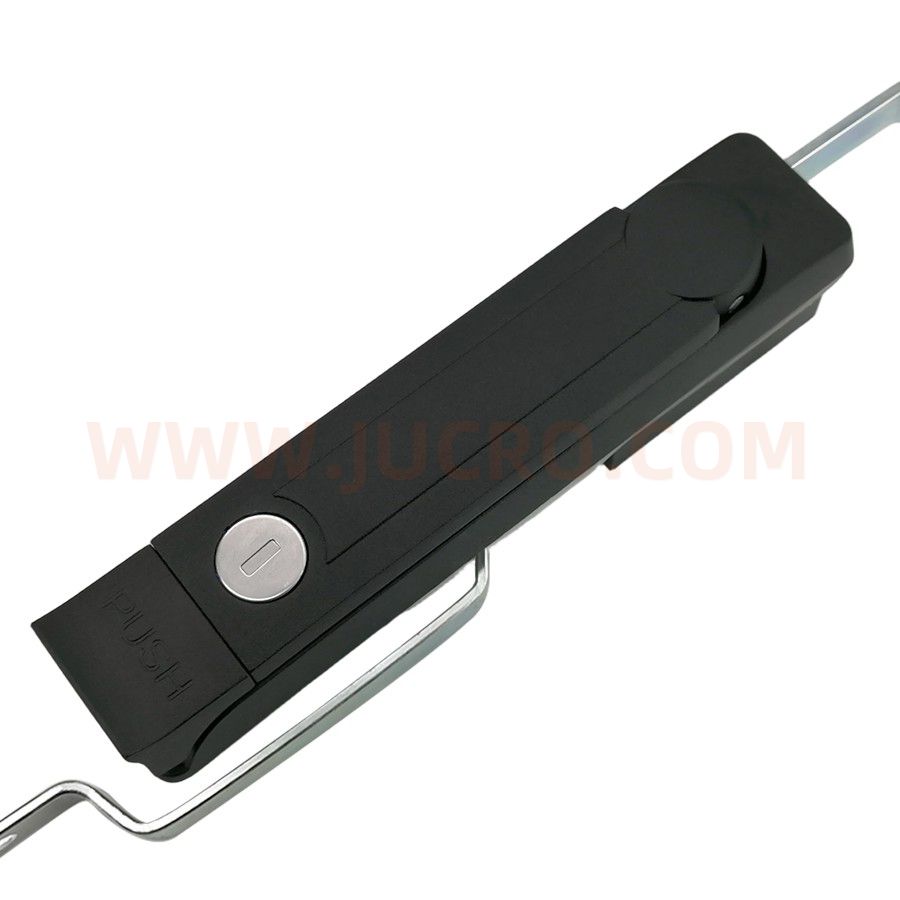

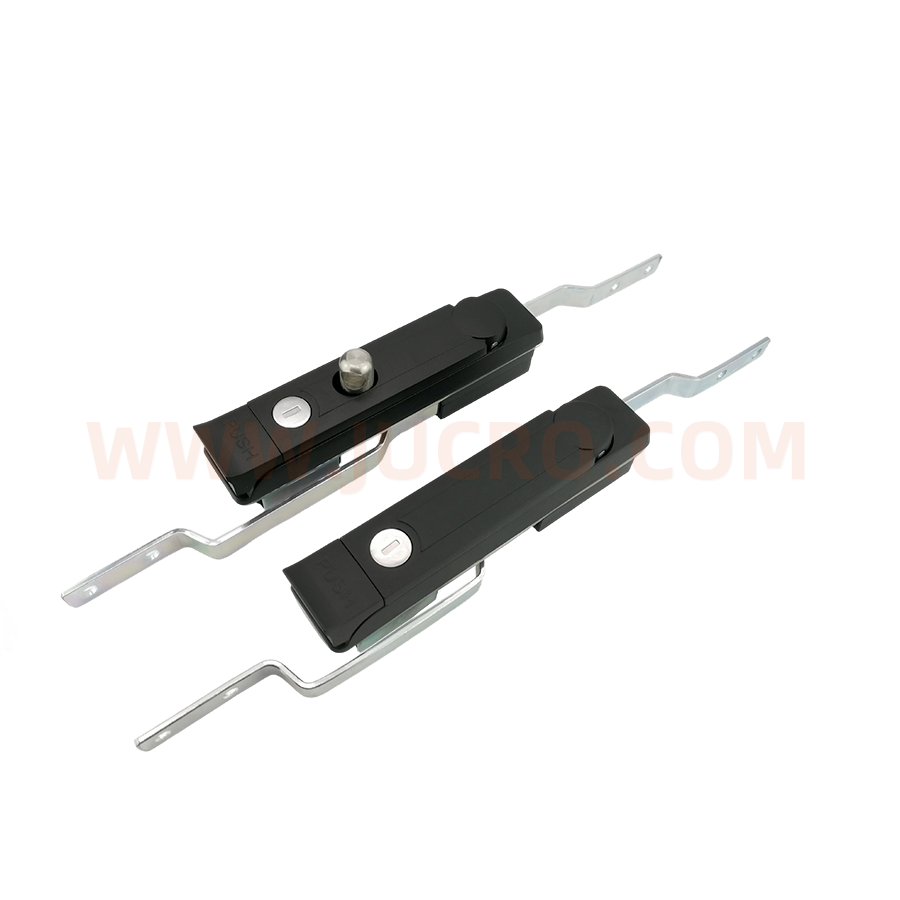

ROD CONTROL LOCK (DL840/DL840G)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金锁体、手柄，碳钢锁舌、传动条 Zinc alloy housing and handle, carbon steel cam and rod |
表面处理 Surface treatment | 喷塑（黑麻面）锁体、手柄、按钮，镀白锌锁舌、传动壳组件 Black spray plastic (pitted surface) for housing, handle and button; white-zinc plated steel cam and rod mechanism |
结构说明 Structure descriPTion | 旋转手柄可以实现门板的开启和关闭 90 degree handle rotation combines with rod latch to open or close |
备 注 Remark | 默认K030钥匙/可选配挂锁功能 Default key K030/ PadLockable optional |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
手柄承载拉力值 Handle load tension capability |
≤295N |
|
手柄承载扭矩值 Handle load torque capability |
≤25N•m |
|

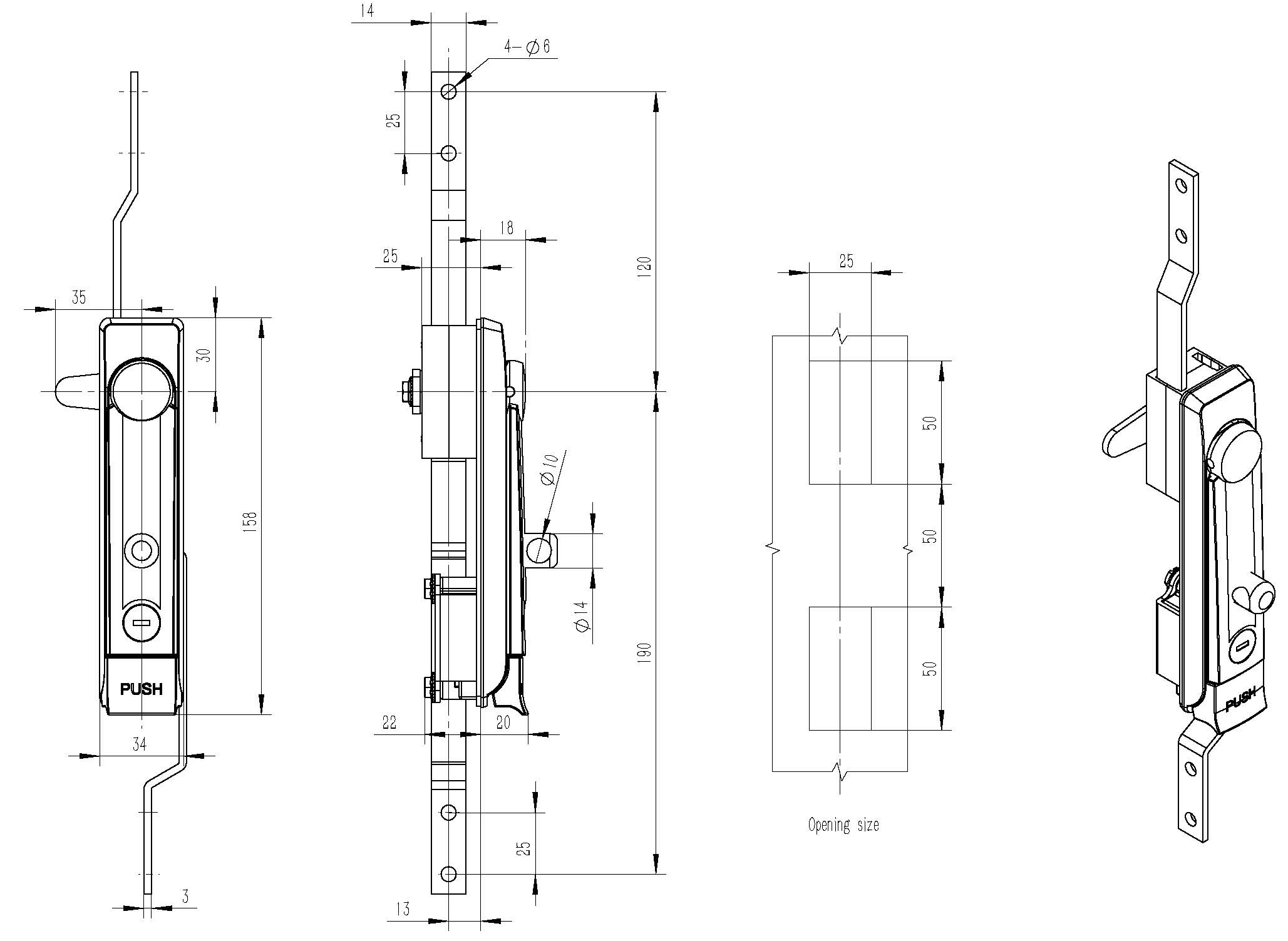

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
