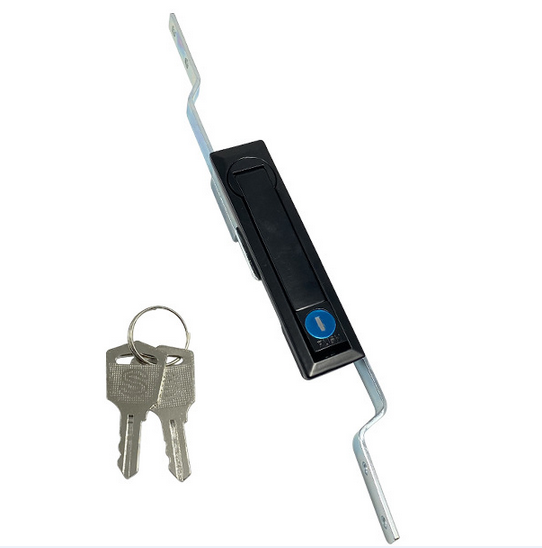

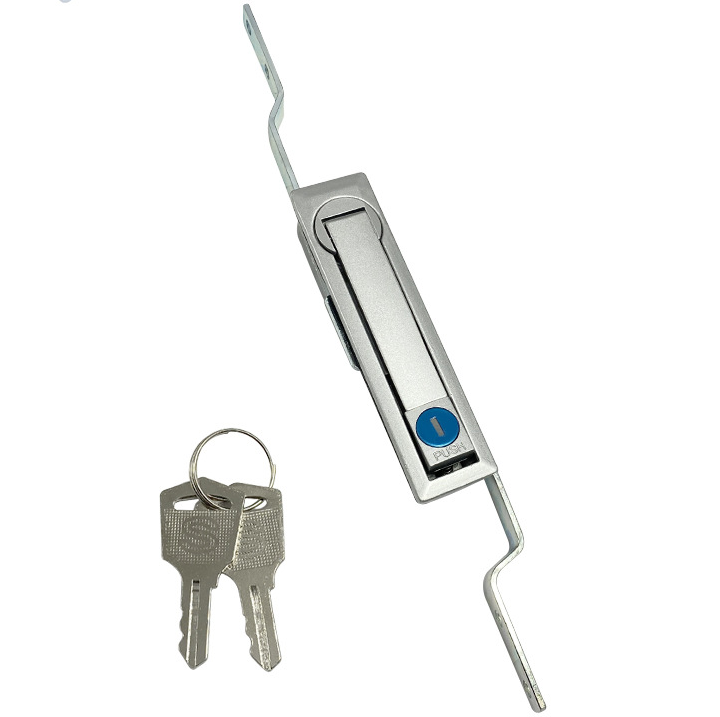

ROD CONTROL LOCK (DL731)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、按钮、Q235压板，碳钢钢栓、传动条 Zinc alloy housing，handle, button and plate; carbon steel bolt and rod |

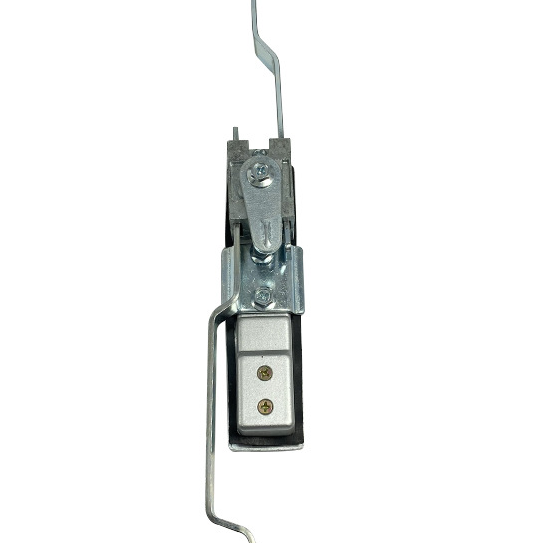

表面处理 Surface treatment | 喷塑基座、手柄、按钮，镀白锌钢栓、传动壳组件 Spray coating housing, handle and button; white zinc plated steel bolt and rod mechanism |

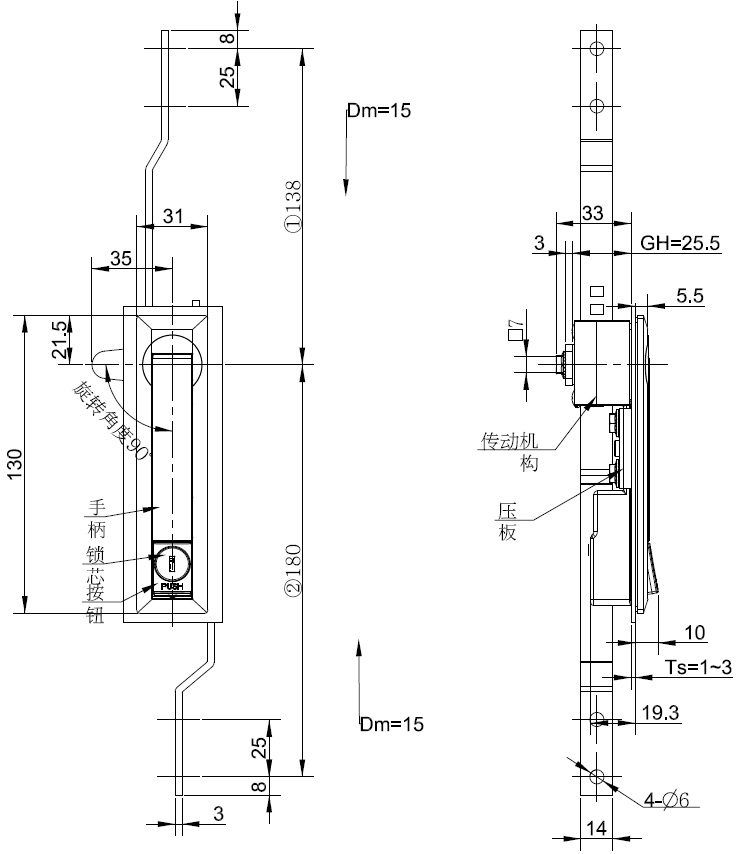

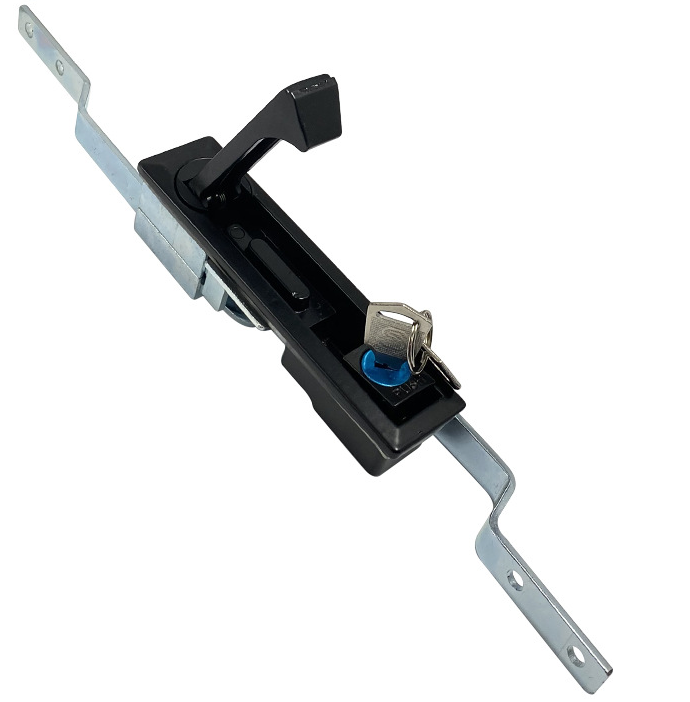

结构说明 Structure descriPTion | 锁芯180°旋转打开，按下按钮，手柄自动弹起，带动传动壳组件实现开启或锁闭 90 degree handle rotation combines with rod latch to open or close |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
手柄承载拉力值 Handle load tension capability | ≤350N |
手柄承载扭矩值 Handle load torque capability | ≤25N•m |
