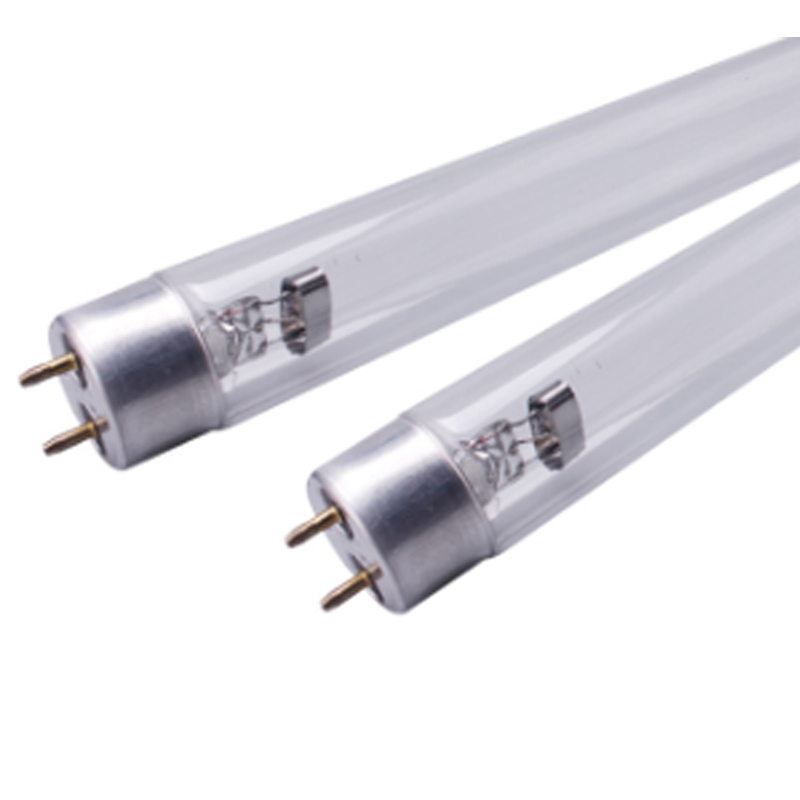

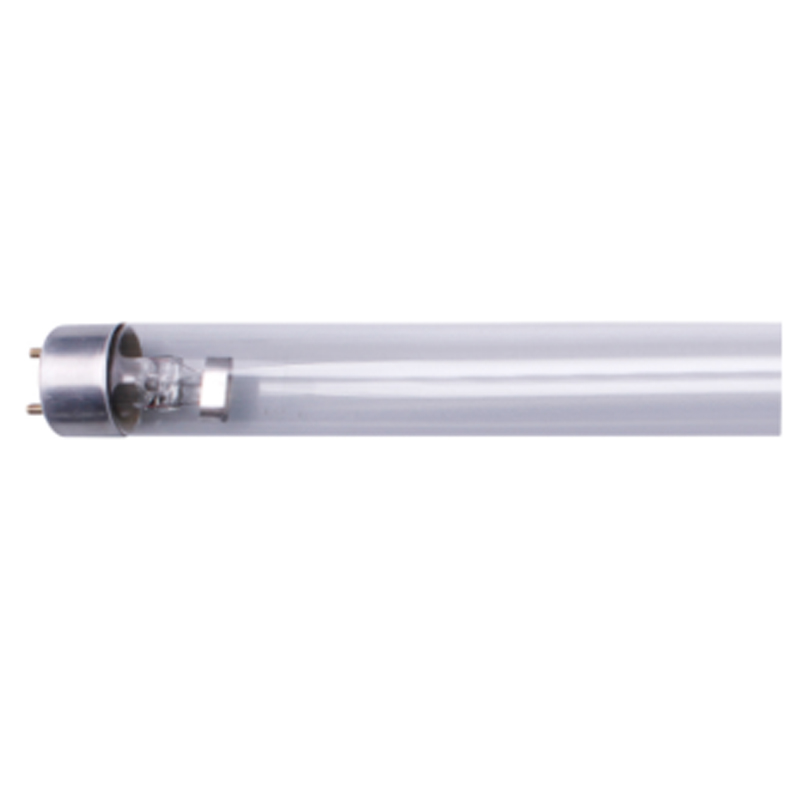

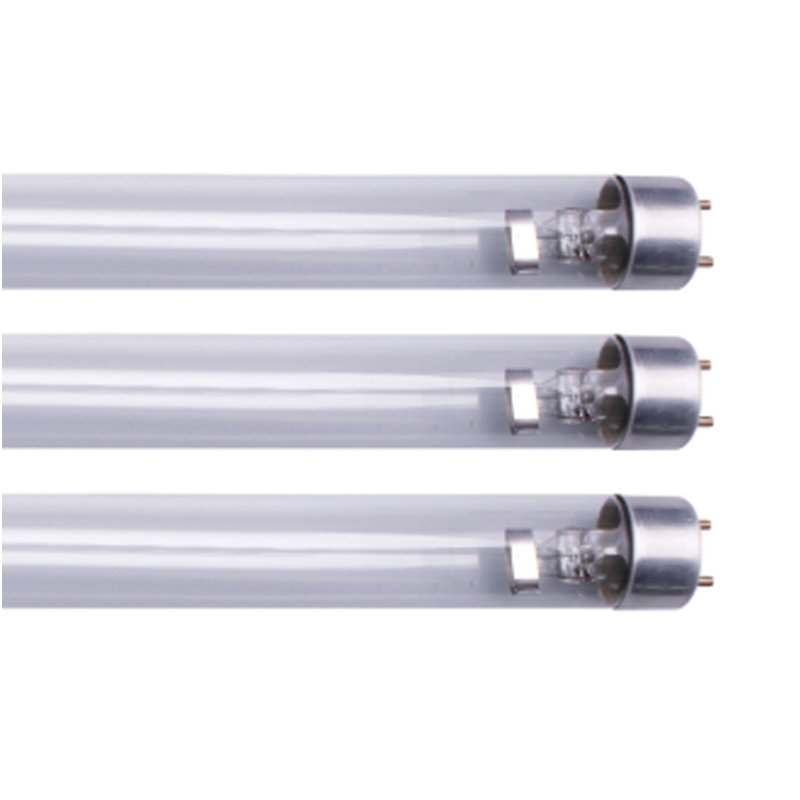

T8 High Quality Home use UV germicidal lamp tube G13 Factory Hospital Air Purification System 15W

T8 High Quality Home use UV germicidal lamp tube  G13 Factory Hospital Air Purification System 15W

Quantity

Product Detail

GENERAL

T8 series UV sterilization lamps are suitable for professional water and air disinfeCTion. T5 has two types of interface for choice. One is single-ended interface. The other is double-ended interfaces. Ensuring the safety of the high-efficiency disinfection.


APPLICATION

1. Eliminate viruses, bacteria and other microorganisms.

2. Industrial water disinfection equipment, such disinfection treatment of food and beverage industries.

3. Small municipal sewage treatment system.

4. Residential drinking water treatment.

5. Air purification treatment system.


FEATURES

1. Ultraviolet germicidal lamps can be divided into: ozone (wave peak at 185/253.7nm), no ozone (wave peak at 254nm).

2. Small diameter.

3 .The lamp is made of natural quartz glass tube, which can emit ultraviolet rays of 185nm and 253.7nm. The

ultraviolet rays of 185nm react with oxygen in the air to produce ozone.

4. The lamp holder is resistant to high temperature and ultraviolet radiation.

5. The high-power lamp is the best choice to reduce the system size and maintain the UV output. According to the actual needs, customize the solution should be chosen.


ADVANTAGE

1. Ensure safe and efficient disinfection within the service life.

2. No need for secondary purification device to ensure efficient disinfection.

3. Low mercury content, environmentally friendly choice.


TECHNICAL PARAMETERS

管径

Diameter tube

功率(W

Power

灯头

Lamp base

   type

灯管电压(V

Lamp voltage

电流(A

Current

紫外强度*(uw/cm²)

Ultraviolet intensity

紫外波长(nm

UV wavelength

长度

Length(L

(mm)



带臭氧

ozone

不带臭氧

No ozone





T8

10

G13

51

220

25

185/253.7

253.7

331

15

G13

55

330

40

185/253.7

253.7

436

18

G13

57

300

50

185/253.7

253.7

589

30

G13

96

365

90

185/253.7

253.7

894

36

G13

103

430

95

185/253.7

253.7

1199



DIMENSIONS
