GENERAL

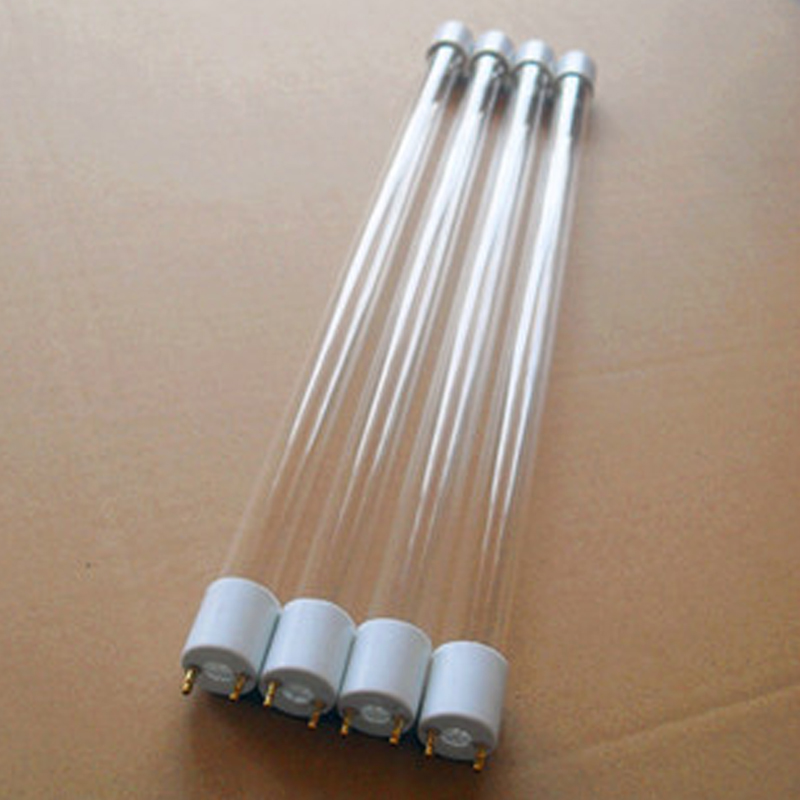

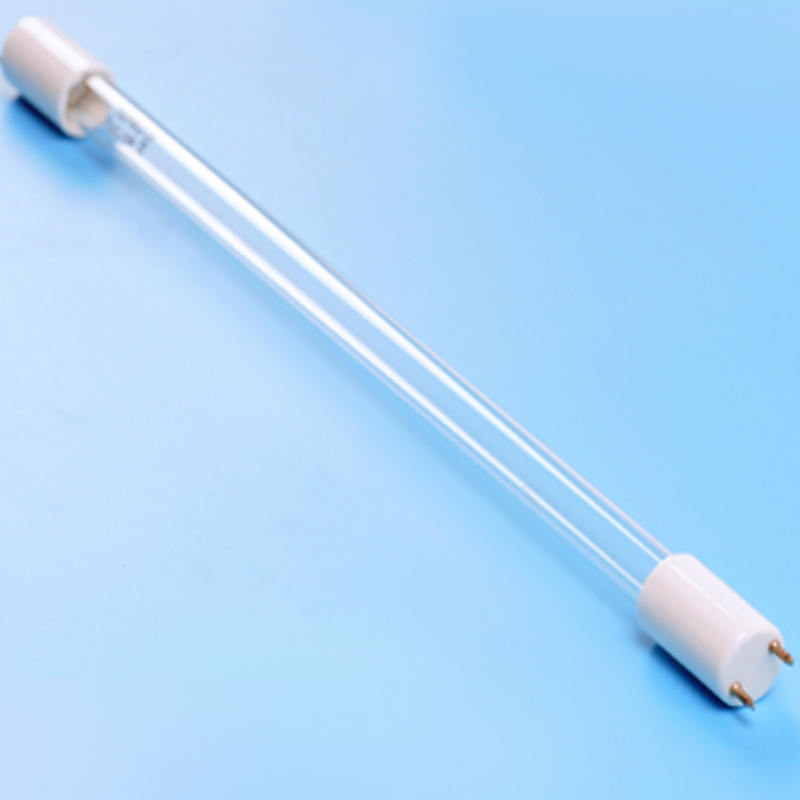

T6 series UV sterilization lamps are suitable for professional water and air disinfeCTion. T5 has two types of interface for choice. One is single-ended interface. The other is double-ended interfaces. Ensuring the safety of the high-efficiency disinfection.
APPLICATION
1. Eliminate viruses, bacteria and other microorganisms.
2. Industrial water disinfection equipment, such disinfection treatment of food and beverage industries.
3. Small municipal sewage treatment system.
4. Residential drinking water treatment.
5. Air purification treatment system.
FEATURES
1. Ultraviolet germicidal lamps can be divided into: ozone (wave peak at 185/253.7nm), no ozone (wave peak at 254nm).
2. Small diameter.
3 .The lamp is made of natural quartz glass tube, which can emit ultraviolet rays of 185nm and 253.7nm. The
ultraviolet rays of 185nm react with oxygen in the air to produce ozone.
4. The lamp holder is resistant to high temperature and ultraviolet radiation.
5. The high-power lamp is the best choice to reduce the system size and maintain the UV output. According to the actual needs, customize the solution should be chosen.
ADVANTAGES
1. Ensure safe and efficient disinfection within the service life.
2. No need for secondary purification device to ensure efficient disinfection.
3. Low mercury content, environmentally friendly choice.
TECHNICAL PARAMETERS
管径 Diameter tube | 功率(W) Power | 灯头 Lamp base | 灯管电压(V) Lamp voltage | 电流(A) Current | 紫外强度*(uw/cm²) Ultraviolet intensity | 紫外波长(nm) UV wavelength | 长度 Length (mm) | |
带臭氧 ozone | 不带臭氧 No ozone | |||||||
T6 | 10 | G13 | 52 | 220 | 25 | 185/253.7 | 253.7 | 331 |
15 | G13 | 65 | 300 | 40 | 185/253.7 | 253.7 | 436 | |
20 | G13 | 80 | 320 | 50 | 185/253.7 | 253.7 | 589 | |
30 | G13 | 120 | 300 | 90 | 185/253.7 | 253.7 | 893 | |
40 | G13 | 140 | 330 | 95 | 185/253.7 | 253.7 | 1199 |
DIMENSIONS
