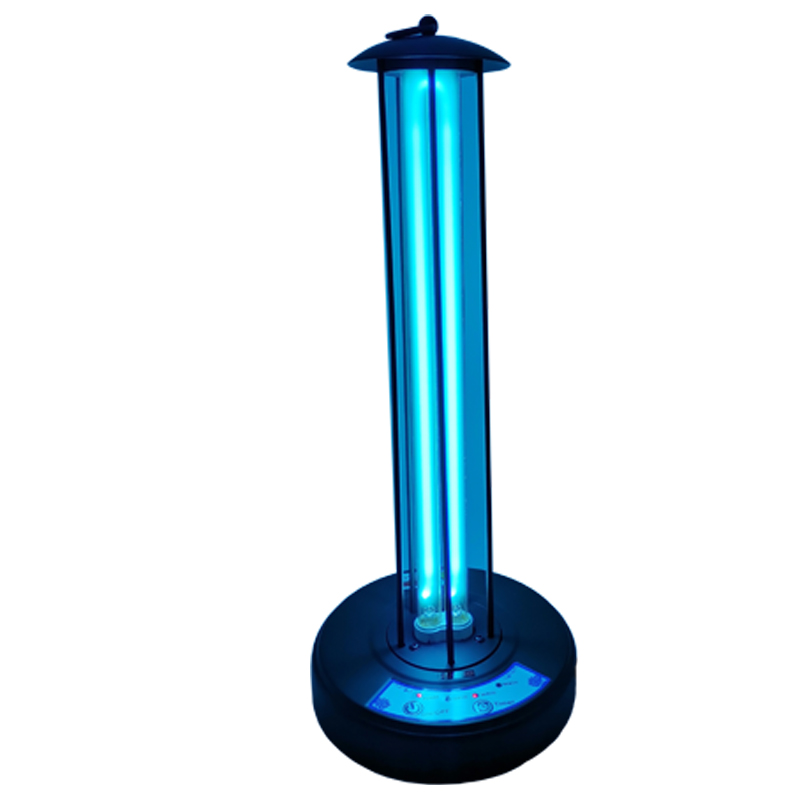

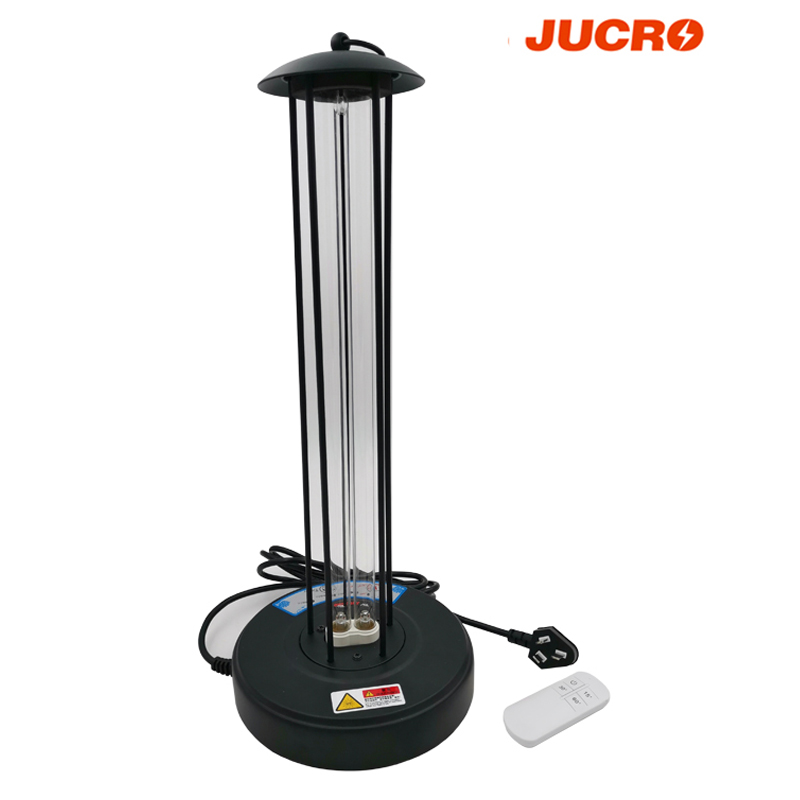

Ultraviolet disinfection table lamp J-01 38W UV AIR STERILIZER LAMP from HUBEI JUCRO ElECTRIC

Ultraviolet disinfection table lamp J-01 38W UV AIR STERILIZER LAMP from HUBEI JUCRO ElECTRIC

Quantity

Product Detail

Applications and locations where to implement

l  Treatment of air in waste management facilities.

l  Removal of "bad air" in home and office.

l  Food storage facilities (cheese, wine, vegetables, fruits, meats, etc).

l  Clinical environments such as clinics, hospitals, operating roomsdental surgeries, schools, holding facilities.

l  Laboratories and testing facilities that require a clinically clean environment.

l  Food processing plantations.

l  Decontaminate of storage facilities.







Caution

Please read the instruCTion manual carefully and keep the manual for your future reference.

l  When the package is opened, kindly ensure that all required materials are intact and in good working condition.

l  The unit must be unplugged from the socket before and during cleaning.

l  Do not use in flammable and high temperature areas.

l  Avoid inserting the power cord with force.

l  Please remove the plug from the socket if not in use for a long period.

l  Do not repair the unit yourself.

l  Do not extend the length of the wire yourself.

l  Please use the rated voltage power supply.

l  Please ensure that the machine is placed in a properly ventilated room.



Disposal / Recycling:

UVC lamps contain mercury (a hazardous waste). Do not discard these lamps in the trash. Disposal must be made in accordance with local, state and federal regulations. Contact the local hazardous waste management authority for proper recycling / disposal instructions.



Area and duration of disinfection

Space Disinfection: Please place the sterilizer in the center of the room and set the sterilizing time according to the table below.





ROOM AREA

POWER OF

STERILIZING LAMP

RECOMMENDED

DISINFECTION TIME

About 10 square meters

38W

15min

About 10 square meters

60W

15min

About 20 square meters

38W

30min

About 20 square meters

60W

15min

About 40 square meters

38W

60min

About 40 square meters

60W

30min

About 60 square meters

60W

60min

Parameters



Light wave

UV-C primarily in the 253.7nm wavelength

Rated Voltage

220V~230V

Rated frequnecy

50Hz

UV intensity

150 μW/cm²(1 meter distance)

Bulb lifespan

8000 operational hours

Ballast lifespan

20000 operational hours

Bulb length

410mm/530mm

UV Lamp Power

38W/60W

Timing mode

Electronic timing

Remote control mode

Wireless through-the-wall remote







Light wave

UV-C primarily in the 253.7nm wavelength

Rated Voltage

110V~120V

Rated frequnecy

60Hz

UV intensity

150 μW/cm²(1 meter distance)

Bulb lifespan

8000 operational hours

Ballast lifespan

20000 operational hours

Bulb length

410mm/530mm

UV Lamp Power

38W/60W

Timing mode

Electronic timing

Remote control mode

Wireless through-the-wall remote





Benefits



l  Effective in the prevention of Tuberculosis, MRSA, H1N1 and other airborne cross contamination.

l  Eliminates 99.9% of bacteria, yeast, mold and fungus problems found in hospitals, schools, food manufacturing plants and offices.

l  Recommended by medical experts.

l  Kills harmful bacteria in closed premises.

l  Reduces asthmatic effects.

l  Eliminates odours and neutralizes the air.


How to replace the UV-C bulb



l  Disassemble the 3 screws at the side of the UV-C bulb.

l  Take off the bulb protection cover.

l  Replace with a new bulb.

l  Assemble the bulb protection cover with the 3 screws.



Avoid breaking the bulb after removal





How to operate the unit



l  Connect the power cord to the socket.

l  Press the ON/OFF button to switch on the unit. The power LED and the 3 timer LEDs will flicker.

l  Press the Timer button to select the time (15, 30 or 60minutes).

l  Leave the room. The UV-C lamp will start working automatically after 10 seconds.

l  Can also be operated with the remote control the unit.


No comment

Product Detail

Applications and locations where to implement

l  Treatment of air in waste management facilities.

l  Removal of "bad air" in home and office.

l  Food storage facilities (cheese, wine, vegetables, fruits, meats, etc).

l  Clinical environments such as clinics, hospitals, operating roomsdental surgeries, schools, holding facilities.

l  Laboratories and testing facilities that require a clinically clean environment.

l  Food processing plantations.

l  Decontaminate of storage facilities.







Caution

Please read the instruCTion manual carefully and keep the manual for your future reference.

l  When the package is opened, kindly ensure that all required materials are intact and in good working condition.

l  The unit must be unplugged from the socket before and during cleaning.

l  Do not use in flammable and high temperature areas.

l  Avoid inserting the power cord with force.

l  Please remove the plug from the socket if not in use for a long period.

l  Do not repair the unit yourself.

l  Do not extend the length of the wire yourself.

l  Please use the rated voltage power supply.

l  Please ensure that the machine is placed in a properly ventilated room.



Disposal / Recycling:

UVC lamps contain mercury (a hazardous waste). Do not discard these lamps in the trash. Disposal must be made in accordance with local, state and federal regulations. Contact the local hazardous waste management authority for proper recycling / disposal instructions.



Area and duration of disinfection

Space Disinfection: Please place the sterilizer in the center of the room and set the sterilizing time according to the table below.





ROOM AREA

POWER OF

STERILIZING LAMP

RECOMMENDED

DISINFECTION TIME

About 10 square meters

38W

15min

About 10 square meters

60W

15min

About 20 square meters

38W

30min

About 20 square meters

60W

15min

About 40 square meters

38W

60min

About 40 square meters

60W

30min

About 60 square meters

60W

60min

Parameters



Light wave

UV-C primarily in the 253.7nm wavelength

Rated Voltage

220V~230V

Rated frequnecy

50Hz

UV intensity

150 μW/cm²(1 meter distance)

Bulb lifespan

8000 operational hours

Ballast lifespan

20000 operational hours

Bulb length

410mm/530mm

UV Lamp Power

38W/60W

Timing mode

Electronic timing

Remote control mode

Wireless through-the-wall remote







Light wave

UV-C primarily in the 253.7nm wavelength

Rated Voltage

110V~120V

Rated frequnecy

60Hz

UV intensity

150 μW/cm²(1 meter distance)

Bulb lifespan

8000 operational hours

Ballast lifespan

20000 operational hours

Bulb length

410mm/530mm

UV Lamp Power

38W/60W

Timing mode

Electronic timing

Remote control mode

Wireless through-the-wall remote





Benefits



l  Effective in the prevention of Tuberculosis, MRSA, H1N1 and other airborne cross contamination.

l  Eliminates 99.9% of bacteria, yeast, mold and fungus problems found in hospitals, schools, food manufacturing plants and offices.

l  Recommended by medical experts.

l  Kills harmful bacteria in closed premises.

l  Reduces asthmatic effects.

l  Eliminates odours and neutralizes the air.


How to replace the UV-C bulb



l  Disassemble the 3 screws at the side of the UV-C bulb.

l  Take off the bulb protection cover.

l  Replace with a new bulb.

l  Assemble the bulb protection cover with the 3 screws.



Avoid breaking the bulb after removal





How to operate the unit



l  Connect the power cord to the socket.

l  Press the ON/OFF button to switch on the unit. The power LED and the 3 timer LEDs will flicker.

l  Press the Timer button to select the time (15, 30 or 60minutes).

l  Leave the room. The UV-C lamp will start working automatically after 10 seconds.

l  Can also be operated with the remote control the unit.
