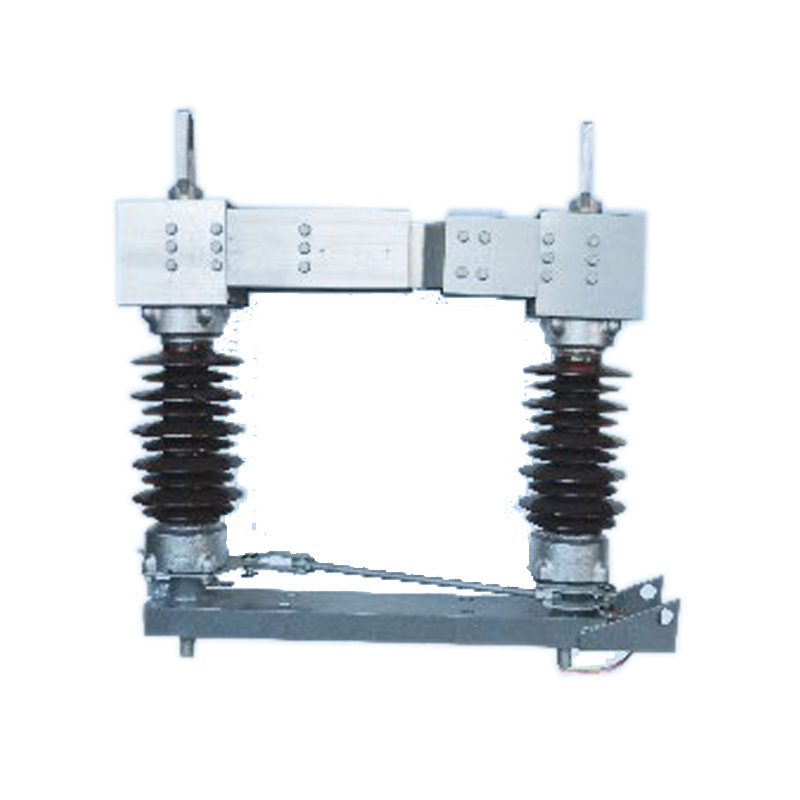

Outdoor HV disconnecting switch GW4(2)

GW4(2) series outdoor HV disconnecting switch From Jucro Electric
Rated voltage 12/15/20kv
Rated Current 200A/400A/630A/1250A

Outdoor HV disconnecting switch GW4(2)

Quantity

Product Detail

General


GW4 series outdoor high-voltage isolation switch is widely used in power plants, substations and large industrial and mining enterprise for the three-phase AC 50Hz circuit, a voltage no-load hours, together with the circuits, products, electrical and mechanical performance in line with national standards GB1985 AC High Voltage isolating switches and earthing switchesand DL486 ordering the exchange of high-pressure technical conditionsand the International Electrotechnical Commission IEC standard.

GW4 series isolation switch is a double-pole isolation switch, it is a unipolar-shaped, when the three most used, a very inter-connected with the zone axis machine, 3-pole synchronous use. GW4 series isolation switch from the base, insulation pillars and the conductive parts. GW4 series isolation switch each pole has two ceramic columns, respectively, at both ends with bearing base in order to cros-link connection(GW4-10 series isolating switch is only one fixed mounted on the base ceramic column the  other end), can be rotated horizontally. GW4 series isolation switch conductive Knife divided into two halves, respectively, fixed to the two capitals on the procelain  for the level of sub-switch on, the contact contacts are found in the middle of two ceramic column with actuator actuator column and a ceramic conducts rotate 91°, the other column and conductive ceramic body is also driven by the connecting rods rotate 91°(When the operating mechanism of the GW4-10 series is operated, only the porcelain column and the conductor mounted on the upper end of the base bearing are rotated by 91° and the other end is fixed), so that the blade is opened or closed in the same direction.


Main technical parameters


Item

Unit

Parameters

Rated voltage

KV

40.5

72.5

126

145

Rated insulation level

1 min power frequency withstand
voltage(effective value)

On the groud

KV

95

160

230

275

Fracture

KV

118

200

230+70

275+85

Rated lightning impluse
withstand current(peak)

On the groud

KV

185

350

500

650

Fracture

KV

215

410

550+110

650+120

Rated Frequency

Hz

50/60

Rated Current

A

630-4000

630-4000

630-4000

630-4000

Rated short-time withstand current

KA

20、31.5、40、50

20、31.5、40、50

20、31.5、40、50

20、31.5、40、50

Rated peak withstand current

KA

50、80、100、125

50、80、100、125

50、80、100、125

50、80、100、125

Rated short circuit duration

Knife/Sword

S

4

4

3

3

Rated mechanical terminal load

Horizontal and vertical

N

1250

1250

1250

1250

Horizontal

N

750

750

750

750

vertical force

N

1000

1000

1000

1000

Creepage distance

mm

1013
1256

1813
2248

3150
3906

3652
4495

Mechanical life

Times

5000

5000

1000

5000

Motor actuator

Model


CJ

CJ

CJ

CJ

Motor voltage

V

AC380、AC220、DC220、DC110

Voltage control loop

V

AC380、AC220、DC220、DC110

Points,closing times

S

7±1

Human actuator

Model


CS14、CS17

Electromagnetic lock voltage

V

AC220、DC220、DC110

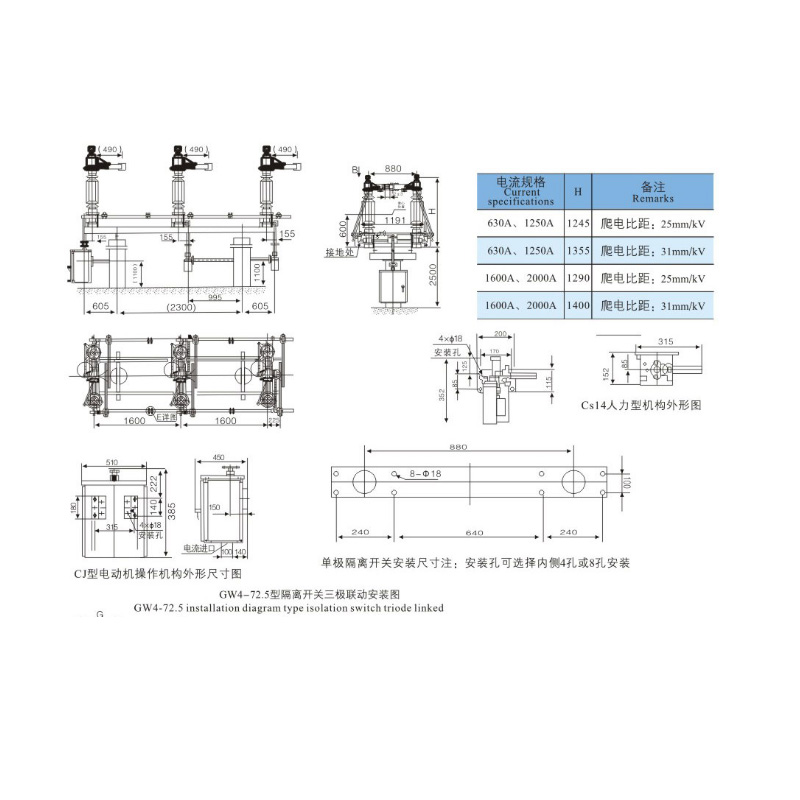

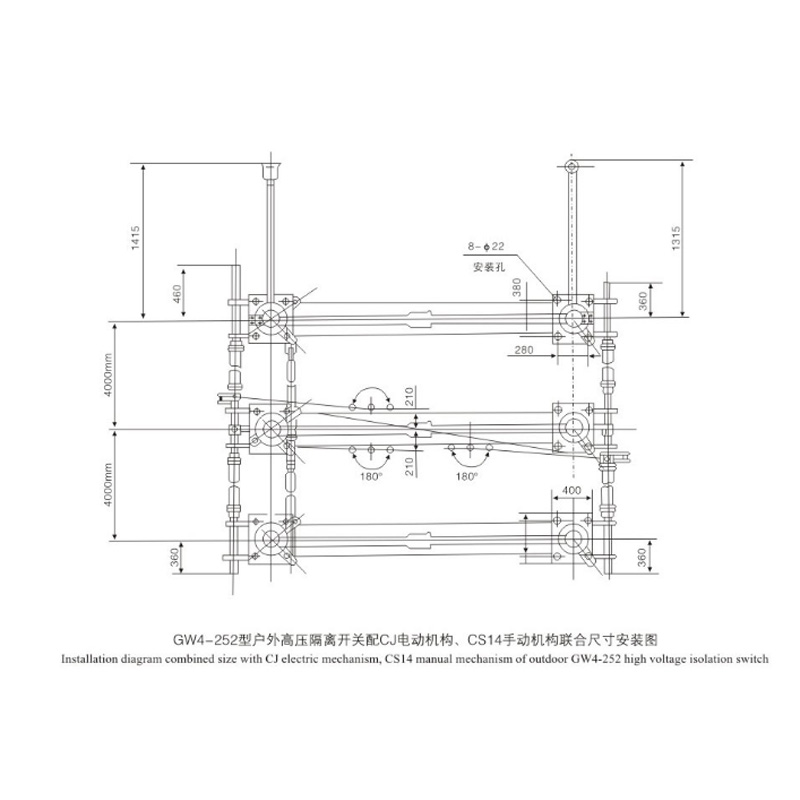

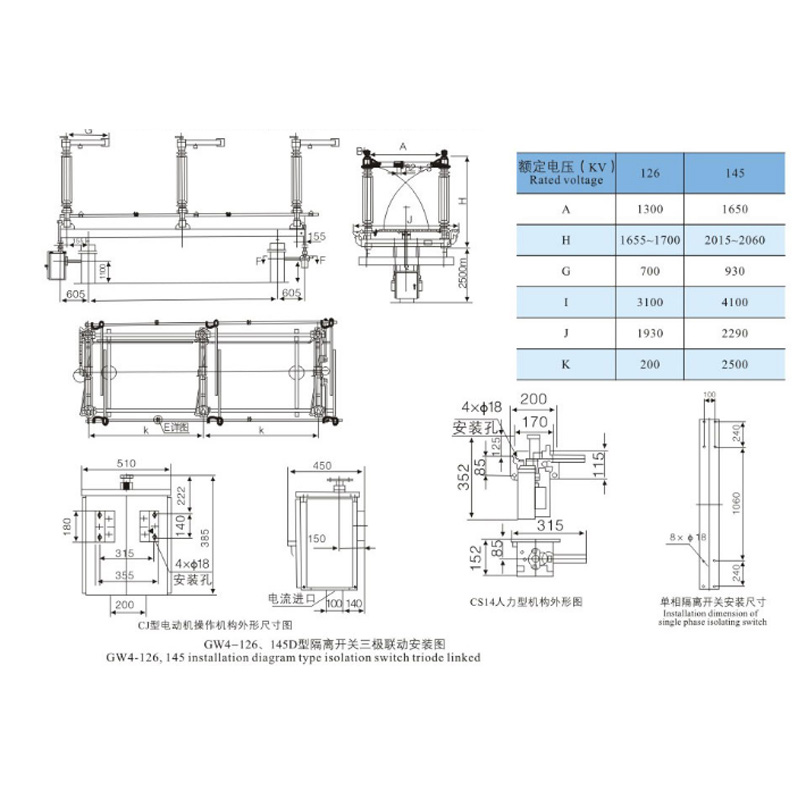

Outline mounting dimension
