Outdoor HV disconnecting switch GW 4 series

GW4 series outdoor HV disconnecting switch From Jucro Electric
Rated voltage 12/15/20kv
Rated Current 200A/400A/630A/1250A

Quantity

Product Detail

Main technical parameters

Item		Unit	Parameters
Rated voltage		KV	10/15/20
Maximum work voltage		KV	12/17.5/23
Rated insulation level	1min power frequency withstand vol	KV	Ground, 28/40/50 fraCTure, 32/47/60
Rated insulation level	impulse frequency	KV	Ground, 60/105/125 fracture, 70/120/145
Rated Frequency		Hz	50
Rated Current		A	200/400/630/1250
Thermal stability current 4 seconds（effective）		KA	6.3/12.5/20/31.5
Rated peak withstand current(maxium)		KA	16/31.5/50/80
Acessories frame			CS11-1、CS11、CS8-6D manual mechanism or CJ electric operating mechanism

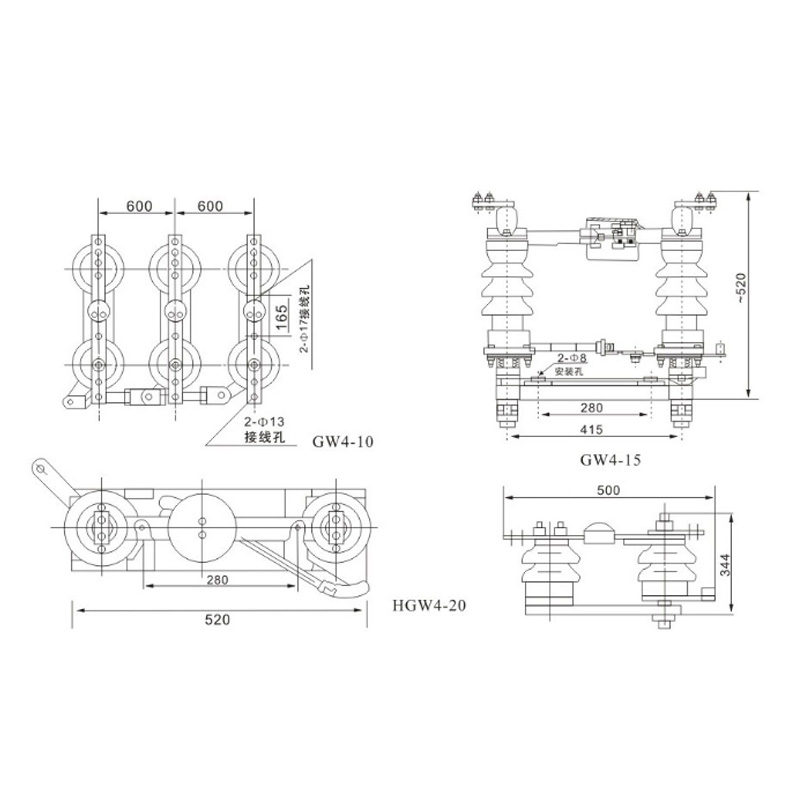

Outline mounting dimension
