Outdoor HV disconnecting switch GW 1 series

GW1 series outdoor HV disconnecting switch From Jucro Electric
Rated voltage 12/15/20kv
Rated Current 200A/400A/630A/1250A

Quantity

Product Detail

Main technical parameters

Item		Unit	Parameters
Rated voltage		KV	10/15/20
Maximum work voltage		KV	12/17.5/23
Rated insulation level	1min power frequency withstand vol	KV	对地、40/40/50 断口、47/47/60
Rated insulation level	Impulse frequency	KV	对地、105/105/25 断口、120/120/145
Rated Frequency		Hz	50
Rated Current		A	200/400/630/1250
Thermal stability current 4 seconds（effective）		KA	6.3/12.5/20/31.5
Rated peak withstand current(maxium)		KA	100
Acessories frame			CS8-5 manual mechanism or CJ electric operating mechanism

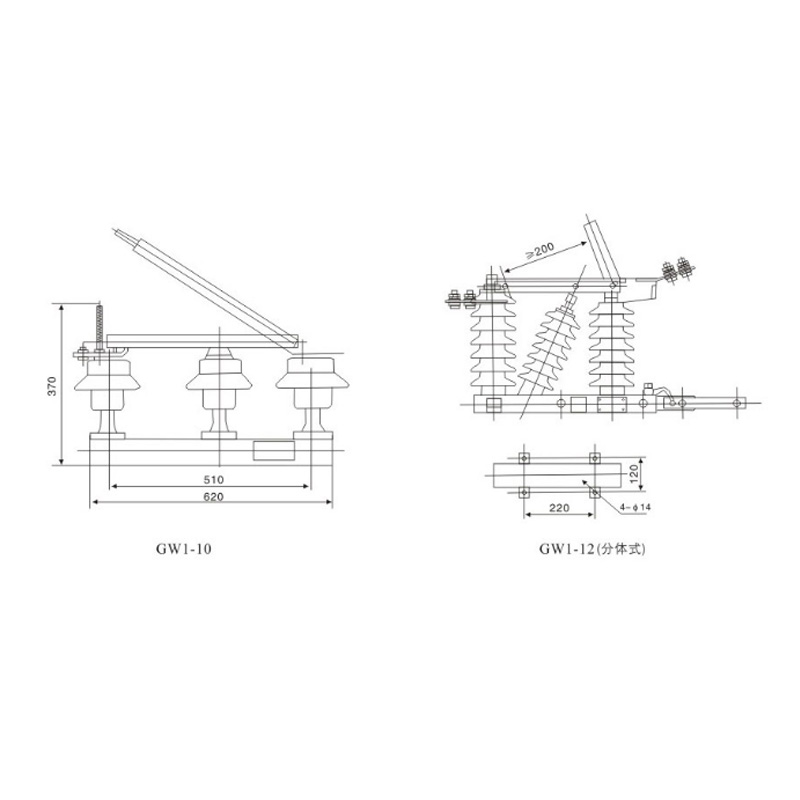

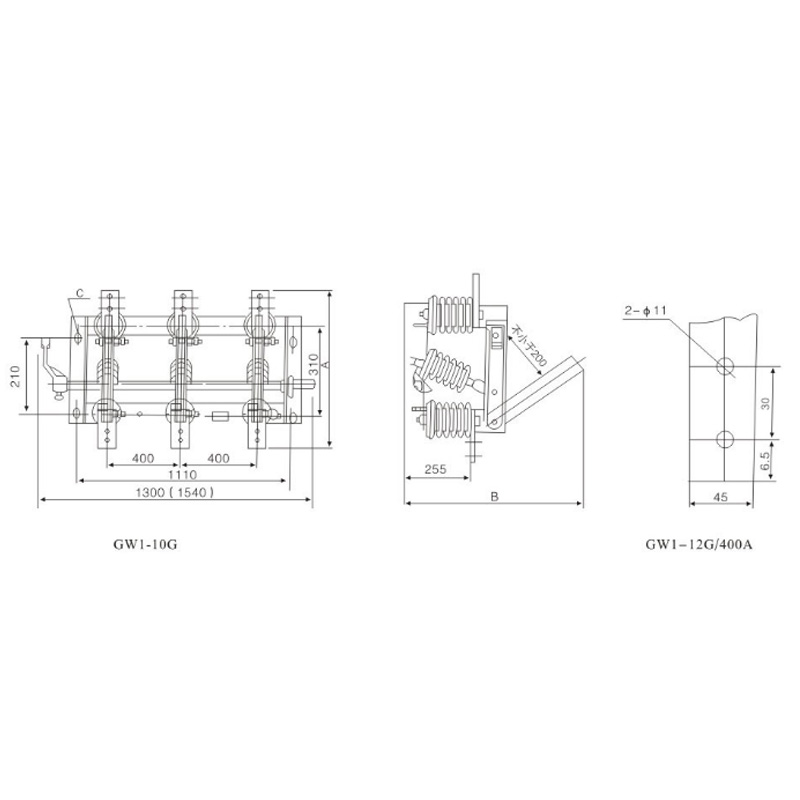

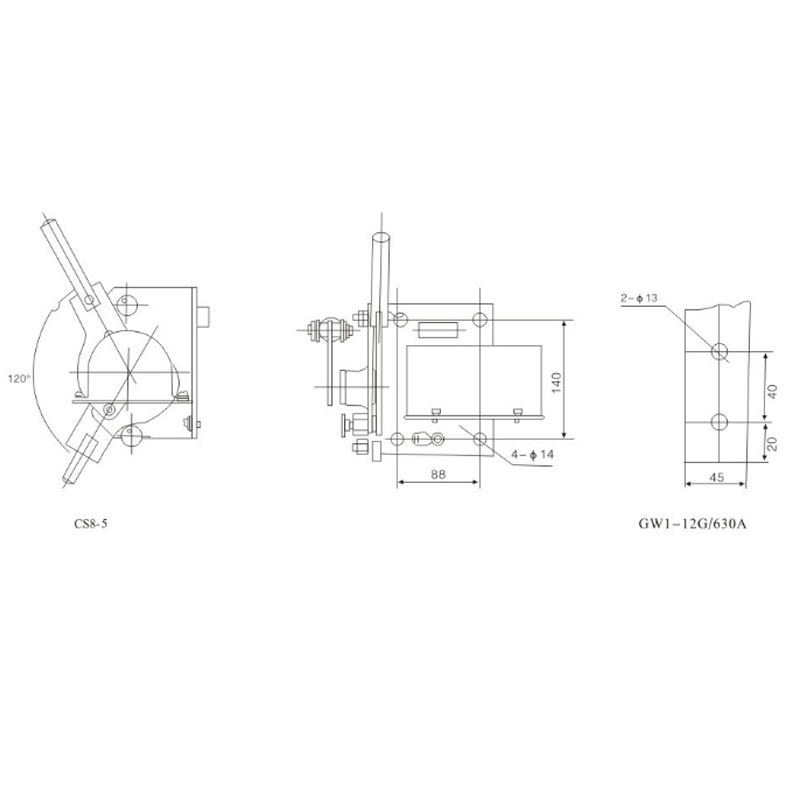

Outline and mounting dimension

No comment

Product Detail

Main technical parameters

Item		Unit	Parameters
Rated voltage		KV	10/15/20
Maximum work voltage		KV	12/17.5/23
Rated insulation level	1min power frequency withstand vol	KV	对地、40/40/50 断口、47/47/60
Rated insulation level	Impulse frequency	KV	对地、105/105/25 断口、120/120/145
Rated Frequency		Hz	50
Rated Current		A	200/400/630/1250
Thermal stability current 4 seconds（effective）		KA	6.3/12.5/20/31.5
Rated peak withstand current(maxium)		KA	100
Acessories frame			CS8-5 manual mechanism or CJ electric operating mechanism
