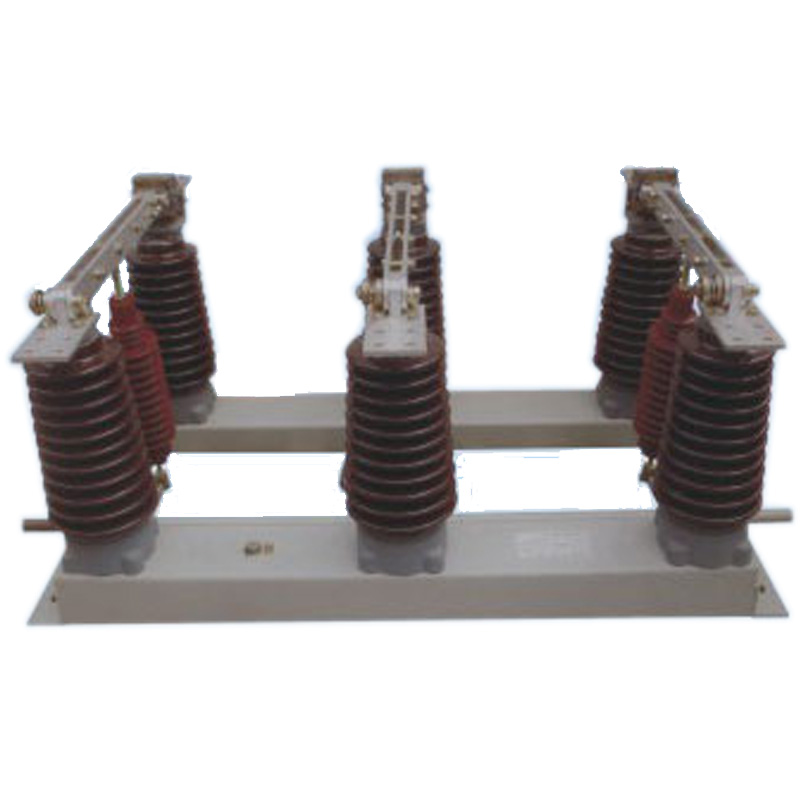

Indoor high-voltage isolation switch GN27-35 series

GN38-35 series indoor high-voltage isolaton switch for the lock-voltage 35KV, three phase AC 50Hz power system

Indoor high-voltage isolation switch GN27-35 series

Quantity

Product Detail

General


GN27-35 series indoor high-voltage isolation switch for the lock-voltage 35KV, three phase AC 50Hz power system, as there is voltage under no load conditions and conversion circuits connected purposes.

The product is equipped with the CS6-2-type Hand Actuator with D, with the hand with the CS6-1-type actuator.


Main technical parameters

Type

Rated voltage(KV)

Maximum
voltage(KV)

Rated current(A)

4s heat-stable current(ms) (kA)

Dynamic stability of current(peak) (kA)

GN27-35C)(D)/630

35

40.5

630

20

50

GN27-35C)(D)/1250

1250

31.5

80

GN27-35C)(D)/2000

2000

40

100

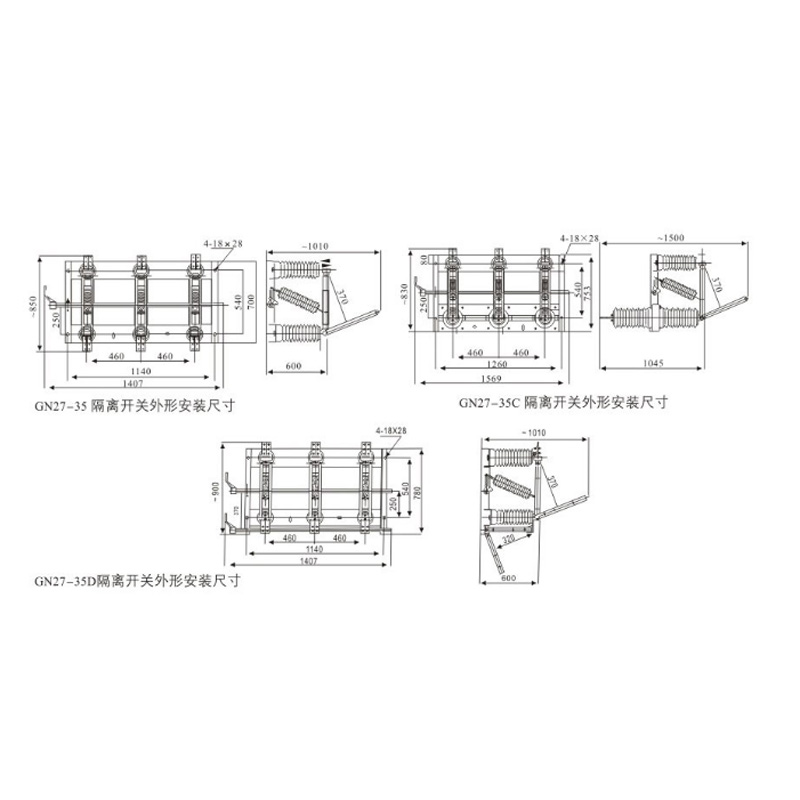

Outline and mounting dimension



No comment

Product Detail

General


GN27-35 series indoor high-voltage isolation switch for the lock-voltage 35KV, three phase AC 50Hz power system, as there is voltage under no load conditions and conversion circuits connected purposes.

The product is equipped with the CS6-2-type Hand Actuator with D, with the hand with the CS6-1-type actuator.


Main technical parameters

Type

Rated voltage(KV)

Maximum
voltage(KV)

Rated current(A)

4s heat-stable current(ms) (kA)

Dynamic stability of current(peak) (kA)

GN27-35C)(D)/630

35

40.5

630

20

50

GN27-35C)(D)/1250

1250

31.5

80

GN27-35C)(D)/2000

2000

40

100


Outline and mounting dimension
