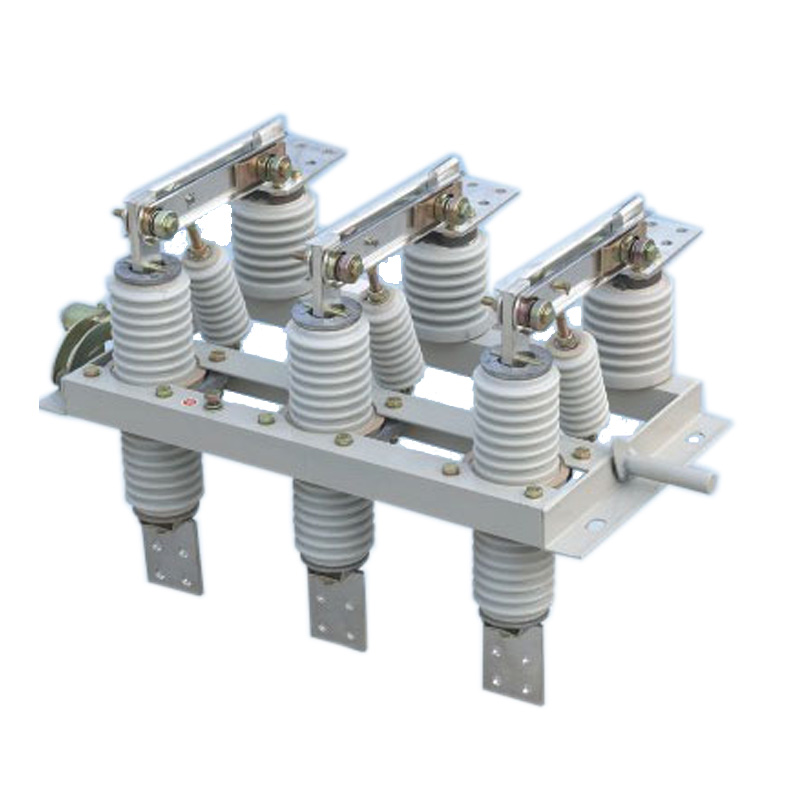

Indoor high voltage disconnecting switch GN19-12(C)

GN19-12(C) series indoor HV disconnecting switch
Rated voltage 12KV
Rated Current 630A

Indoor high voltage disconnecting switch GN19-12(C)

Quantity

Product Detail

General


GN19-12(C) series indoor high voltage disconnecting switch is suitable for power system of rated voltage 12KV, AC50Hz or under, it is equipped with CS6-Ι manual operation mechanism for circuit switching on or off in the condition with voltage load, and breaker with electric charged indication device.


Main technical parameters

Type

Rated voltage(KV)

Rated current(A)

Rated short-time withstand
 current

Rated peak withstand
 current

GN19-12/400-12.5

12

400

12.5

31.5

GN19-12/630-20

12

630

20

50

GN19-12/1000-31.5

12

1000

31.5

80

GN19-12/1250-31.5

12

1250

31.5

80

GN19-12C/400-12.5

12

400

12.5

31.5

GN19-12C/630-20

12

630

20

50

GN19-12C/1000-31.5

12

1000

31.5

80

GN19-12C/1250-31.5

12

1250

31.5

80

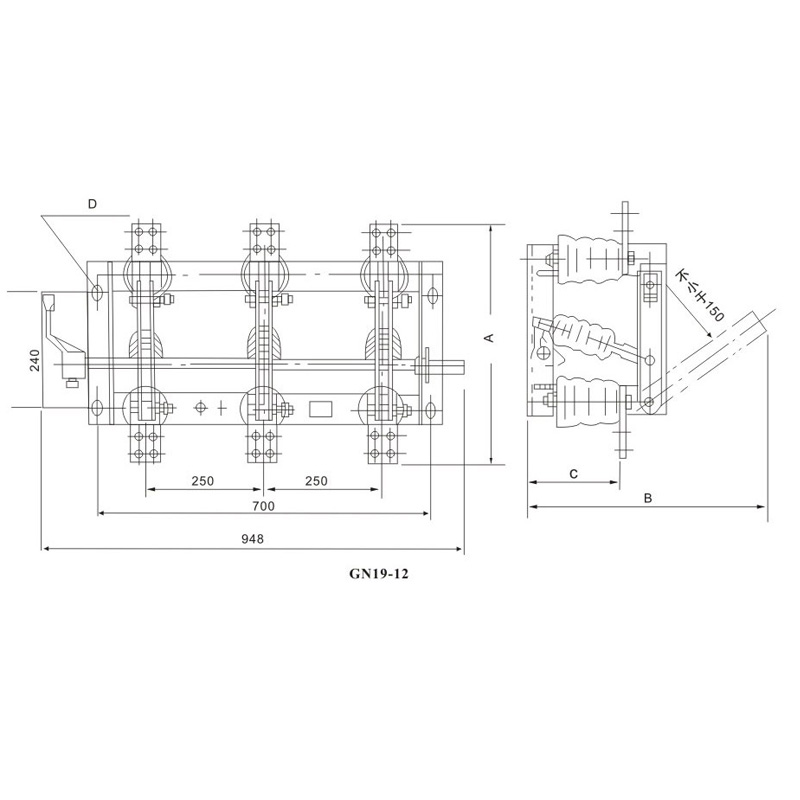

Outline and mounting dimension



No comment

Product Detail

General


GN19-12(C) series indoor high voltage disconnecting switch is suitable for power system of rated voltage 12KV, AC50Hz or under, it is equipped with CS6-Ι manual operation mechanism for circuit switching on or off in the condition with voltage load, and breaker with electric charged indication device.


Main technical parameters

Type

Rated voltage(KV)

Rated current(A)

Rated short-time withstand
 current

Rated peak withstand
 current

GN19-12/400-12.5

12

400

12.5

31.5

GN19-12/630-20

12

630

20

50

GN19-12/1000-31.5

12

1000

31.5

80

GN19-12/1250-31.5

12

1250

31.5

80

GN19-12C/400-12.5

12

400

12.5

31.5

GN19-12C/630-20

12

630

20

50

GN19-12C/1000-31.5

12

1000

31.5

80

GN19-12C/1250-31.5

12

1250

31.5

80

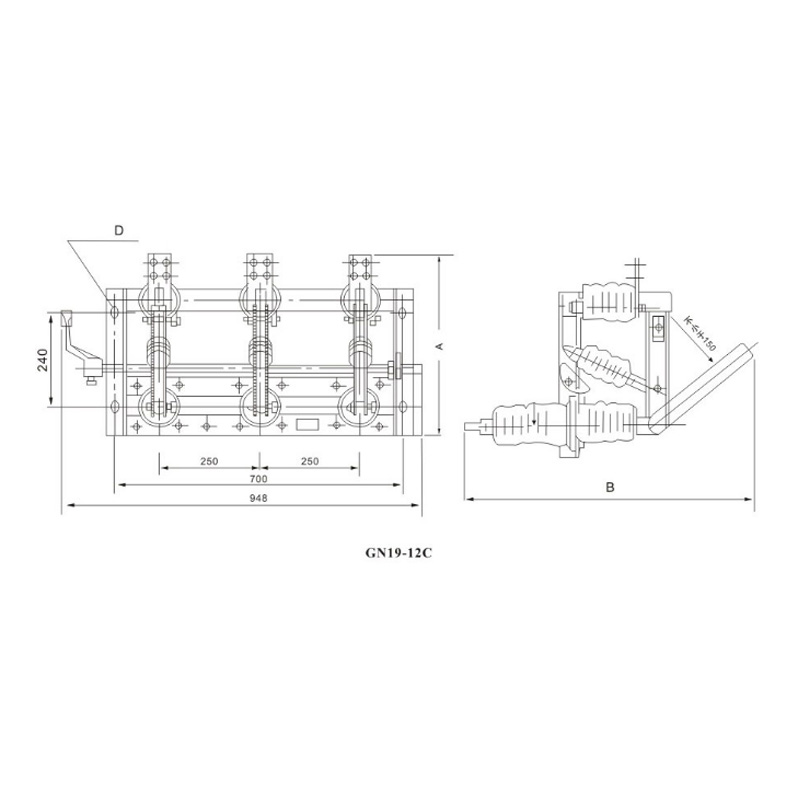

Outline and mounting dimension
