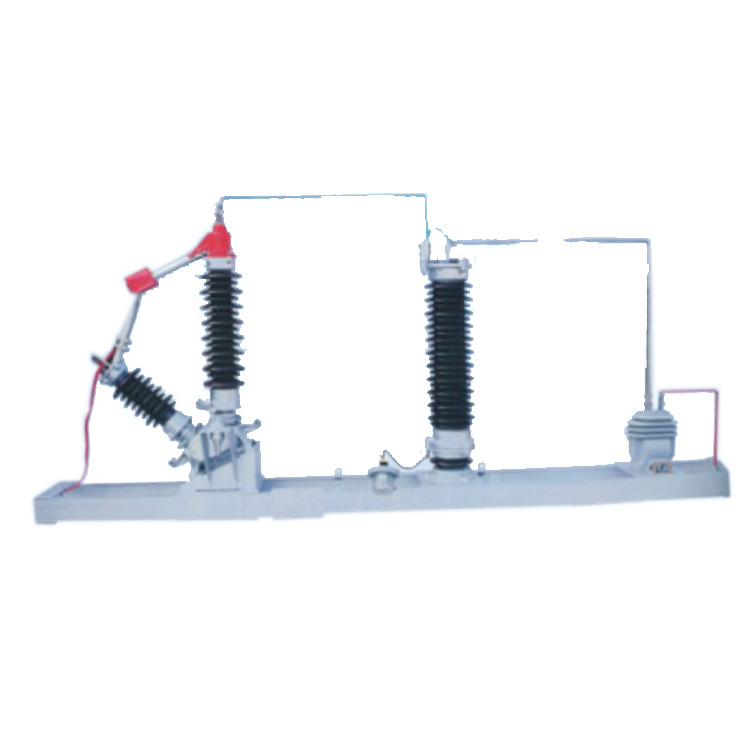

Isolation switch BZJ-110/220 series transformer neutral point equipment

BZJ-110/220 series transformer neutral point of complete sets of equipment is applied of 110kV and 220kV

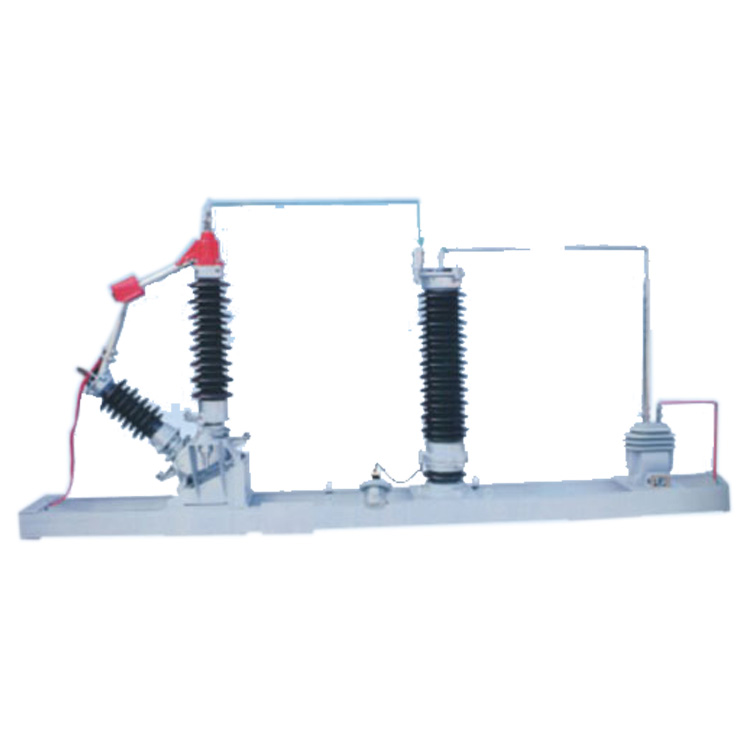

Isolation switch BZJ-110/220 series transformer neutral point equipment

Quantity

Product Detail

BZJ-110/220 series transformer neutral point of complete sets of equipment according to DL/T620-1997 <overvoltage protection and insulation coordination of> Regulations on the 110kV/220kV transformer neutral point of power network uses the gap protection of AC electrical apparatus manufacturing , and in accordance with the China State Grid Corp in 2005 June published <Eighteen grid major anti accident measures to prevent the requirements of grounding grids and overvoltage accidents> in the process if design . Application of 110kV and 220kV effective grounding power network without transformer neutral point grounding overvoltage protection.

   In order to make 110kV transformer neutral point of 220kV substation equipment performance is reliable, convenient installation, commissioning and operation layout is simple and beautiful, the company also introduced the transformer neutral point transformer neutral point rod gap, gap current transformer, isolating switch, lighting arrester, terminal box and a mounting bracket and other electrical equipment in one of the complete sets of equipment.

   The user can choose the transformer neutral point of pure clearance overvoltage protection scheme, also can choose the gap and Arrestor in parallel, collaborative protection scheme. Lighting arrester and the isolation switch according to the need of the project, with flexible group. The actuator isolation switch can be operated manually or electrically. Electrical and mechanical properties of all the products are finished debugging and full set of test before leaving the factory, but also convenient in use and correction.

The main parameters of transformer neutral point bar internal mumber

Nominal clearance Voltage(KV)

Rated system Voltage(KV)

The electrode gap distance Range

The power frequency discharge voltage Range

Insulating electronic
The creeppage distance

Transformer Capacity

Air pollution level

Electrode

72.5

110

90-135

50-63

1813

20

Hemisphere

72.5

110

90-135

50-63

2248

20

Hemisphere

126

220

280-330

100-127

3150

20

Hemisphere

126

220

280-330

100-127

3906

20

Hemisphere





The main parameters of lighting protection technology



The main parameters of GW13



The main parameters of GW8

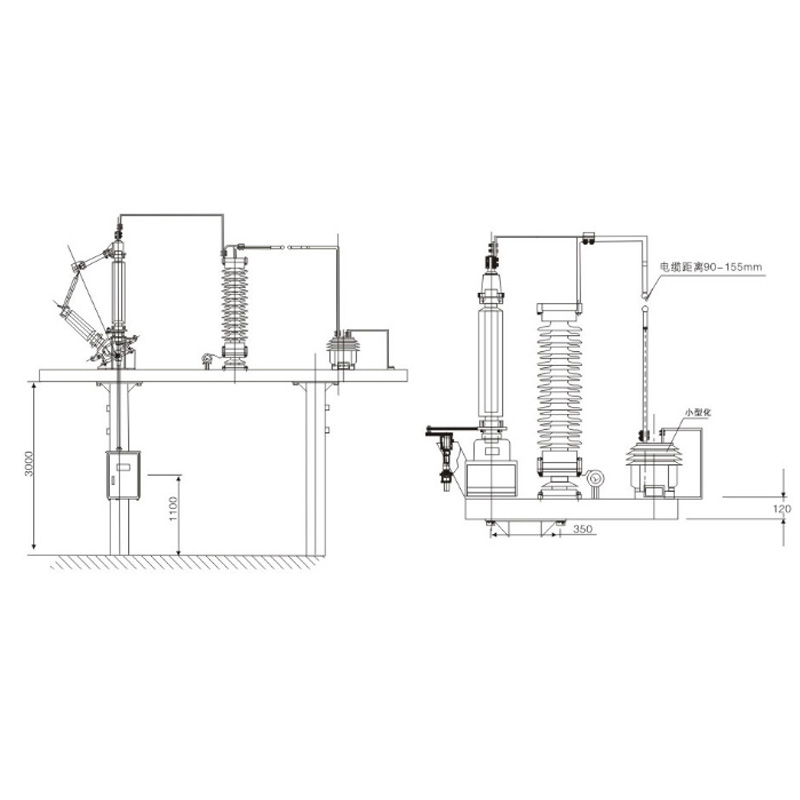

Outline mounting dimension


No comment

Product Detail

BZJ-110/220 series transformer neutral point of complete sets of equipment according to DL/T620-1997 <overvoltage protection and insulation coordination of> Regulations on the 110kV/220kV transformer neutral point of power network uses the gap protection of AC electrical apparatus manufacturing , and in accordance with the China State Grid Corp in 2005 June published <Eighteen grid major anti accident measures to prevent the requirements of grounding grids and overvoltage accidents> in the process if design . Application of 110kV and 220kV effective grounding power network without transformer neutral point grounding overvoltage protection.

   In order to make 110kV transformer neutral point of 220kV substation equipment performance is reliable, convenient installation, commissioning and operation layout is simple and beautiful, the company also introduced the transformer neutral point transformer neutral point rod gap, gap current transformer, isolating switch, lighting arrester, terminal box and a mounting bracket and other electrical equipment in one of the complete sets of equipment.

   The user can choose the transformer neutral point of pure clearance overvoltage protection scheme, also can choose the gap and Arrestor in parallel, collaborative protection scheme. Lighting arrester and the isolation switch according to the need of the project, with flexible group. The actuator isolation switch can be operated manually or electrically. Electrical and mechanical properties of all the products are finished debugging and full set of test before leaving the factory, but also convenient in use and correction.

The main parameters of transformer neutral point bar internal mumber

Nominal clearance Voltage(KV)

Rated system Voltage(KV)

The electrode gap distance Range

The power frequency discharge voltage Range

Insulating electronic
The creeppage distance

Transformer Capacity

Air pollution level

Electrode

72.5

110

90-135

50-63

1813

20

Hemisphere

72.5

110

90-135

50-63

2248

20

Hemisphere

126

220

280-330

100-127

3150

20

Hemisphere

126

220

280-330

100-127

3906

20

Hemisphere





The main parameters of lighting protection technology



The main parameters of GW13



The main parameters of GW8

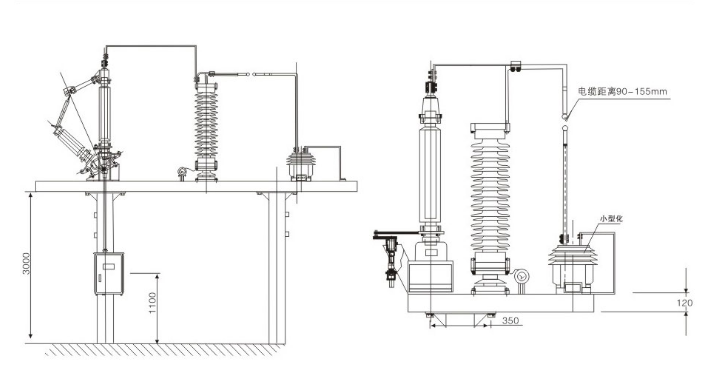

Outline mounting dimension
