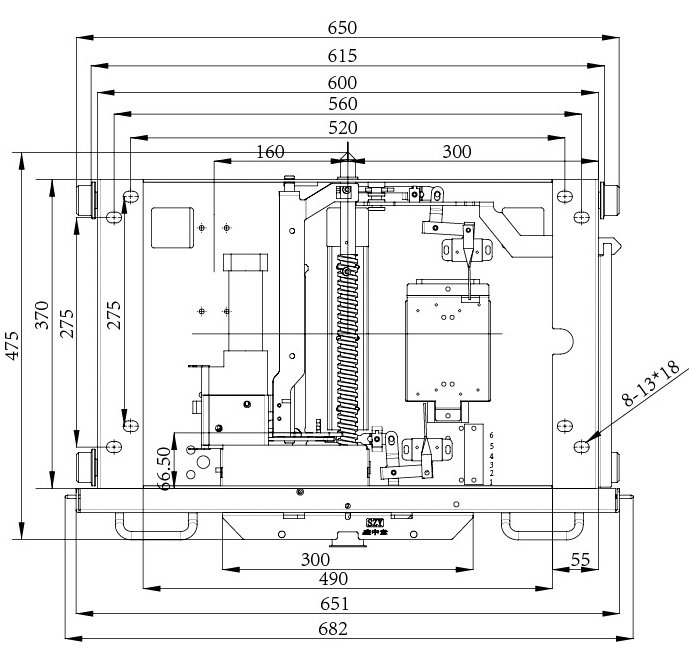

Electric chassis car D-DPC-800 for Switchgear use from JUCRO Electric

EleCTric chassis car D-DPC 800mm for Switchgear use from JUCRO Electric

Introduction

The D-DPC-800 electric chassis car adds electric operation function to the original manual operation chassis, and provides the necessary hardware foundation for the requirements of intelligent, programmatic and remote control of the switchgear. The mechanism uses a professionally designed miniature permanent magnet DC motor to make full use of the excess space of the original chassis. After installation, it will not change the height and shape of the original manual operation chassis. InterLocking function, etc., simple structure and strong versatility.

Operating instructions

First of all, it must be checked once according to the manual chassis operation requirements. After the operation is normal, the electric operation is performed. The torque that the handcart shakes and shakes is usually ≤25N.m

1. Electric operation:

The D-DPC-electric chassis is only available for transmission and does not have any control protection. Therefore, the electric operation must design or select the appropriate control loop to operate normally. The company currently has TRC-20-A1 rail mounting and panel mounting. Connect the control loop and check whether the working position and test position are switched properly in the control module. (The company has two sets of micro-switches in the front and rear of the chassis to control the return to stop.) Check that the handle of the chassis is shaken to the test position and the working position is correct. Remove the handle, plug in the power supply, and the test module lights up. Press the rocker and the work position light of the work position control module lights up.
