DPC-4-1000 chassis car for Switchgear use from JUCRO Electric

DPC-4-1000  chassis car for Switchgear use  from JUCRO Electric

Quantity

Product Detail

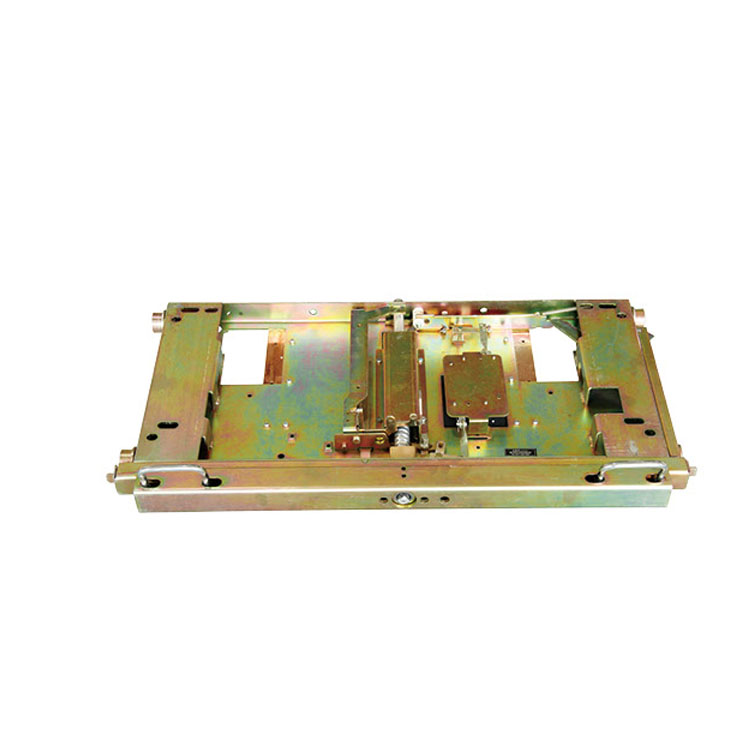

DPC-1000  chassis car for Switchgear use from JUCRO Electric


Special function chassis car description:

a, DPC- □ - mouth / G chassis car: This type of chassis car only increases the door closing function, that is, when the door is open, you can not insert the handle to shake the chassis car, only the upper □ can be shaken, the interlock function does not need Change the door.
b, DPC- □ - □ / S chassis: This type of chassis car adds lock function on the basis of item a, that is, when the handcart leaves the test position, the door is locked, can not be opened, only the test is returned Position, the door can be opened, the interlock function needs to change the door.


 DPC- □-port chassis car ordering instructions


1. Indicate the chassis model, lock plate code, auxiliary switch specifications, grounding method, etc.

2. The auxiliary switch specification refers to the specification of the auxiliary switch itself (that is, the specification before the chassis is not installed). Generally 5 groups, 6 groups of contacts, can also provide 10 sets of contacts (consisting of 2 auxiliary switches in series)

3, 24kV chassis car only travel from 200mm to 300mm, the rest unchanged, plus /X300 after the original model.

4. If there are special requirements, please negotiate with our factory.

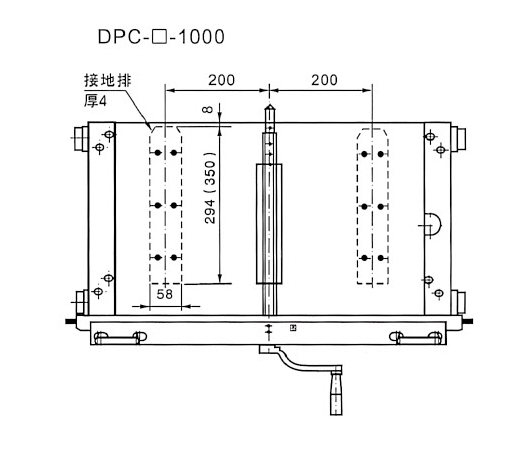

Chassis car grounding contact installation dimension drawing description
Product numberA
DPC-□-800296
DPC-□-1000496


No comment

Product Detail

DPC-1000  chassis car for Switchgear use from JUCRO Electric


Special function chassis car description:

a, DPC- □ - mouth / G chassis car: This type of chassis car only increases the door closing function, that is, when the door is open, you can not insert the handle to shake the chassis car, only the upper □ can be shaken, the interlock function does not need Change the door.
b, DPC- □ - □ / S chassis: This type of chassis car adds lock function on the basis of item a, that is, when the handcart leaves the test position, the door is locked, can not be opened, only the test is returned Position, the door can be opened, the interlock function needs to change the door.


 DPC- □-port chassis car ordering instructions


1. Indicate the chassis model, lock plate code, auxiliary switch specifications, grounding method, etc.

2. The auxiliary switch specification refers to the specification of the auxiliary switch itself (that is, the specification before the chassis is not installed). Generally 5 groups, 6 groups of contacts, can also provide 10 sets of contacts (consisting of 2 auxiliary switches in series)

3, 24kV chassis car only travel from 200mm to 300mm, the rest unchanged, plus /X300 after the original model.

4. If there are special requirements, please negotiate with our factory.


Chassis car grounding contact installation dimension drawing description
Product numberA
DPC-□-800296
DPC-□-1000496
