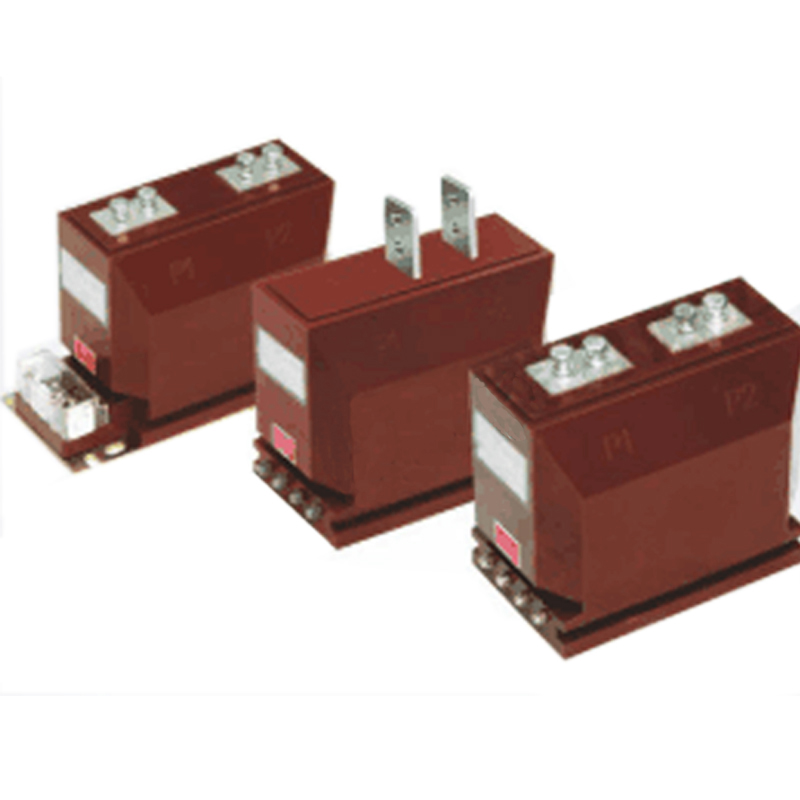

Current transformer LZZBJ9-10(A、B、C)from JUCRO Electric

1.Rated voltage :3kv ,6kv ,10kv ,11kv
2.Max.system voltage :12kv
3.Indoor, cast resin epoxy type

Current transformer  LZZBJ9-10(A、B、C)from JUCRO Electric

Quantity

Product Detail

Current transformer  LZZBJ9-10(A、B、C)from JUCRO Electric


Description


  Current transformer type LZZBJ9-10 is made indoor cast-resin insulated, totally-enclosed structure. It is designed for current, power measurement and relay protection in AC power system with rated frequency 50Hz, rated voltage 10kV and below.

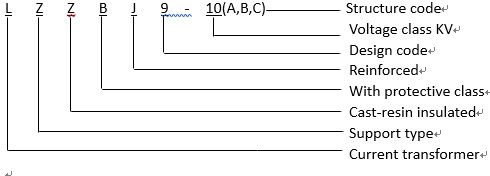

型号含义 Type description




Service condition


1. Altitude: Not over 1000m;

2. Ambient temperature: -5 to +40;

3. Relative humidity: less than 90%, at 20;

4. No gas, steam, chemical deposition, pollution, explosive gas or etching gas which way badly influence the insulation of the transformer;

5. No chattering of bumping.



 Construction



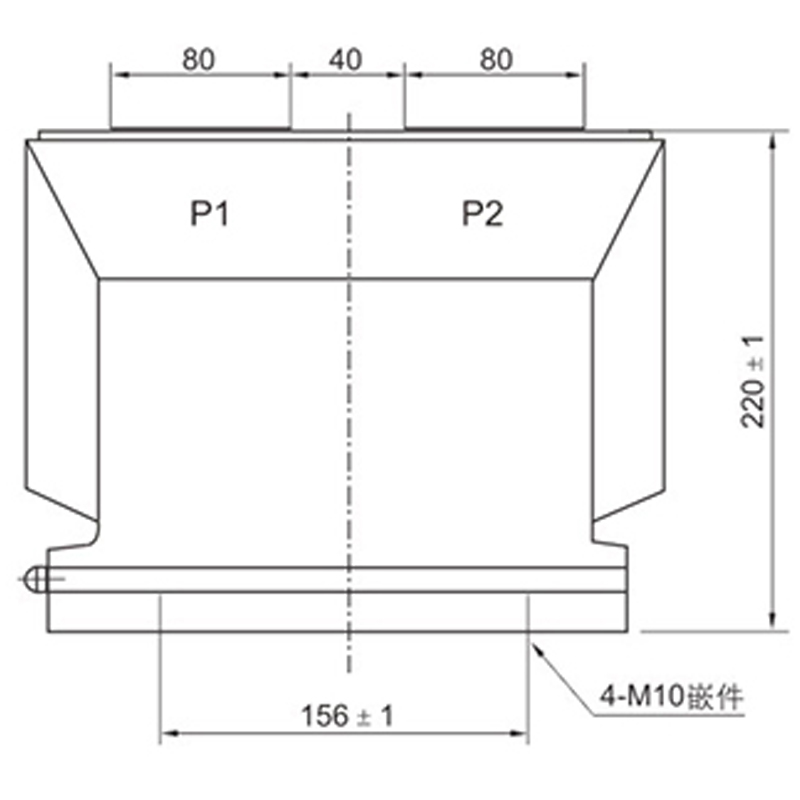

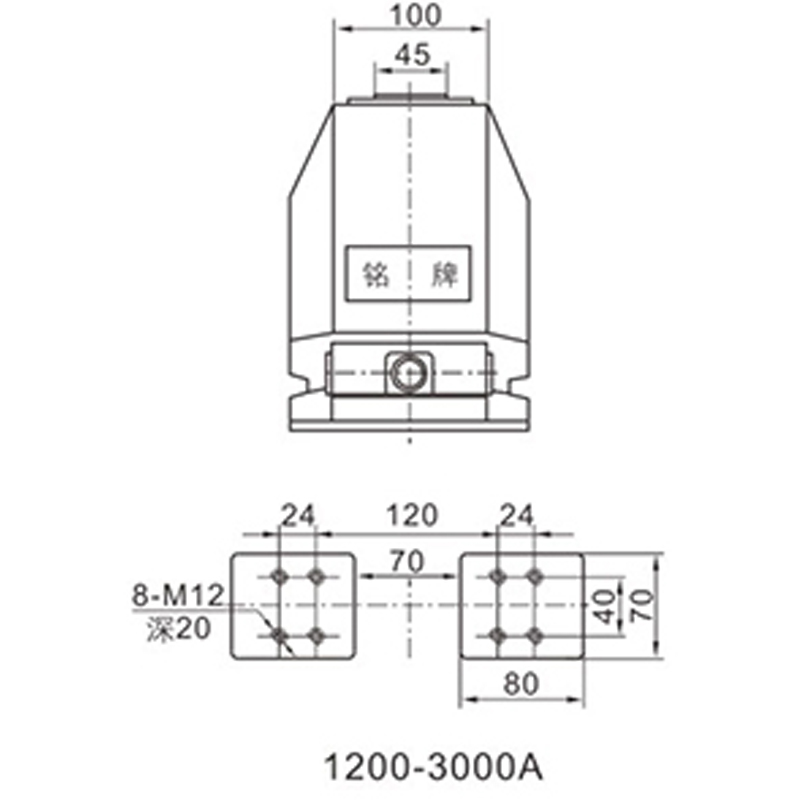

  The product has a leg type, totally-enclosed structure and its ring core, primary winding and secondary winding are casted resin insulated. Reinforce insulation makes it workable under humidity condensation pollution . Three wiring ways are for your choice(A.B.C).

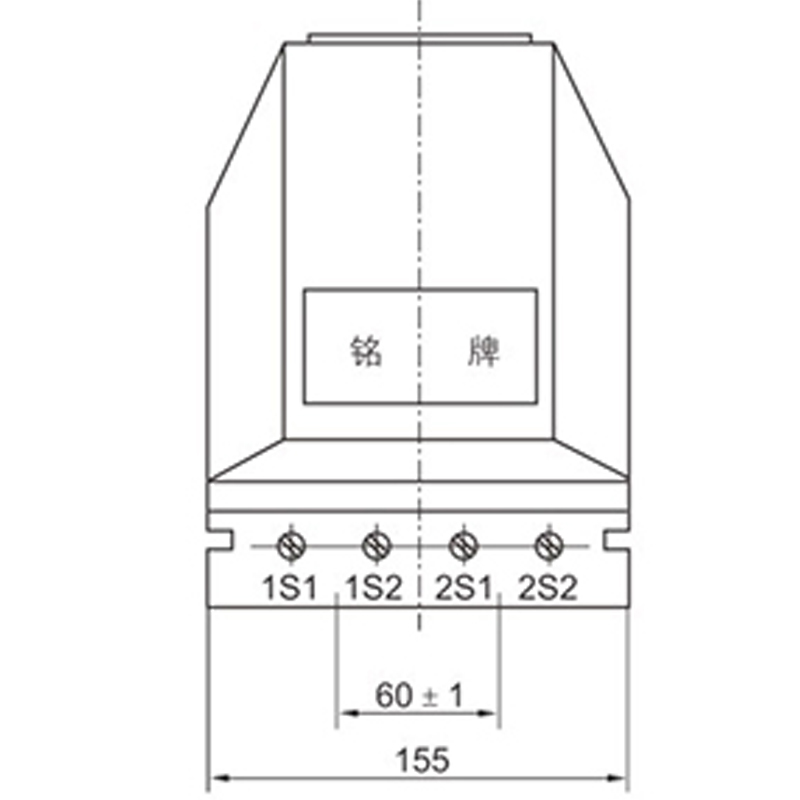

  The outlet marks of the products are:primary P1,P2,secondary group on 1S11S2,group two 2S12S2.

  As the primary current flow from



Technical data




type


Rated primary current(A)


Accuracy classes combination


Rated output(VA)


Short-time thermal current(kA/S)


Rate dynamic current(kA)









































LZZBJ9-10ABC























































































LZZBJ9-10ABC

































































LZZBJ9-10ABC





10

0.2/10P10

10/15

2.0

5.0

0.5/10P10

10/15

2.0

5.0

0.2/10P10

10/15

1.0

2.5

0.5/10P10

15/15

1.0

2.5



15

0.2/10P10

10/15

4.5

11.25

0.5/10P10

10/15

4.5

11.25

0.2/10P10

10/15

1.5

3.75

0.5/10P10

15/15

1.5

3.75





20

0.2/10P10

10/15,10/20

6

15

0.5/10P10

10/15,10/20

6

15

0.2/10P10

10/15,10/20

3

7.5

0.5/10P10

15/15,20/20

3

7.5







      30

0.2/10P10

10/15,10/20

12

30

0.5/10P10

10/15,10/20

12

30

0.2/10P10

10/15,10/20

4.5

11.25

0.5/10P10

15/15,20/20

4.5

11.25

0.2/10P10

10/15

3.6

9

0.5/10P10

10/15

3.6

9







      40

0.2/10P10

10/15,10/20

16

40

0.5/10P10

10/15,10/20

16

40

0.2/10P10

10/15,10/20

6

15

0.5/10P10

15/15,20/20

6

15

0.2/10P10

10/15

4.8

12

0.5/10P10

10/15

4.8

12







      50

0.2/10P10

10/15,10/20

21

52.5

0.5/10P10

10/15,10/20

21

52.5

0.2/10P10

10/15,10/20

7.5

18.75

0.5/10P10

15/15,20/20

7.5

18.75

0.2/10P10

10/15

6

15

0.5/10P10

10/15

6

15







       60

0.2/10P10

10/15,10/20

21

52.5

0.5/10P10

10/15,10/20

21

52.5

0.2/10P10

10/15,10/20

9

22.5

0.5/10P10

15/15,20/20

9

22.5

0.2/10P10

10/15

7.2

18

0.5/10P10

10/15

7.2

18







       75

0.2/10P10

10/15,10/20

31.5

78.75

0.5/10P10

10/15,10/20

31.5

78.75

0.2/10P10

10/15,10/20

10

25

0.5/10P10

15/15,20/20

10

25

0.2/10P10

10/15

9

22.5

0.5/10P10

10/15

9

22.5





       100

0.2/10P10

10/15,10/20

45

112.5

0.5/10P10

10/15,10/20

45

112.5

0.2/10P10

10/15,10/20

21

52.5

0.5/10P10

15/15,20/20

21

52.5

0.2/10P10

10/15

12

30

0.5/10P10

10/15

12

30







      150

0.2/10P10

10/15,10/20

45

112.5

0.5/10P10

10/15,10/20

45

112.5

0.2/10P10

10/15,10/20

31.5

78.75

0.5/10P10

15/15,20/20

31.5

78.75

0.2/10P10

10/15

18

45

0.5/10P10

10/15

18

45







200,250

0.2/10P10

10/15,10/20

45

112.5

0.5/10P10

10/15,10/20

45

112.5

0.2/10P10

10/15,10/20

45

112.5

0.5/10P10

15/15,20/20

45

112.5

0.2/10P10

10/15

24

60

0.5/10P10

10/15

24

60







      300

0.2/10P10

10/15,10/20

63

157.5

0.5/10P10

10/15,10/20

63

157.5

0.2/10P10

10/15,10/20

45

112.5

0.5/10P10

15/15,20/20

45

112.5

0.2/10P10

15/15

36

90

0.5/10P10

15/15

36

90







      400

0.2/10P10

10/30,15/20

63

157.5

0.5/10P10

20/30,15/20

63

157.5

0.2/10P10

15/15,10/20

63

157.5

0.5/10P10

20/20

63

157.5

0.2/10P10

15/15

48

120

0.5/10P10

15/15

48

120







      500

0.2/10P10

10/30,15/20

63

157.5

0.5/10P10

20/30,15/20

63

157.5

0.2/10P10

15/15,10/20

63

157.5

0.5/10P10

20/20

63

157.5

0.2/10P10

15/15

63

157.5

0.5/10P10

15/15

63

157.5







     600

0.2/10P10

10/30,15/20

80

200

0.5/10P10

20/30,15/20

80

200

0.2/10P10

15/15,10/20

80

200

0.5/10P10

20/20

80

200

0.2/10P10

15/15

80

200

0.5/10P10

15/15

80

200







     800

0.2/10P10

20/20,15/30

80

200

0.5/10P10

20/20,30/30

80

200

0.2/10P10

20/15,15/20

80

200

0.5/10P10

20/15,30/20

80

200

0.2/10P10

15/20

80

200

0.5/10P10

15/20

80

200







     1000

0.2/10P10

20/20,15/30

80

200

0.5/10P10

20/20,30/30

80

200

0.2/10P10

20/15,15/20

80

200

0.5/10P10

20/15,30/20

80

200

0.2/10P10

15/20

80

200

0.5/10P10

15/20

80

200







  1250(1250)

0.2/10P10

20/20,15/30

100

250

0.5/10P10

20/20,30/30

100

250

0.2/10P10

20/15,15/20

100

250

0.5/10P10

20/15,30/20

100

250

0.2/10P10

15/20

100

250

0.5/10P10

15/20

100

250




Note: The above technical parameter, rated secondary current is 5A, if needs 1A or other data please contact with the company when orderings.



when ordering, please specify the following


1.        Type and currenty ration;

2.        Accuracy class and secondary output;

3.        Insulation class and service condition.
