Voltage transformer JDZ-3、6、10(W)from JUCRO Electric

1.Rated voltage :3kv ,6kv ,10kv ,11kv
2.Max.system voltage :12kv
3.Indoor, cast resin epoxy type

Voltage transformer JDZ-3、6、10(W)from JUCRO Electric

Quantity

Product Detail

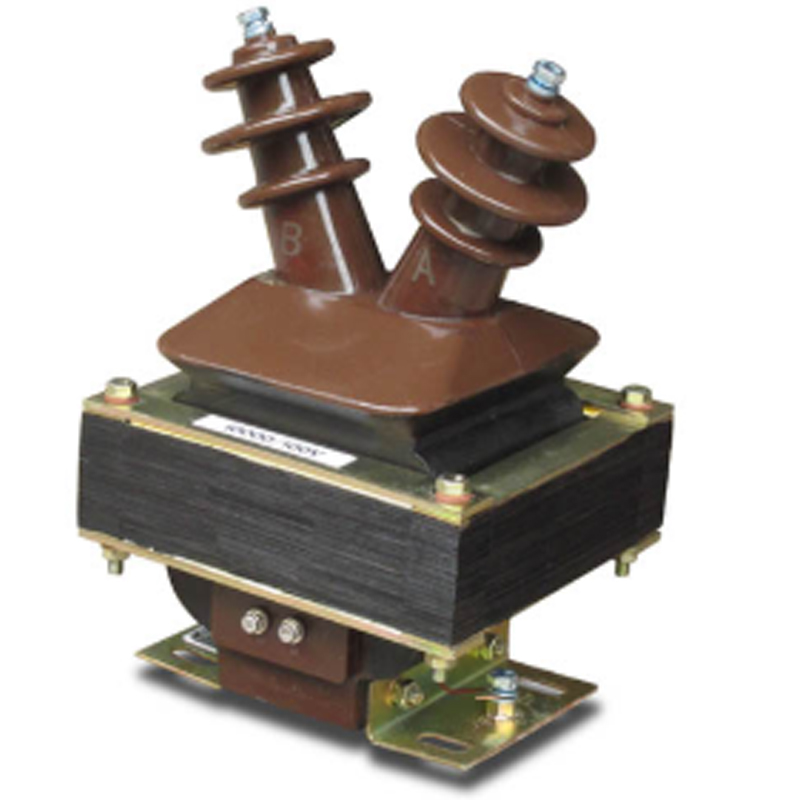

Voltage transformer JDZ-3、6、10(W)from JUCRO Electric


 Description



  JDZ Voltage transformer type is of single-phase and double winding cast with epoxy resin. It is designed for use of measurement of electronic energy and relay protection in electronic system at current of 50Hz. It has JDZ-3W)、JDZ-6W)、JDZ-10Wthree types.

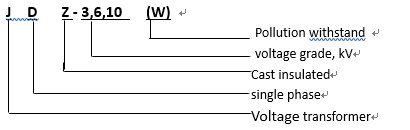

Type description



Service condition


1. Altitude: Not over 1000m;

2. Ambient temperature: -5 to +40;

3. Relative humidity: less than 85%, at 20;

4. This product has passed the direct vibration test with the intensify of 0.4g three sine wares. Equivalent to nine-degree earth quatee on the richter scale.

5. This product can be used his condition of pollution.



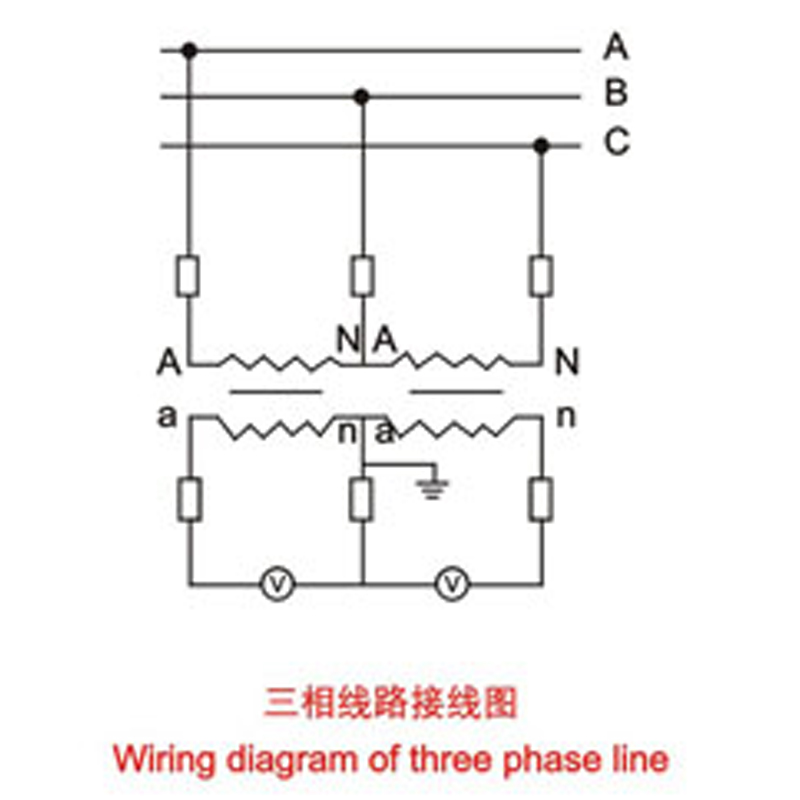

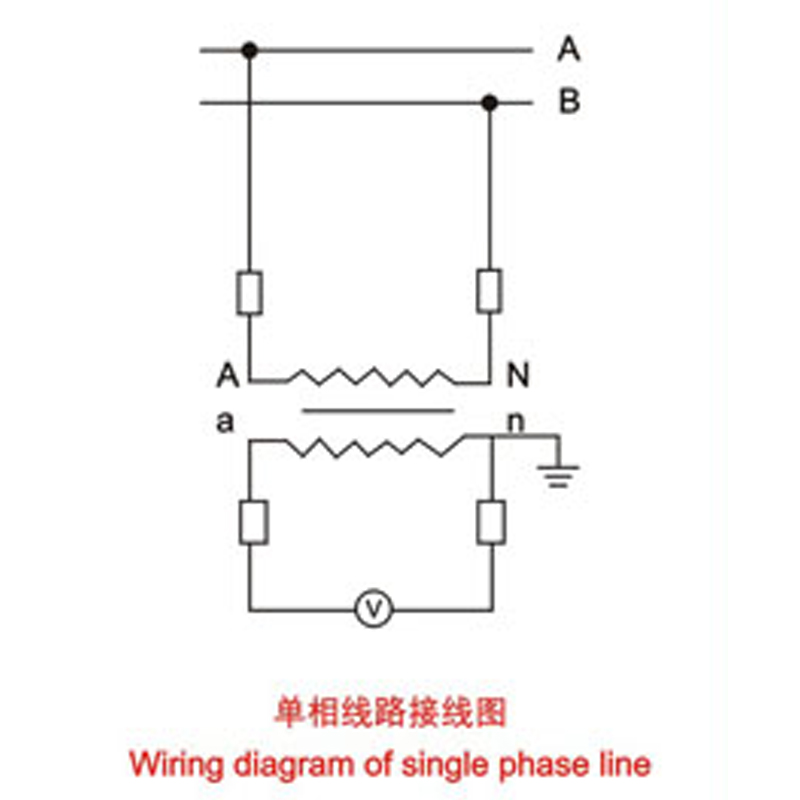

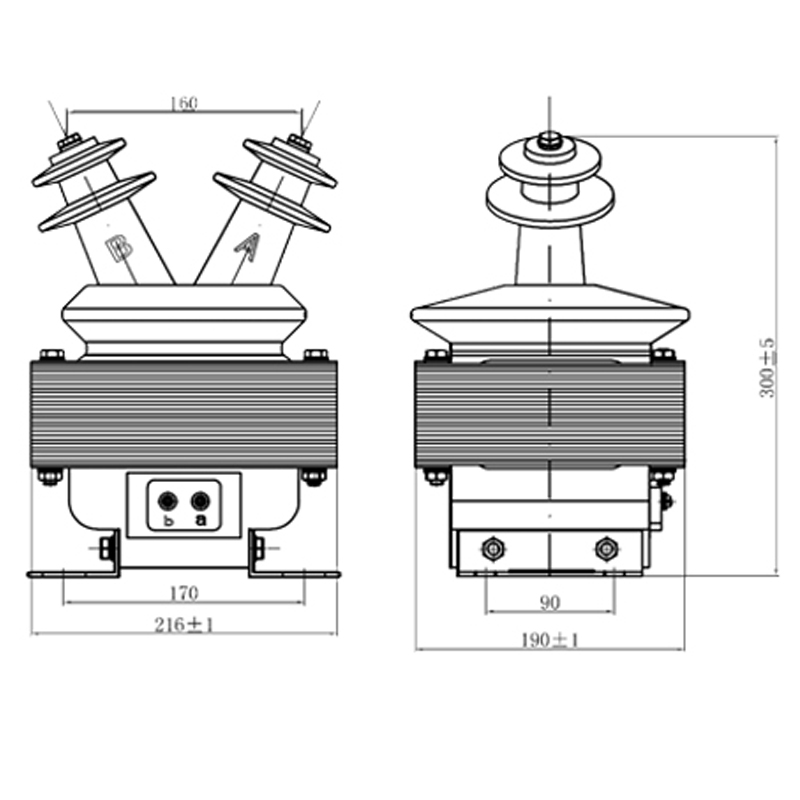

Construction


  The current transformer is of insulated epoxhy resin cast structure with piled ring core wound with primary and secondary winding is a same core.

 The secondary lead is out through the two bolts on the cast base to be a.x. The lead of the primary is out through to high-Tention terminals called A.X.

Technical data



type

JDZ-3W

JDZ-6W

JDZ-10W

Rated voltage ratio(V)

1000/100

2000/100

3000/100



6000/100





10000/100

Frequency(Hz)

50

50

50

Rated output(VA)

For accuracy class 0.5

For accuracy class 1

For accuracy class 3



30

50

80



50

80

200



80

150

300

Max.output(VA)

200

400

500

Insulated level(kV)

3.5/23/40

6.9/32/60

11.5/42/75






type


Rated voltage ratio(V)


Frequency(Hz)


Rated output(VA)



Max.output(VA)


Insulated level(kV)

For accuracy class 0.2



For accuracy class 0.5



For accuracy class 0.2/0.2



For accuracy class 0.5/0.5



JDZ-10(W)

10000/100

50

30

80

25/25

50/50

200

11.5/42/75




No comment

Product Detail

Voltage transformer JDZ-3、6、10(W)from JUCRO Electric


 Description



  JDZ Voltage transformer type is of single-phase and double winding cast with epoxy resin. It is designed for use of measurement of electronic energy and relay protection in electronic system at current of 50Hz. It has JDZ-3W)、JDZ-6W)、JDZ-10Wthree types.

Type description



Service condition


1. Altitude: Not over 1000m;

2. Ambient temperature: -5 to +40;

3. Relative humidity: less than 85%, at 20;

4. This product has passed the direct vibration test with the intensify of 0.4g three sine wares. Equivalent to nine-degree earth quatee on the richter scale.

5. This product can be used his condition of pollution.



Construction


  The current transformer is of insulated epoxhy resin cast structure with piled ring core wound with primary and secondary winding is a same core.

 The secondary lead is out through the two bolts on the cast base to be a.x. The lead of the primary is out through to high-Tention terminals called A.X.

Technical data



type

JDZ-3W

JDZ-6W

JDZ-10W

Rated voltage ratio(V)

1000/100

2000/100

3000/100



6000/100





10000/100

Frequency(Hz)

50

50

50

Rated output(VA)

For accuracy class 0.5

For accuracy class 1

For accuracy class 3



30

50

80



50

80

200



80

150

300

Max.output(VA)

200

400

500

Insulated level(kV)

3.5/23/40

6.9/32/60

11.5/42/75






type


Rated voltage ratio(V)


Frequency(Hz)


Rated output(VA)



Max.output(VA)


Insulated level(kV)

For accuracy class 0.2



For accuracy class 0.5



For accuracy class 0.2/0.2



For accuracy class 0.5/0.5



JDZ-10(W)

10000/100

50

30

80

25/25

50/50

200

11.5/42/75
