Voltage transformer JDZ(X)R8-10A,B,C JUCRO Electric

1.Rated voltage :3kv ,6kv ,10kv ,11kv
2.Indoor, cast resin epoxy type
3.it used for measurement of voltage and electric energy.

Voltage transformer JDZ(X)R8-10A,B,C  JUCRO Electric

Quantity

Product Detail

Voltage transformer JDZ(X)R8-10A,B,C  JUCRO Electric


 Description


The voltage transformers of the types RZL(JDZ)10-3,6,10A(B) are single phase, casting resin insulated and full enclosed products. They are used for metering electric energy, voltage control and relay protection in the electric non-useful-ground neutral system up to rated frequency 50Hz or 60Hz and rated voltage 10kV. The transformers can be executed according to the standards IEC186 and GB1207-1997.

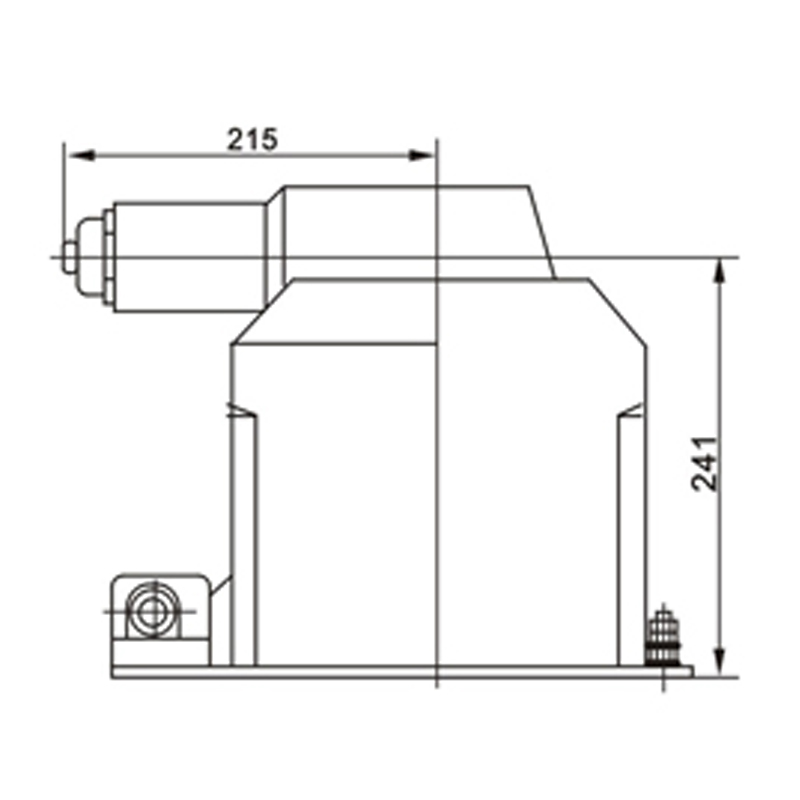

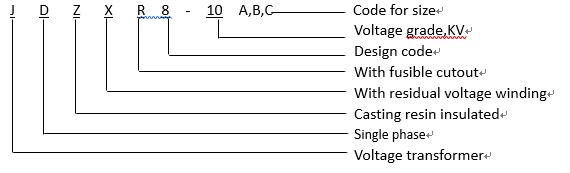

Type description



 Construction


   The type of voltage transformer have much merit, such as: electric arc resistance, ultraviolet ray and aging resistance, long creepage distance, little partial discharge and large caliber of resistance to over-voltage. The primary of the products are protected with fused. The fused is installed inside the transformer. The fusible cutout’s fused current can match the transformers short-circuit force. When the electrified wine netting breakdown, the fused can protect the transformer not breaker.



Technical data


1.        Technical data form;

2.        The fusible cutout’s type: JDZR8-10ABCXRNP-120.2A50KA. JDZR8-10ABC: JDZR8-10ABCXRNP-12 type, 0.20.5(If special need, please notice when order);

3.        If being requested to connect the computer, the secondary load of class 0.2 or 0.5 class can up to 1VA.





type


Rated voltage ratio(V)


Rated output(VA)




Limit output(VA)


Insulated level(kV)

0.2

0.5

1

6P



JDZR8-10A

3000/100



15



30



60




300

3.6/25/40

6000/100

7.2/32/60

10000/100

12/42/75



JDZXR8-10A

3000/2sin60°/100/2sin60°/100/3



15



30



60



50





300

3.6/25/40

6000/2sin60°/100/2sin60°/100/3

7.2/32/60

10000/2sin60°/100/2sin60°/100/3

12/42/75






type


Rated voltage ratio(V)


Accuracy class


Rated output(VA)




Limit output(VA)


Insulated level(kV)







JDZR8-10B

3000/100

0.2

30



500

3.6/25/40

6000/100

0.5

50

7.2/32/60

10000/100

1

90

12/42/75

3000/100/100

0.2/0.2

15/15



2×250

3.6/25/40

6000/100/100

0.2/0.5

15/30

7.2/32/60

10000/100/100

0.5/0.5

30/30

12/42/75





JDZXR8-10B

JDZXR8-10BG

3000/2sin60°/100/2sin60°/100/3





0.2/6P

0.5/6P





25/50

50/50







400

3.6/25/40

6000/2sin60°/100/2sin60°/100/3

7.2/32/60

10000/2sin60°/100/2sin60°/100/3

12/42/75





JDZXR8-10B



3000/2sin60°/100/2sin60°/100/3



0.2/0.2/6P

0.2/0.5/6P

0.5/0.5/6P





15/15/50

15/20/50

20/20/50







2×200

3.6/25/40

6000/2sin60°/100/2sin60°/100/3

7.2/32/60

10000/2sin60°/100/2sin60°/100/3

12/42/75






type


Rated voltage ratio(V)


Rated output(VA)




Limit output(VA)


Insulated level(kV)

0.2

0.5

1



JDZR8-10C

3000/100



30



80



150



500

3.6/25/40

JDZR8-6C

6000/100

7.2/32/60

JDZR8-10C

10000/100

12/42/75
