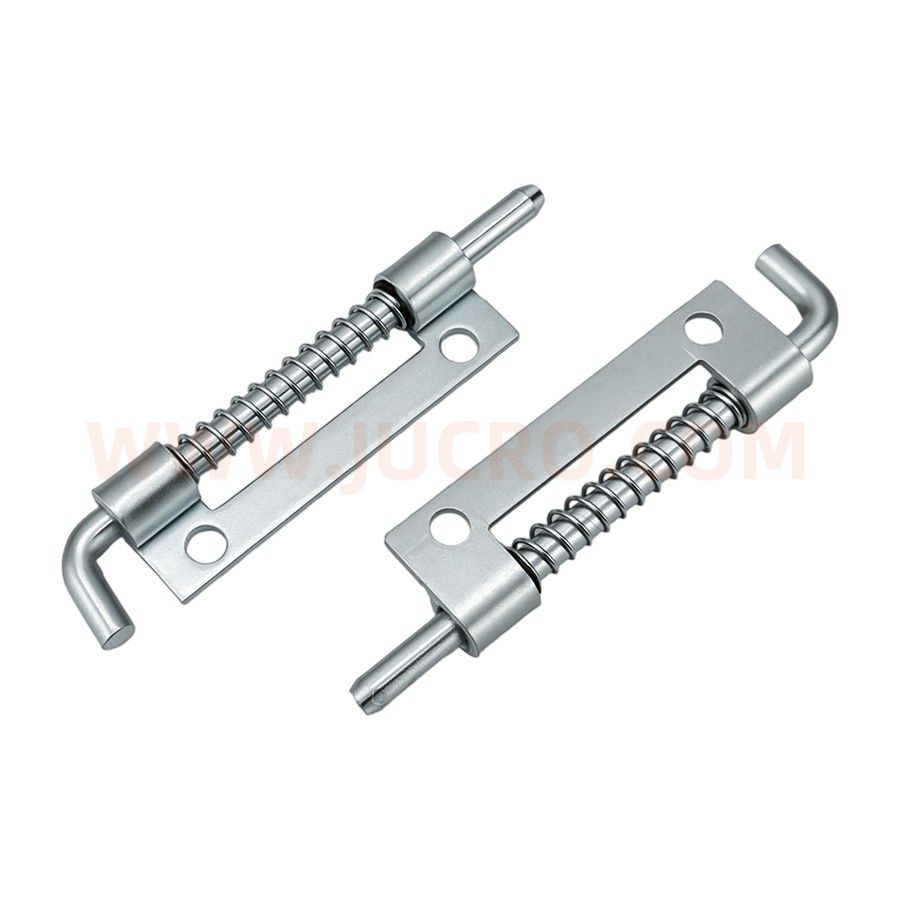

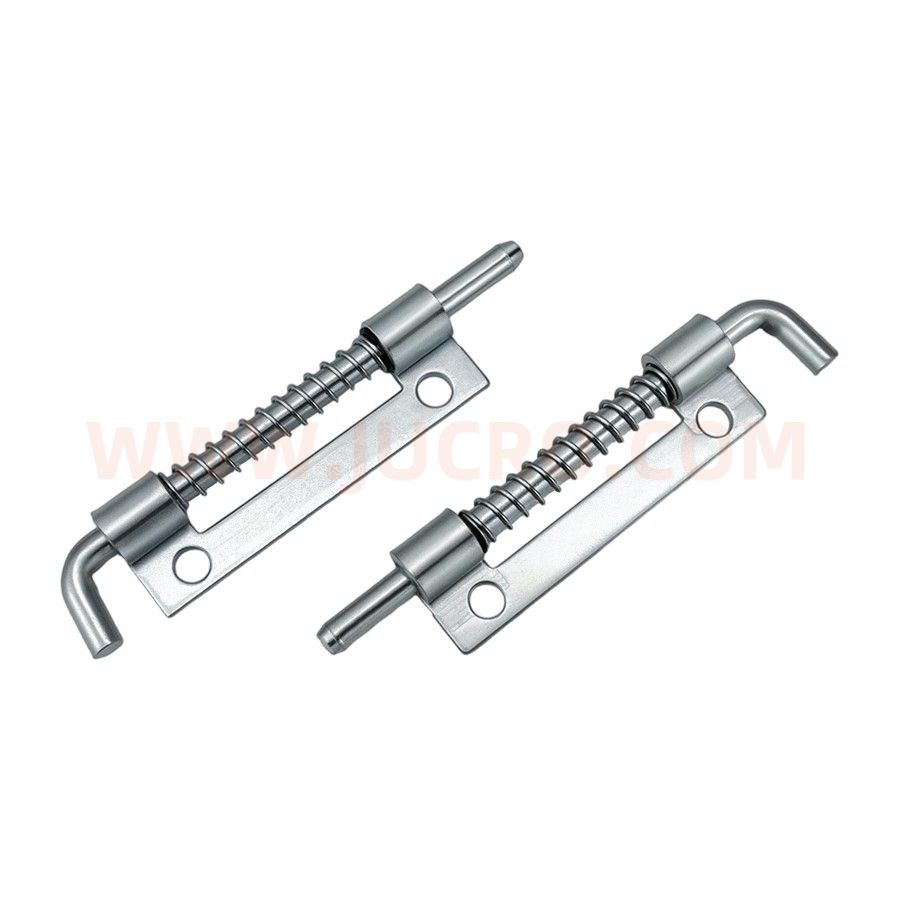

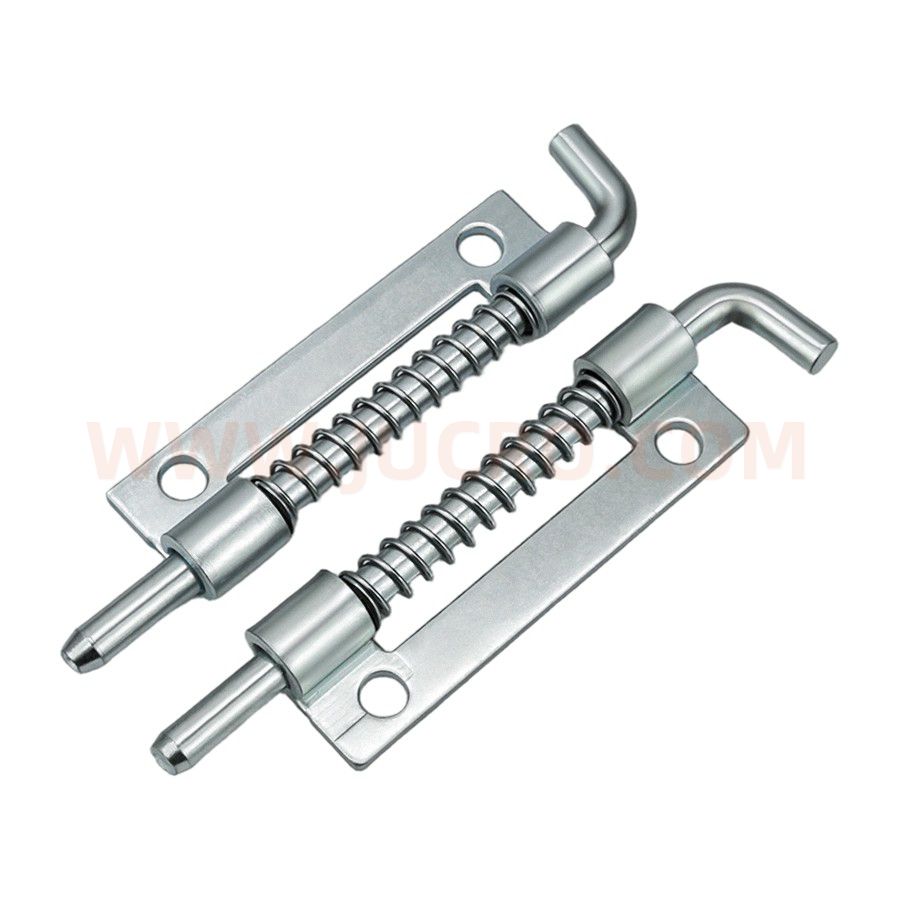

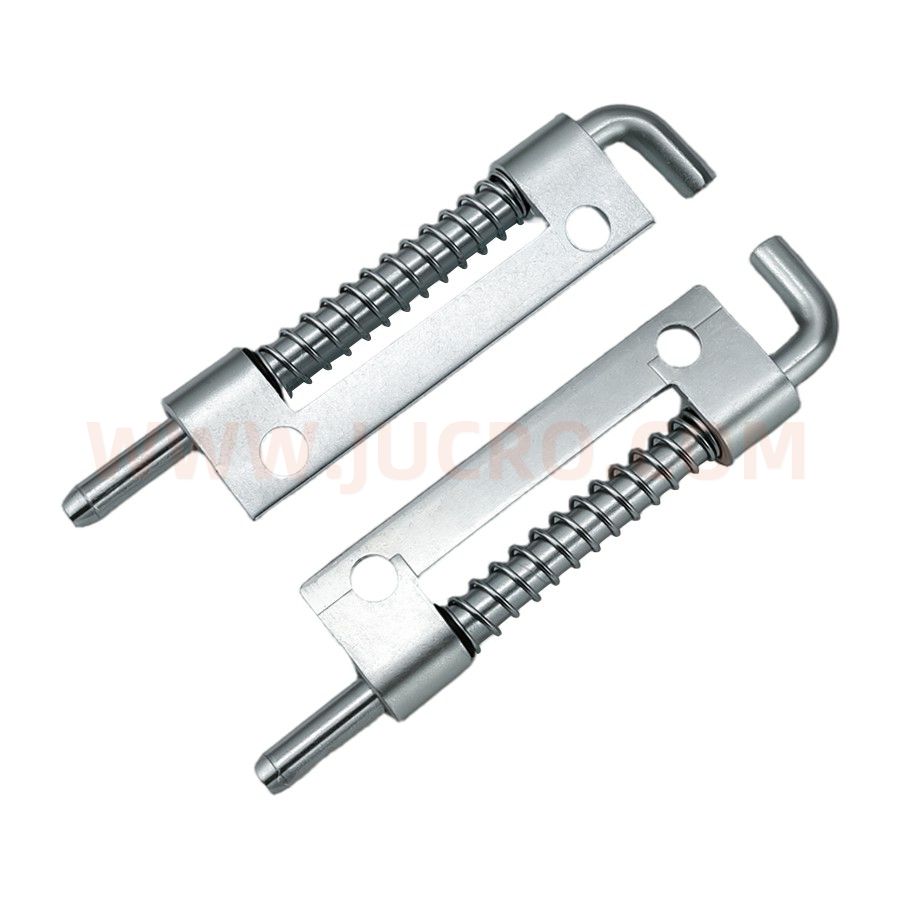

STAMPING HINGE (JH225-4A)
特征说明 CHARACTERISTICS | |
材 质 Material | 碳钢 Carbon steel |
表面处理 Surface treatment | 镀白锌 White-zinc plated |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
径向载荷 Radial load |
150N |
|
轴向载荷 Axial load |
250N |
备注：以上数据为***静载荷。
Remark:The above data is maximum static load.
|

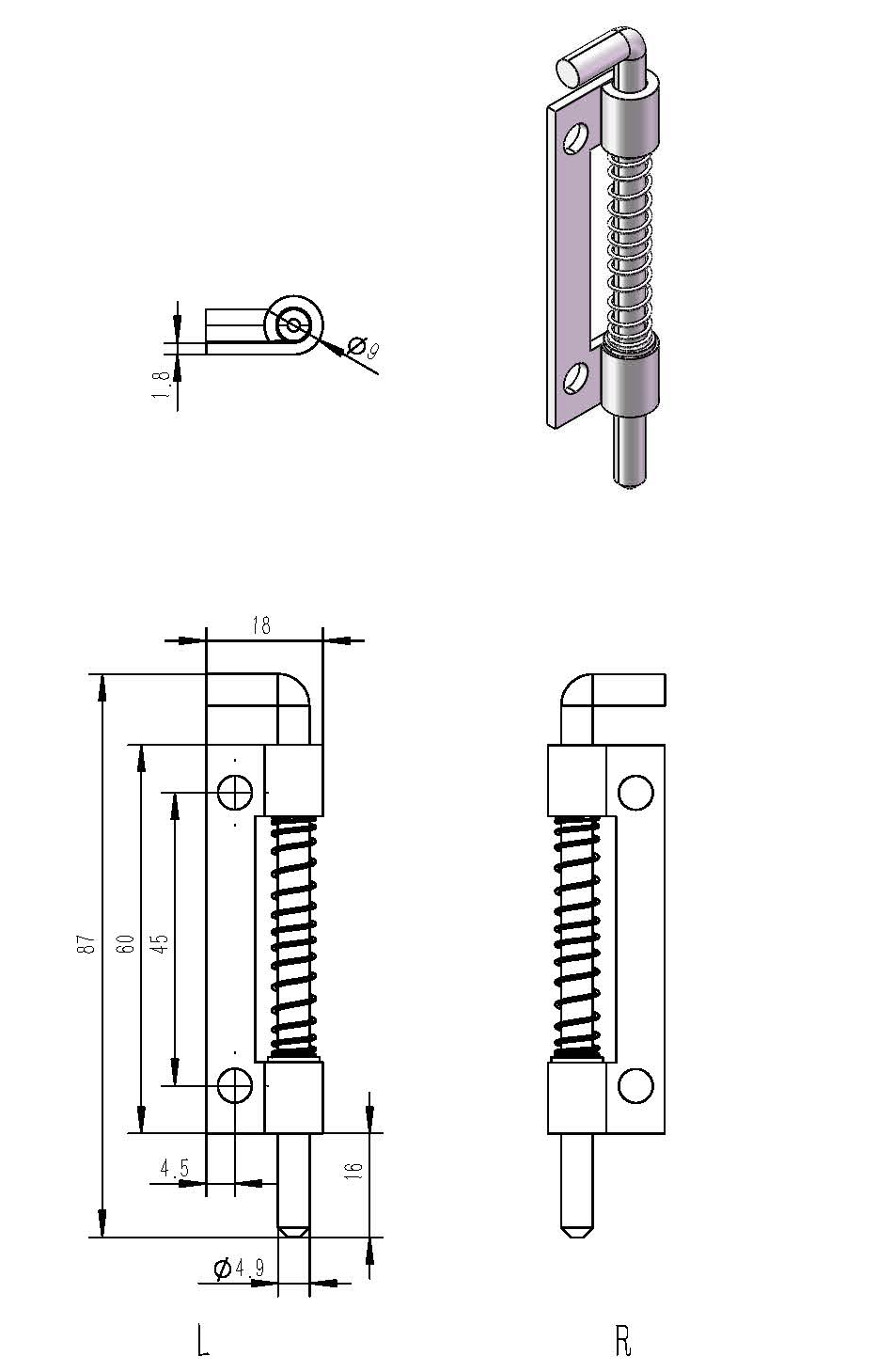

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
|
|
|
|
