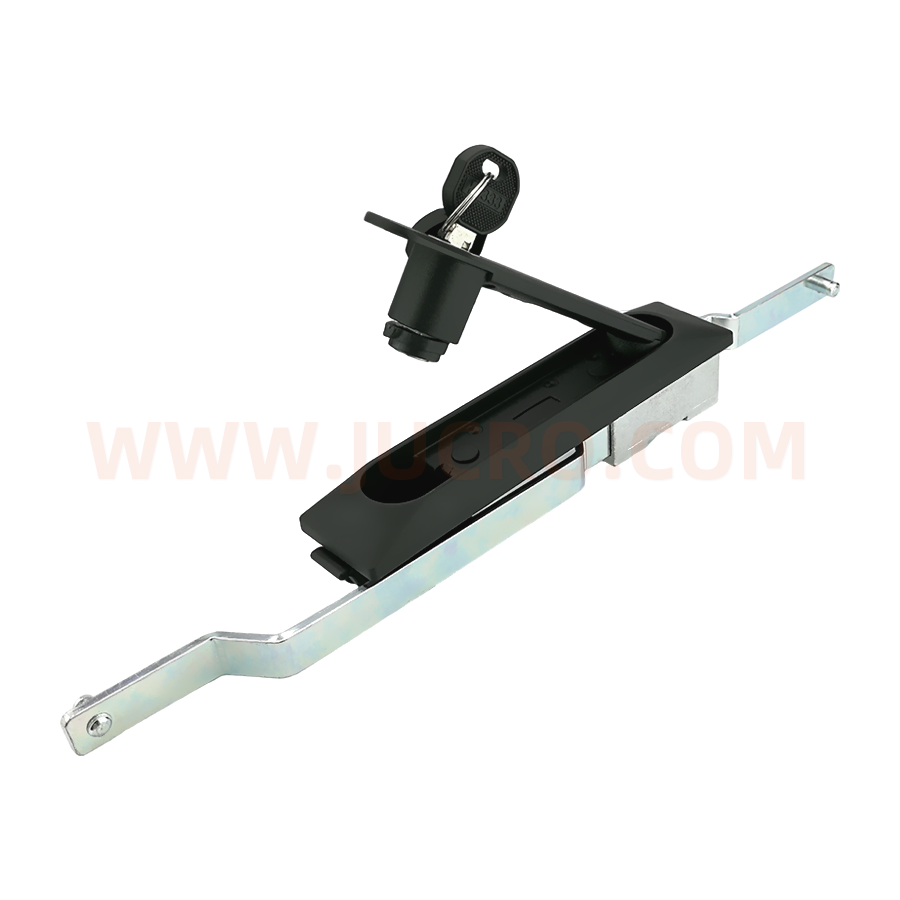

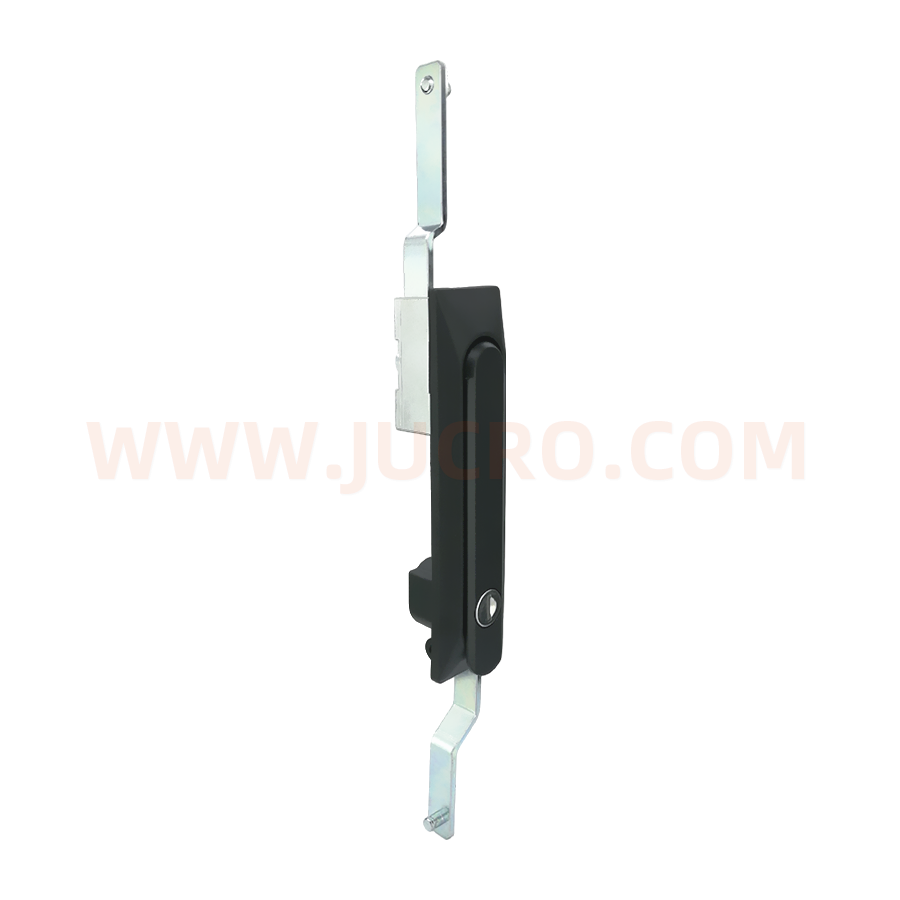

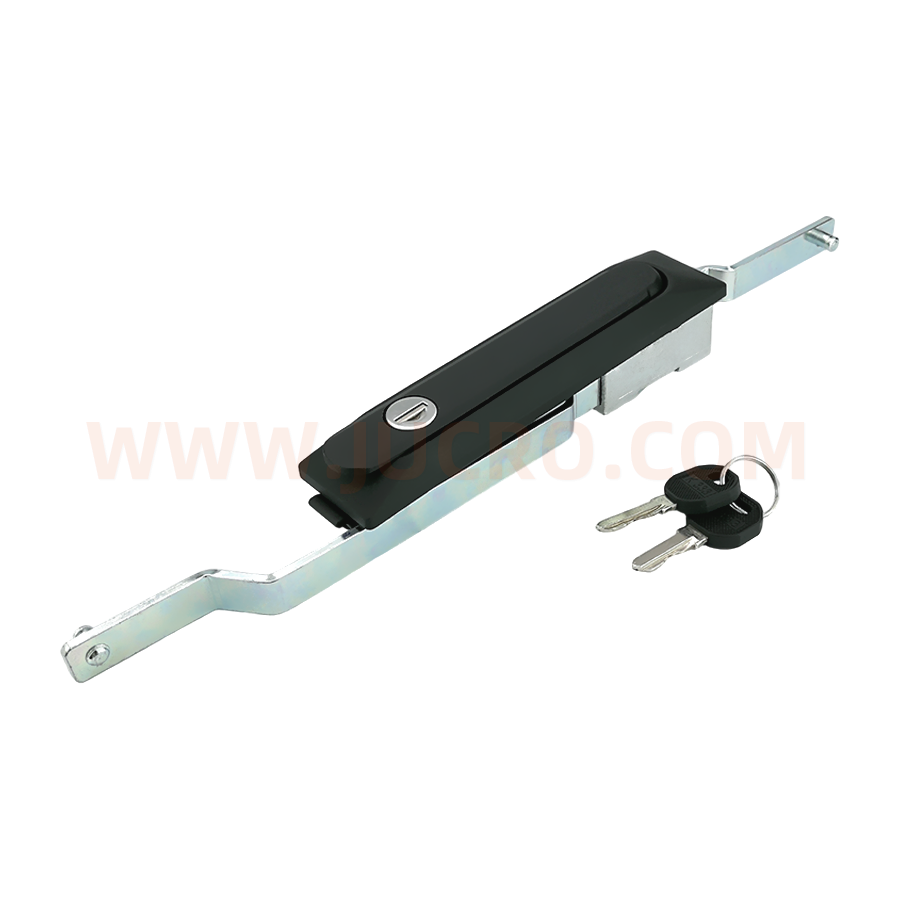

ROD CONTROL LOCK (DL861-2E)
特征说明 CHARACTERISTICS | |
材 质 Material | PA锁体、锌合金手柄及锁芯 PA housing, zinc alloy handle and cylinder |
表面处理 Surface treatment | 黑色锁体、手柄喷黑漆，锁舌镀白锌 Black housing, black spray coated handle, white-zinc plating for Lock cam |
结构说明 Structure descriPTion | 把手135°旋转实现打开及锁闭 135° turn to lock/un-lock |
备 注 Remark | 默认钥匙 Default key |
|
性能参数 PERFORMANCE PARAMETERS |
|
|
手柄承载扭矩值 Handle load torque capability |
≤22N.m |
|
手柄承载拉力值 Handle load tension capability |
≤290N |
|

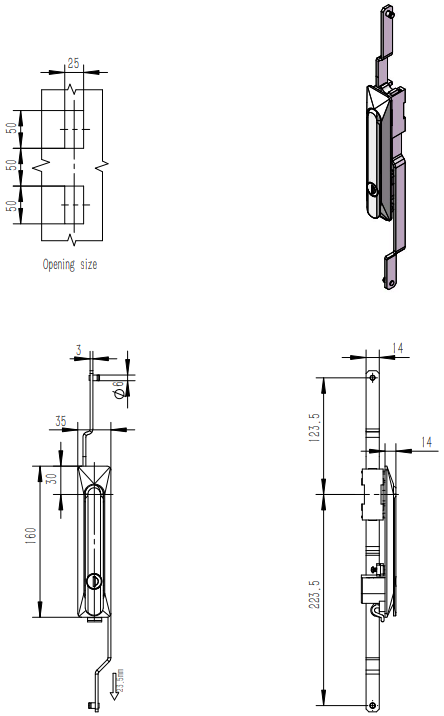

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
|
Unit：mm |
