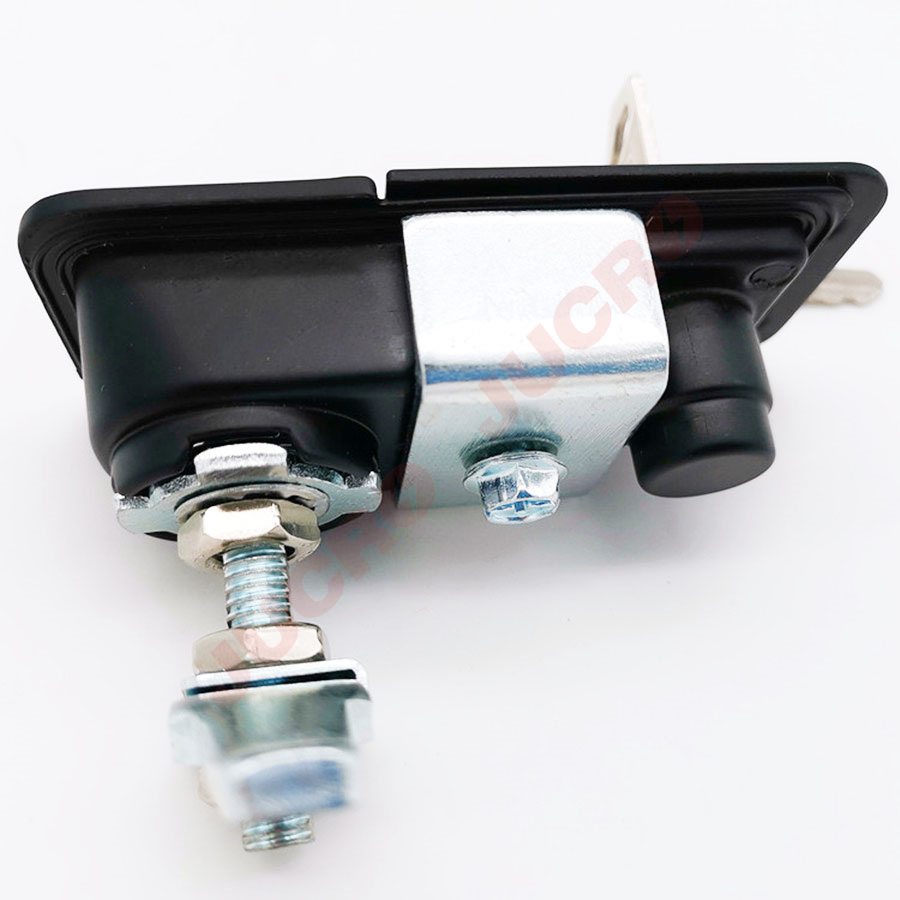

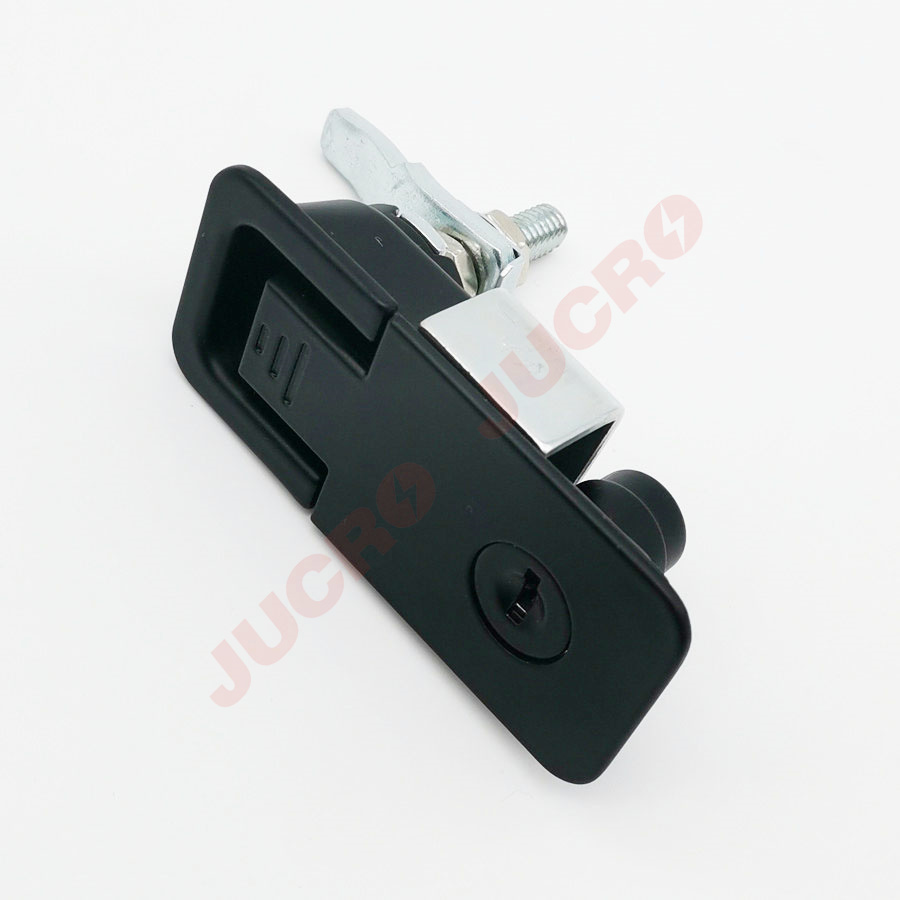

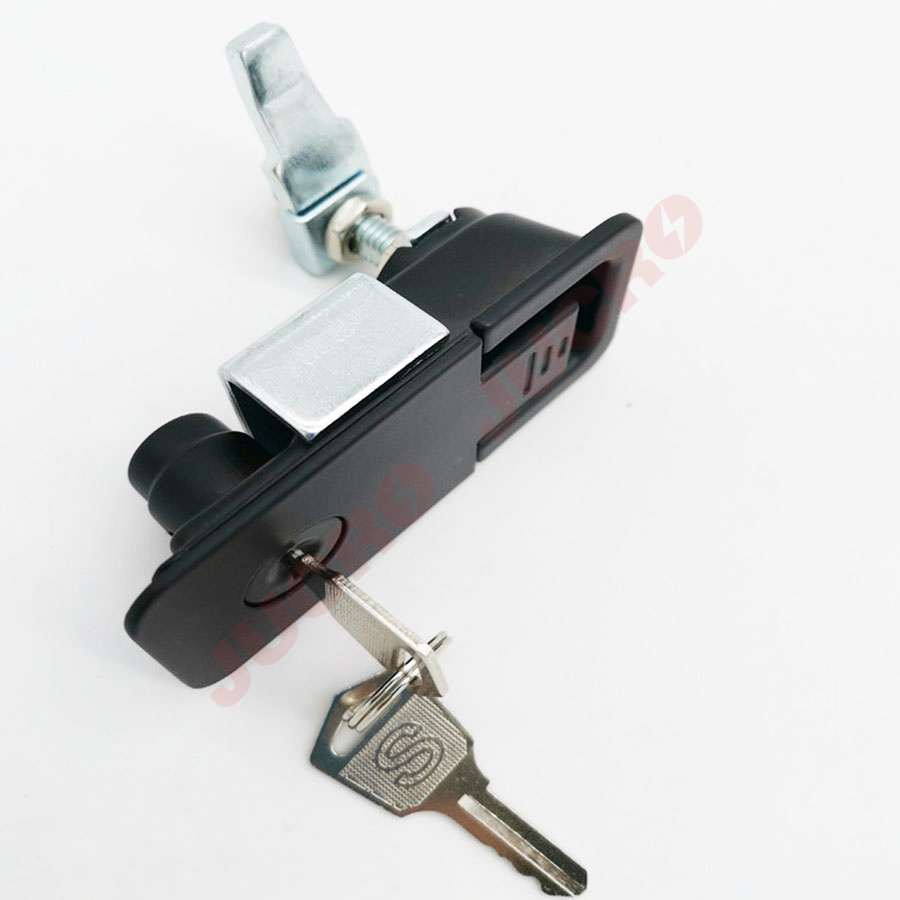

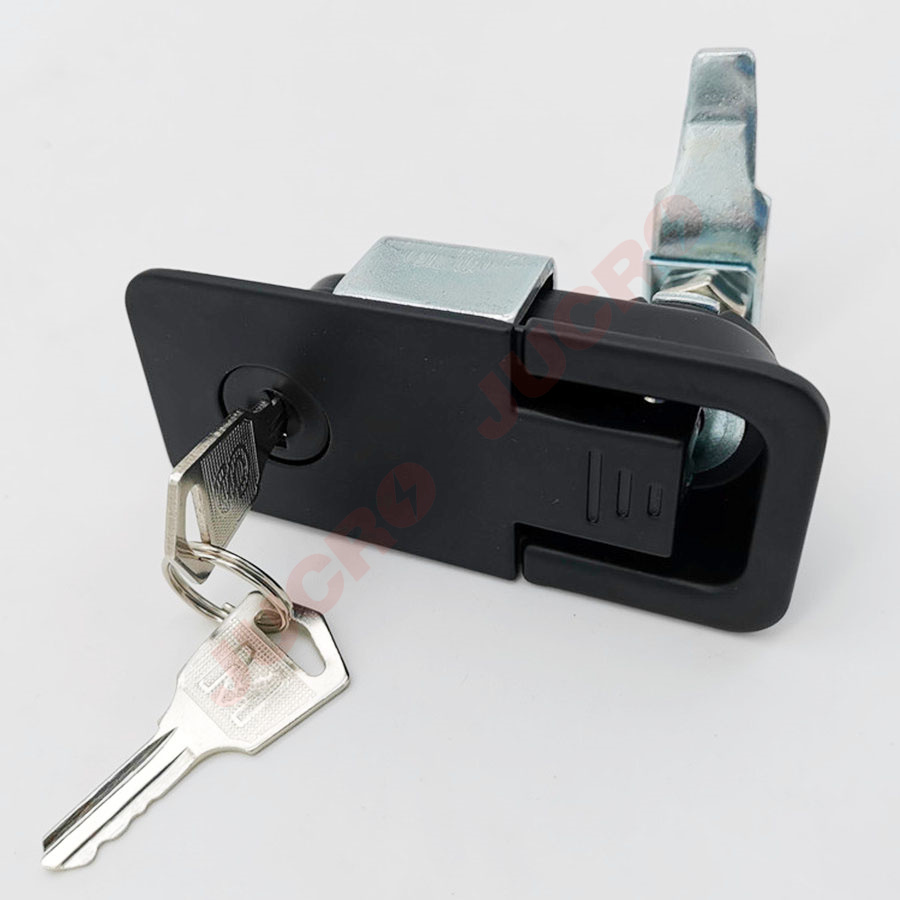

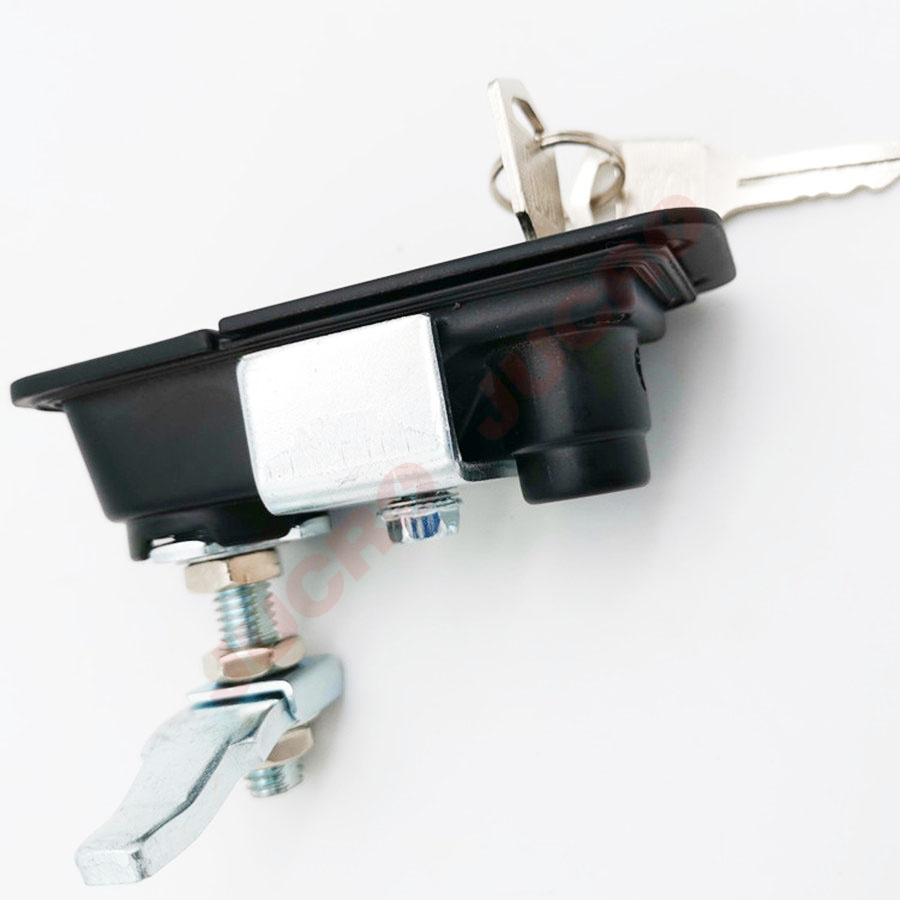

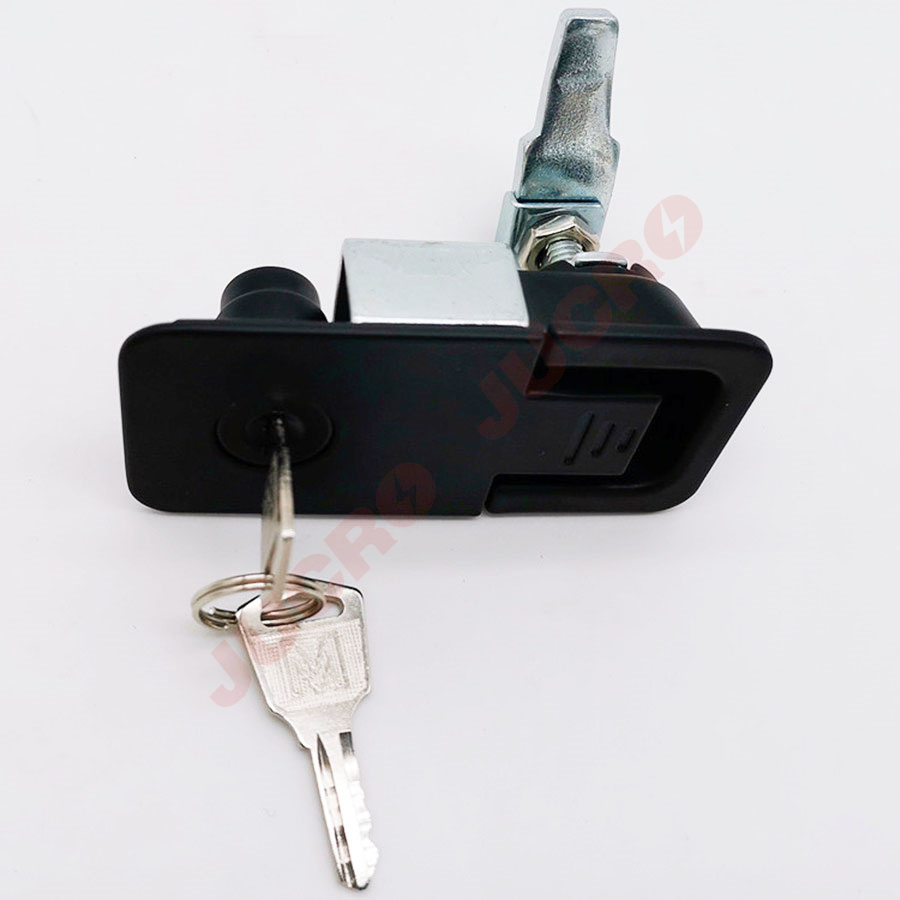

Plane lock DL726-1

特征说明 CHARACTERISTICS

材 质

Material

锌合金基座、手柄,碳钢压板、钢栓

Zinc alloy base and handle, Carbon steel plate and steel bolt

表面处理

Surface treatment

钢栓压板镀白锌

White zinc plating for steel bolt and supporting plate.

结构说明

Structure descriPTion

快速开启,安装方便快捷调节螺母可适用各种止口范围;有伸缩功能

Quick-open,easy assembling. H can be adjusted by nut. It has a telescopic function.

备 注

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

400N

手柄承载拉力值

Handle load tension capability

420N

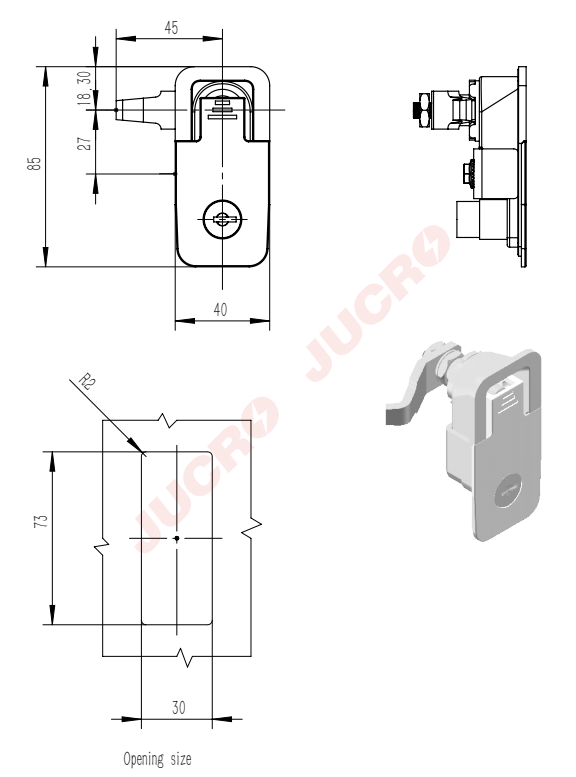

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

Plane lock DL726-1
