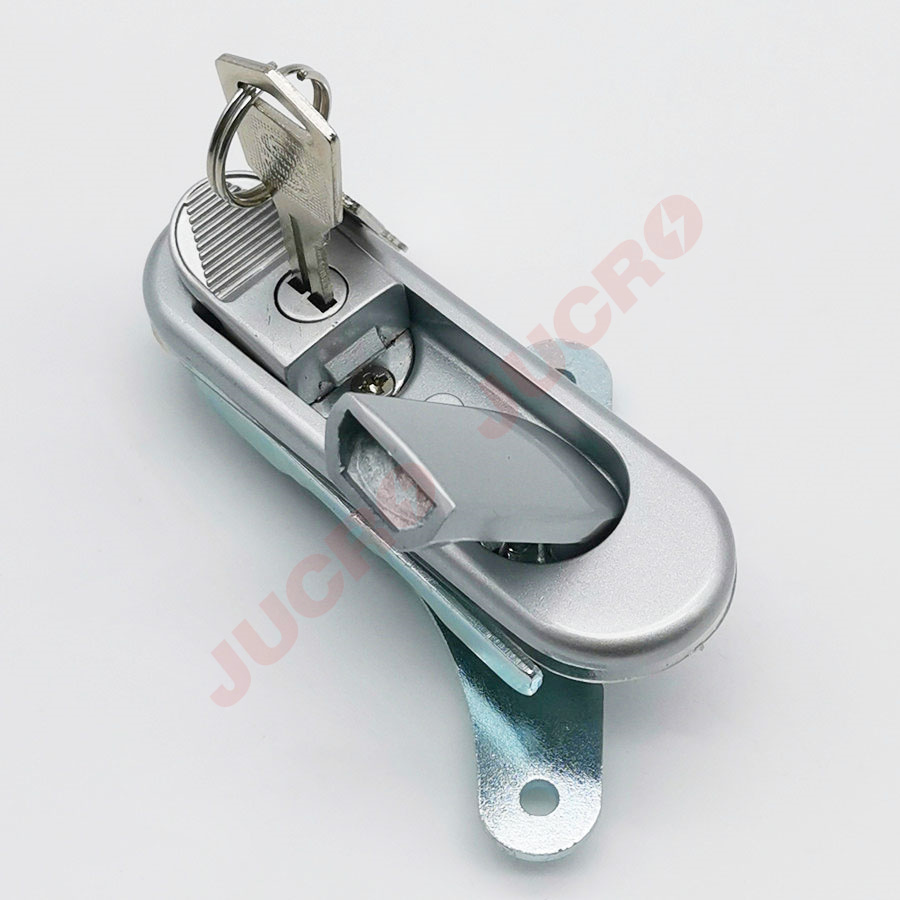

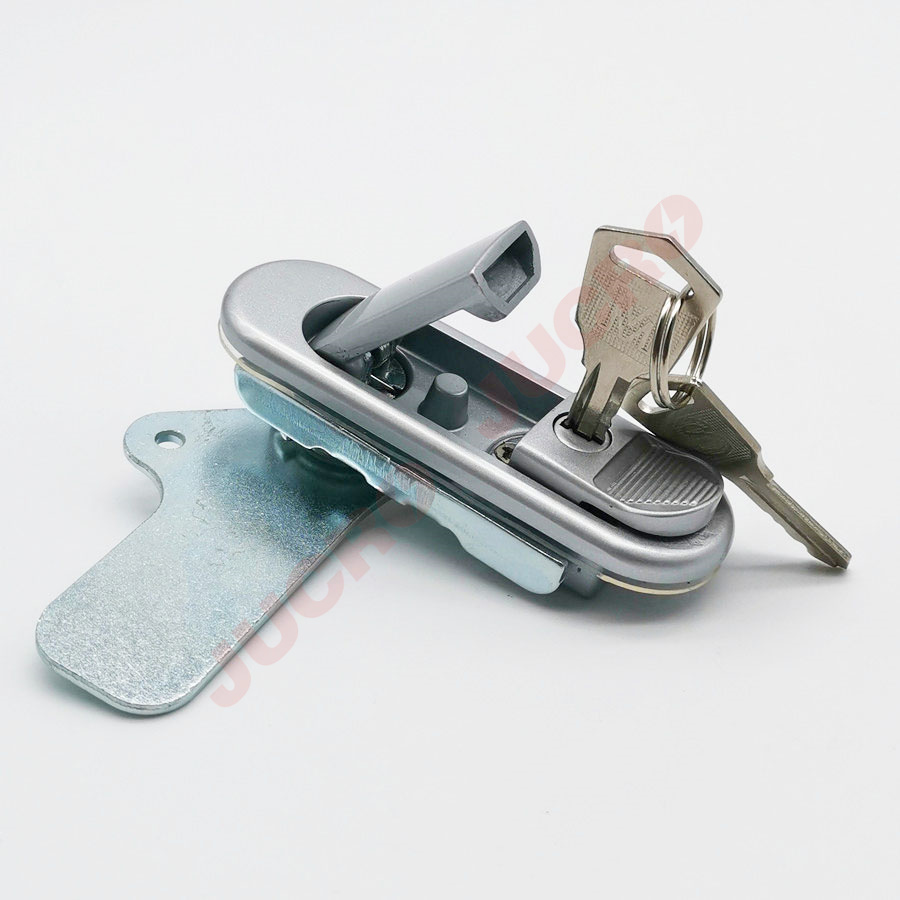

Plane Lock (DLP303-1)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、锁芯，碳钢压板、钢栓 Zinc alloy housing、handle and Lock core, carbon steel pressing plate and bolt |
表面处理 Surface treatment | 纳米亚光基座、手柄、按钮，镀白锌压板、钢栓 Nanometer matt painted housing, handle and button, white zinc plated pressing plate and steel bolt |
结构说明 Structure descriPTion | 快速开启，安装方便快捷；可达到单点与三点锁住功能 Quick-open and easy assembling, with the function of one-point locking and three-point locking |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 270N |
手柄承载拉力值 Handle load tension capability | ≤250N |
手柄承载扭矩值 Handle load torque capability | ≤14N•m |

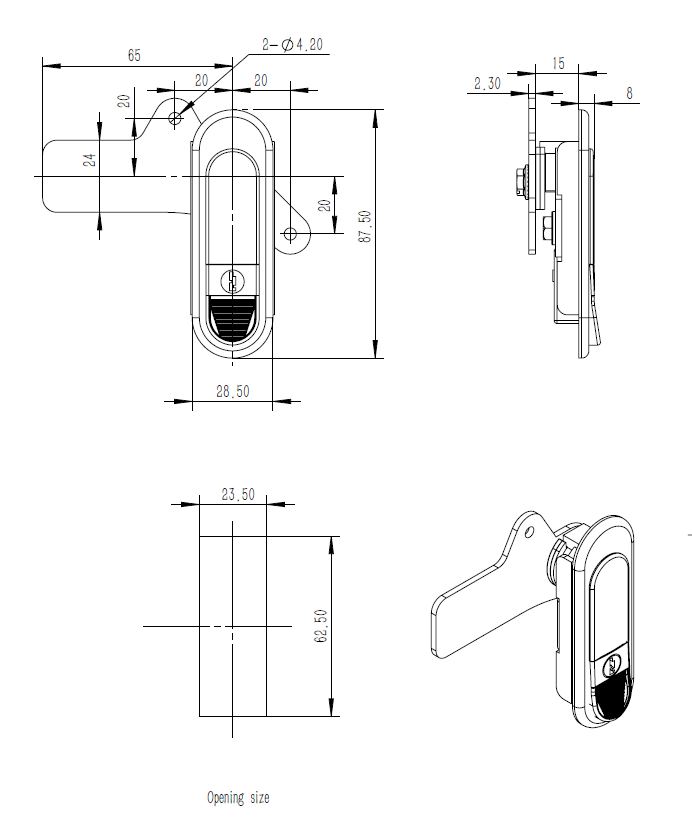

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
