特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄,碳钢钢栓 Zinc alloy housing and handle, carbon steel bolt |
表面处理 Surface treatment | 纳米亚光基座、手柄,镀白锌钢栓 Nanometer matt painted housing and handle, white zinc plated steel bolt |
结构说明 Structure descriPTion | 旋转90°实现开启或闭锁 Quarter-turn Lock/un-lock |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 200N |
手柄承载拉力值 Handle load tension capability | ≤98N |
手柄承载扭矩值 Handle load torque capability | ≤14N•m |

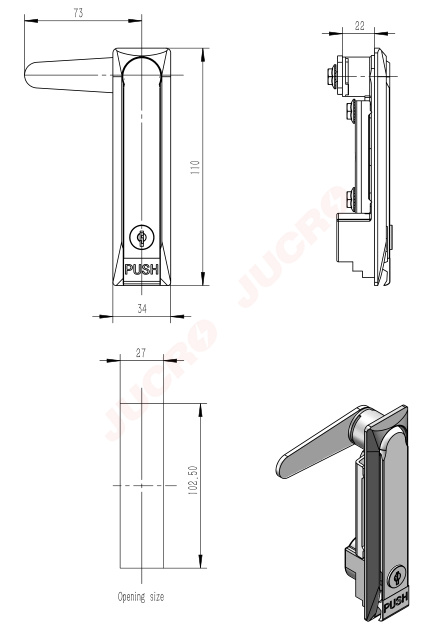

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
