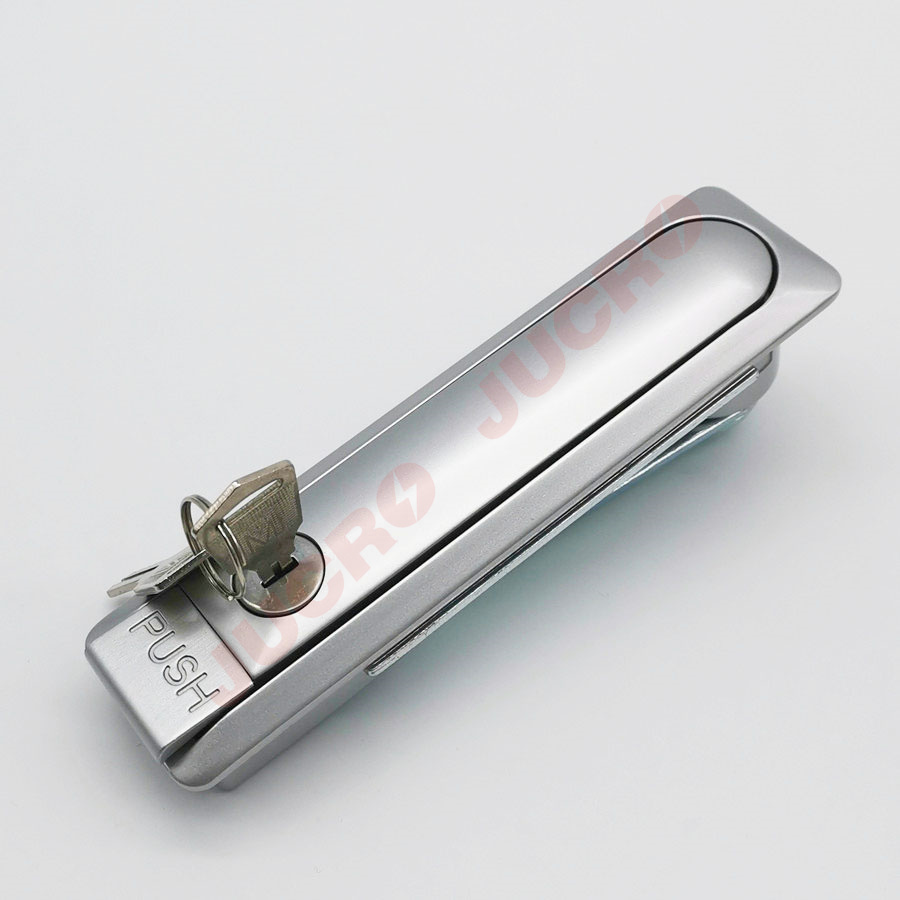

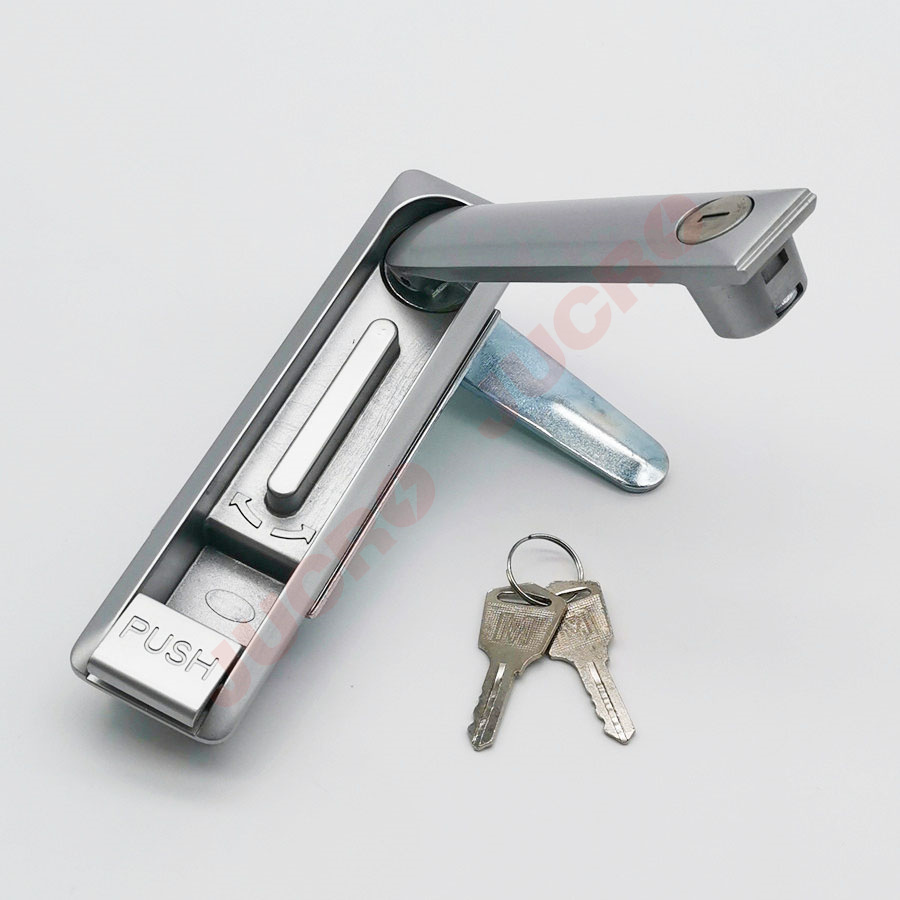

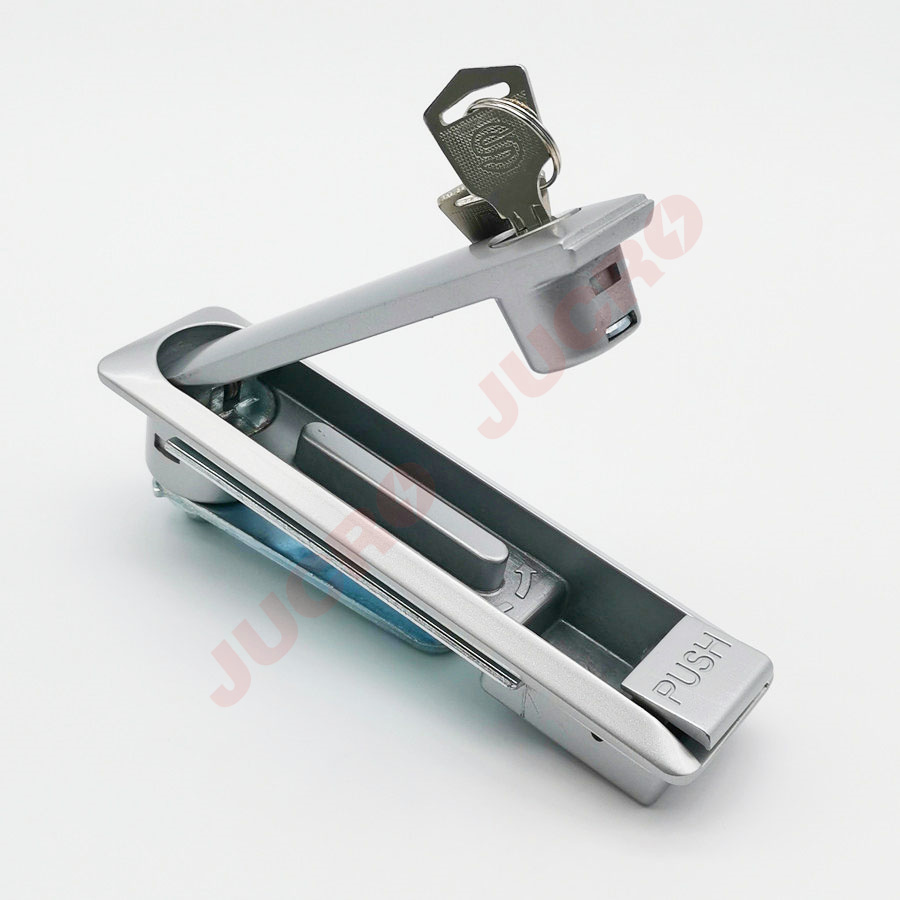

Plane Lock (DLP102)

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢钢栓

Zinc alloy housinghandle and Lock core, carbon steel bolt

表面处理

Surface treatment

纳米亚光基座、手柄,镀白锌钢栓

Nanometer matt painted housing and handle, white zinc plated steel bolt

结构说明

Structure descriPTion

旋转90°实现开启或闭锁

Quarter-turn lock/un-lock

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

最大静载荷

Maximum static load

300N

手柄承载拉力值

Handle load tension capability

390N

手柄承载扭矩值

Handle load torque capability

12Nm

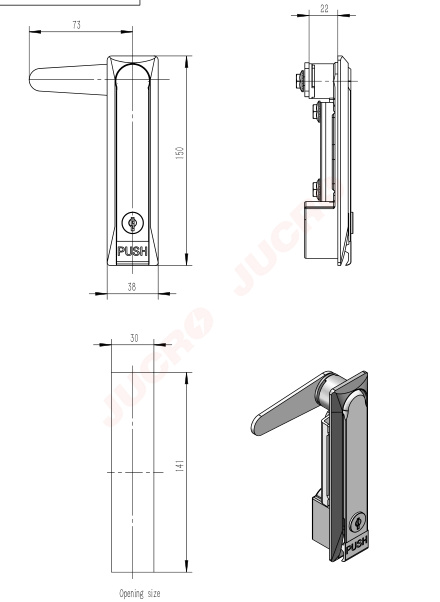

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

Plane Lock (DLP102)
