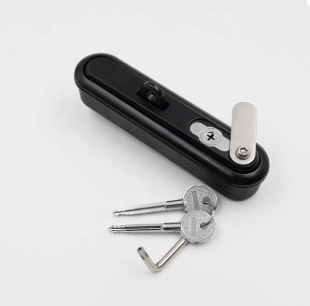

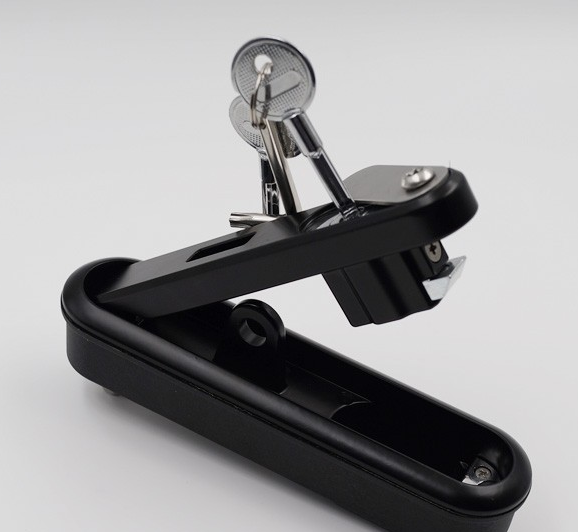

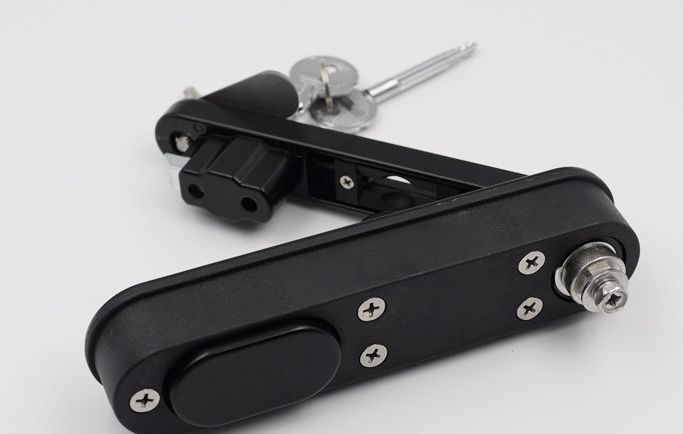

Plane Lock (DL892-1A)

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄

Zinc alloy housing, handle

表面处理

Surface treatment

喷塑(黑淡光)

Plastic spraying (Matt black)

结构说明

Structure descriPTion

把手90°旋转实现打开及锁闭,调换定位件方向实现左右开启,带挂锁

90° rotation to open or close,  position device direction to suit RH or LH  application, padLockable



性能参数 PERFORMANCE PARAMETERS

手柄承载拉力值:

Handle tension capability

690N

手柄承载扭矩值:

Handle torque capability

45N.m

***静载荷:

Maximum static load

600N

提示:拧紧防护盖有利于保护锁头  Remark: The tighten cap is good for protecting the cylinder

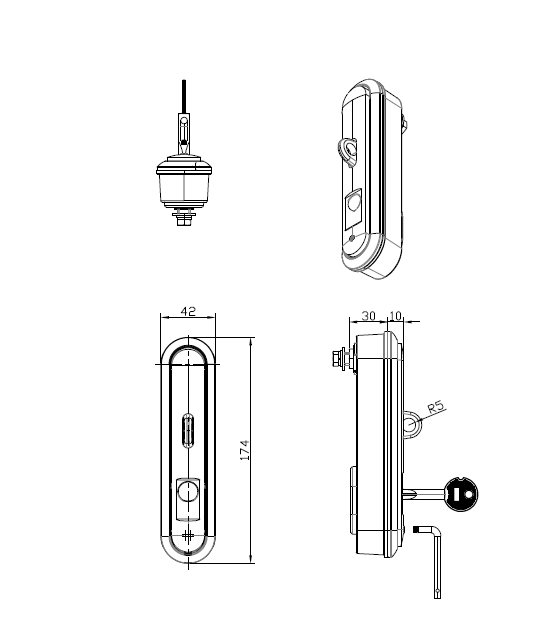

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm



Plane Lock (DL892-1A)
