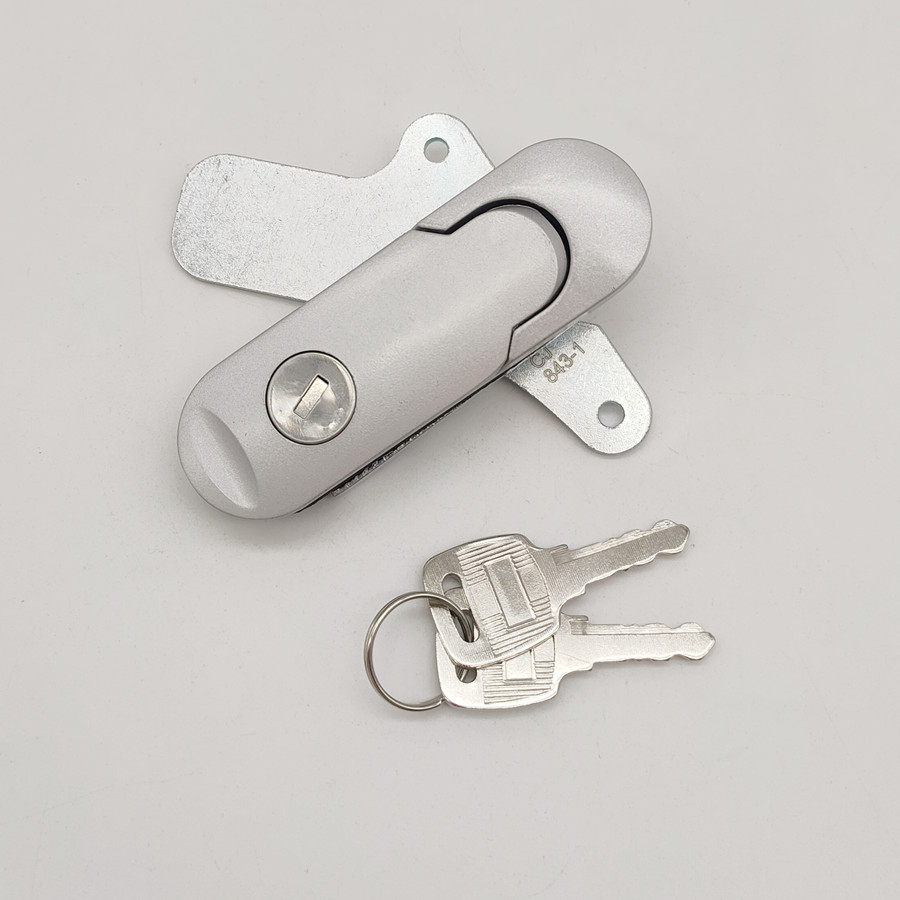

Plane Lock (DL843)

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢压板、钢栓

Zinc alloy housing, handle and Lock core, carbon steel pressing plate and bolt

表面处理

Surface treatment

纳米亚光基座、手柄,镀白锌压板、钢栓

Nanometer matt painted housing, handle and button; white zinc plated pressing plate and steel bolt

结构说明

Structure descriPTion

手柄向上打开,带动钢栓旋转

The handle opens up to rotate the steel bolt.

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

最大静载荷

Maximum static load

190N

手柄承载拉力值

Handle load tension capability

180N

手柄承载扭矩值

Handle load torque capability

14Nm

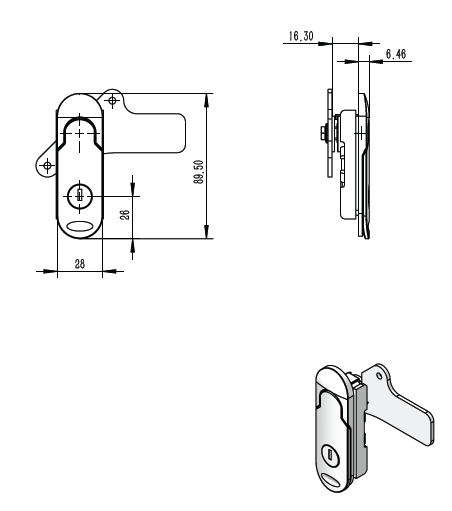

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Plane Lock (DL843)
