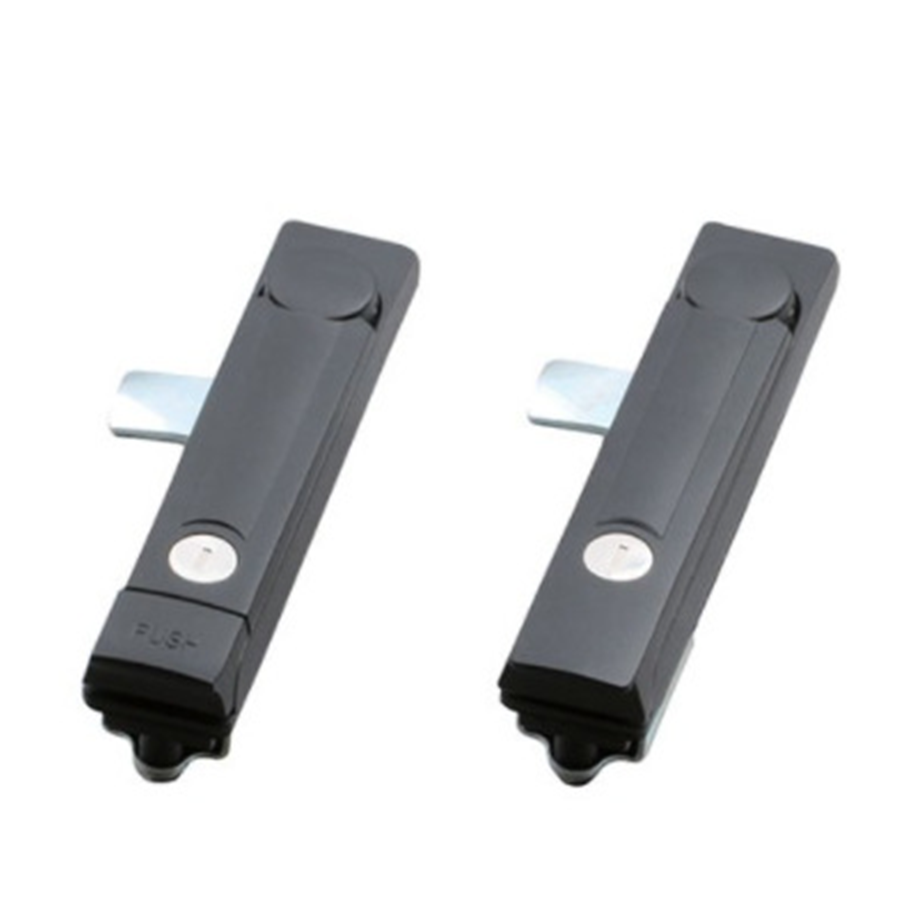

Plane Lock (DL833)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄，碳钢钢栓 Zinc alloy base and handle, carbon steel bolt |
表面处理 Surface treatment | 喷塑（黑麻面）基座、手柄、按钮，镀白锌钢栓、传动壳组件 Black spray plastic (pitted surface) for base, handle and button; white zinc plated steel bolt |
结构说明 Structure descriPTion | 旋转手柄可以实现门板的开启和关闭 90 degree handle rotation combines with rod latch to open or close |
备 注 Remark | 默认K030钥匙 Default key K030 |
性能参数 PERFORMANCE PARAMETERS | |
手柄承载拉力值 Handle load tension capability | ≤295N |
手柄承载扭矩值 Handle load torque capability | ≤25N•m |

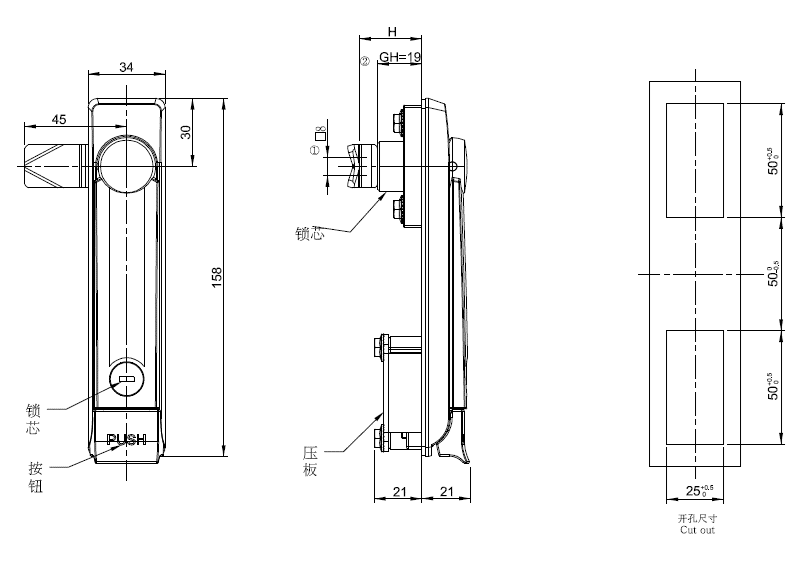

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
