Product Detail
特征说明 CHARACTERISTICS
材 质
Material
铝合金基座，锌合金手柄、锁头组件，碳钢压板、钢栓
Aluminum alloy housing, zinc alloy handle and insert, carbon steel pressing plate and cam
表面处理
Surface treatment
喷黑漆基座、手柄，镀亮光铬锁头组件，镀白锌压板、钢栓
Black spray painted housing and handle, bright chrome plated insert, white zinc plated steel pressing plate and cam
结构说明
Structure descriPTion
快速开启，安装方便快捷；更换钢栓可达到单点与三点锁住功能
Quick-open and easy assembling; one-point or three-point Locking function will be achieved with different cam mounted on
备 注
Remark
默认TC04-1锁头、K040钥匙
Default insert TC04-1 and key K040
性能参数 PERFORMANCE PARAMETERS
***静载荷
Maximum static load
300N
手柄承载拉力值
Handle load tension capability
≤250N
手柄承载扭矩值
Handle load torque capability
≤30N•m

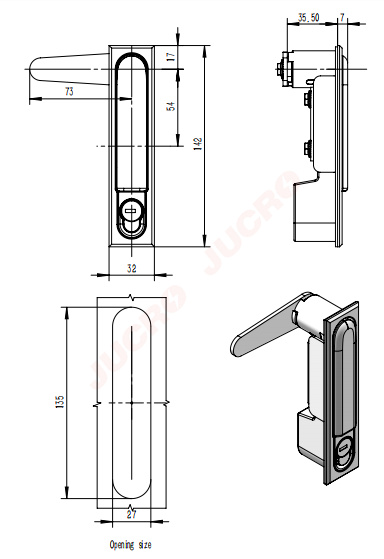

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION
Unit：mm
