Plane Lock (DL726-1)

Plane Lock (DL726-1)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄,碳钢压板、钢栓

Zinc alloy base and handle, Carbon steel plate and steel bolt

表面处理

Surface treatment

钢栓、压板镀白锌

White zinc plating for steel bolt and supporting plate.

结构说明

Structure descriPTion

快速开启,安装方便快捷;调节螺母可适用各种止口范围;有伸缩功能

Quick-open,easy assembling. ”H” can be adjusted by nut. It has a telescopic function.

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

400N

手柄承载拉力值

Handle load tension capability

420N

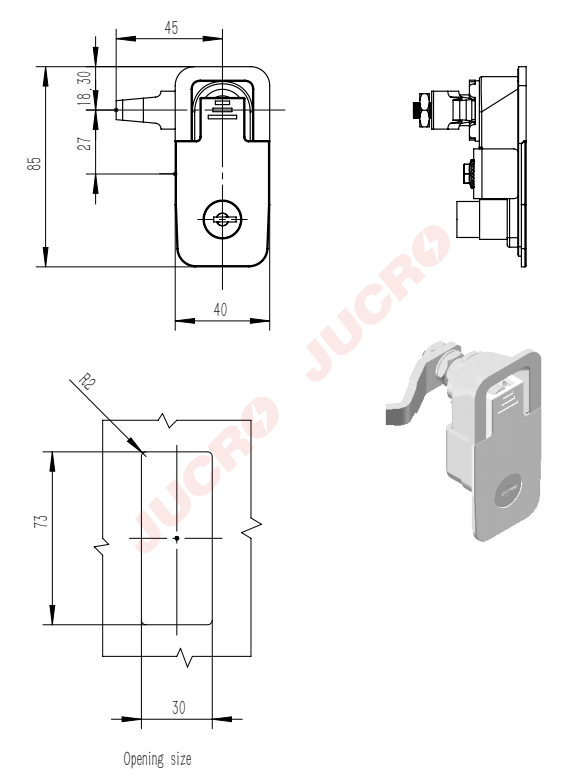

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄,碳钢压板、钢栓

Zinc alloy base and handle, Carbon steel plate and steel bolt

表面处理

Surface treatment

钢栓、压板镀白锌

White zinc plating for steel bolt and supporting plate.

结构说明

Structure descriPTion

快速开启,安装方便快捷;调节螺母可适用各种止口范围;有伸缩功能

Quick-open,easy assembling. ”H” can be adjusted by nut. It has a telescopic function.

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

400N

手柄承载拉力值

Handle load tension capability

420N

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
