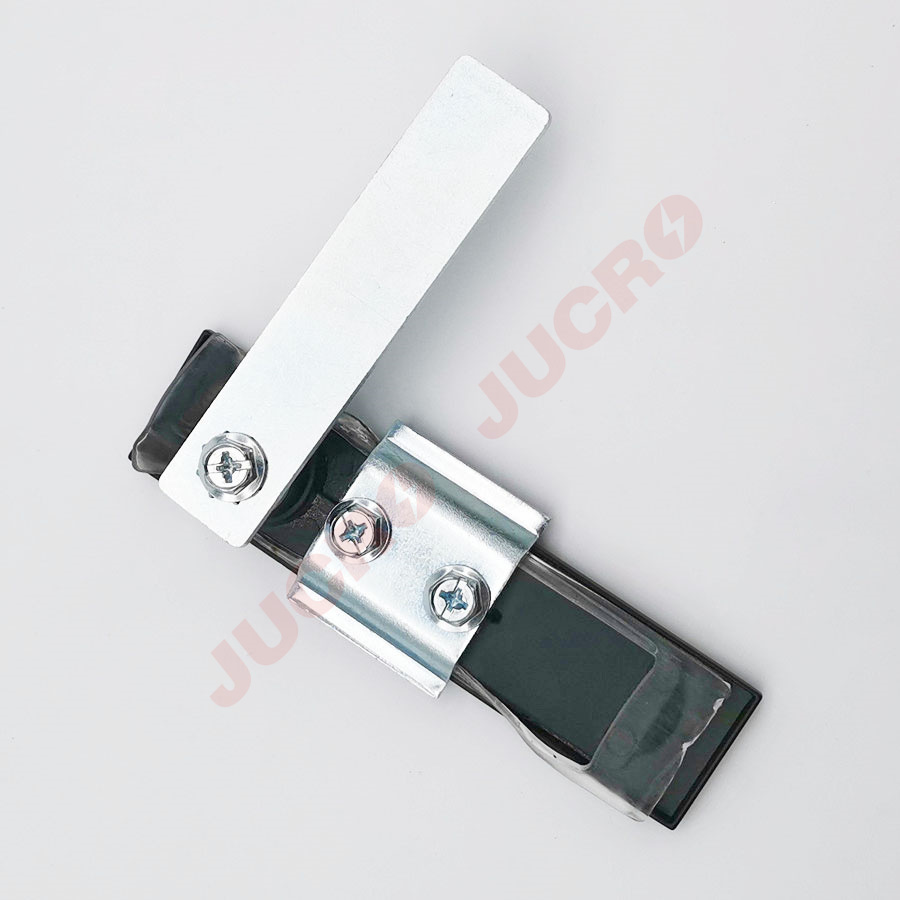

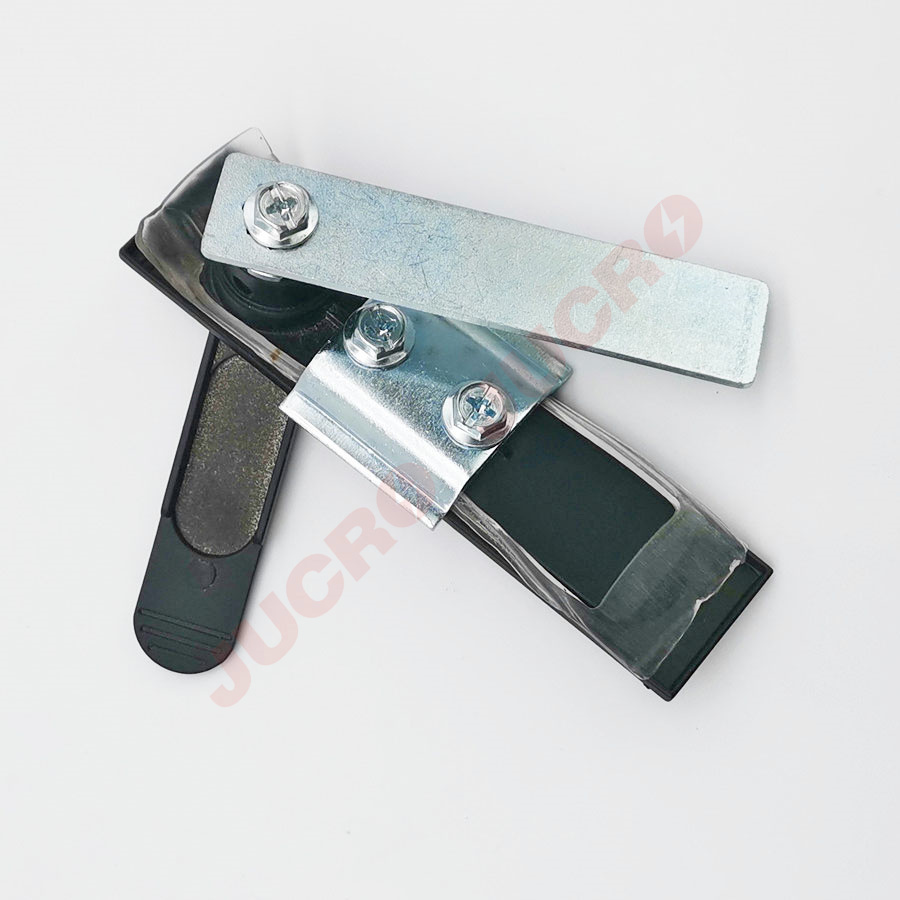

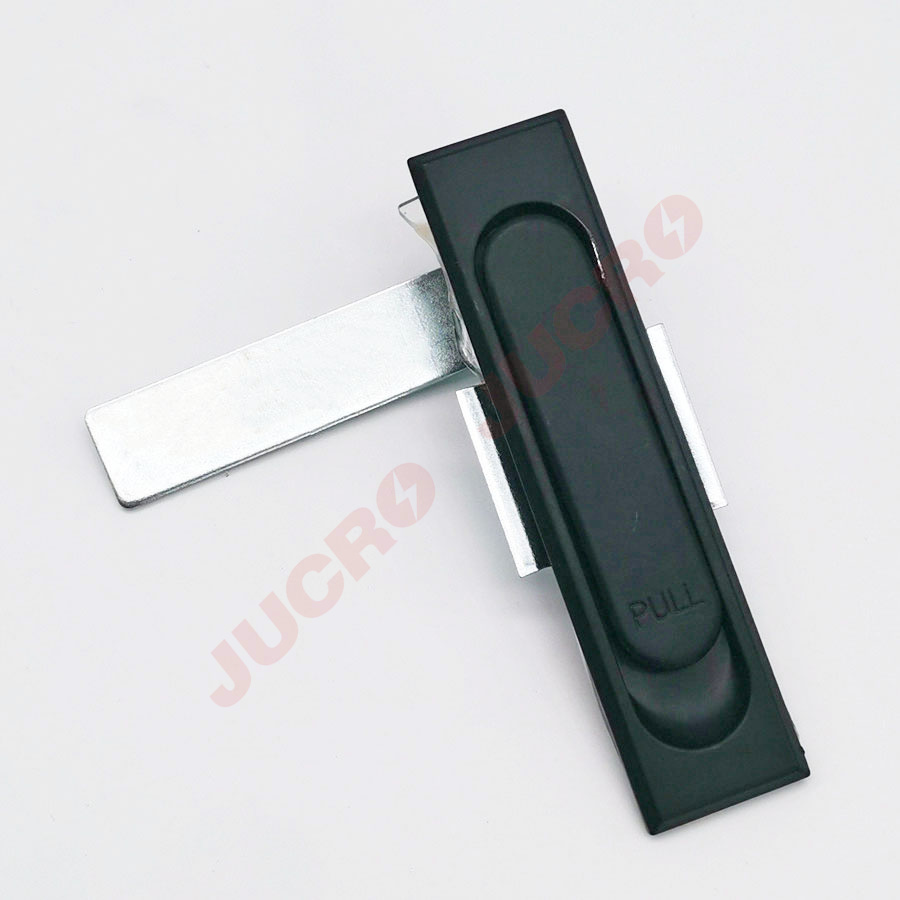

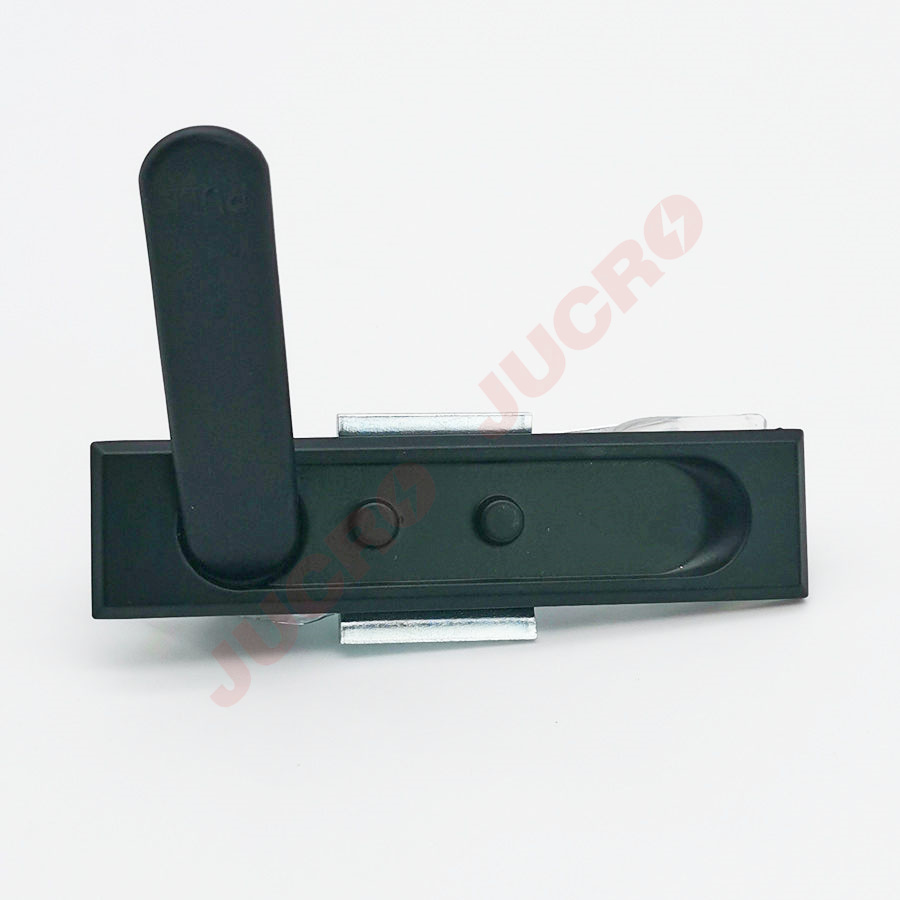

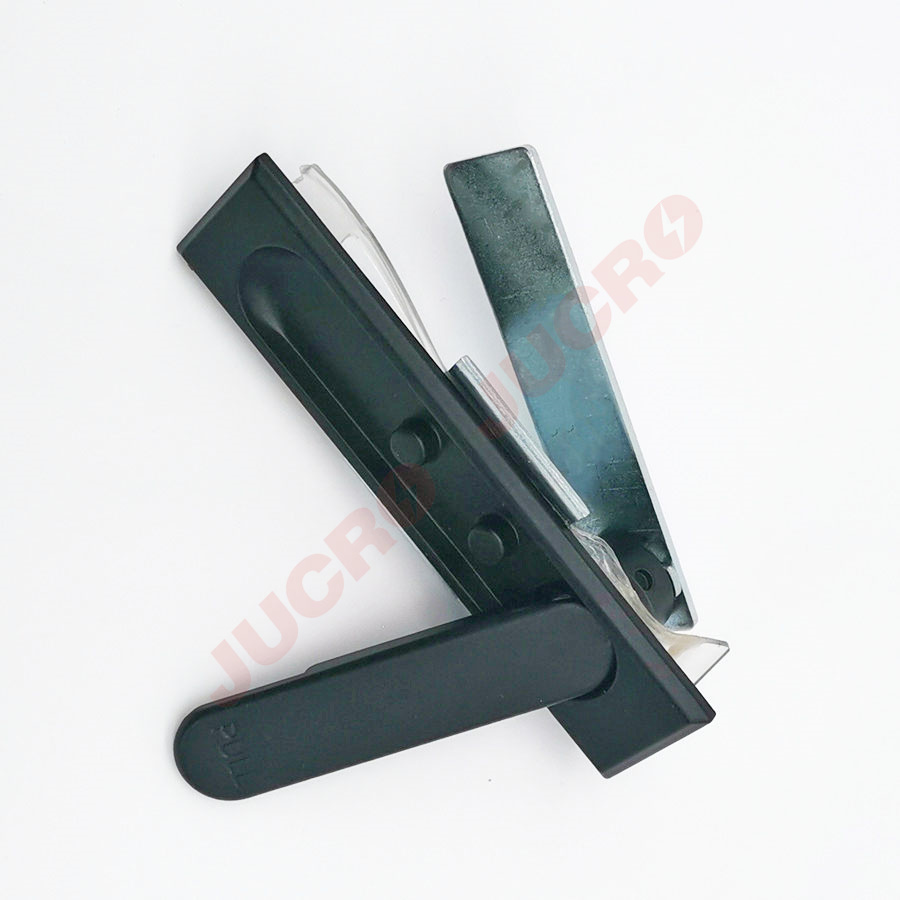

Plane Lock (DL717-1)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄，碳钢压板、钢栓 Zinc alloy housing and handle, carbon steel pressing plate and cam |
表面处理 Surface treatment | 喷黑漆基座、手柄，镀白锌压板、钢栓 Black spray painted housing and handle, white zinc plated pressing plate and cam |
结构说明 Structure descriPTion | 快速开启，安装方便快捷 Quick-open and easy assembling |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 150N |
手柄承载拉力值 Handle load tension capability | ≤125N |
手柄承载扭矩值 Handle load torque capability | ≤17N•m |

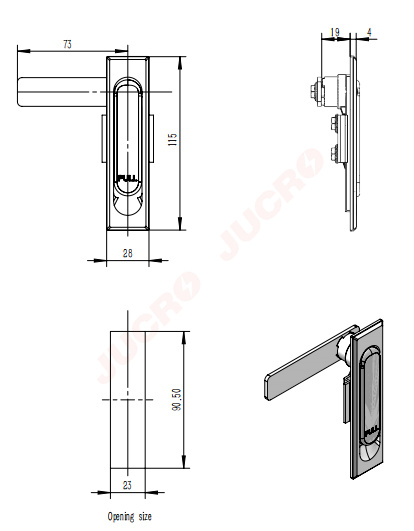

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
