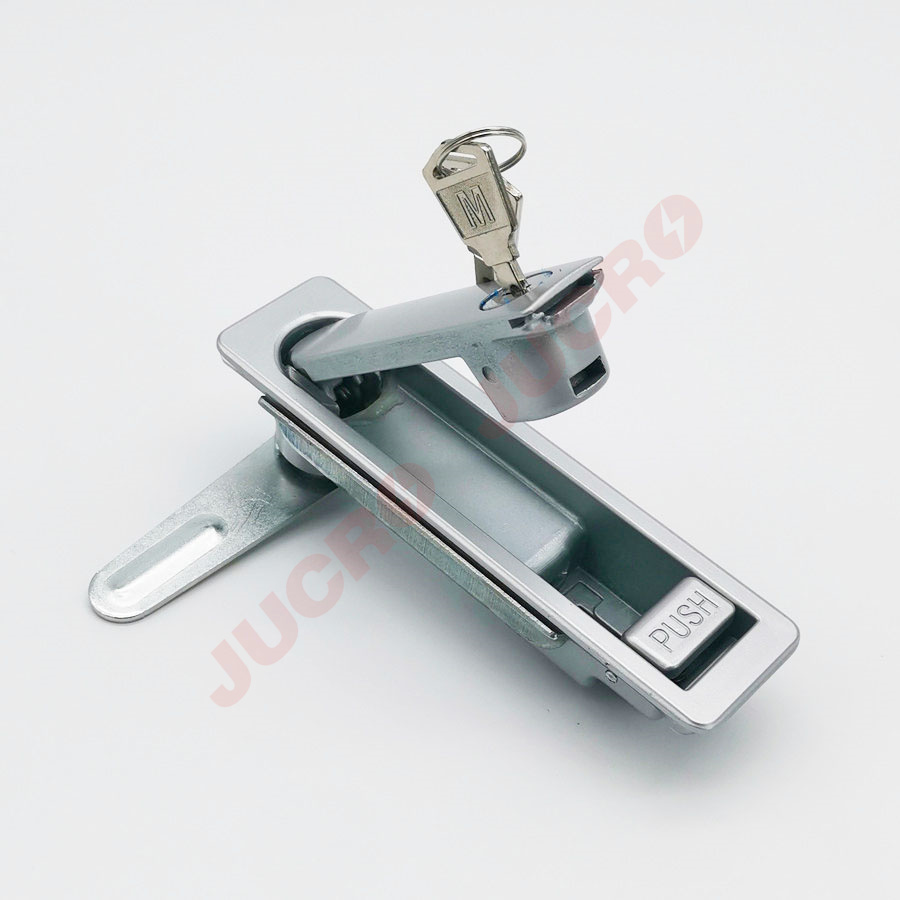

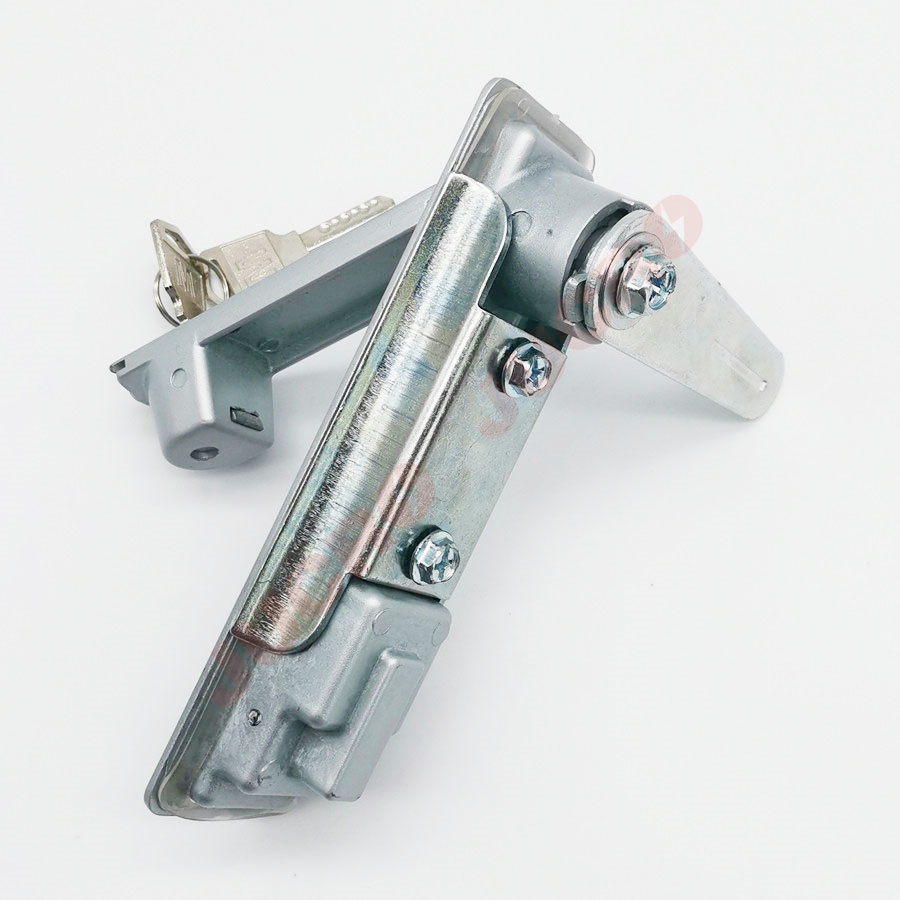

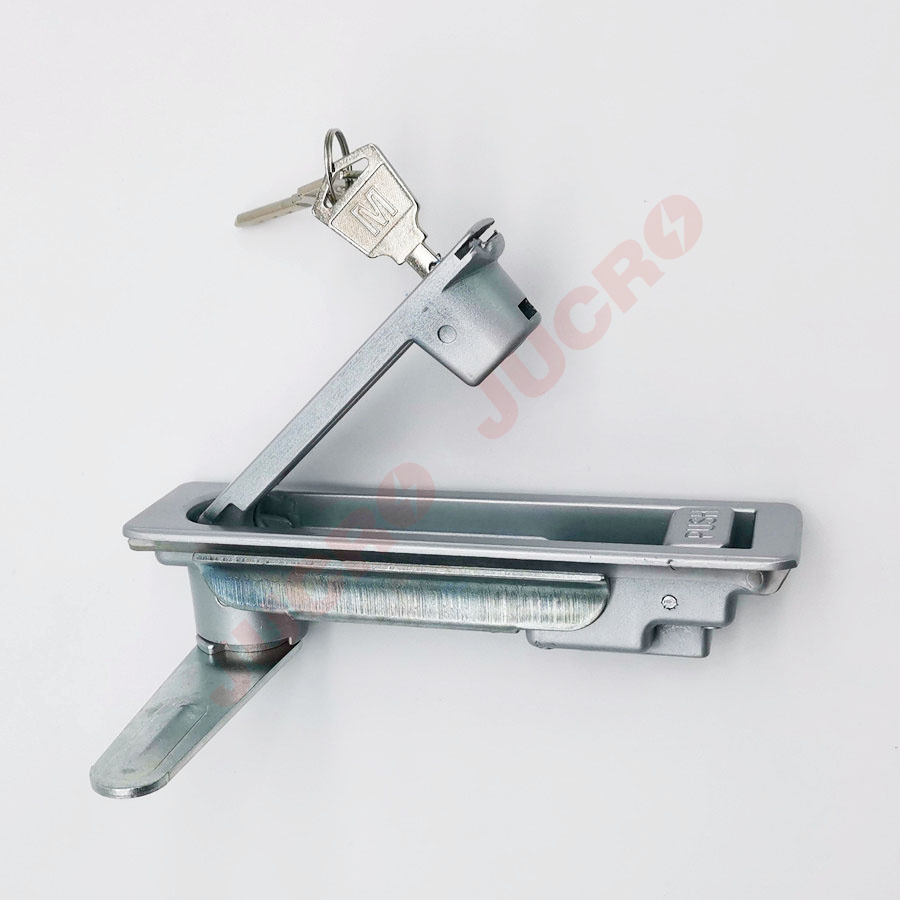

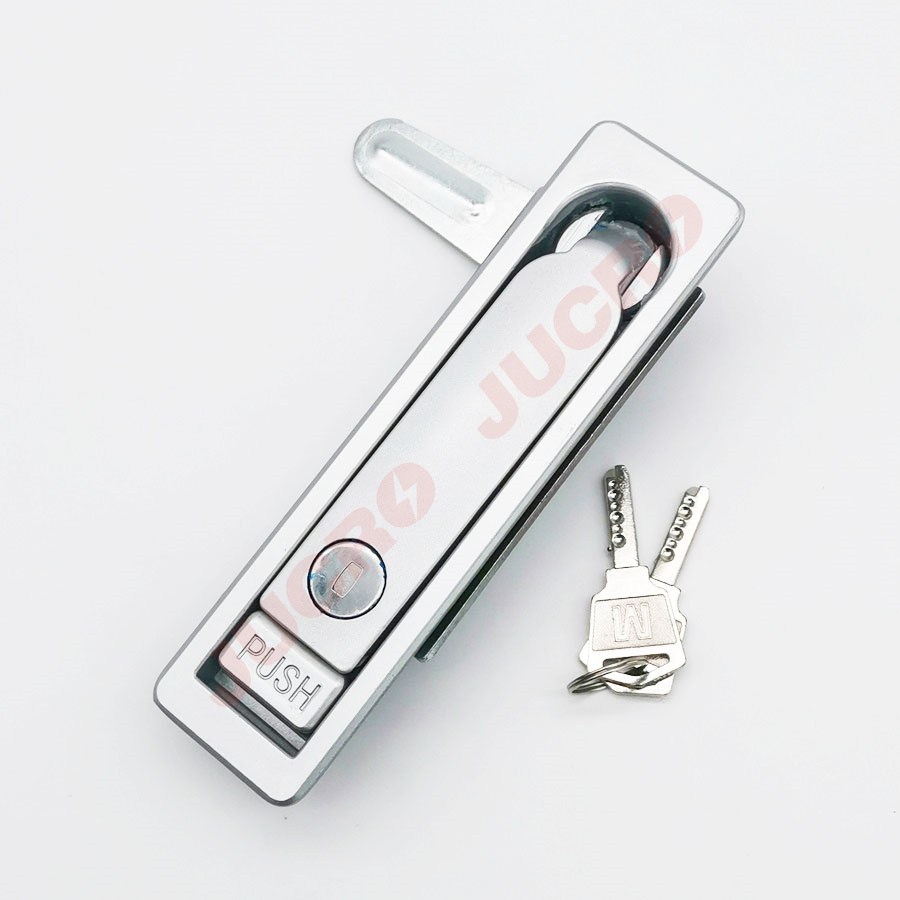

Plane Lock (DL712)

Plane Lock (DL712)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢压板、钢栓

Zinc alloy housinghandle and Lock core, carbon steel pressing plate and cam

表面处理

Surface treatment

纳米亚光基座、手柄,镀白锌压板、钢栓

Nanometer matt painted housing and handle, white zinc plated pressing plate and cam

结构说明

Structure descriPTion

快速开启,安装方便快捷;更换钢栓可达到单点与三点锁住功能

Quick-open and easy assembling; one-point locking or three-point locking function will be achieved with different cam mounted on

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

265N

手柄承载拉力值

Handle load tension capability

690N

手柄承载扭矩值

Handle load torque capability

42Nm

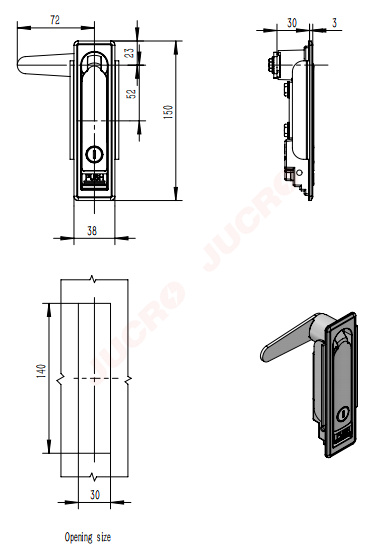

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
