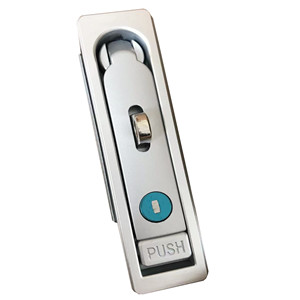

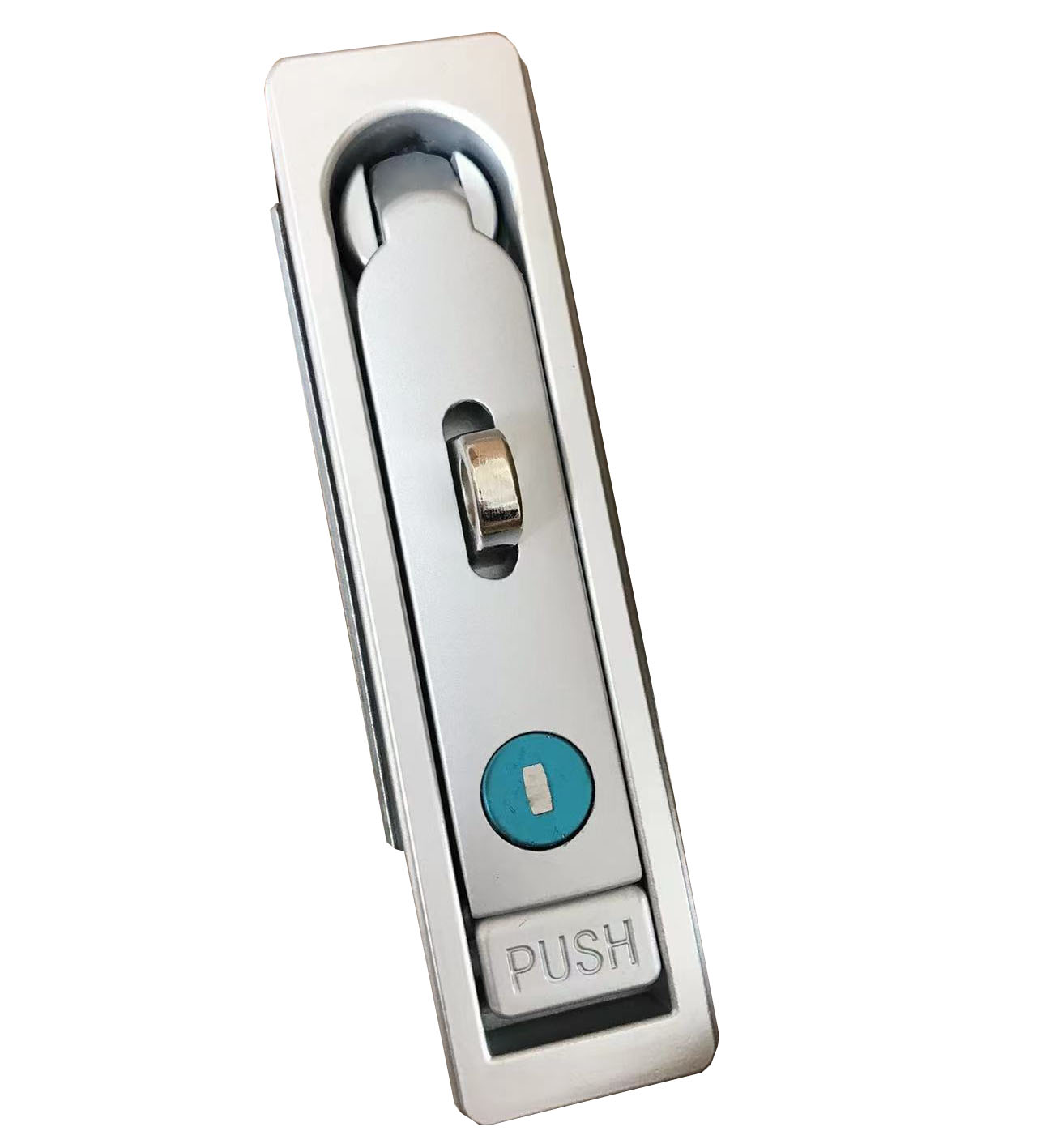

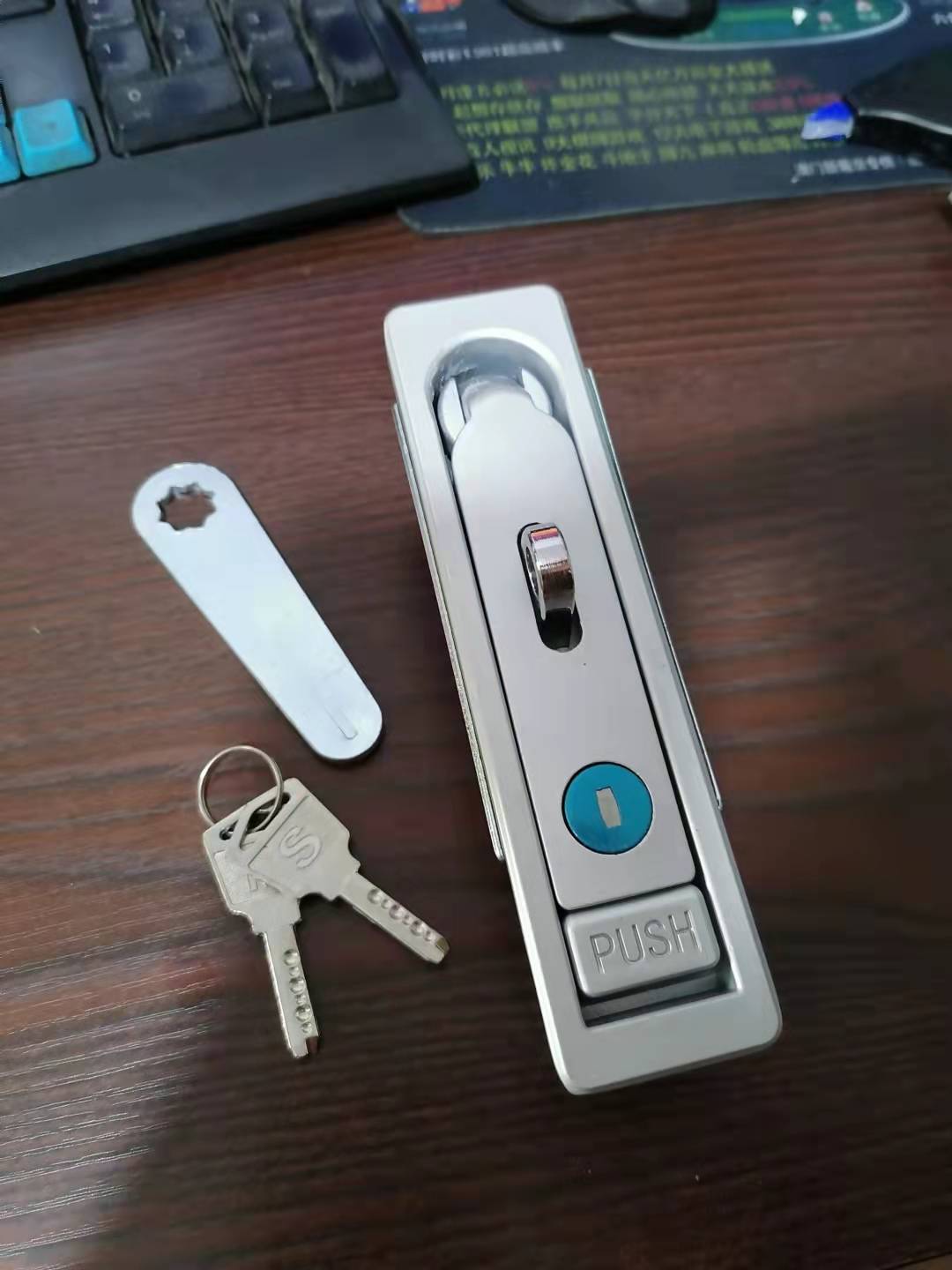

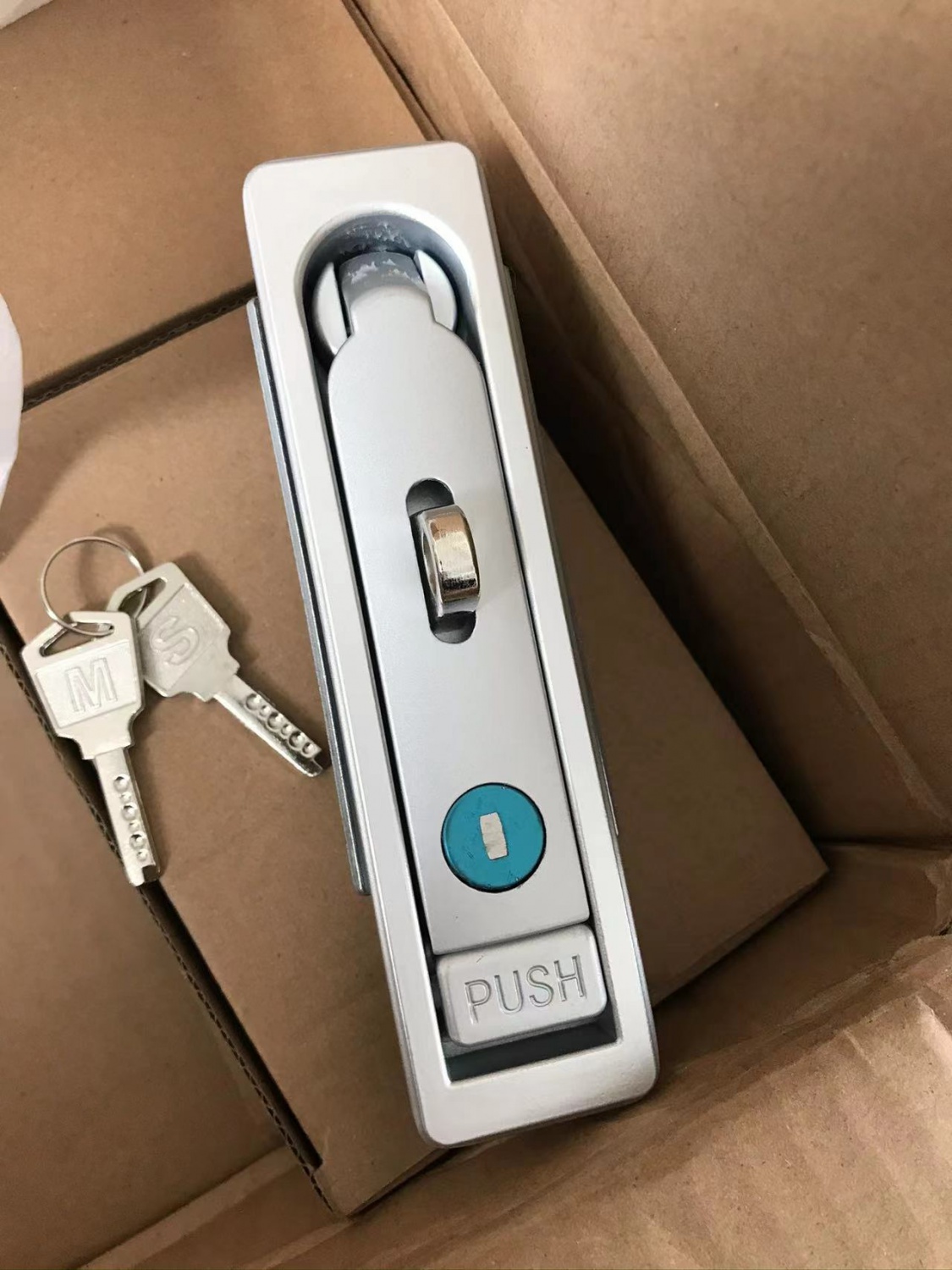

Plane Lock (DL712-G)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、锁芯，碳钢压板、钢栓 Zinc alloy housing, handle and Lock core; carbon steel pressing plate and cam |
表面处理 Surface treatment | 纳米亚光基座、手柄，镀白锌压板、钢栓 Nanometer matt painted housing and handle, white zinc plated pressing plate and cam |
结构说明 Structure descriPTion | 快速开启，安装方便快捷；更换钢栓可达到单点与三点锁住功能 Quick-open and easy assembling; one-point locking or three-point locking function will be achieved with different cam mounted on |
备 注 Remark | 默认钥匙 Default key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 265N |
手柄承载拉力值 Handle load tension capability | ≤690N |
手柄承载扭矩值 Handle load torque capability | ≤42N•m |

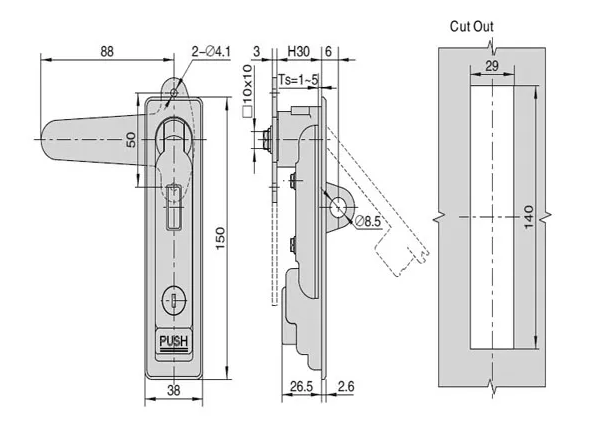

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
