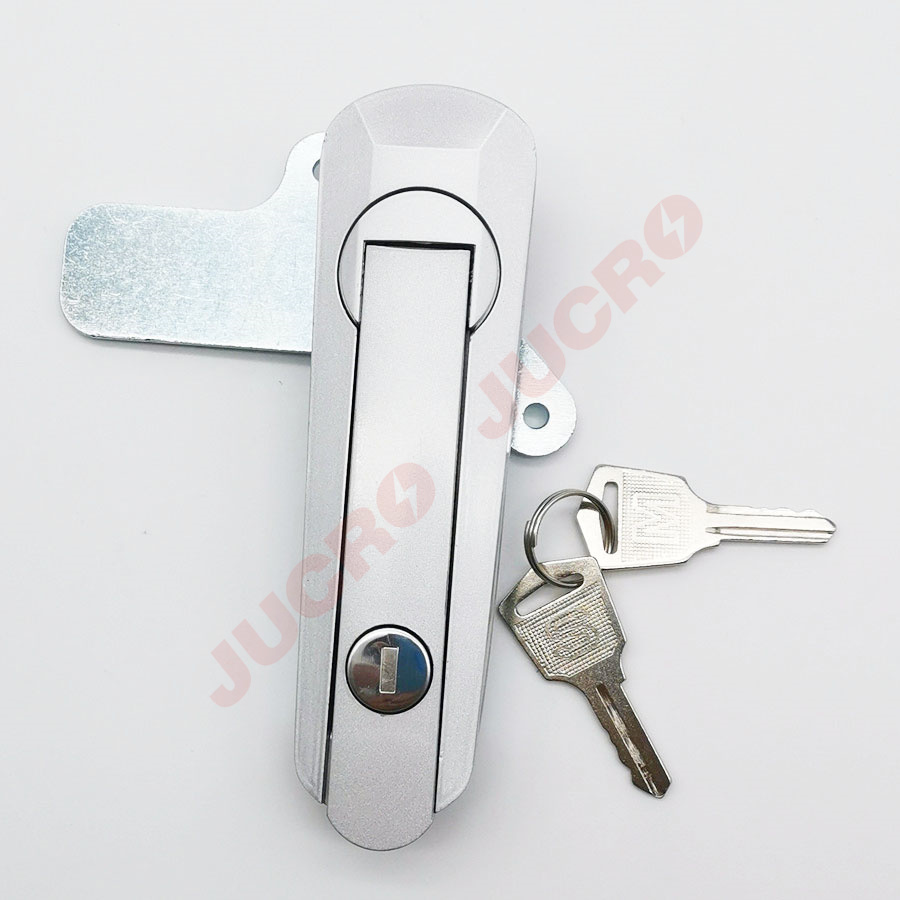

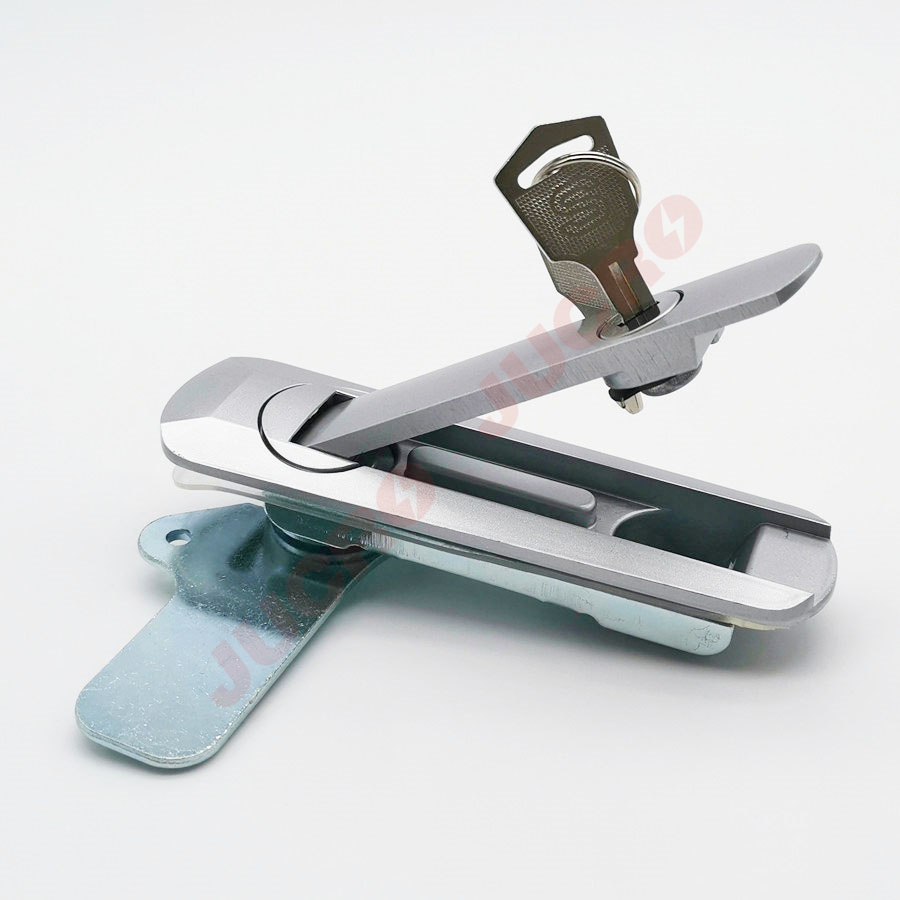

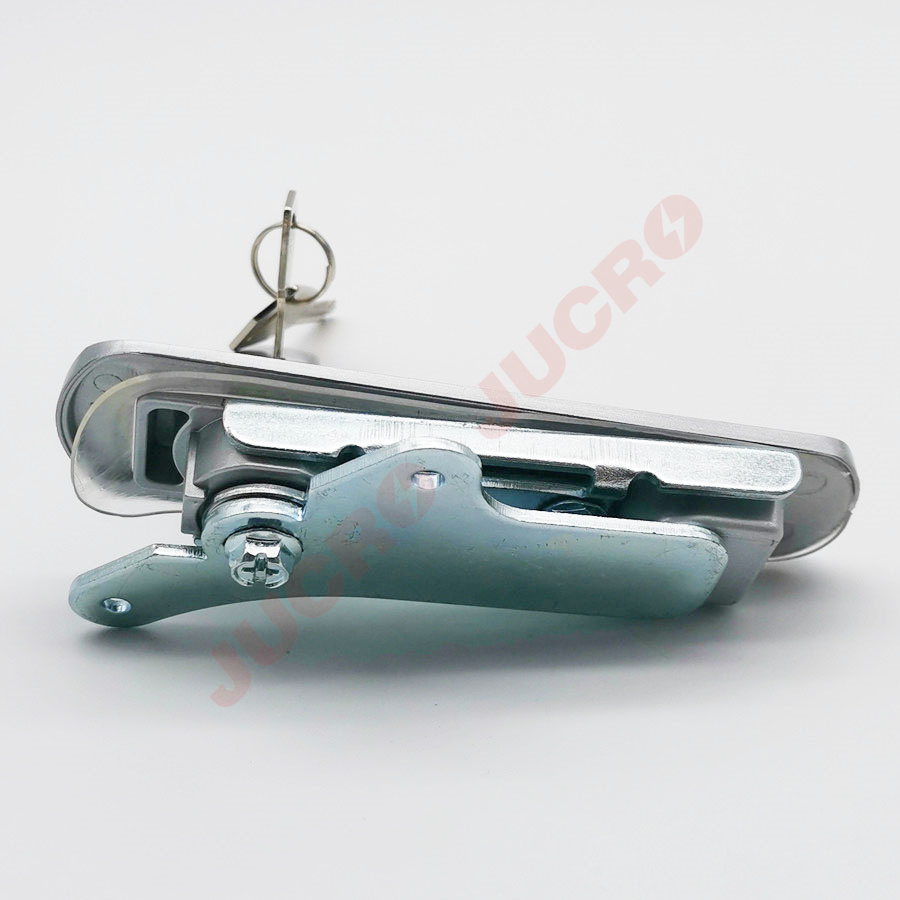

PLANE LOCK (DLP402)

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢压板、钢栓

Zinc alloy base, handle and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

纳米哑光基座、手柄,钢栓、压板镀白锌

Nanometer matte painted base, handle and button, blue white zinc plating for steel bolt and supporting plate.

结构说明

Structure descriPTion

手柄向上打开,90°旋转实现开启

Open the handle upward, quarter-turn opening

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

最大静载荷

Maximum static load

210N

手柄承载扭矩值

Handle load torque capability

20N.m

手柄承载拉力值

Handle load tension capability

140N

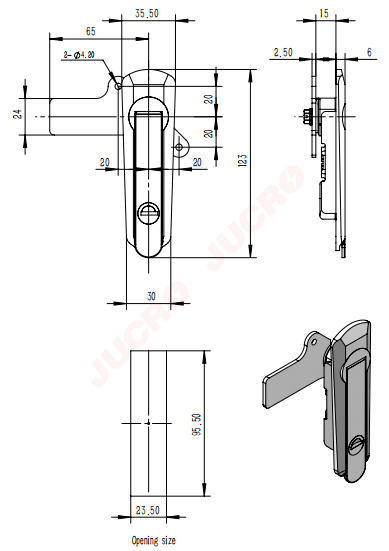

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

PLANE LOCK (DLP402)
