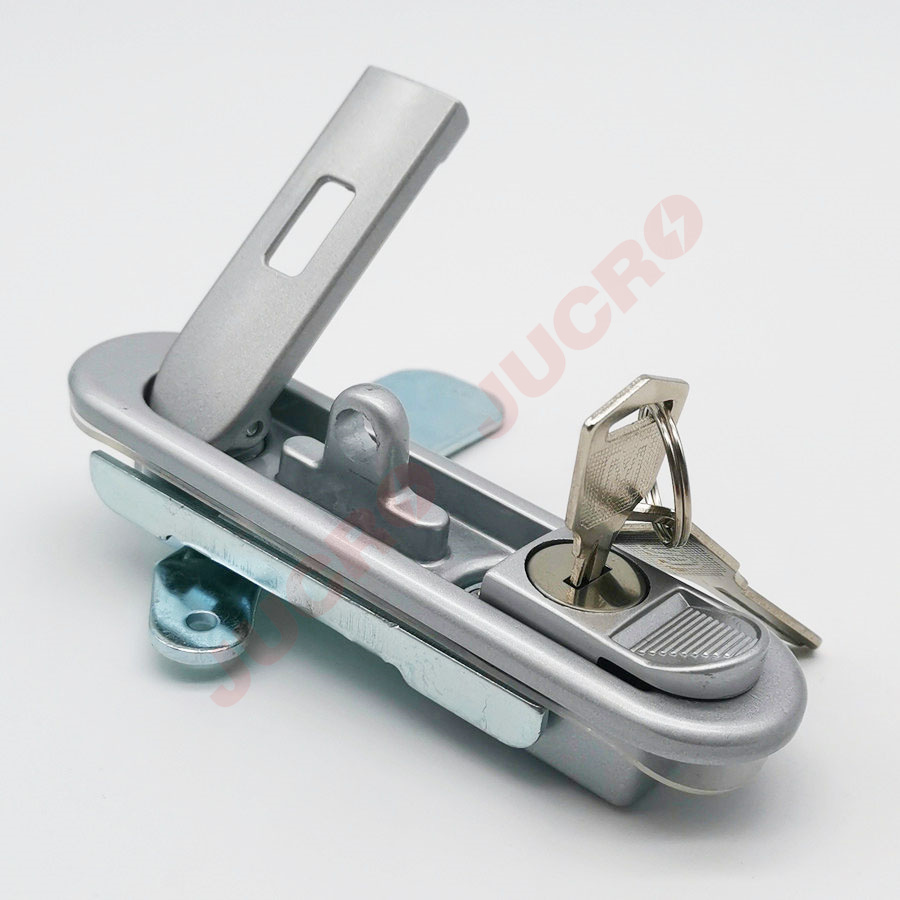

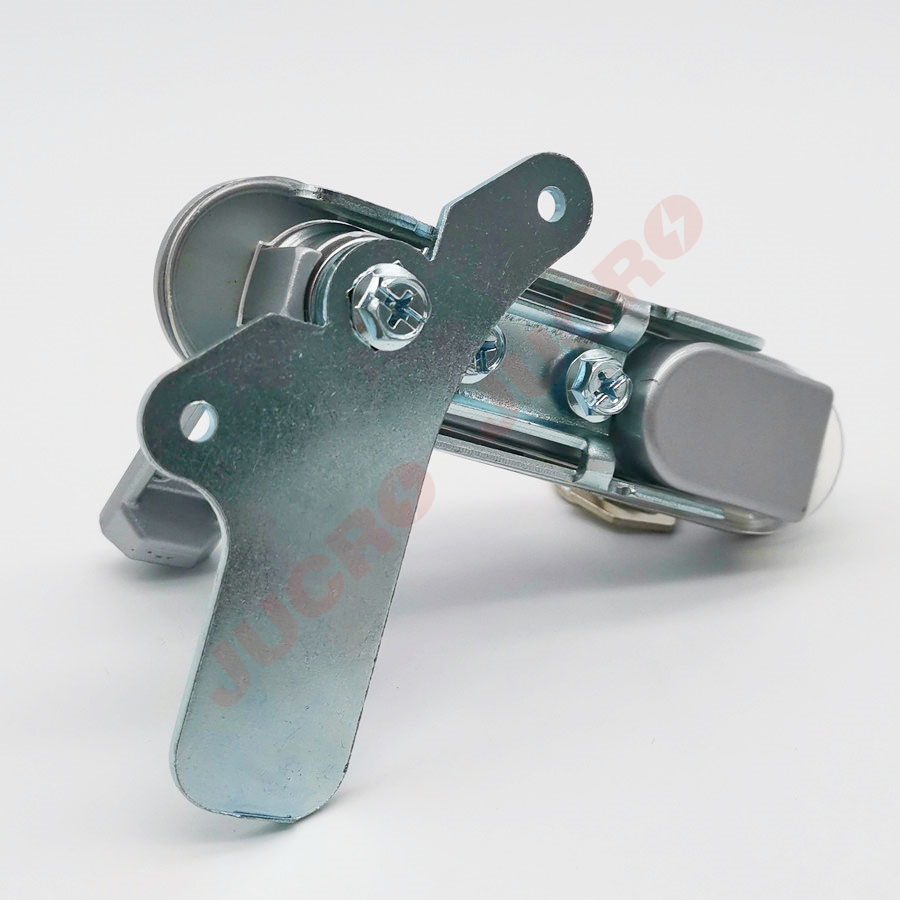

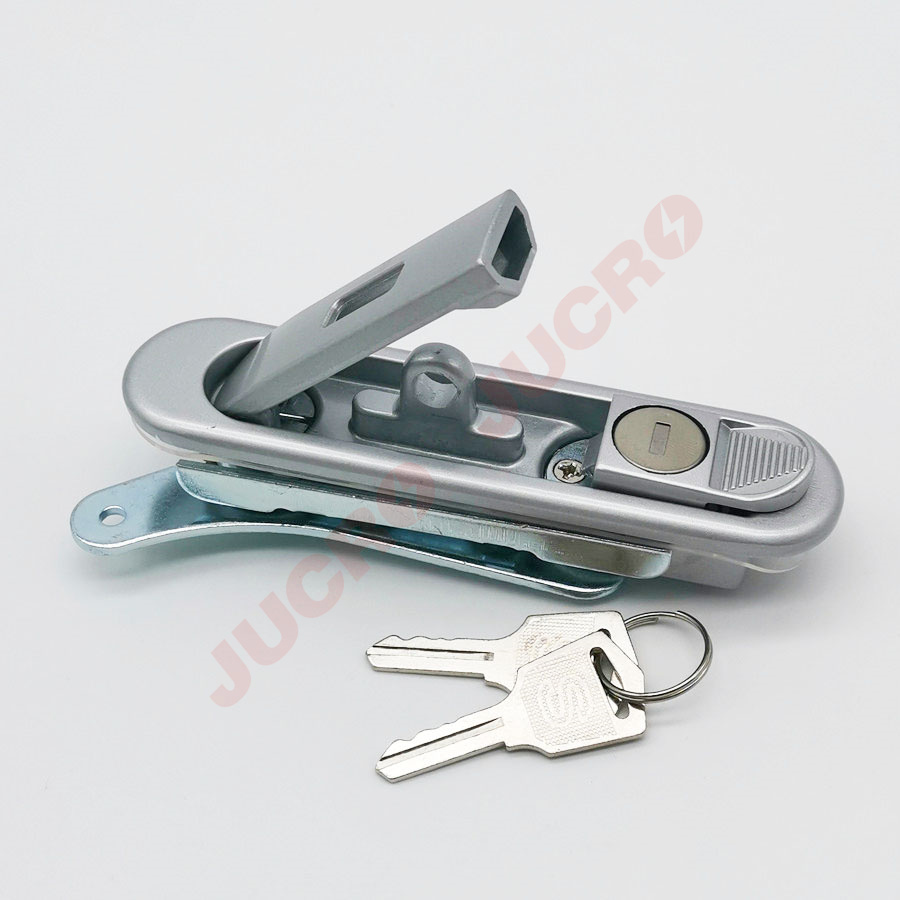

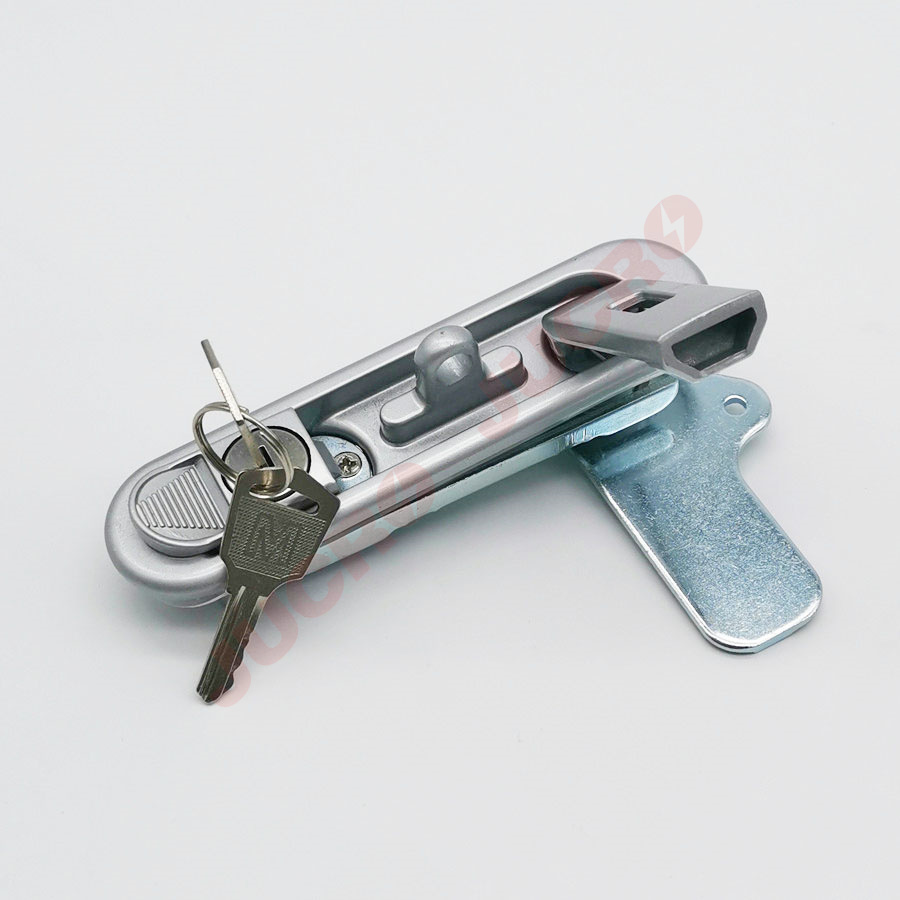

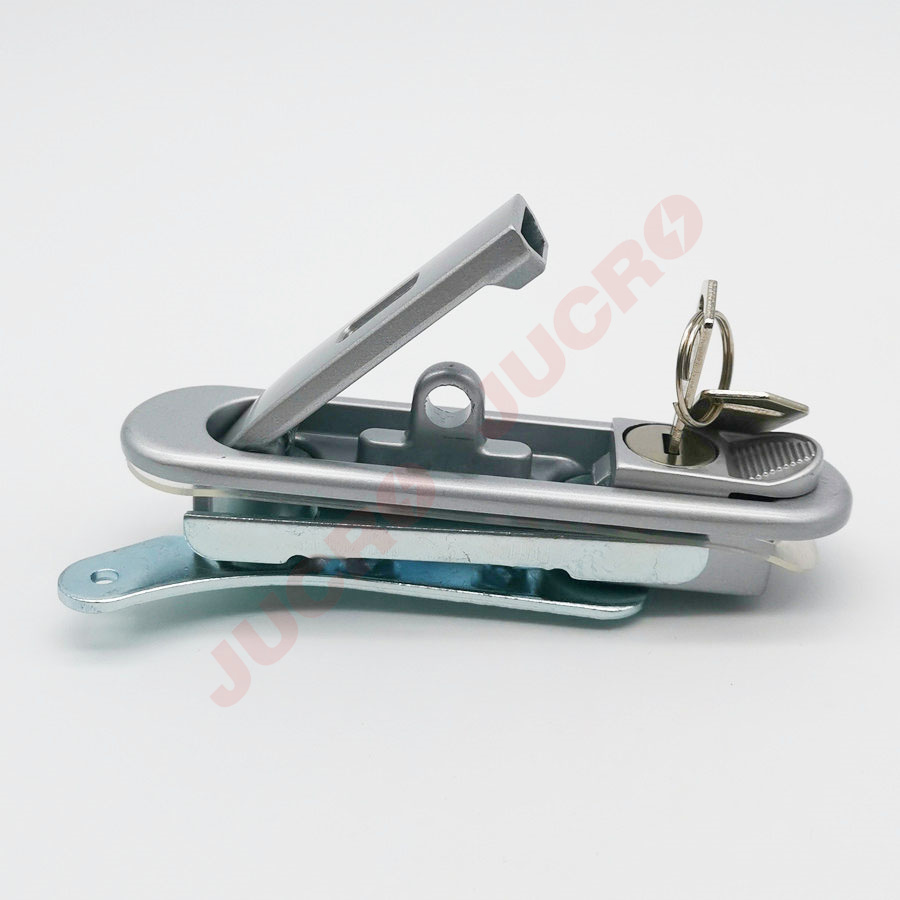

PLANE LOCK (DLP302-G)
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄、锁芯，碳钢压板、钢栓 Zinc alloy base, handle and cylinder, carbon steel plate and steel bolt |
表面处理 Surface treatment | 纳米哑光基座、手柄、按钮，钢栓、压板镀白锌 Nanometer matte painted base, handle and button, blue white zinc plating for steel bolt and supporting plate. |
结构说明 Structure descriPTion | 把手90°旋转实现打开及锁闭，可带挂锁 The handle quarter-turn Lock/un-lock，padlockable |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
最大静载荷 Maximum static load | 270N |
手柄承载扭矩值 Handle load torque capability | ≤40N.m |
手柄承载拉力值 Handle load tension capability | ≤510N |

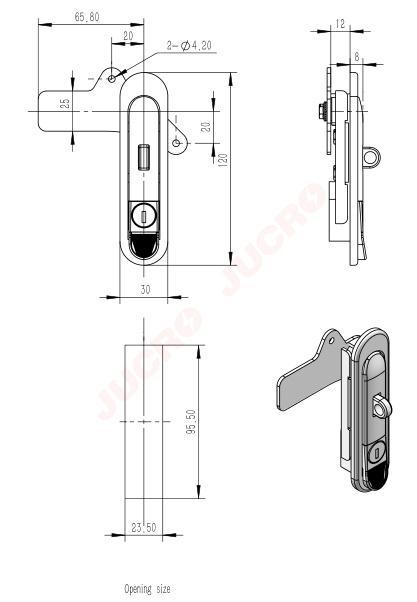

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
