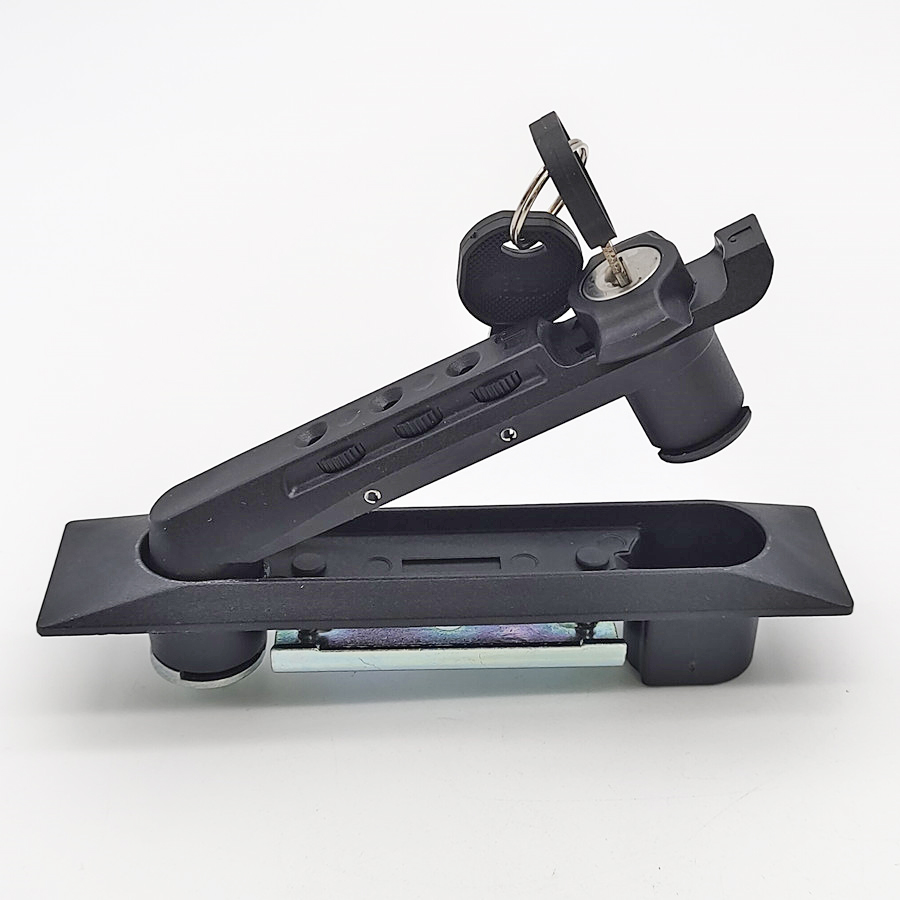

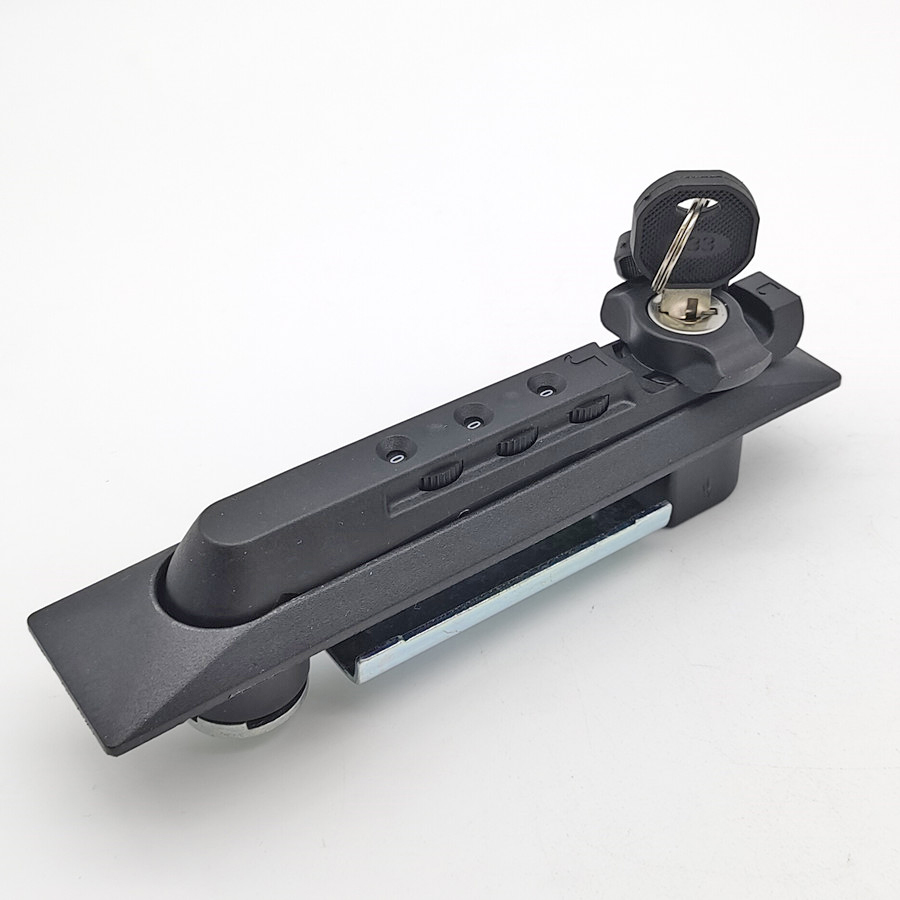

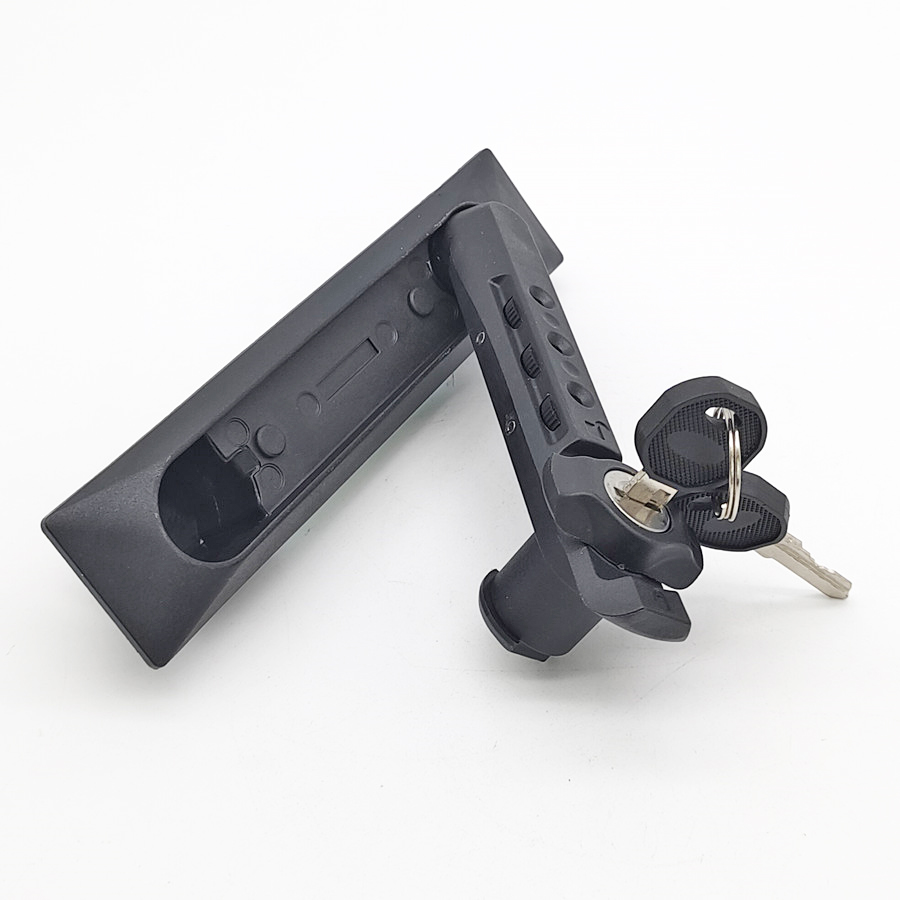

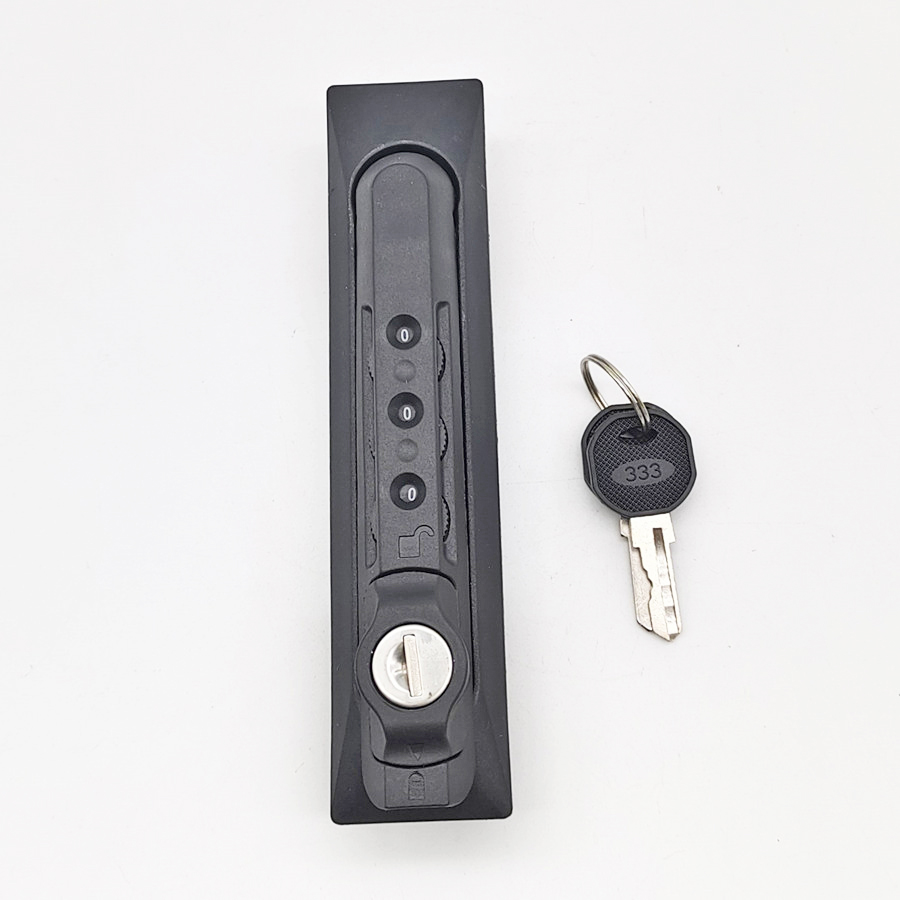

PLANE LOCK (DL861-2)

特征说明 CHARACTERISTICS

Material

塑料基座、手柄,碳钢压板

Zinc alloy housing, handle, carbon steel plate

表面处理

Surface treatment

麻面黑,压板镀白锌

Pits black, white zinc plating for supporting plate

结构说明

Structure descriPTion

把手90°旋转实现打开及锁闭

Quarter-turn Lock/un-lock

Remark

密码及钥匙锁

Combination locks and key locks



性能参数 PERFORMANCE PARAMETERS

最大静载荷

Maximum static load

300N

手柄承载扭矩值

Handle load torque capability

12N.m

手柄承载拉力值

Handle load tension capability

390N

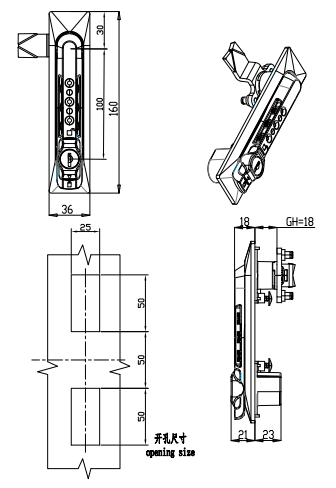

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

PLANE LOCK (DL861-2)
