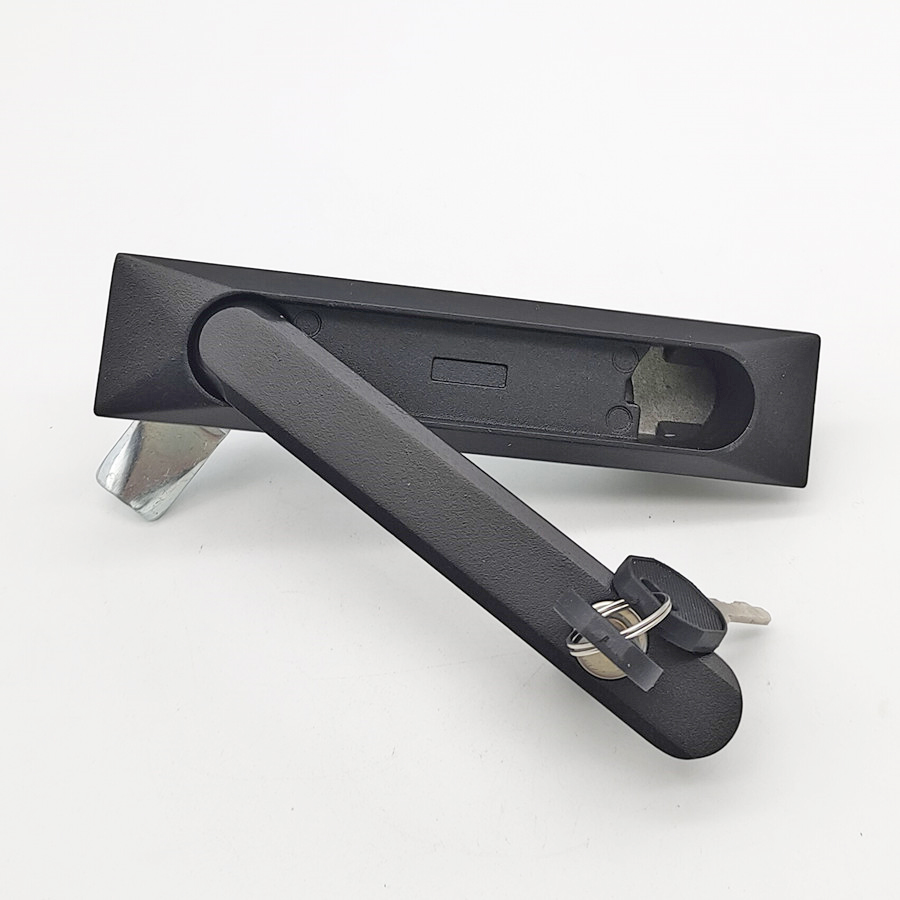

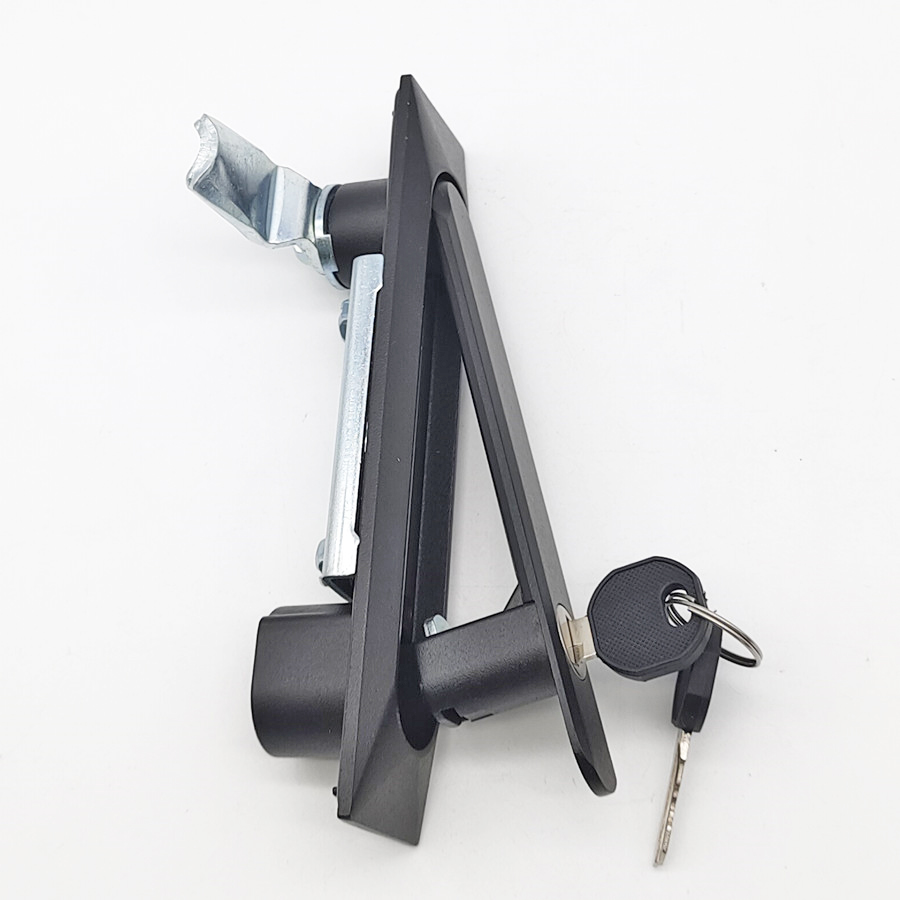

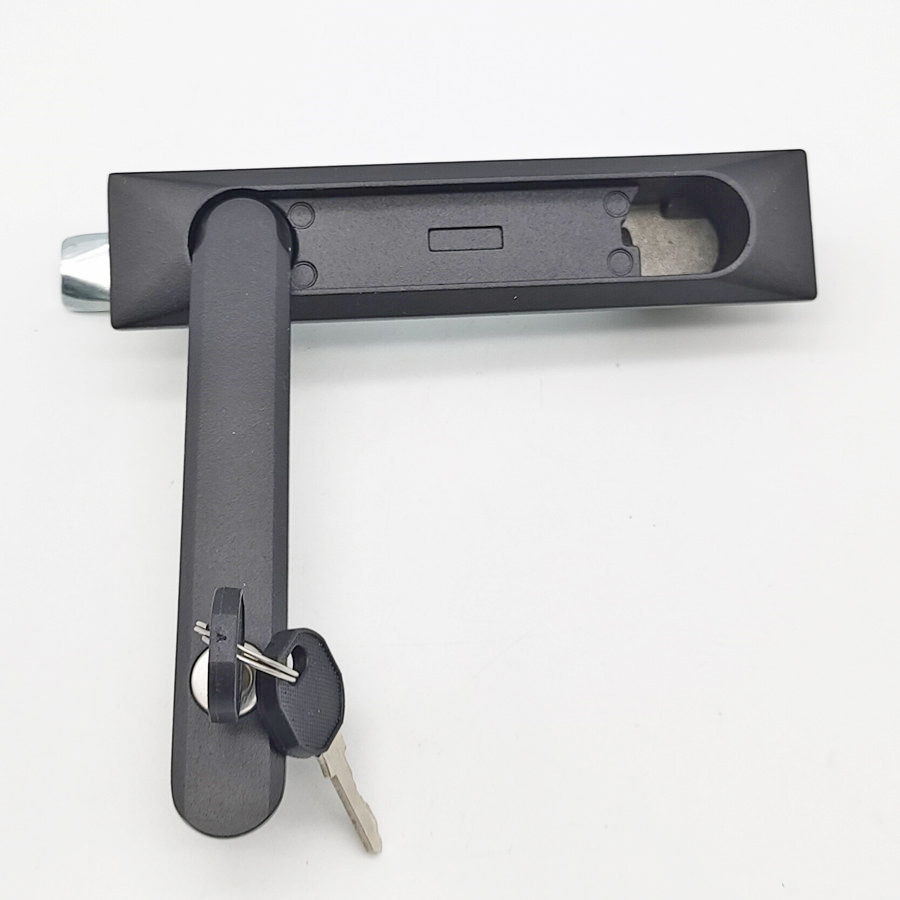

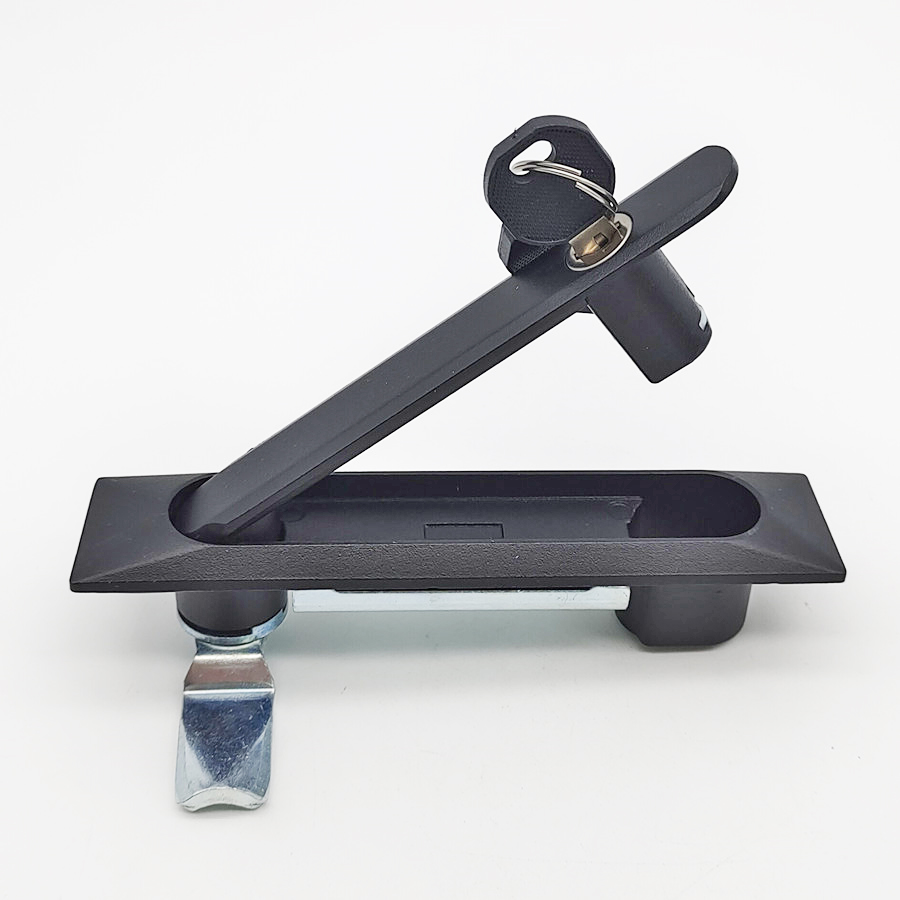

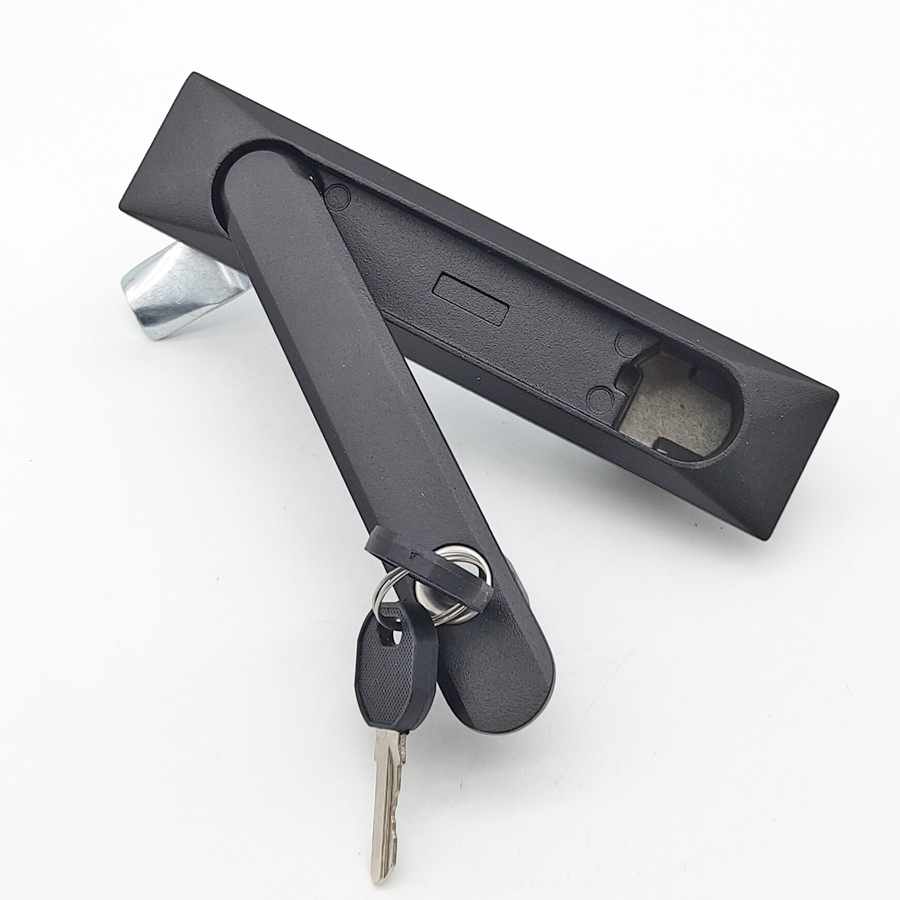

PLANE LOCK (DL861-1)

PLANE LOCK (DL861-1)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄及锁芯,碳钢压板、钢栓

Zinc alloy housing, handle and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

基座、手柄喷黑漆,钢栓、压板镀白锌

Black spray painted housing and handle, white zinc plating for steel bolt and supporting plate

结构说明

Structure descriPTion

把手90°旋转实现打开及锁闭

Quarter-turn Lock/un-lock

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

300N

手柄承载扭矩值

Handle load torque capability

12N.m

手柄承载拉力值

Handle load tension capability

390N

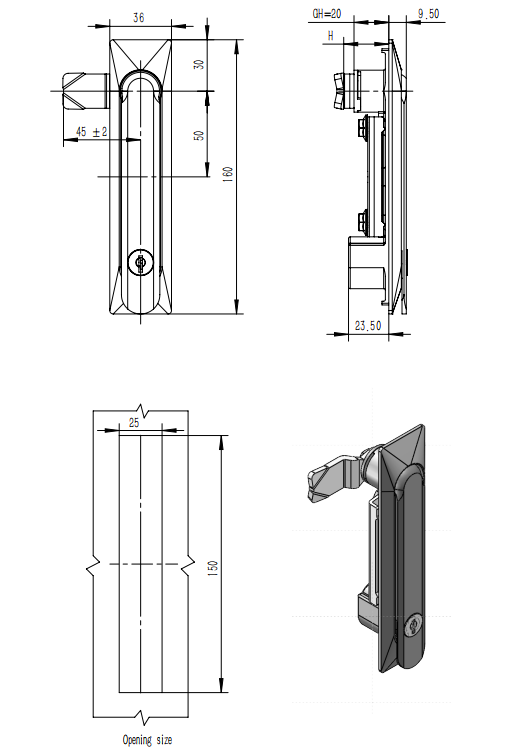

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment
