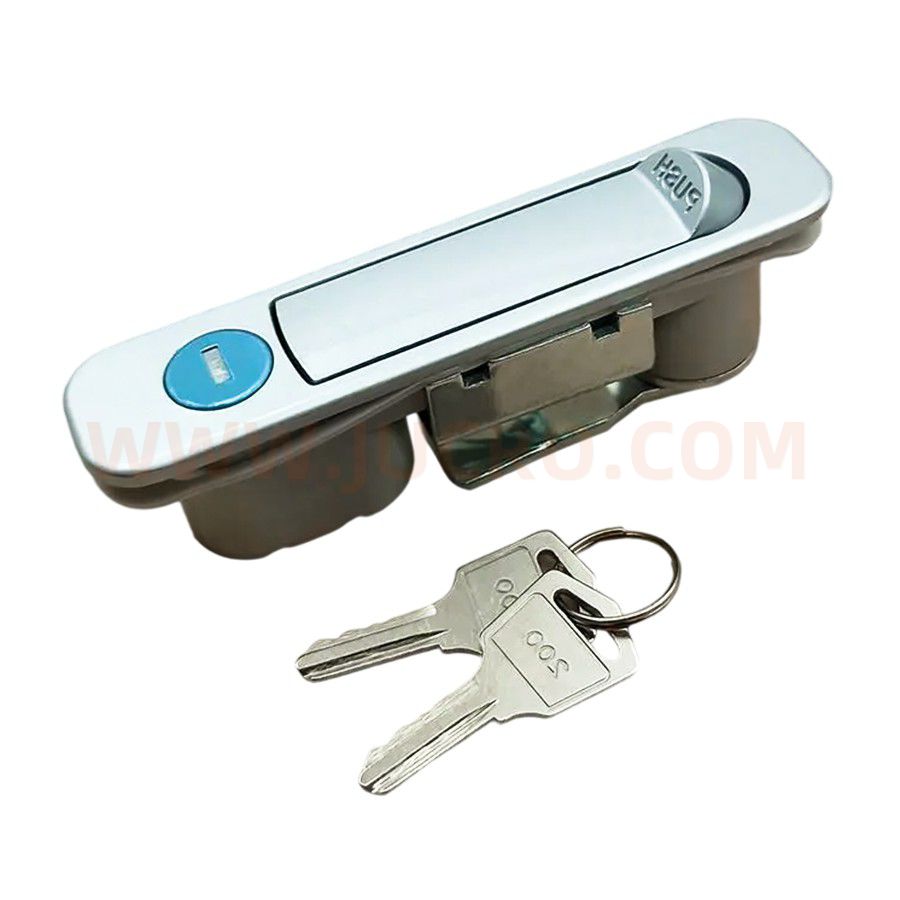

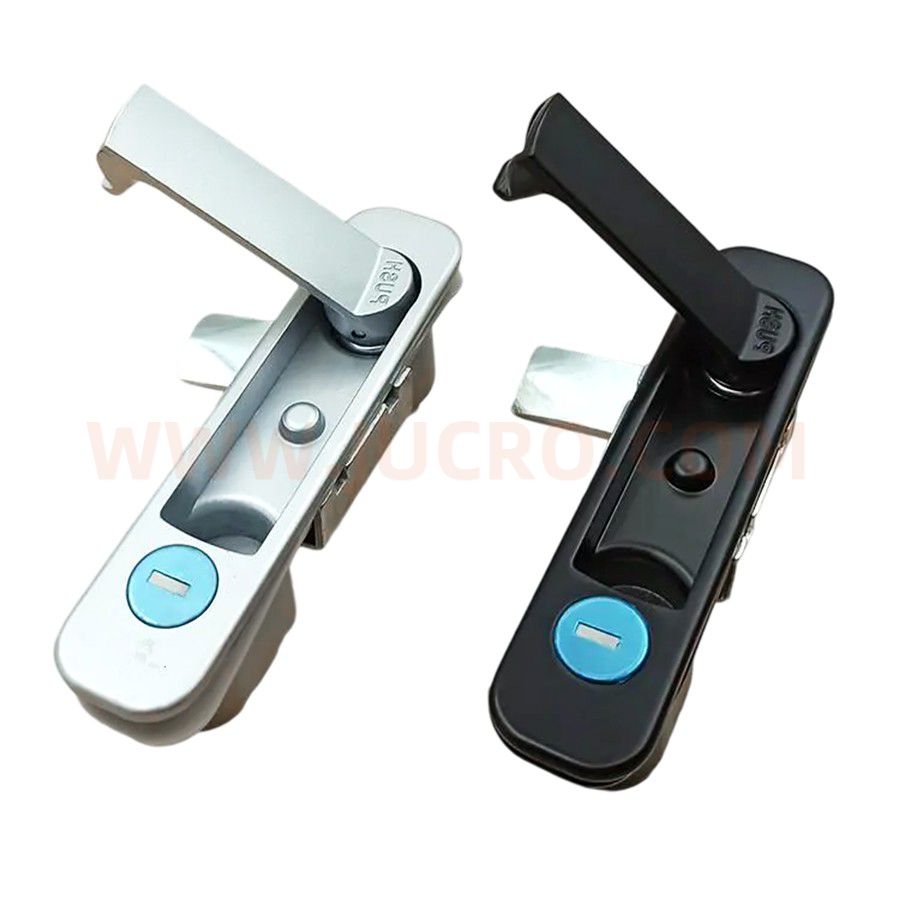

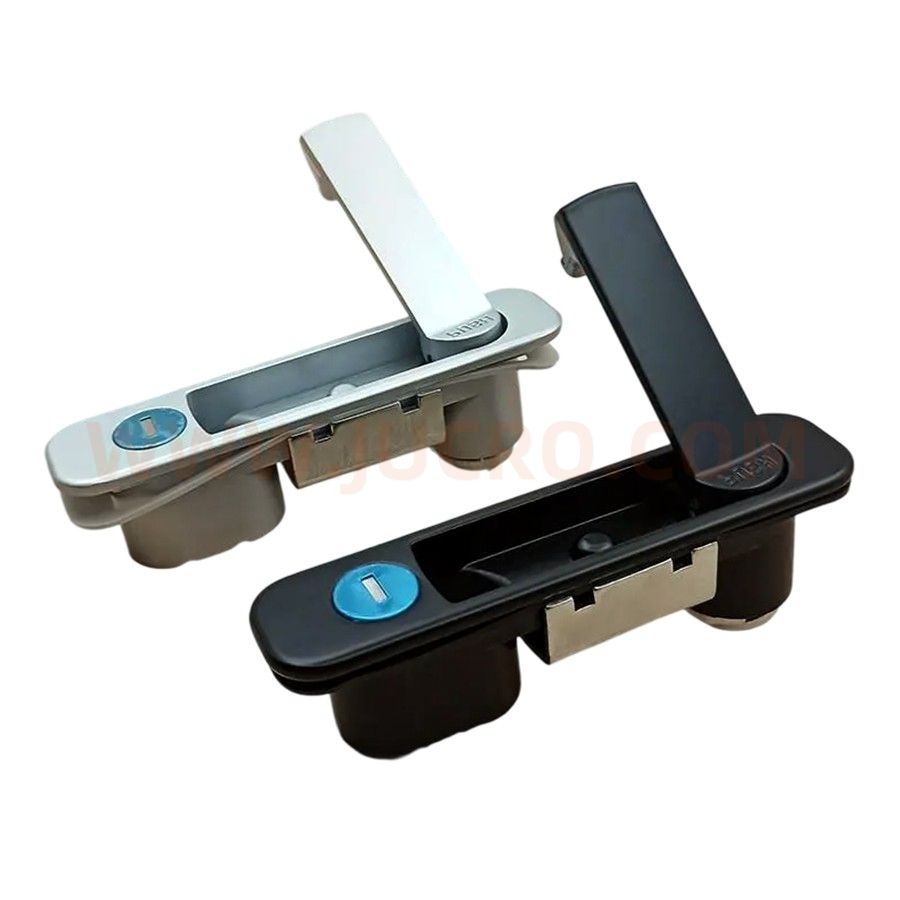

PLANE LOCK (DL737)

特征说明 CHARACTERISTICS

Material

锌合金基座、手柄、锁芯,碳钢压板、钢栓

Zinc alloy housing, handle and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

米哑光/喷涂黑塑 基座、手柄,镀白锌压板、钢栓

Nanometer matt painted/ black spray painting housing, handle and button, white zinc plating for steel bolt and supporting plate

结构说明

Structure descriPTion

快速开启,安装方便快捷; 更换钢栓可达到单点与三点锁住功能

Quick-open, easy assembling;  One-point Locking or three-point locking  function will be achieved with different cam  mounted on.

Remark

默认钥匙

Default key



性能参数 PERFORMANCE PARAMETERS

最大静载荷

Maximum static load

270N

手柄承载扭矩值

Handle load torque capability

11N.m

手柄承载拉力值

Handle load tension capability

340N

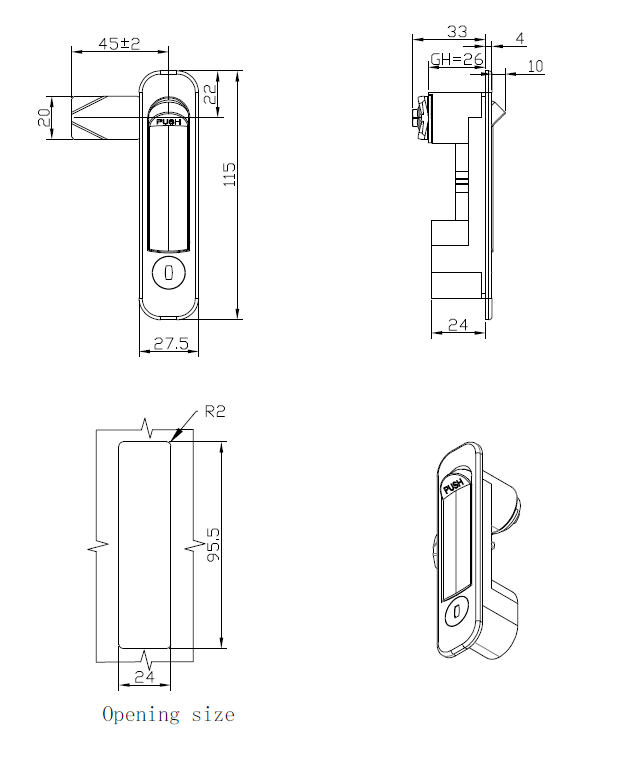

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

PLANE LOCK (DL737)
