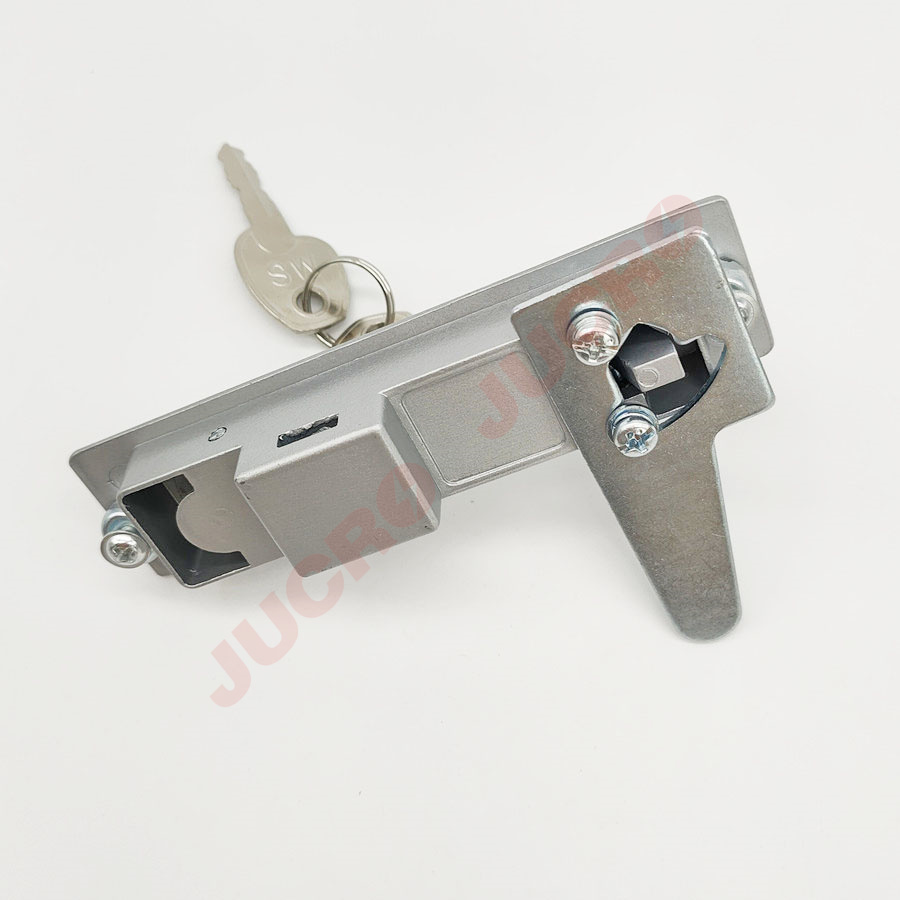

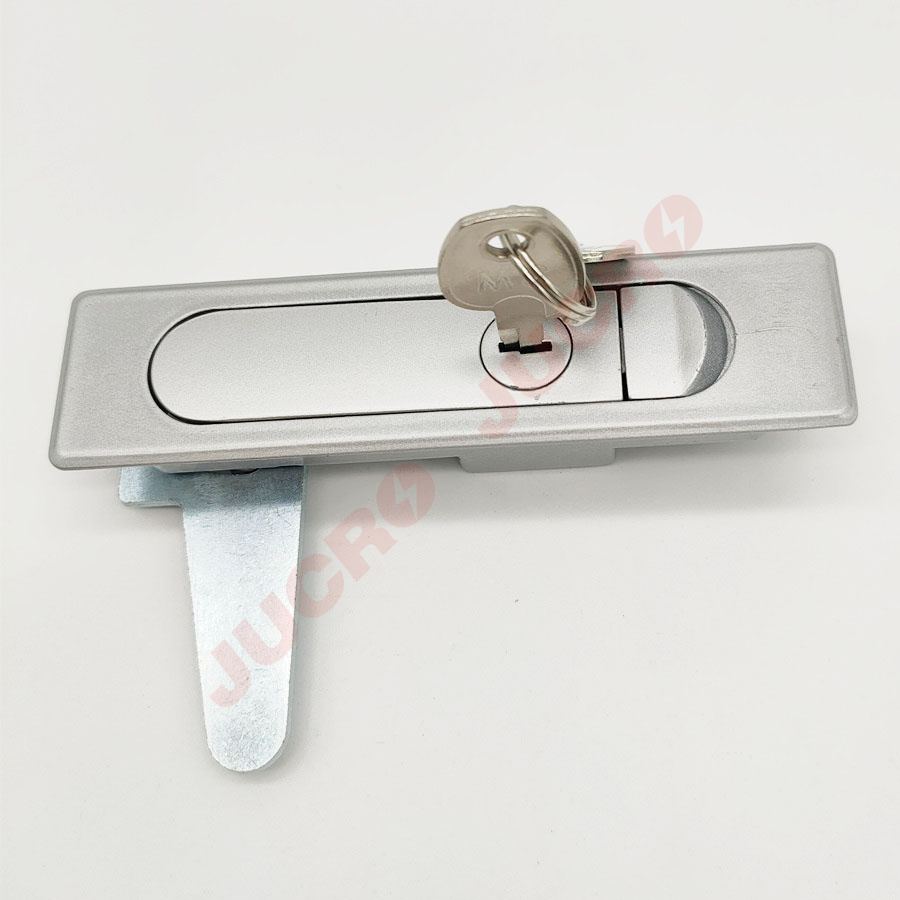

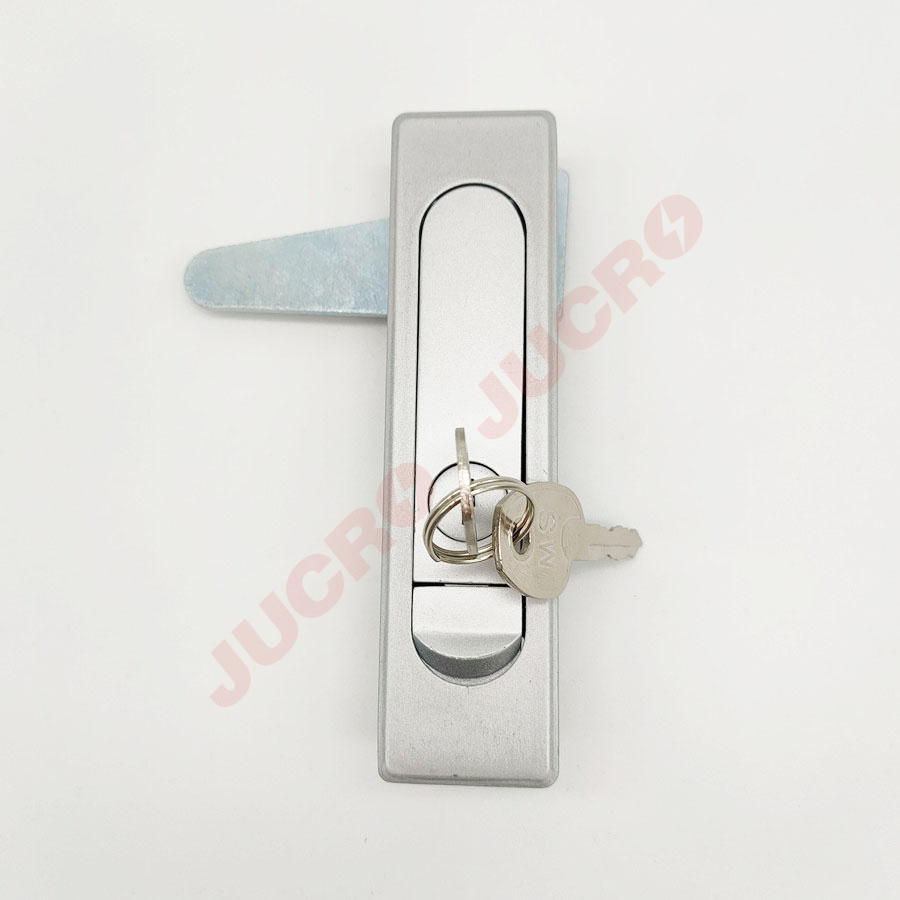

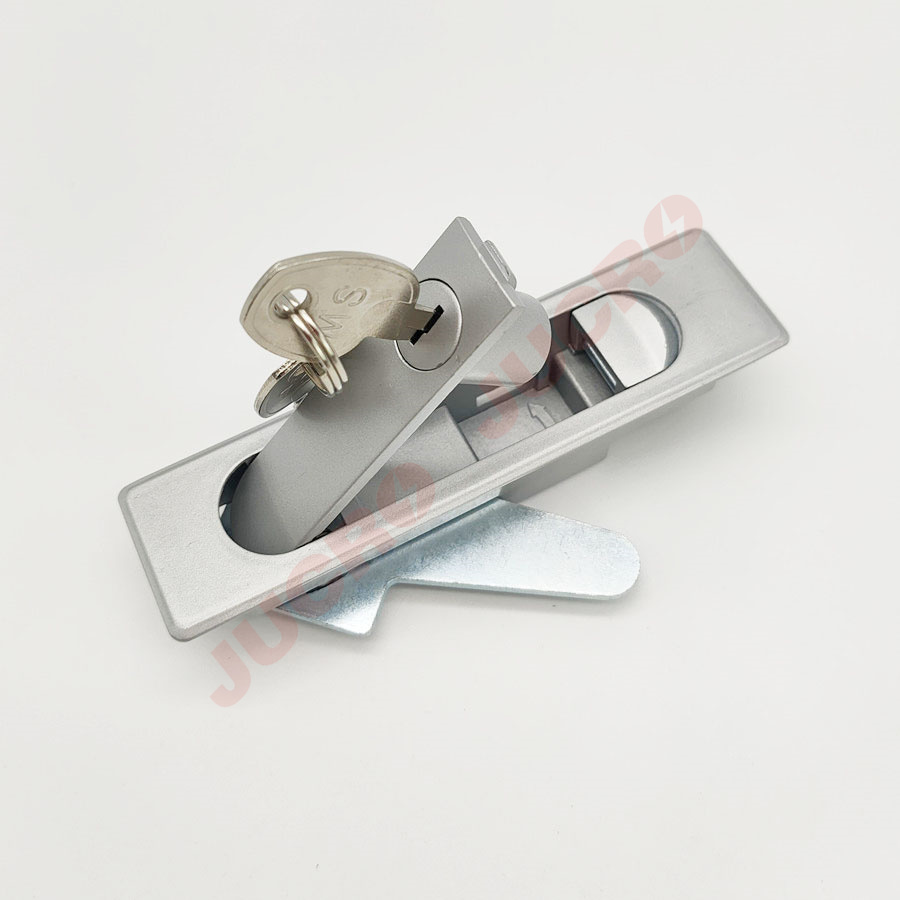

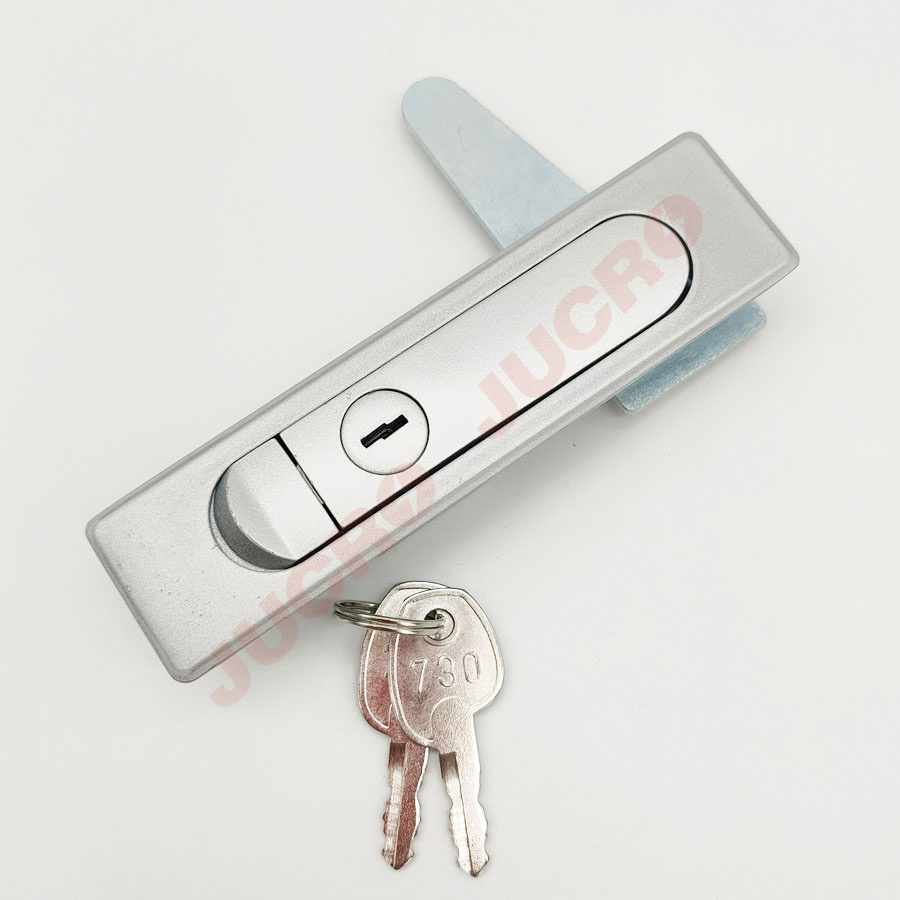

PLANE LOCK (DL730-1 MATTE)

PLANE LOCK (DL730-1 MATTE)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯、按钮,碳钢钢栓

Zinc alloy base, cylinder, and button, carbon steel bolt

表面处理

Surface treatment

纳米哑光基座、按钮,钢栓镀白锌

Nanometer matte painted base and button, white zinc plating for steel bolt

结构说明

Structure descriPTion

快速开启,安装方便快捷

Quick-open, easy assembling

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

350 N

手柄承载拉力值

Handle load tension capability

600 N

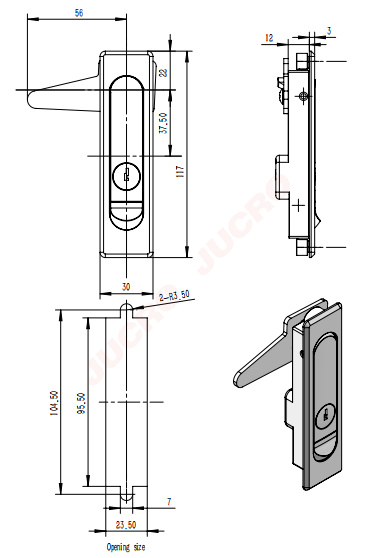

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯、按钮,碳钢钢栓

Zinc alloy base, cylinder, and button, carbon steel bolt

表面处理

Surface treatment

纳米哑光基座、按钮,钢栓镀白锌

Nanometer matte painted base and button, white zinc plating for steel bolt

结构说明

Structure descriPTion

快速开启,安装方便快捷

Quick-open, easy assembling

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

350 N

手柄承载拉力值

Handle load tension capability

600 N

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
