特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄,碳钢压板、钢栓 Zinc alloy base, and handle, carbon steel plate and steel bolt |
表面处理 Surface treatment | 喷黑漆 Black spray paint |
结构说明 Structure descriPTion | 快速开启,安装方便快捷 Quick-open, easy assembling |
备 注 Remark | 选配钥匙 Optional key |
性能参数 PERFORMANCE PARAMETERS | |
***静载荷 Maximum static load | 400N |
手柄承载拉力值 Handle load tension capability | ≤420N |

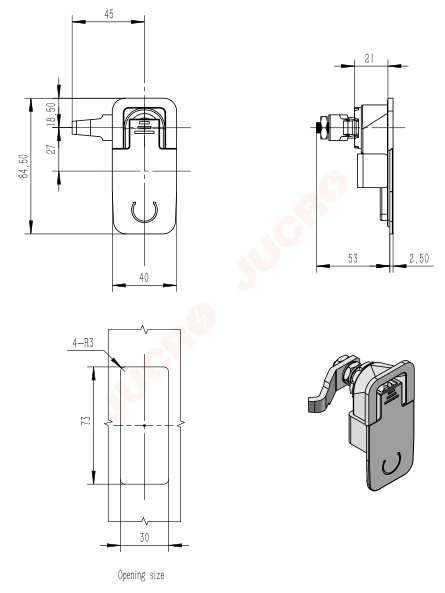

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
