特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金基座、手柄,碳钢压板、钢栓 Zinc alloy base and handle, carbon steel plate and steel bolt |
表面处理 Surface treatment | 基座、手柄喷黑漆,钢栓、压板镀白锌 Black spray painted base and handle, white zinc plating for steel bolt and supporting plate |
结构说明 Structure descriPTion | 快速开启,安装方便快捷 Quick-open,easy assembling |
备 注 Remark | 无需钥匙 Keyless |
性能参数 PERFORMANCE PARAMETERS | |
最大静载荷 Maximum static load | 150N |
手柄承载扭矩值 Handle load torque capability | ≤17N.m |
手柄承载拉力值 Handle load tension capability | ≤140N |

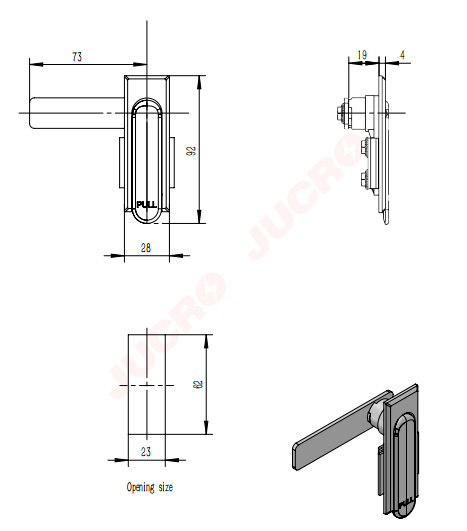

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit:mm |
