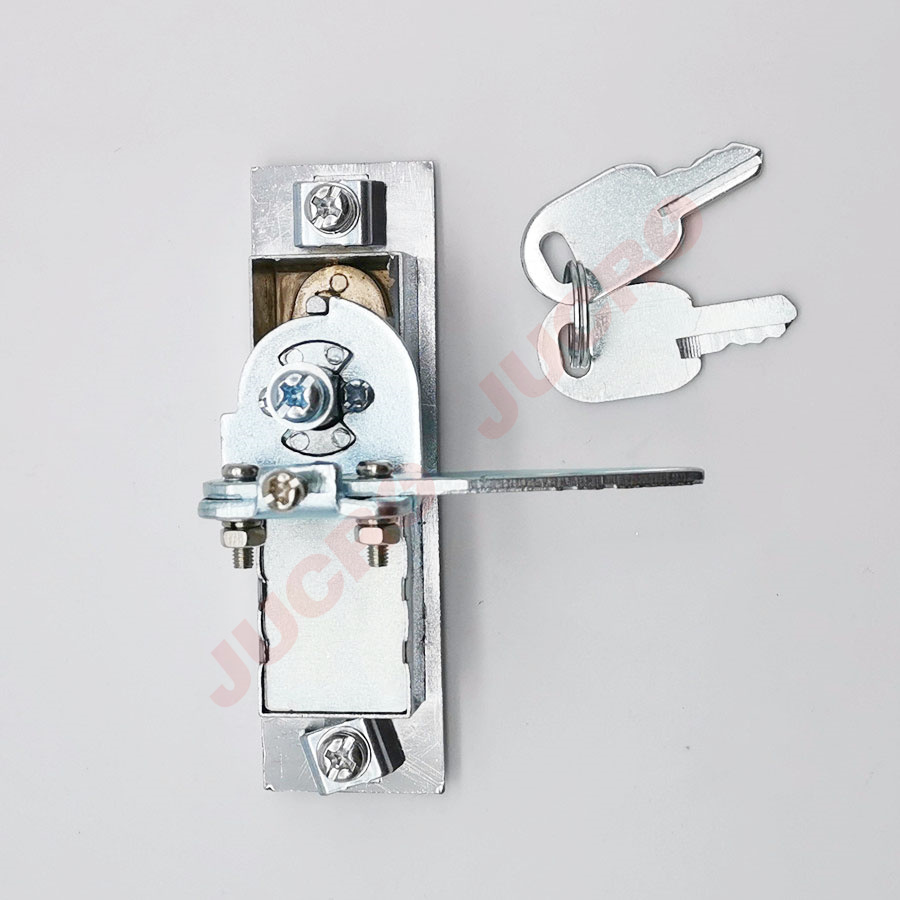

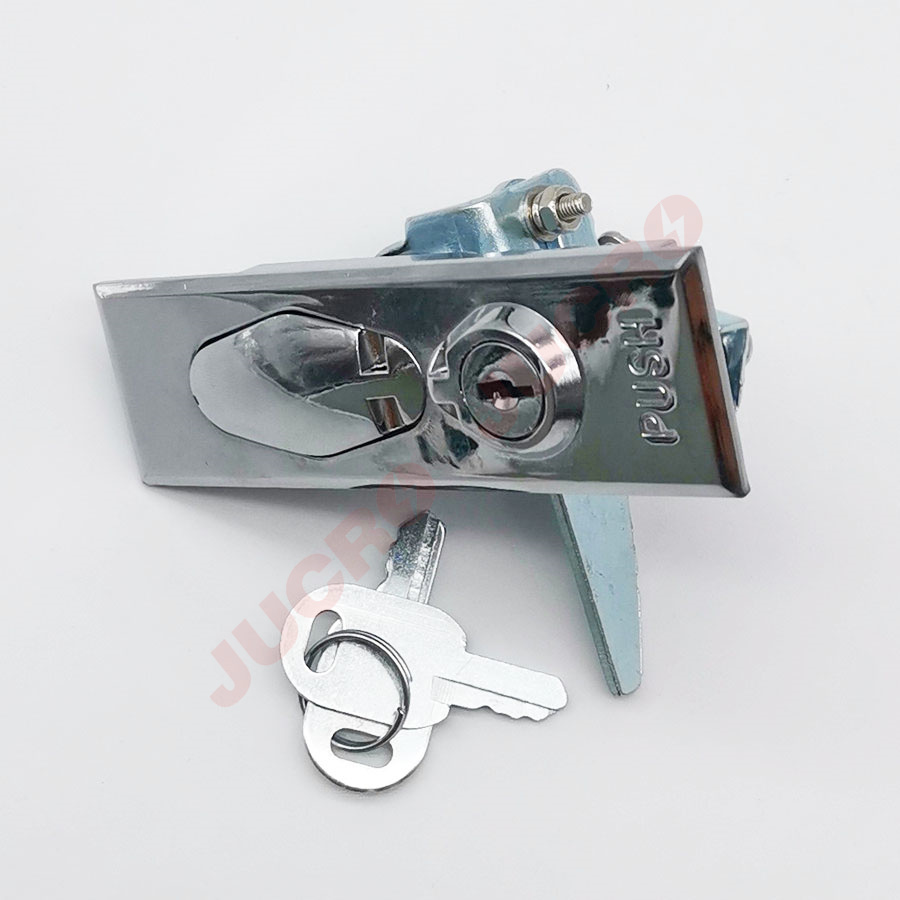

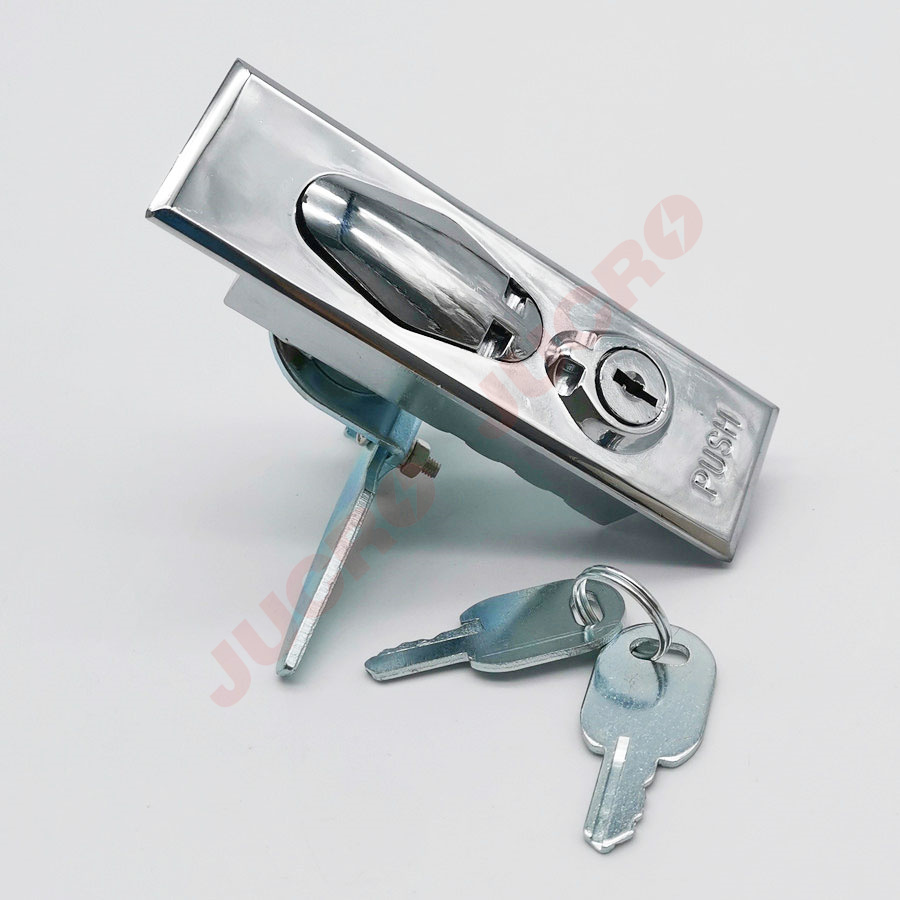

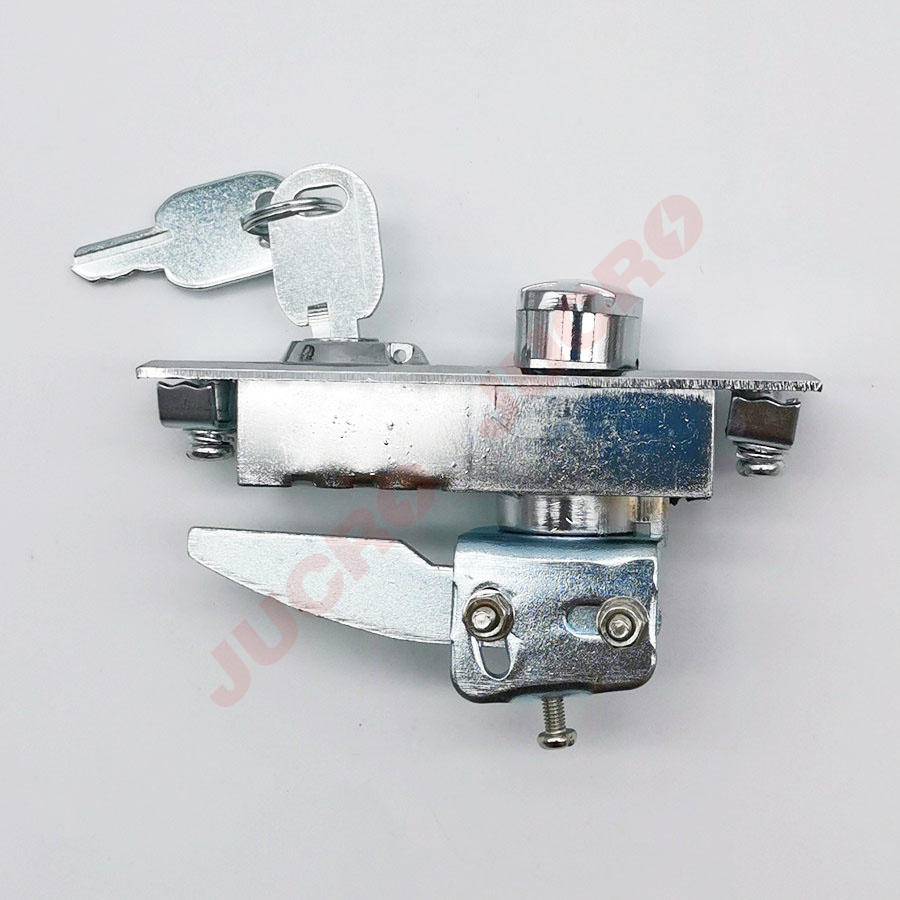

PLANE LOCK (DL505-1 Left)

PLANE LOCK (DL505-1 Left)

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,碳钢压板、钢栓

Zinc alloy base and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

基座、按钮镀亮铬,钢栓镀蓝白锌

Bright chrome plated for base and button, blue white zinc plating for steel bolt

结构说明

Structure descriPTion

快速开启,安装方便快捷;通过调节钢栓螺钉可改变止口高度及钢栓中心距

Quick-open,easy assembling. Adjusting the cam screw can change the”H” and ”L”.

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

350N

手柄承载拉力值

Handle load tension capability

900N

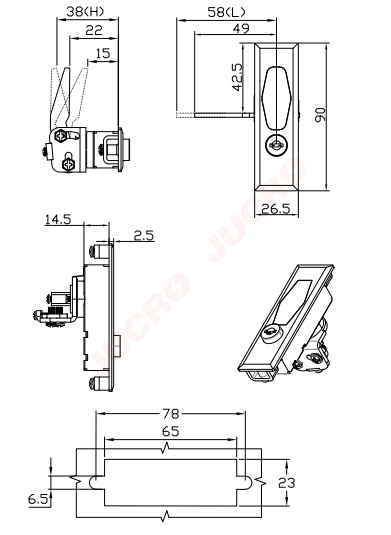

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

Material

锌合金基座、锁芯,碳钢压板、钢栓

Zinc alloy base and cylinder, carbon steel plate and steel bolt

表面处理

Surface treatment

基座、按钮镀亮铬,钢栓镀蓝白锌

Bright chrome plated for base and button, blue white zinc plating for steel bolt

结构说明

Structure descriPTion

快速开启,安装方便快捷;通过调节钢栓螺钉可改变止口高度及钢栓中心距

Quick-open,easy assembling. Adjusting the cam screw can change the”H” and ”L”.

Remark

选配钥匙

Optional key



性能参数 PERFORMANCE PARAMETERS

***静载荷

Maximum static load

350N

手柄承载拉力值

Handle load tension capability

900N

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
