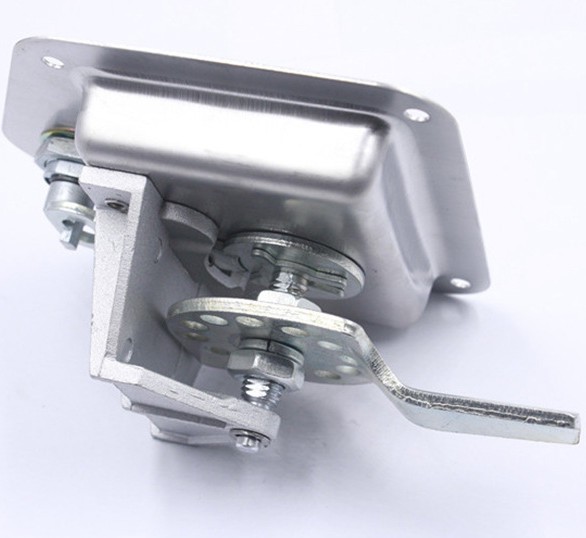

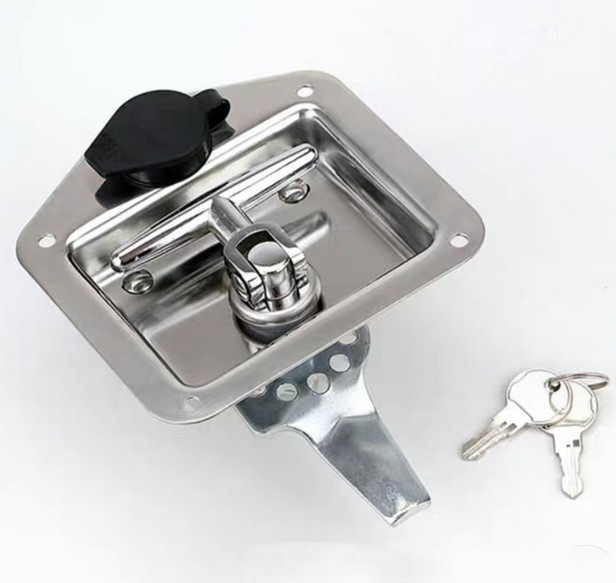

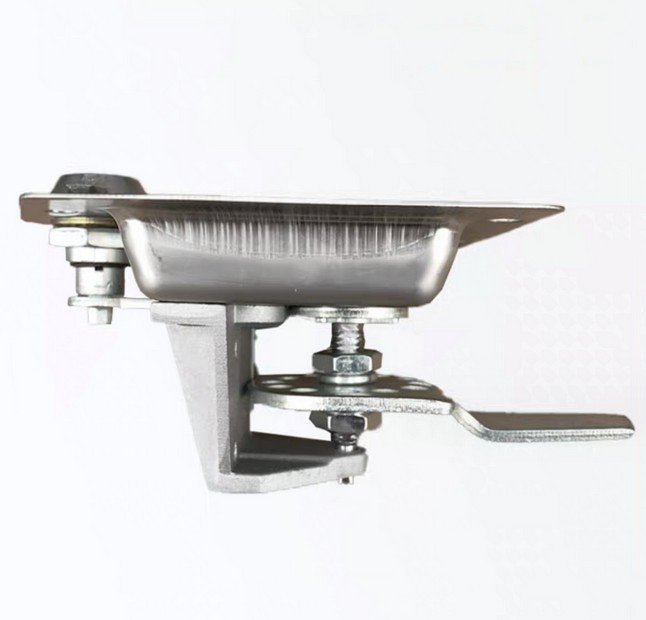

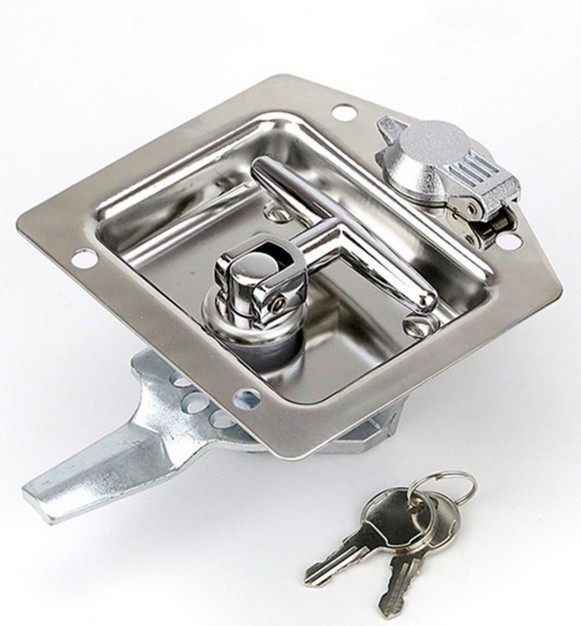

PANEL LOCK (DL858-8)

特征说明 CHARACTERISTICS

Material

不锈钢面板、钢栓,锌合金支架、手柄、转轴、防尘盖(塑料可选)

Stainless steel panelbolt, zinc alloy brackethandleshaftdustproof cap(plastic oPTional)

表面处理

Surface treatment

镜面抛光不锈钢面板, 镀亮铬手柄、转轴和防尘盖(塑料可选),镀白锌支架

Mirror polished stainless steel panelbright chrome plated handleshaft tube and dustproof capplastic optional,  white zinc plated bracket

性能参数 PERFORMANCE PARAMETERS

手柄承载扭矩值

handle load torque capability

27N.m

钢栓承载力

Bolt load capability

510N

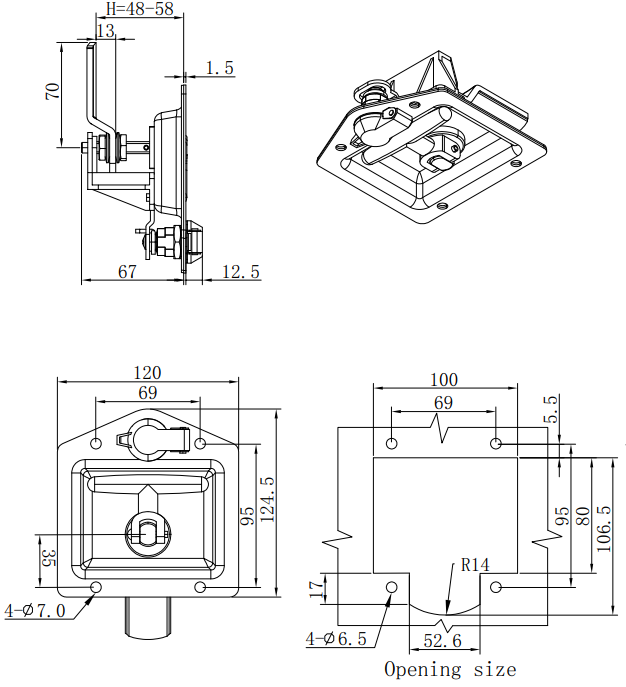

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

PANEL LOCK (DL858-8)
