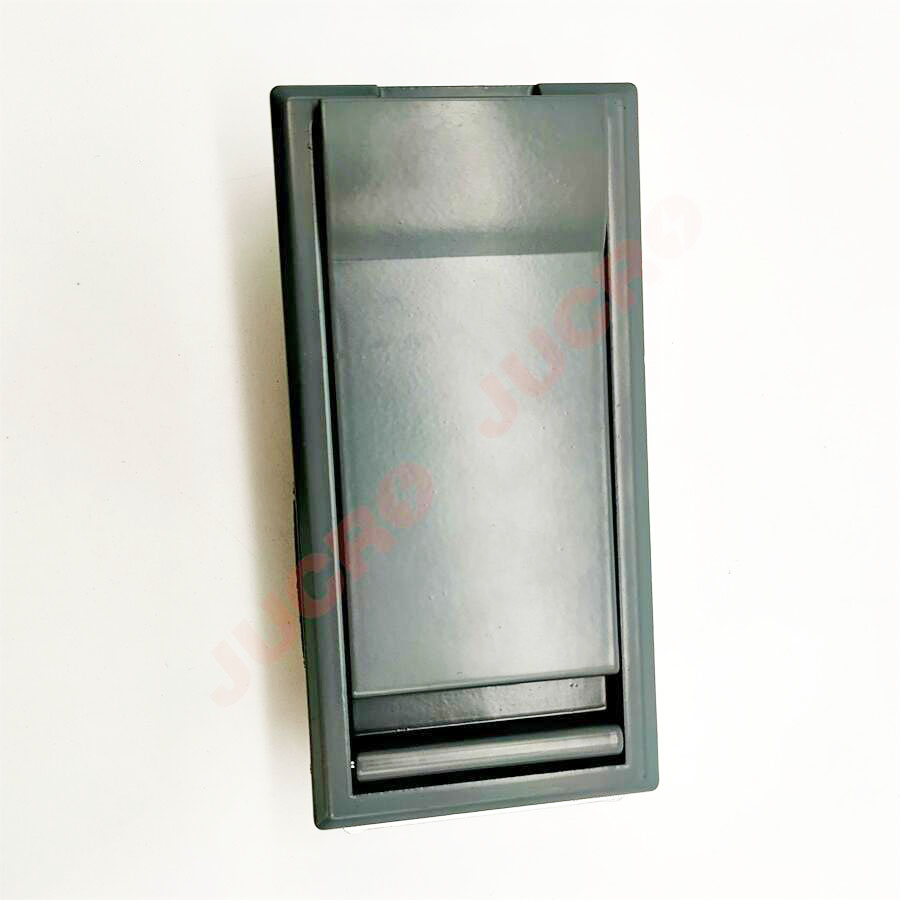

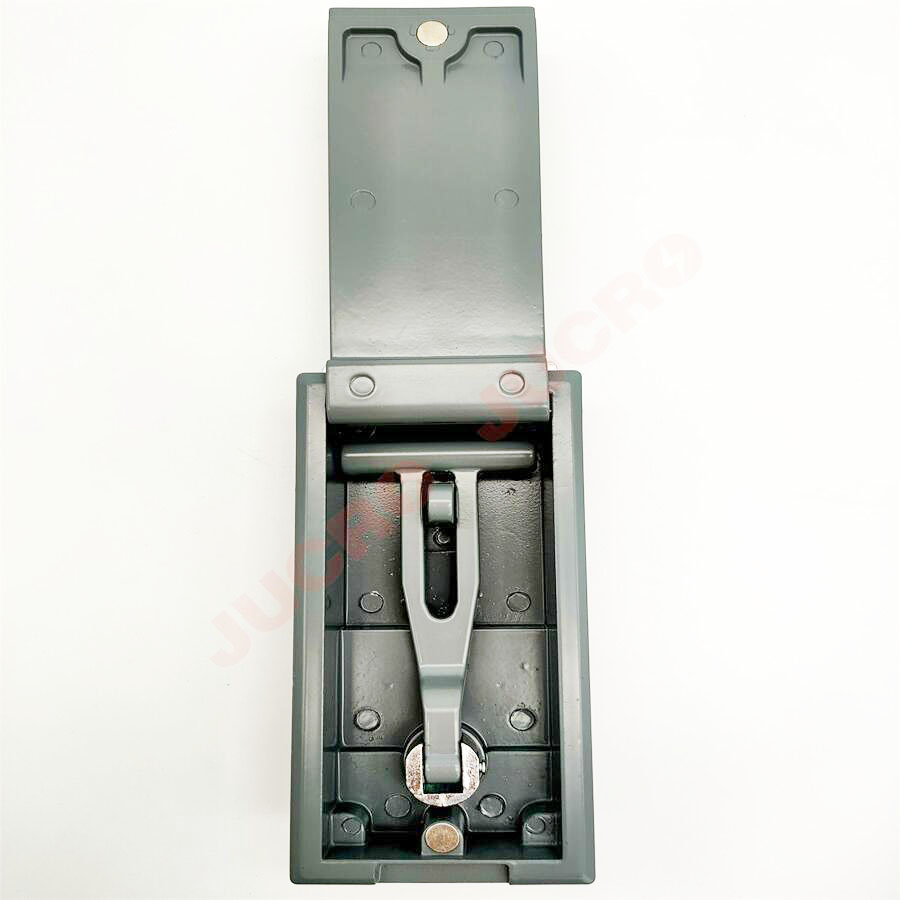

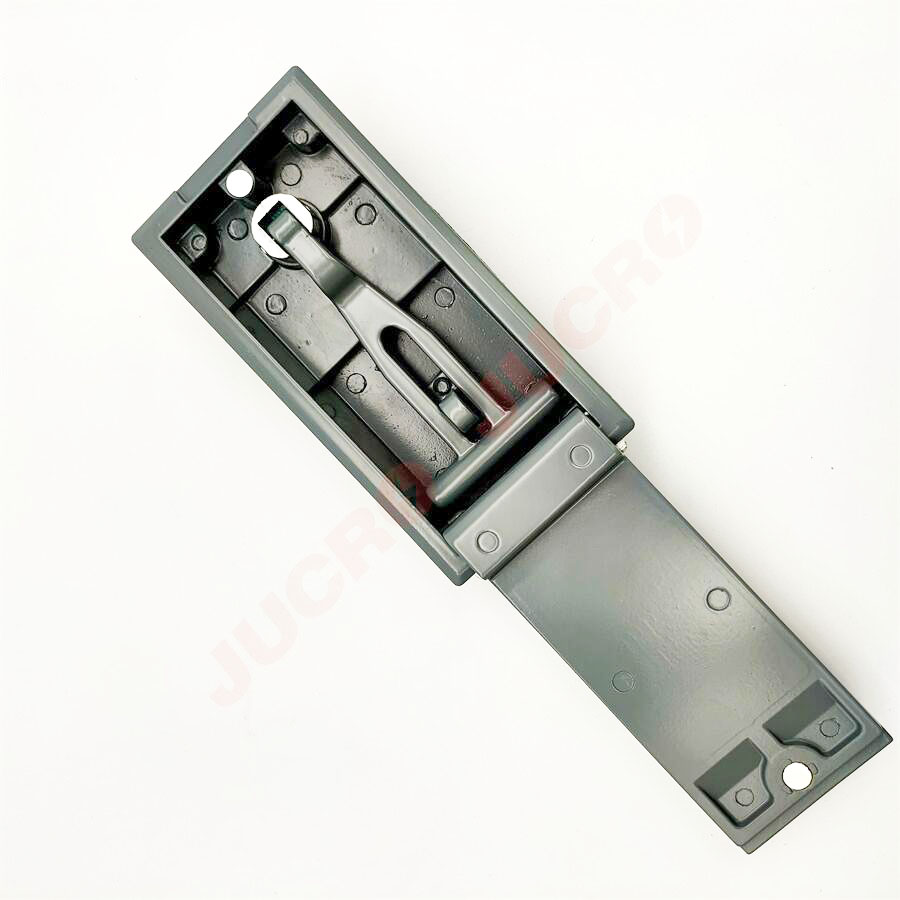

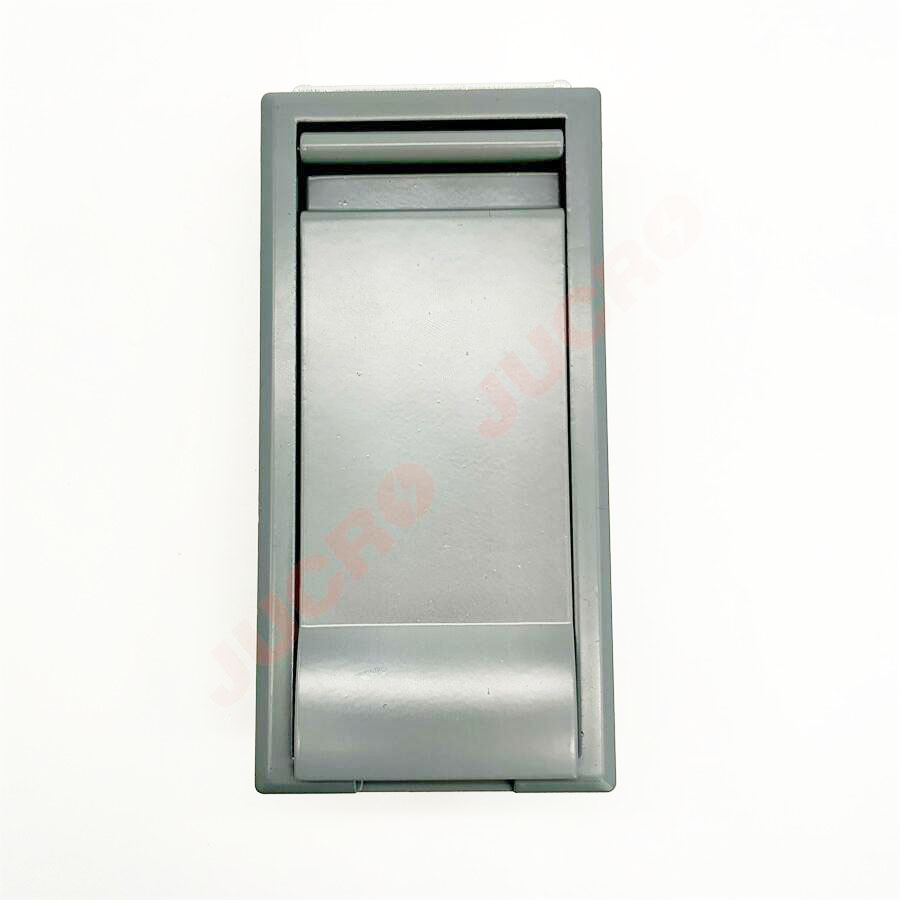

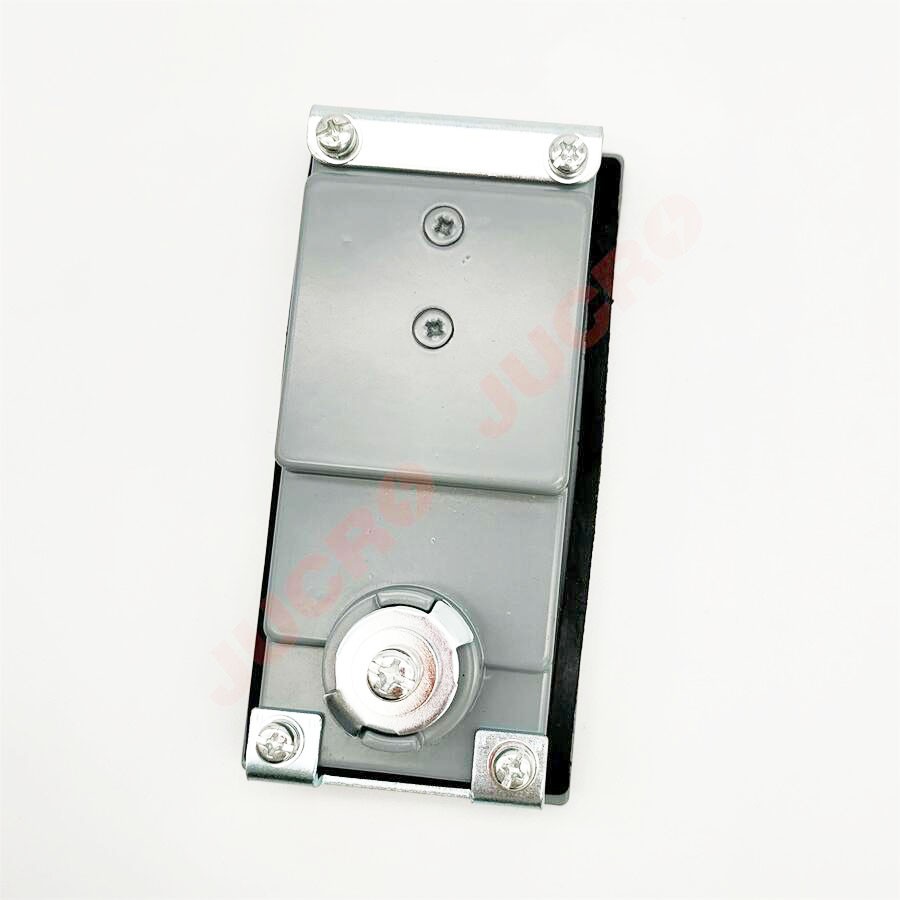

PANEL LOCK (DL850-1A)

PANEL LOCK (DL850-1A)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

铝合金基座、手柄、盖板,锌合金挂锁装置,碳钢钢栓、压板、转轴

Aluminum alloy housing, handle and cover; zinc alloy padLock device; carbon steel bolt, pressing plate and shaft

表面处理

Surface treatment

喷塑(蓝灰)基座、手柄、挂锁装置及盖板,镀白锌钢栓,压板

Blue-gray painted housing, handle, padlock device and cover; white zinc plated steel bolt and pressing plate

结构说明

Structure descriPTion

可带挂锁

Padlockable



性能参数 PERFORMANCE PARAMETERS

手柄承载扭矩值

Handle load torque capability

18Nm

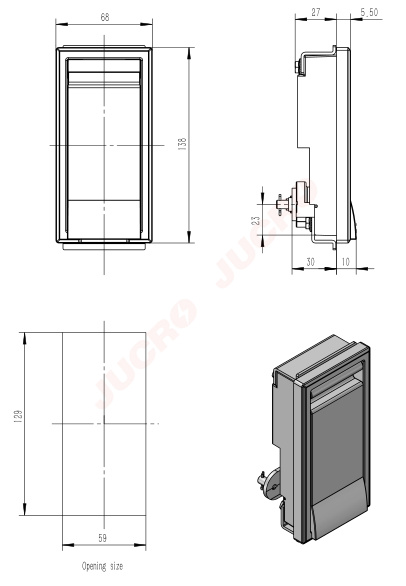

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

铝合金基座、手柄、盖板,锌合金挂锁装置,碳钢钢栓、压板、转轴

Aluminum alloy housing, handle and cover; zinc alloy padLock device; carbon steel bolt, pressing plate and shaft

表面处理

Surface treatment

喷塑(蓝灰)基座、手柄、挂锁装置及盖板,镀白锌钢栓,压板

Blue-gray painted housing, handle, padlock device and cover; white zinc plated steel bolt and pressing plate

结构说明

Structure descriPTion

可带挂锁

Padlockable



性能参数 PERFORMANCE PARAMETERS

手柄承载扭矩值

Handle load torque capability

18Nm



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
