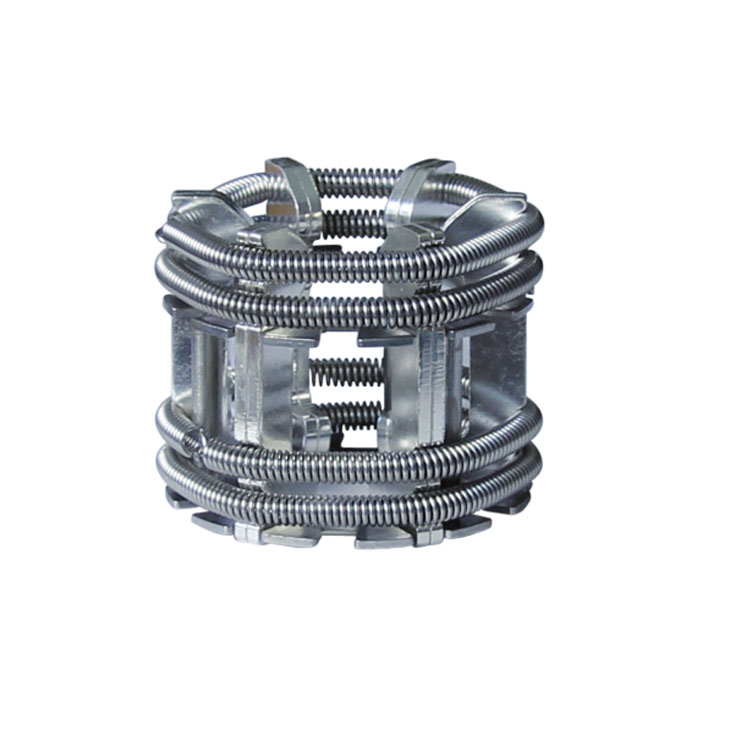

Movedable Contact DCT-630A\1000A For Vacuum Circuit Breaker use from JUCRO Electric
Technical Specification
Tulip Contact/Jaw Contact/Moved Contact/Female Contact/Movable Contact For Vacuum Circuit Breaker
The Moved contact series is used in indoor vacuum circuit breakers and is the core conductive switching element in vacuum circuit breakers.
Model | DCT-630A/1000A |
Ordering number | JUC-202 |
Contact finger number | 12 pieces |
Material | Red copper / Strainless steel spring |
Tulip Contact/Jaw Contact/Moved Contact/Female Contact/Movable Contact
HS Code | 853890000 |
Copper grade | T2 |
Conductivity IACS % | 99.8% |
Hardness | 89.7 |
Chemical composition | Cu+Ag≥99.98 |
Silver coating thickness | 8-17.5μm |
Ambient temperature | -50℃~ +150℃ |
Contact surface roughness | ≤Ra:3.2 |
Spring material | Non-magnetic Ring-shaped, avoid the eddy |
