Moveable Contact DCT-1250A For Vacuum Circuit Breaker use from JUCRO Electric
Technical Specification |
Tulip ContaCT/Jaw Contact /Female Contact/Movable Contact for Vacuum Circuit Breaker. It is mainly used in 12kV indoor vacuum circuit breakers and is the core conductive switching element in vacuum circuit breakers. |
MAIN PARAMETERS |
Model No. | Ordering number | Contact finger number | Material | HS Code | Copper grade | Conductivity IACS % |
DCT-1250A | DCT00.1250A.02 | 30 pieces | Copper / Strainless steel spring | 853890000 | T2 | 99.8% |
Hardness | Chemical composition | Silver coating thickness | Ambient temperature | Contact surface roughness | Spring material | |
89.7 | Cu+Ag≥99.98 | 7-10μm | -50℃~ +150℃ | ≤Ra:3.2 | Non-magnetic Ring-shaped, avoid the eddy |

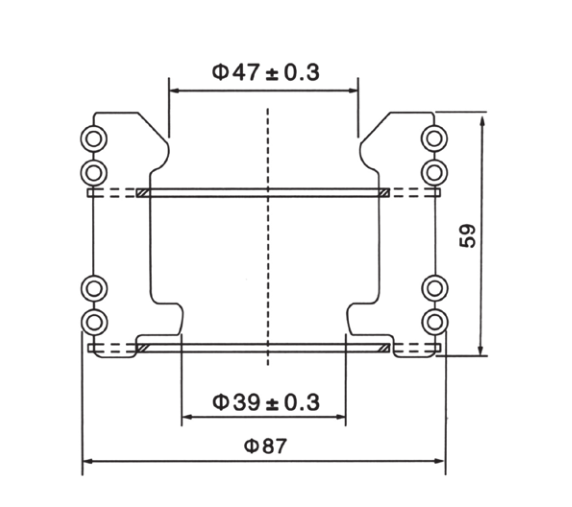

DIMENSIONS | |
Unit:mm |
