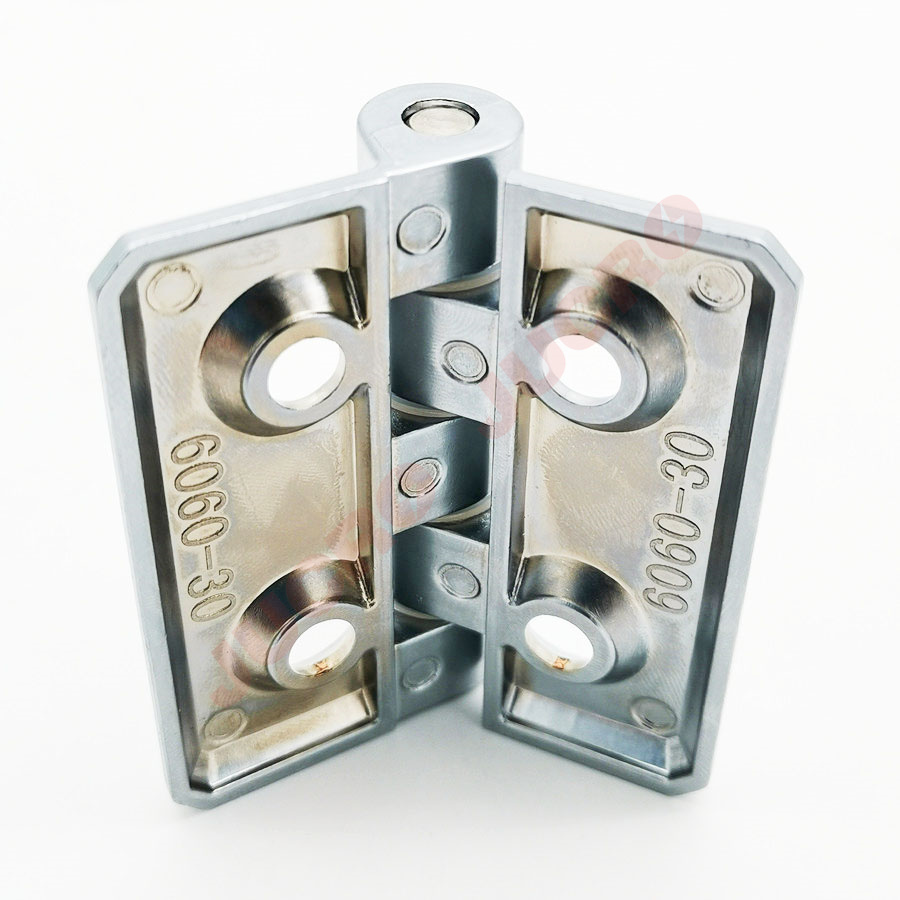

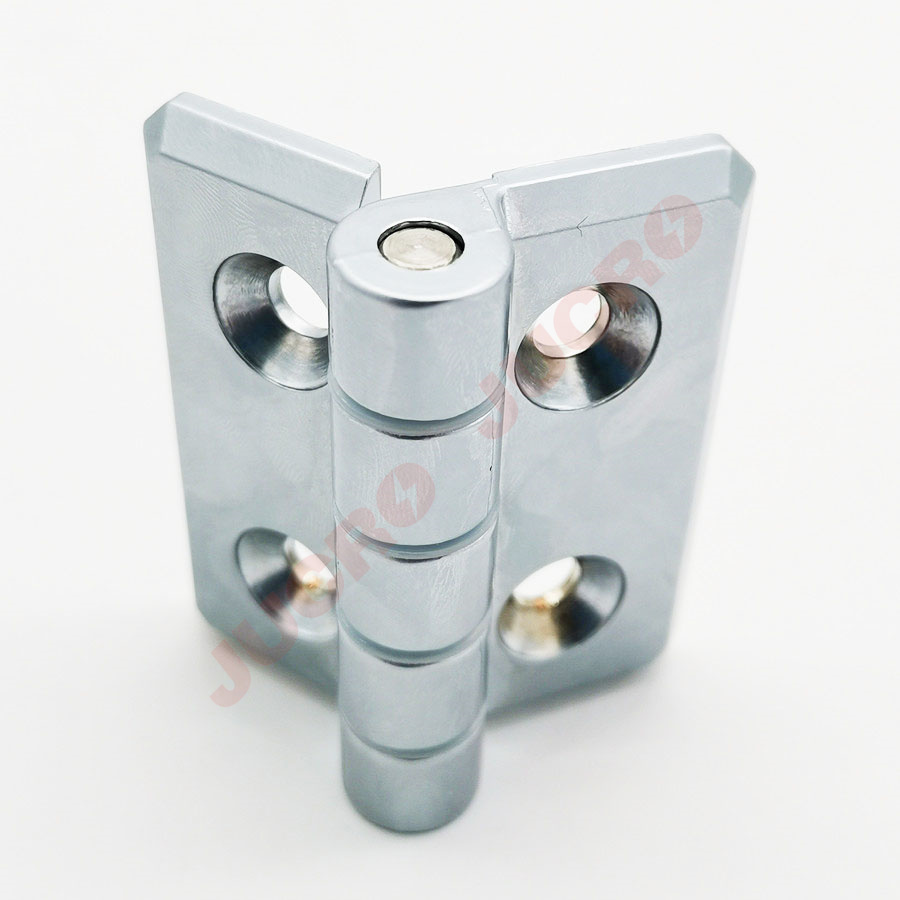

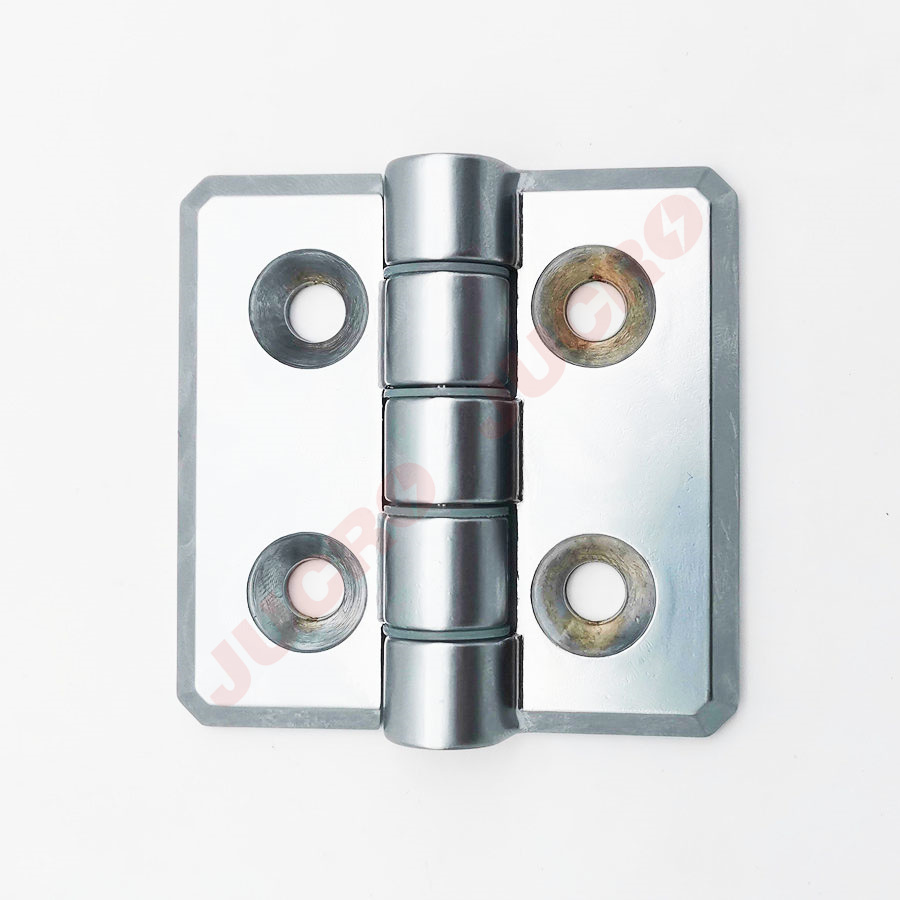

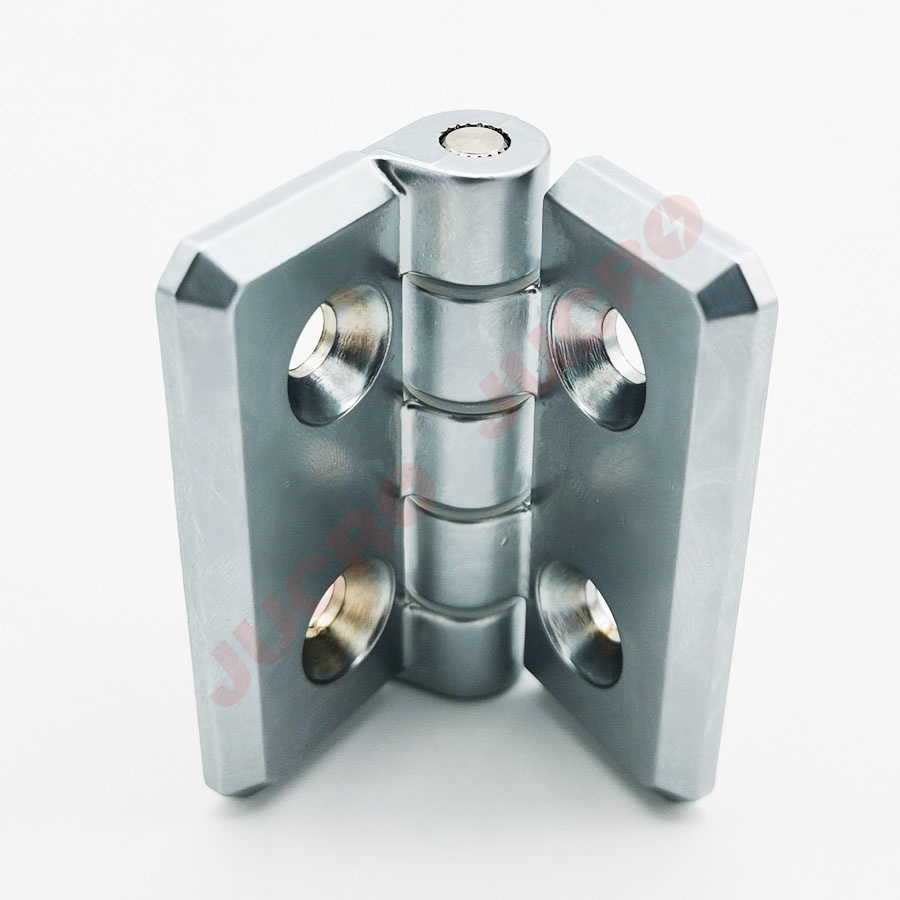

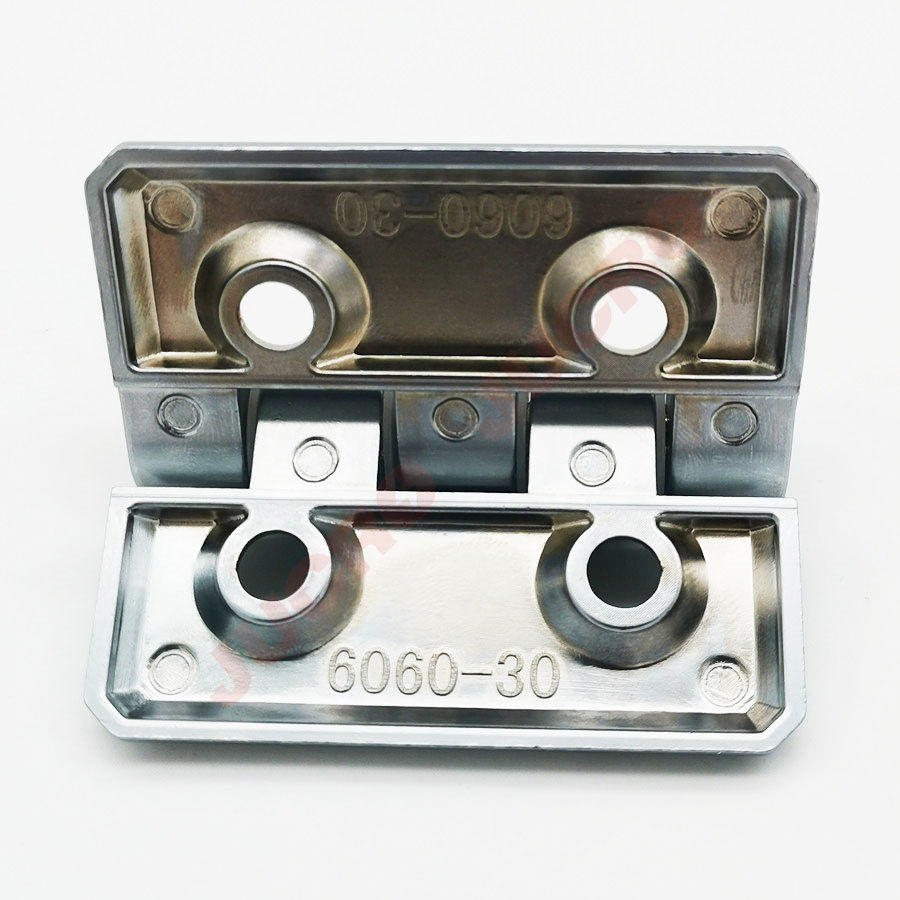

Hinge JH6060

Hinge JH6060

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金铰链,不锈钢销子

Zinc alloy Hinge, stainless steel pin

表面处理

Surface treatment

镀亮光铬

Bright chrome plated

结构说明

Structure descriPTion

可开启角度180°

Opening angle 180°



性能参数 PERFORMANCE PARAMETERS

径向载荷

The radial load

1500N

轴向载荷

The axial load

1800N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

10N.m

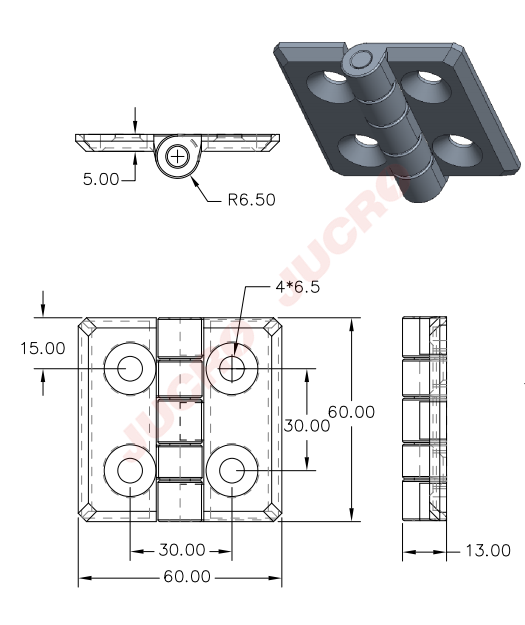

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金铰链,不锈钢销子

Zinc alloy Hinge, stainless steel pin

表面处理

Surface treatment

镀亮光铬

Bright chrome plated

结构说明

Structure descriPTion

可开启角度180°

Opening angle 180°



性能参数 PERFORMANCE PARAMETERS

径向载荷

The radial load

1500N

轴向载荷

The axial load

1800N

固定螺母的推荐拧紧力矩

Recommended nut tightening torque

10N.m



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm
