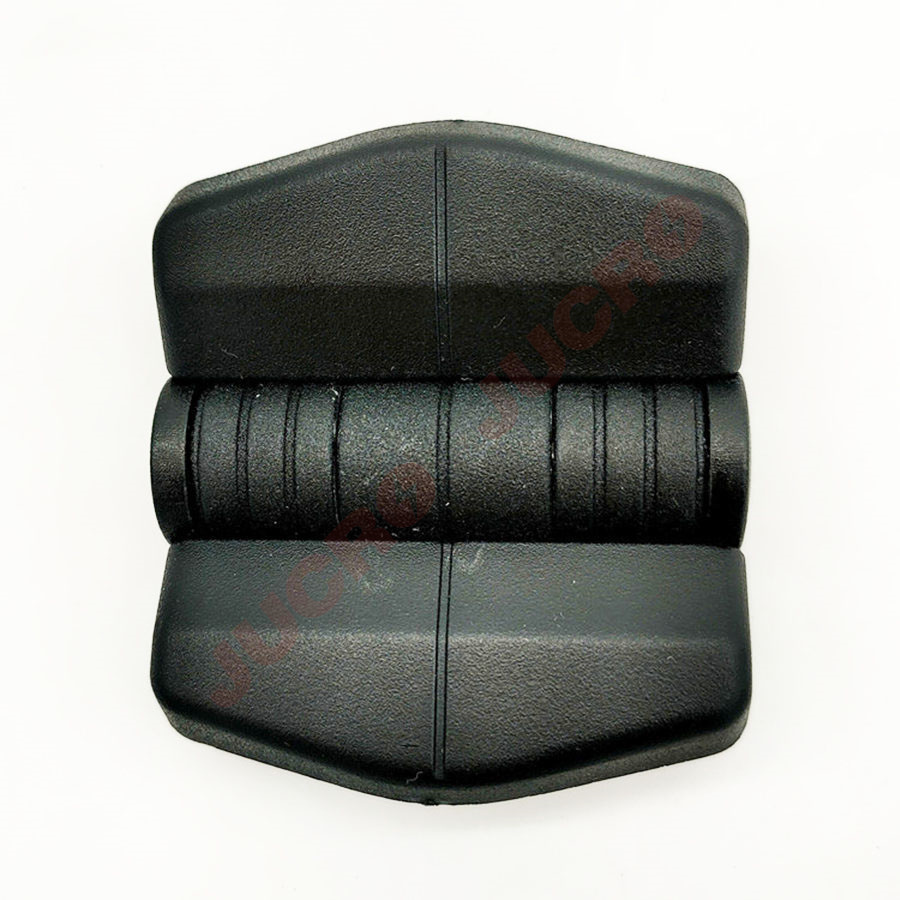

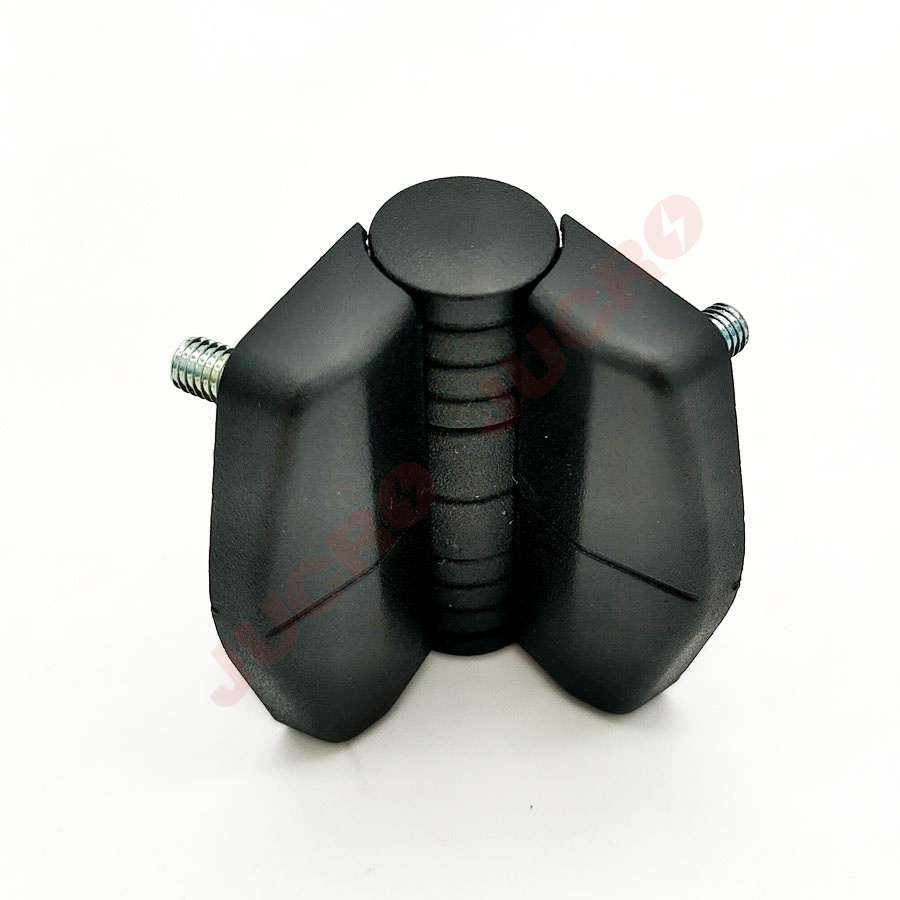

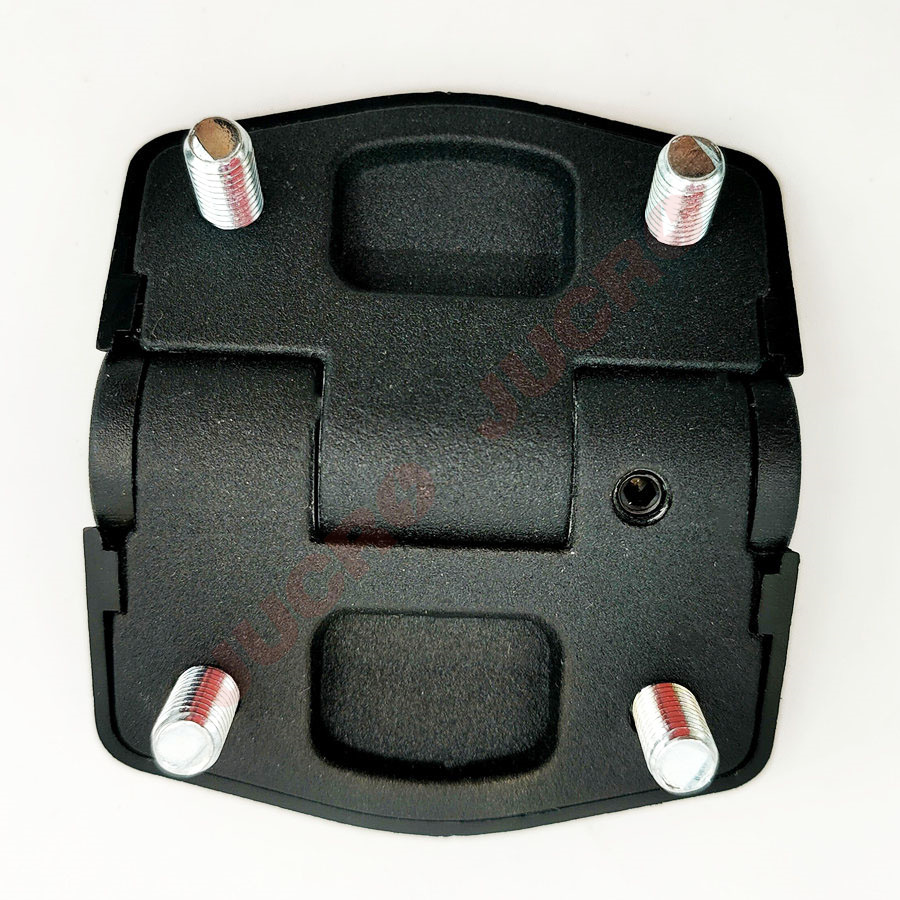

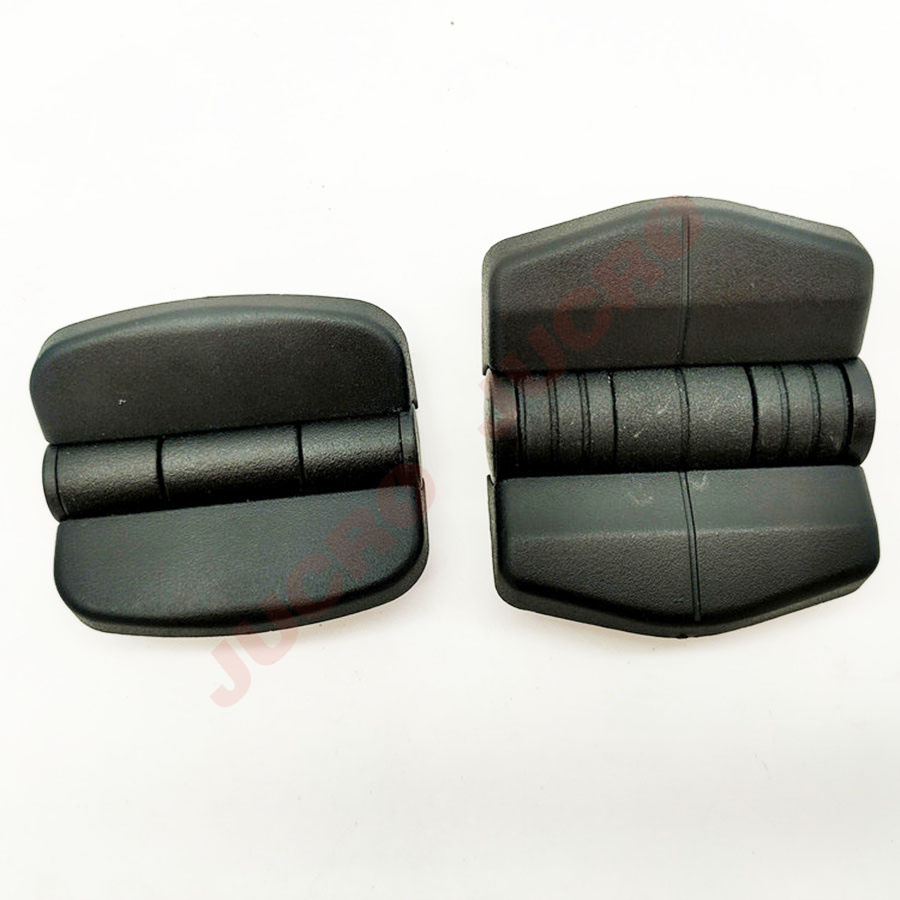

Hinge JH257-1
特征说明 CHARACTERISTICS | |
材 质 Material | 锌合金铰链，PA面盖，碳钢销子 Zinc alloy Hinge, PA cover, carbon steel pin |
表面处理 Surface treatment | 喷砂纹黑，销子镀白锌 Black grind arenaceous paint，blue white zinc plating for steel pin |
结构说明 Structure descriPTion | 可开启角度180° Opening angle 180° |
性能参数 PERFORMANCE PARAMETERS | |
径向载荷 The radial load | 800N |
轴向载荷 The Axial load | 600N |

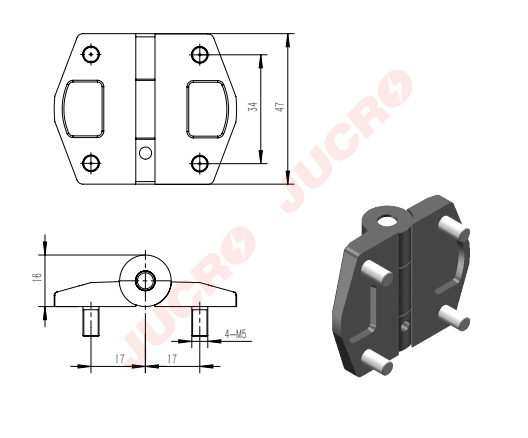

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION |
Unit：mm |
