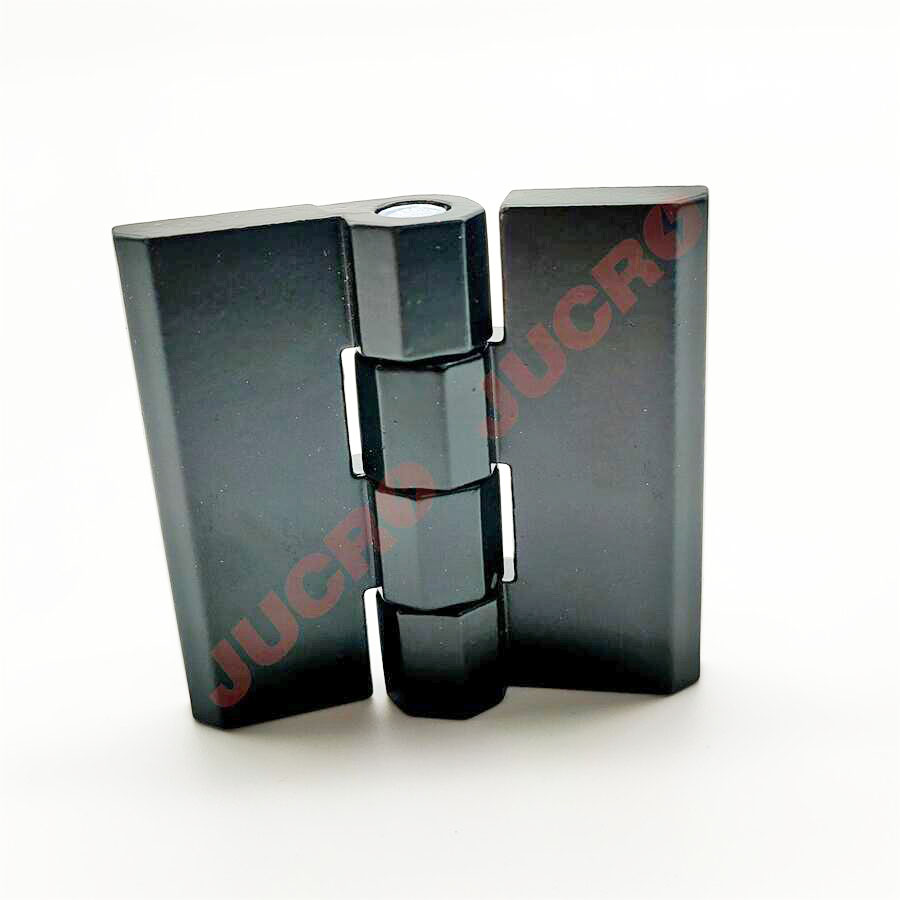

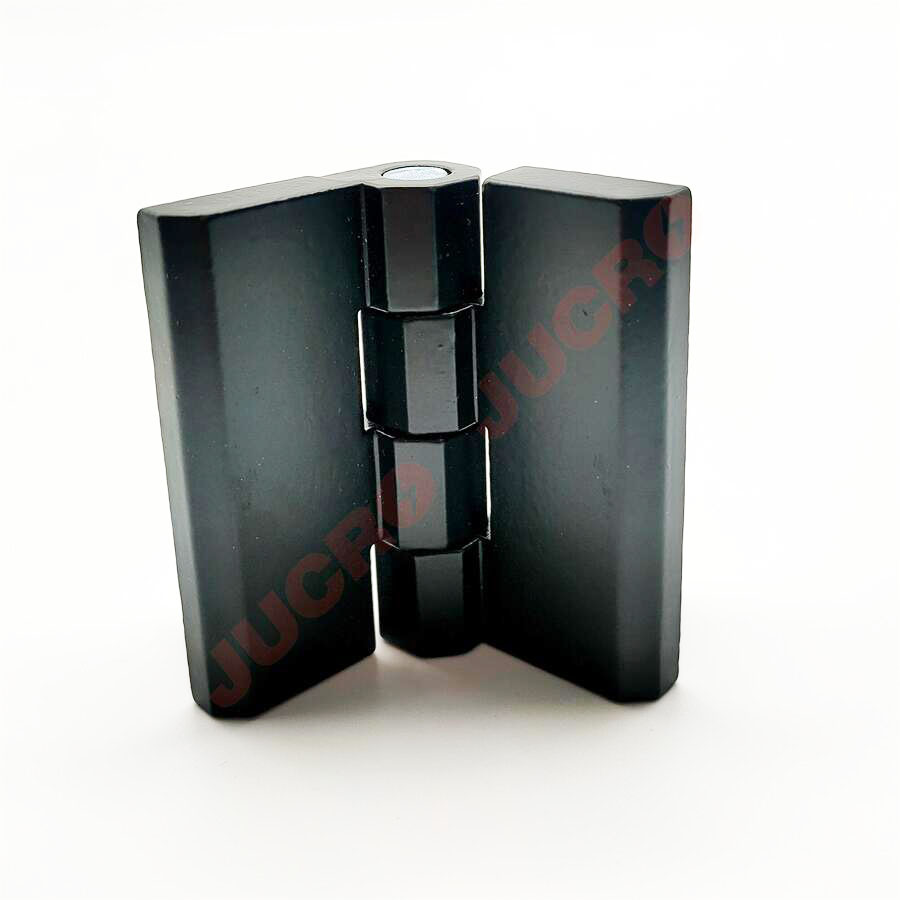

Hinge (JH226-1A)

Hinge (JH226-1A)

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金铰链,碳钢销子

Zinc alloy hinge, carbon steel bolt

表面处理

Surface treatment

喷塑(黑淡光)铰链,镀镍销子

Black spray painted Hinge, nickel plated steel bolt

结构说明

Structure descriPTion

可开启角度180°

180 degree rotation



性能参数 PERFORMANCE PARAMETERS

径向载荷

Radial load

1500N

轴向载荷

Axial load

1800N

镶嵌螺钉推荐拧紧扭矩

Embedded screw recommended tightening torque

17Nm

备注:以上数据为***静荷载。

RemarkThe above data is maximum static load.

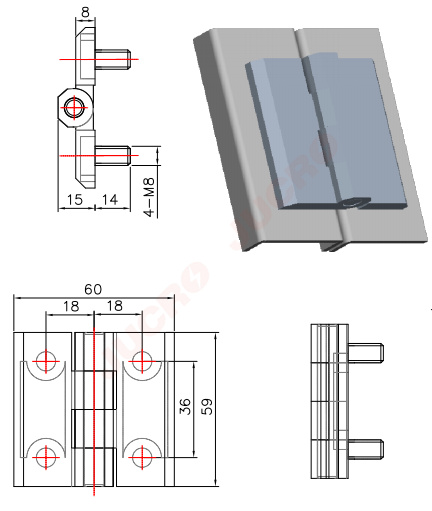

外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

No comment

Product Detail

特征说明 CHARACTERISTICS

材 质

Material

锌合金铰链,碳钢销子

Zinc alloy hinge, carbon steel bolt

表面处理

Surface treatment

喷塑(黑淡光)铰链,镀镍销子

Black spray painted Hinge, nickel plated steel bolt

结构说明

Structure descriPTion

可开启角度180°

180 degree rotation



性能参数 PERFORMANCE PARAMETERS

径向载荷

Radial load

1500N

轴向载荷

Axial load

1800N

镶嵌螺钉推荐拧紧扭矩

Embedded screw recommended tightening torque

17Nm

备注:以上数据为***静荷载。

RemarkThe above data is maximum static load.



外型及安装尺寸 APPEARANCE AND INSTALLING DIMENSION

Unitmm

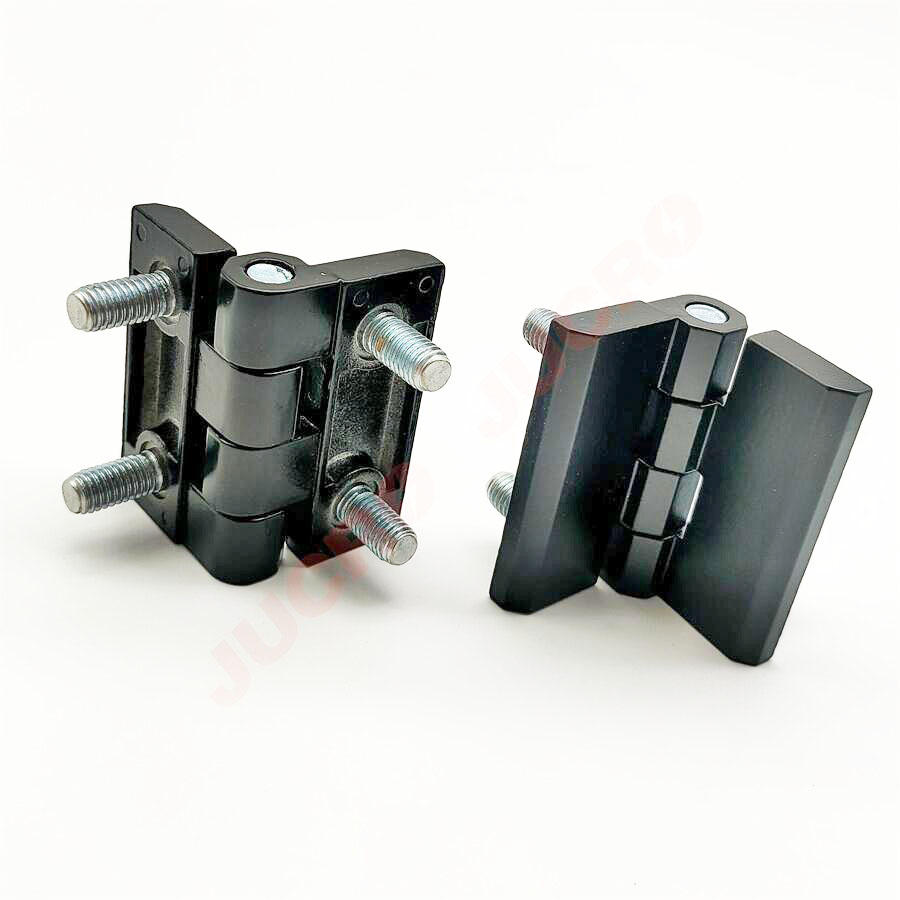

Hinge (JH226-1A)
